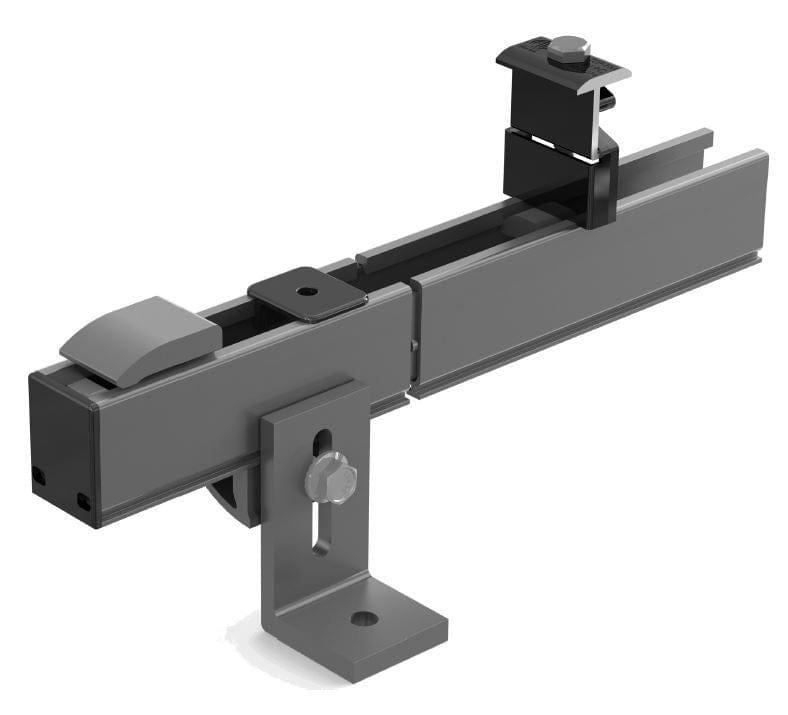

Kit contains all parts required to mount 4 modules with widths of up to 46-inches in portrait orientation.
2.3-inch rail height for spans up to 10 feet and wind speed up to 180 MPH
Module clamps included in kits fit frame thickness of 30mm to 40mm; additional
clamps available for modules with thicker frames
Features:
-
Best Wire Management - PV cables and wiring for module-level electronics fits inside rails to avoid time consuming wire management.
-
Use Any Roof Attachments - Included L-feet mount to Tamarack composition shingle flashings, S-5! metal roof clamps or any roof attachment that can be used with a 5/16 inch bolt.
-
One Wrench Size - Install with ease and minimal tools. A 1/2-inch socket fits all fasteners.
-
UL 2703 Listed - All components meet UL standards and have Class A Fire Rating for Type 1 and 2 modules.
-
PE Certified - Pre-stamped engineering letters available for most states.
Included:
- 93" Rails - box of 4 rails for 4 modules (2 rails = Total span of 186")
- 4 Splices
- 8 Rails mounts
- 10 50/50 clamps
- 4 Channel end clamps
- 4 End caps
- 12 Wire clips
- 2 Ground clamps
- 4 MLPE Adapter
Made in the U.S.A.
