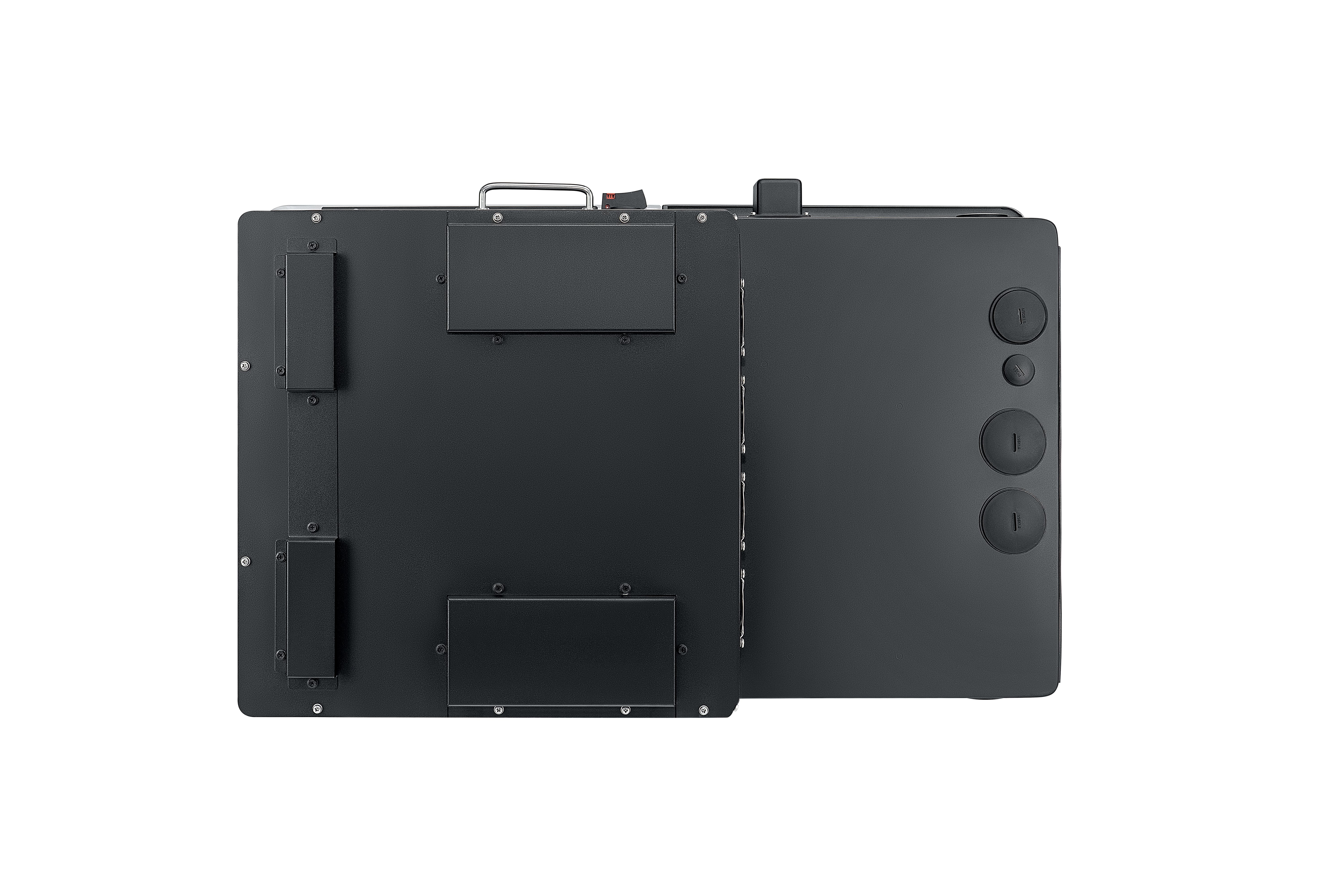

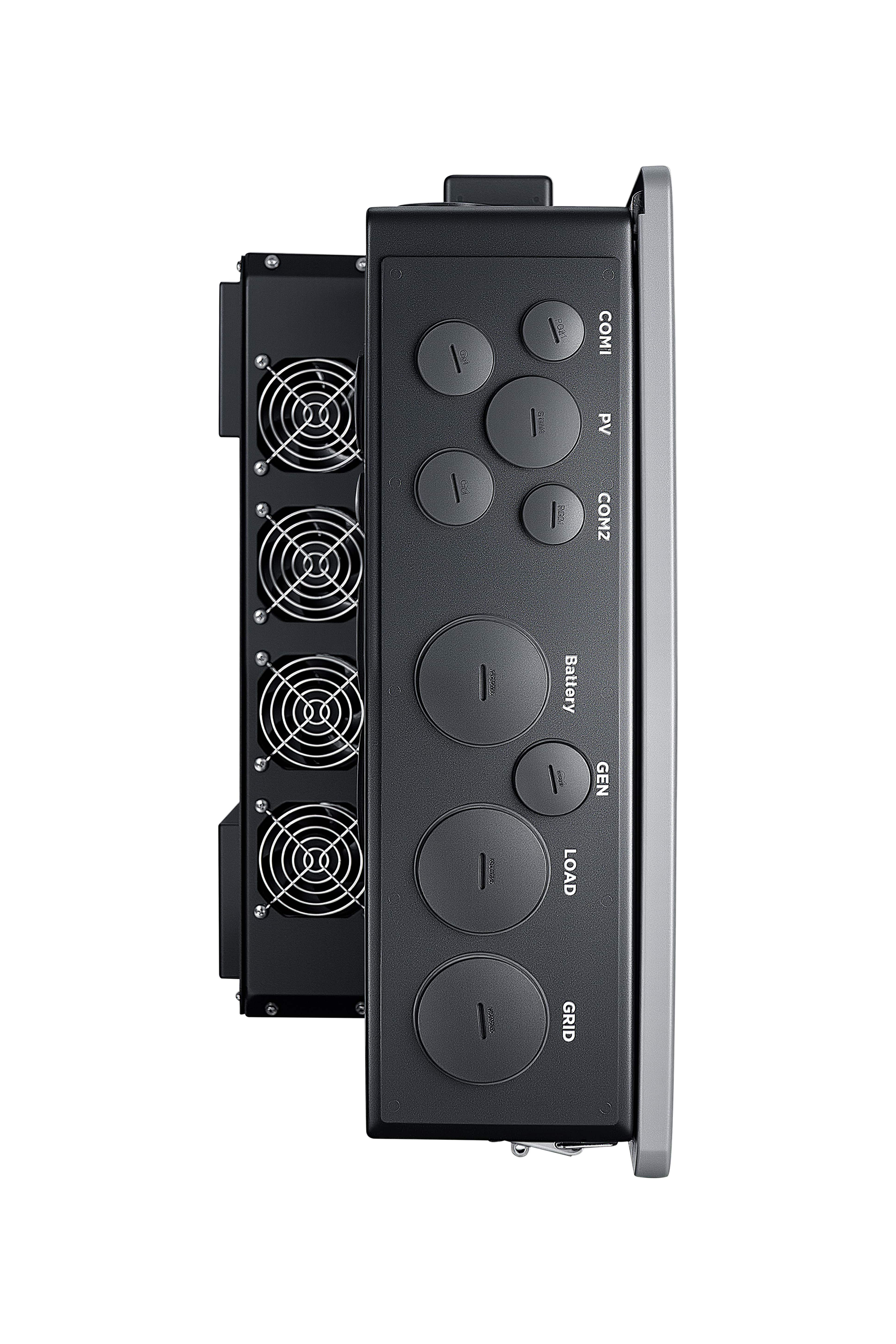

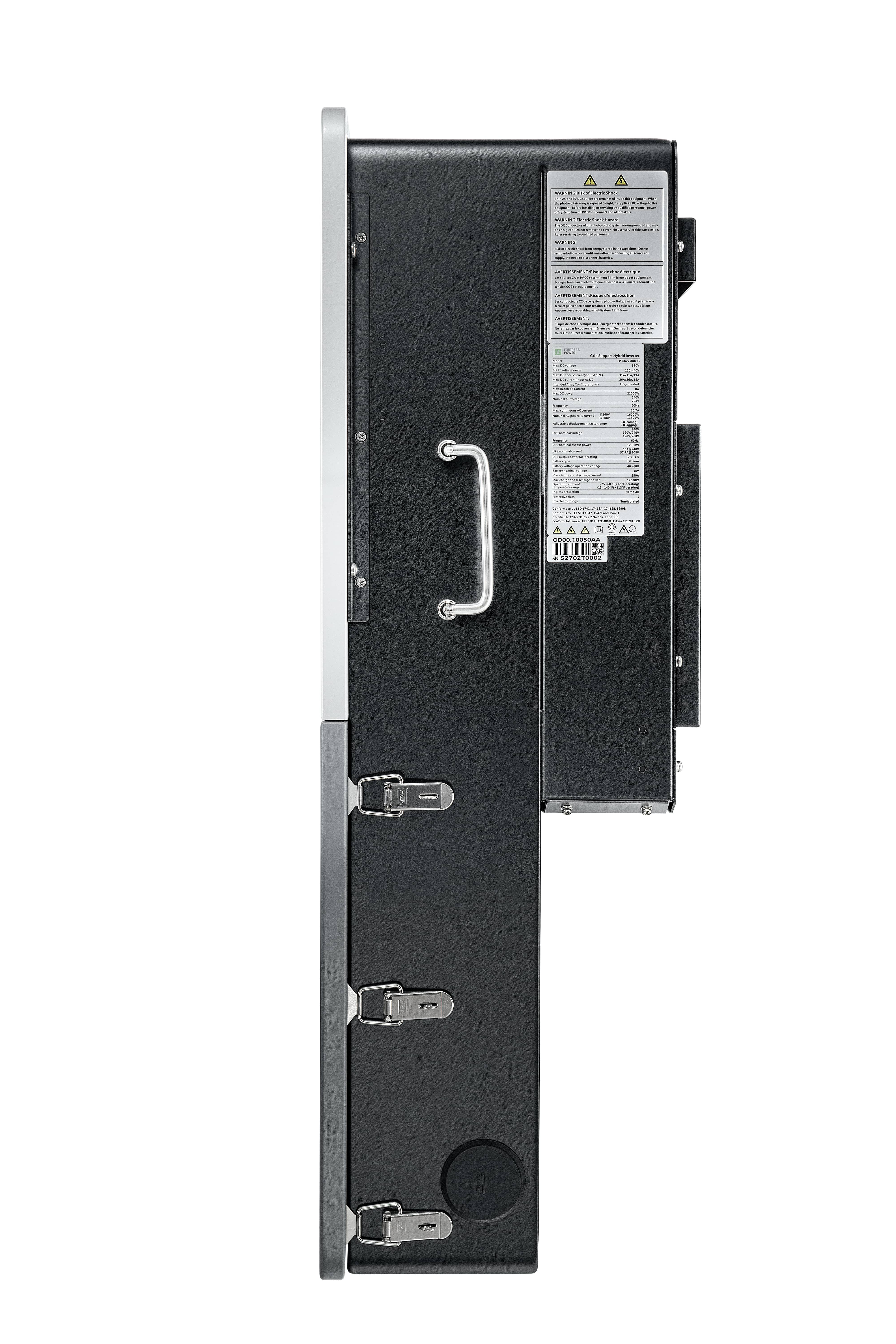

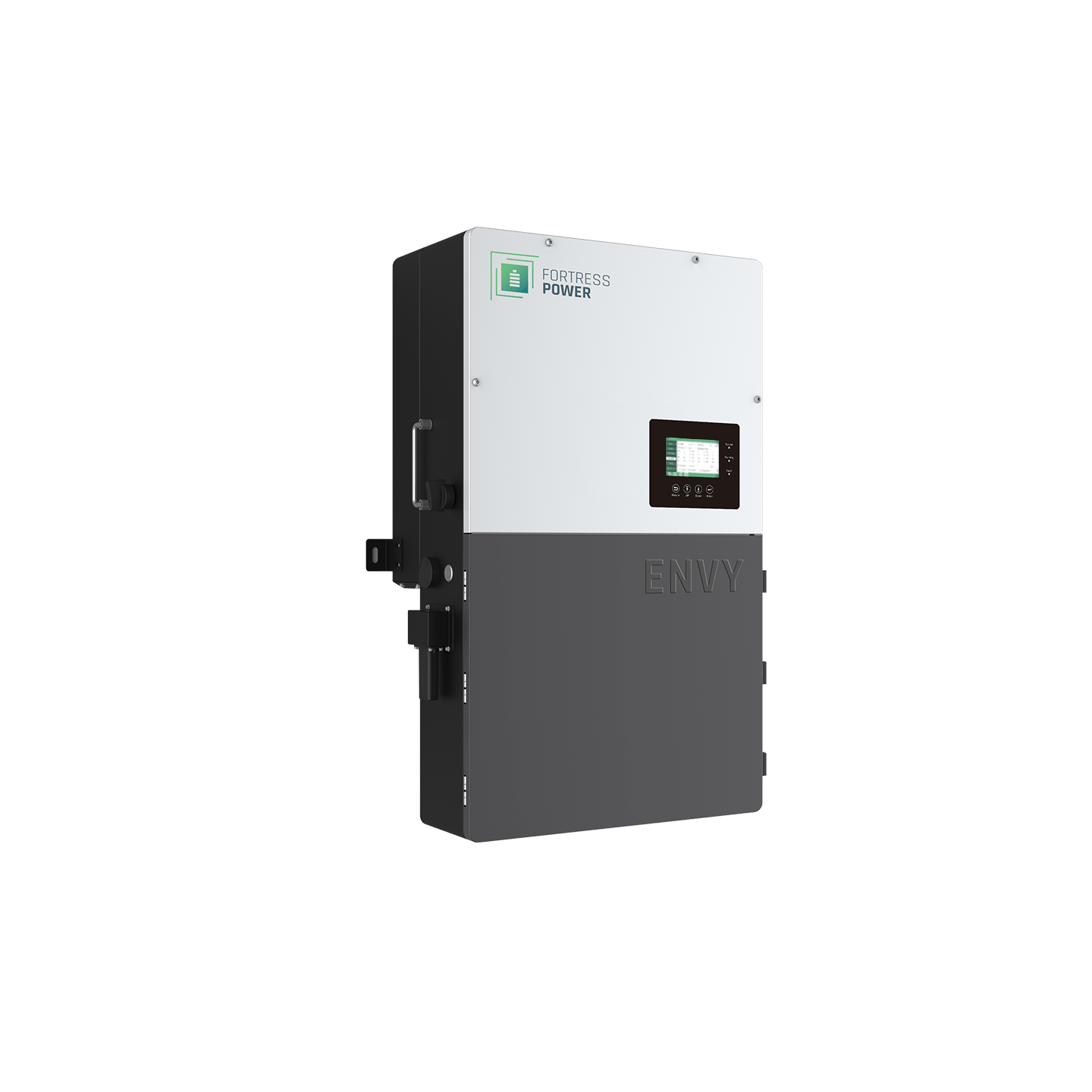

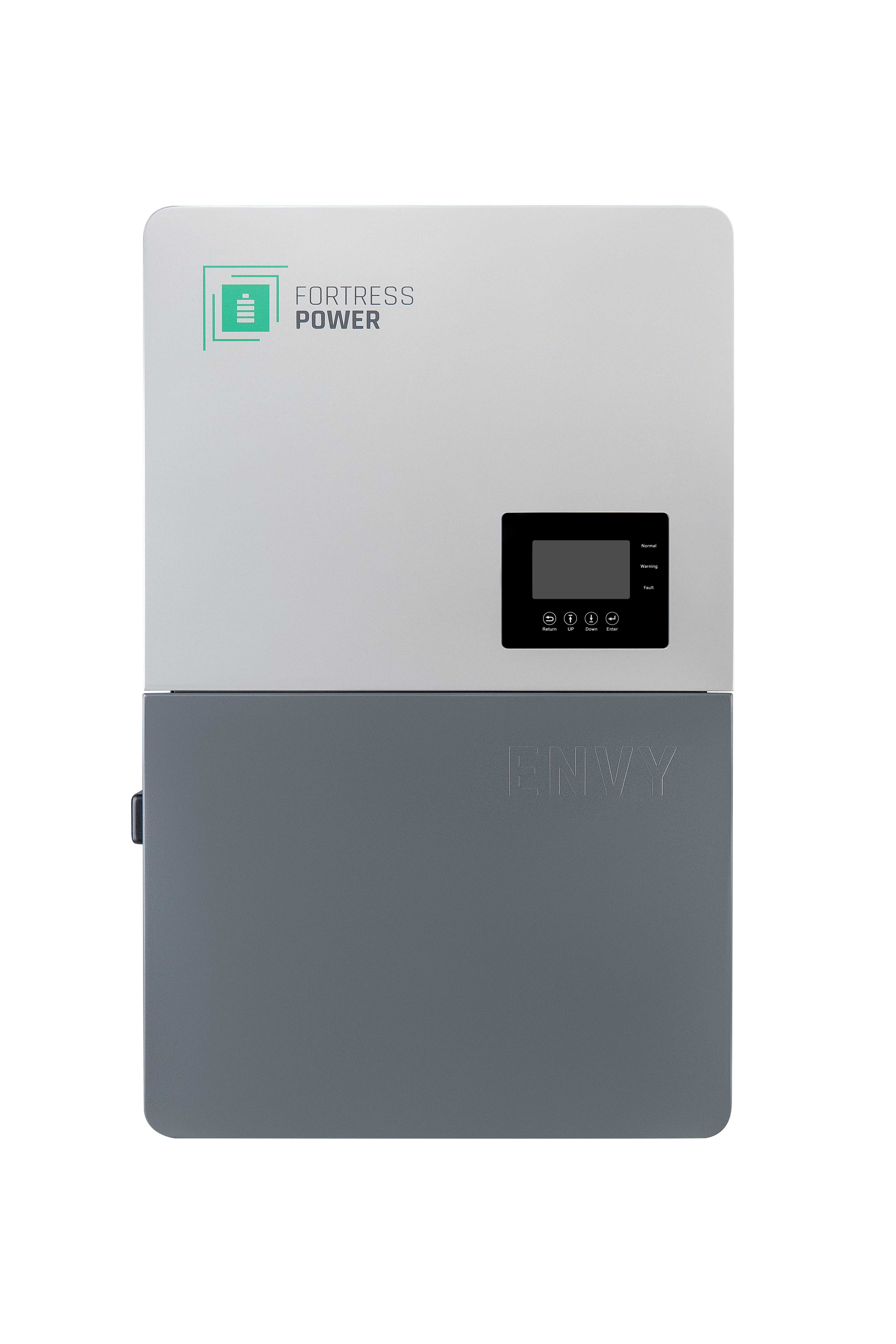

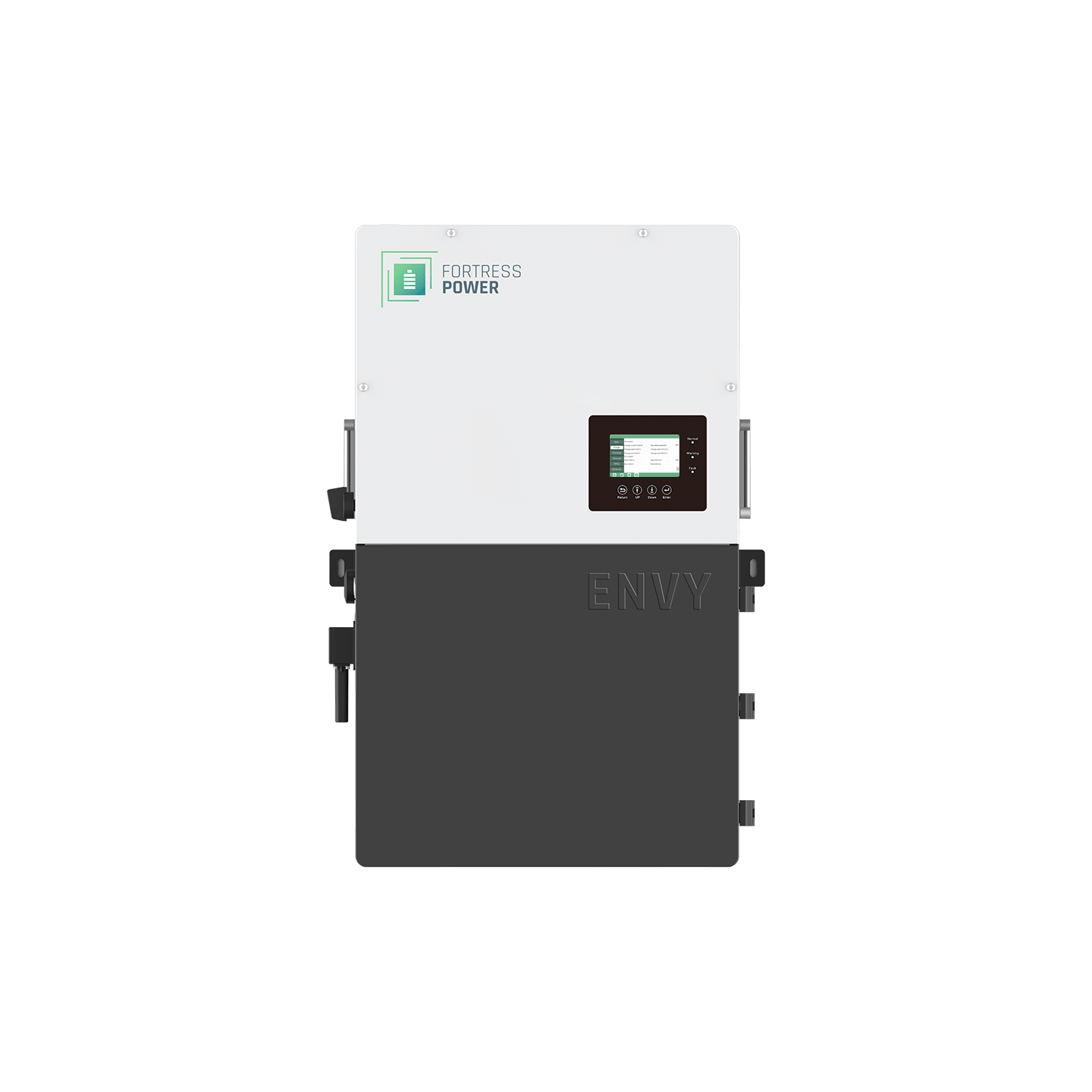

Fortress Power Envy Duo 21 Inverter
por Fortress Power
SKU Envy-Duo-21
$4,898.00
Maximum Power. Dual-Purpose Design.
The Fortress Power Envy Duo 21 is a powerful 48V hybrid inverter designed to handle demanding residential and light commercial energy needs. With a maximum PV input of 25kW and dual-phase compatibility (240V split-phase and 208V three-phase), it delivers 12kW of continuous backup output power across both configurations, with max export power of 16kW.
Perfectly matched with Fortress Power’s 48V battery systems, the Envy Duo 21 supports multiple applications. Its integrated AC/DC breakers, rapid shutdown transmitter, and parallel scalability up to 120kW make it a versatile, future-ready solution.
Features:
- High PV Input Capacity - Accepts up to 25kW of PV input—ideal for large residential or light commercial solar arrays seeking maximum generation potential.
- Dual Voltage Compatibility - Supports both 240V split-phase and 208V three-phase* applications, making it flexible for a wide range of grid configurations.
- Seamless Battery Integration - Pairs with Fortress Power 48V batteries to deliver 12kW of continuous power and up to 16kW peak, ensuring stable, whole-home
- Scalable System Design - Parallel up to 10 units for a total output of 120kW, expanding as energy demands grow without the need for complete system redesign.

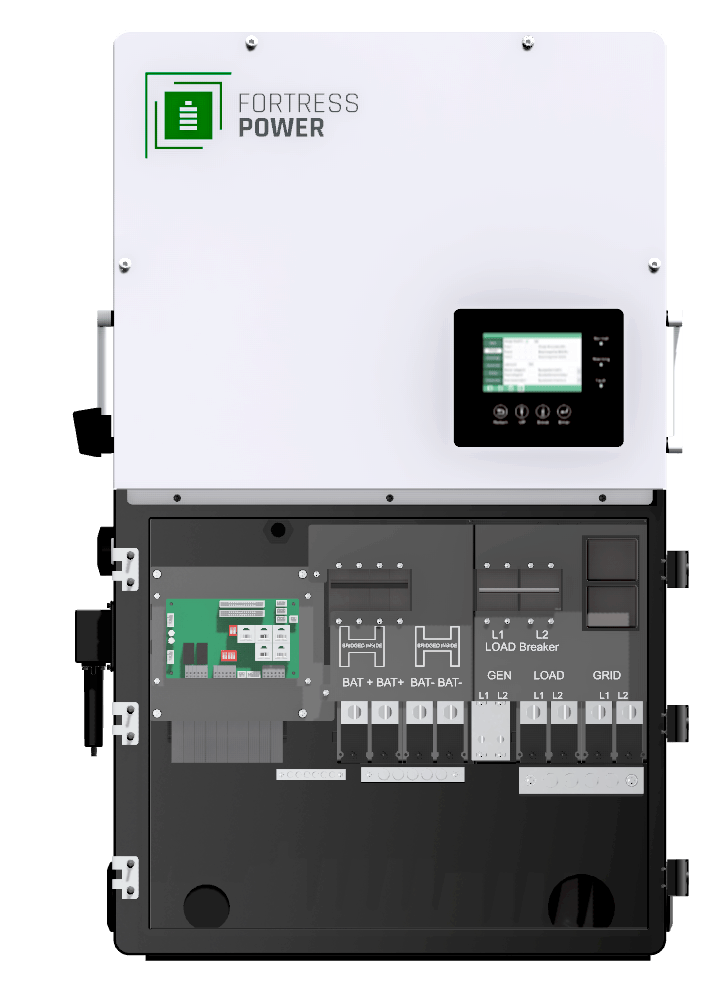

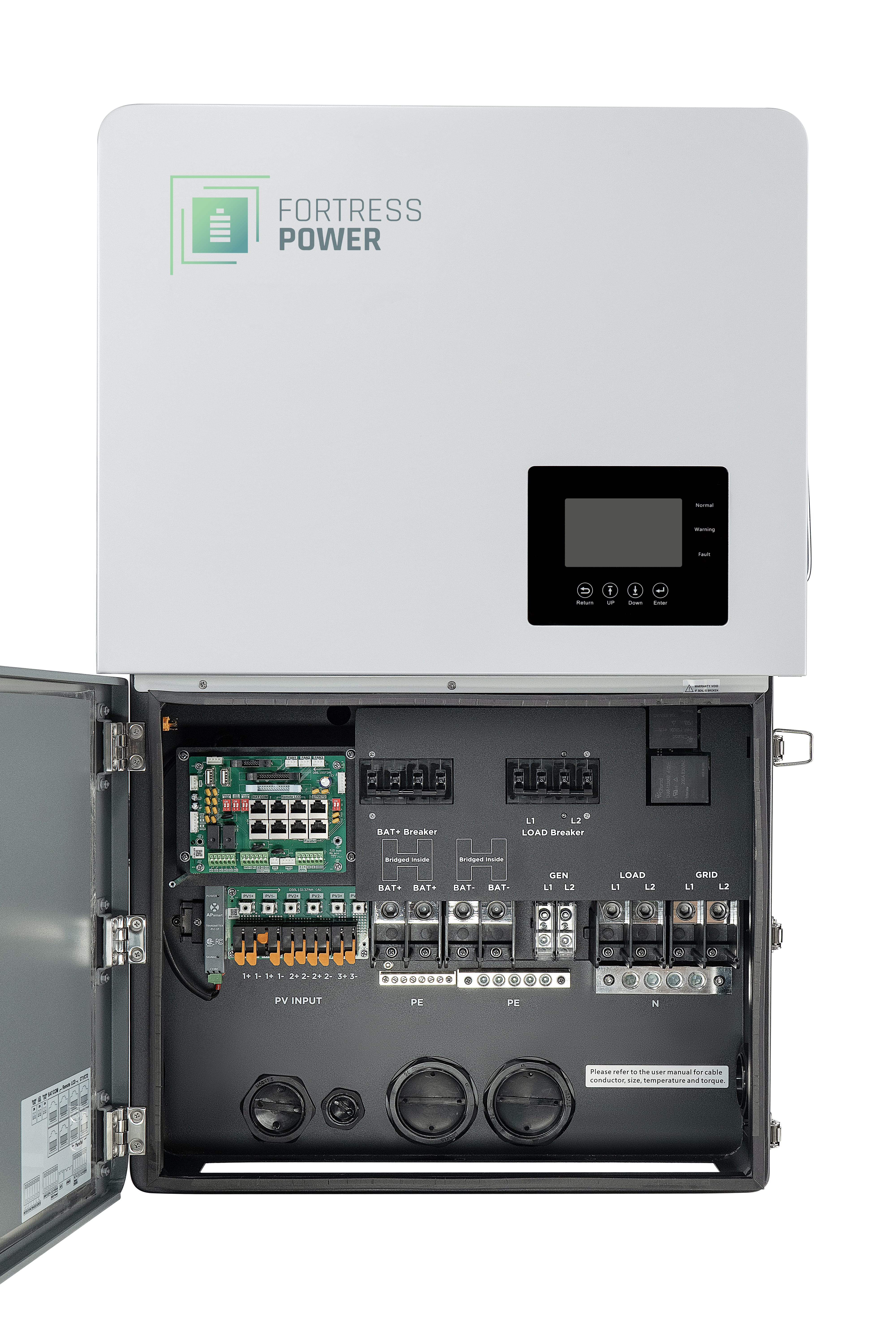

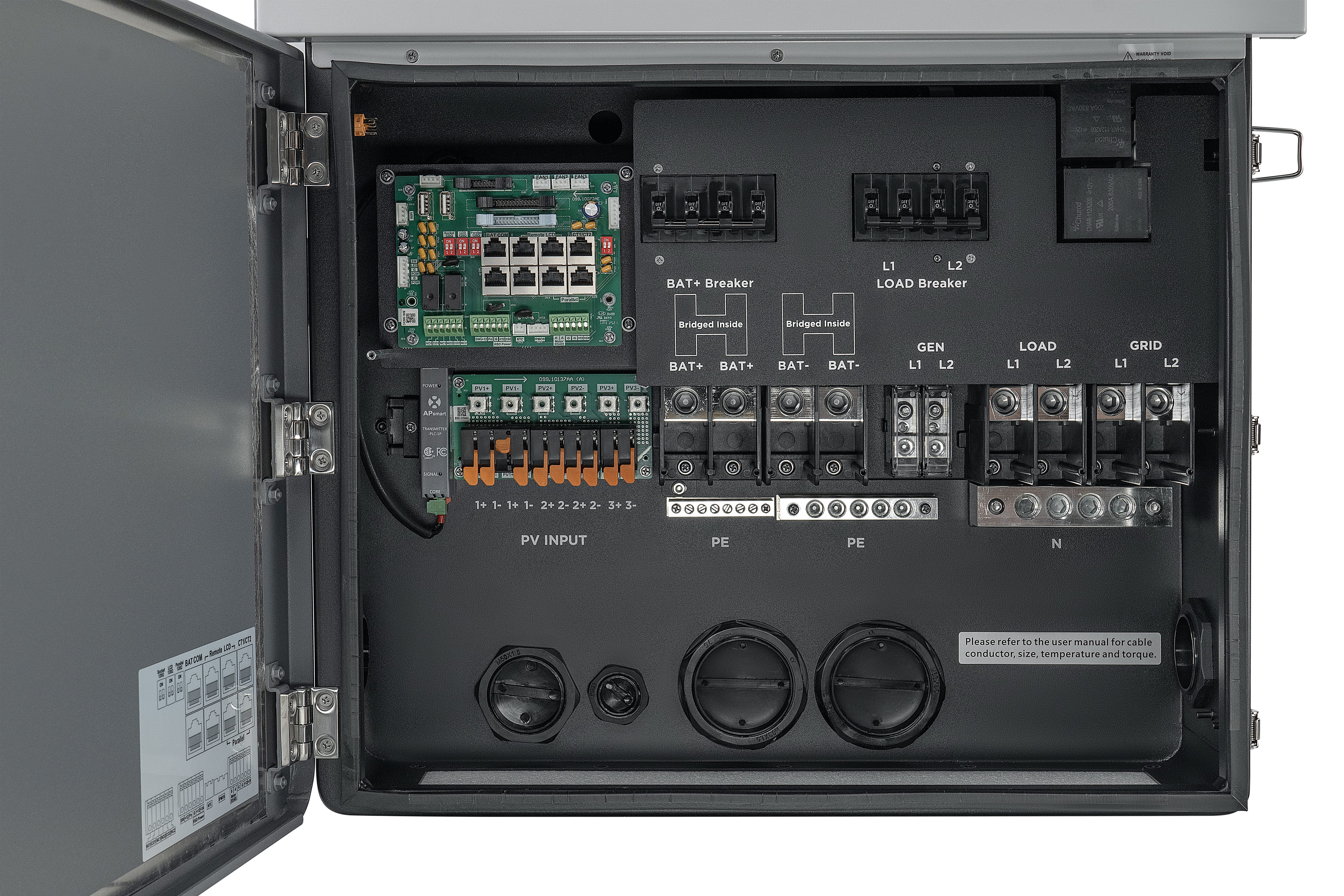

- Integrated Install-Friendly Hardware - Includes built-in AC/DC breakers and an integrated rapid shutdown transmitter for faster, code-compliant installations.
- Remote Monitoring and Firmware Updates - Monitor your solar production, battery performance, and grid consumption anytime via the Fortress Power mobile app. The Envy also supports remote firmware updates, ensuring your system stays up to date without the need for onsite visits.
Specifications:
| PV Output Data | |
| Number of MPPT | 3 |
| Inputs per MPPT | 2:2:1 |
| Max. usable input current (A) | 26/26/15 |
| Max. short circuit input current (A) | 31/31/19 |
| Start input voltage (V) | 100 |
| MPPT DC nominal voltage (V) | 360 |
| DC voltage range (V) | 100-550 |
| MPPt operating voltage range (V) | 120-440 |
| Max. Power (W) | 21000 |
| Max. PV ARRAY POWER (W) | 25000 |
| Backup Output Data | |
| Nominal output current (A) | 50@240V, 57.7@208V |
| Nominal output voltage (V) | (120/240), (120/208) |
| Continuous output power (VA) | 12000@240V, 12000@208V |
| Operating frequency (Hz) | 60 & 50 |
| Peak power (VA) | 2xPn, 0.5s |
| THDV | <3% |
| Switching Time (ms) | <20 |
| General Data | |
| Paralleling Capabiliy | Up to 10 units (120kW) |
| Dimensions | 22.3 x 35.2 x 11.2 in (566 x 893 x 285 mm) |
| Weight | 125.71 lbs (57 kg) |
| Degree of protection | NEMA4X / IP66 |
| Cooling concept | Smart Cooling Fans |
| Topology | High Frequency Transformer-less |
| Relative humidity | 0-100% |
| Altitude (m) | <6561ft. (<2000m) |
| Operating Temperature Range (ºC) | -25~60>40 Derating |
| Noise emission (dB) | <67 |
| Idle Consumption AVG (W) | 60 |
| Display | Touch color screen |
| Communication interface | Rs485/ Wi-Fi/ CAN |
| AC Grid Output Data | |
| Max. Output Current with pv (A) | 66.7 |
| Max. Output Power with pv (W) | 16000@240V 13800@208V |
| Continuous power output with battery only (W) | 12000@240V, 12000@208V |
| Rated voltage (V) | 120/240, 120/208 |
| Operating voltage range (V) | 180-270 |
| Operating frequency (Hz) | 50/60 |
| Operating frequency range (Hz) | 55-65 |
| Power Factor | 0.99@full load |
| Reactive power adjust range | -0.8~+0.8 leadingAdjustable |
| THDI | <3% |
| Sync inrush current (A) | 35 |
| Efficiency | |
| Max. EFFICIENCY PV to grid | 97.50% |
| Max. EFFICIENCY battery to grid | 94% |
| CEC Efficiency | 96.90% |
| Battery Data | |
| Type | Lithium battery/ No Battery |
| Max. charge current (A) | 250 |
| Max. discharge current (A) | 250 |
| Nominal voltage (V) | 48 |
| Voltage range (V) | 40-60 |
