Harness the power of the sun with our Mega 200 Watt 12 Volt Solar Panel. With expertly crafted design and top-of-the-line materials, this panel provides maximum efficiency for your energy needs. Ideal for both residential and commercial use, take advantage of renewable energy and save on electricity costs.
Features
- 9 buss bar solar cell configuration

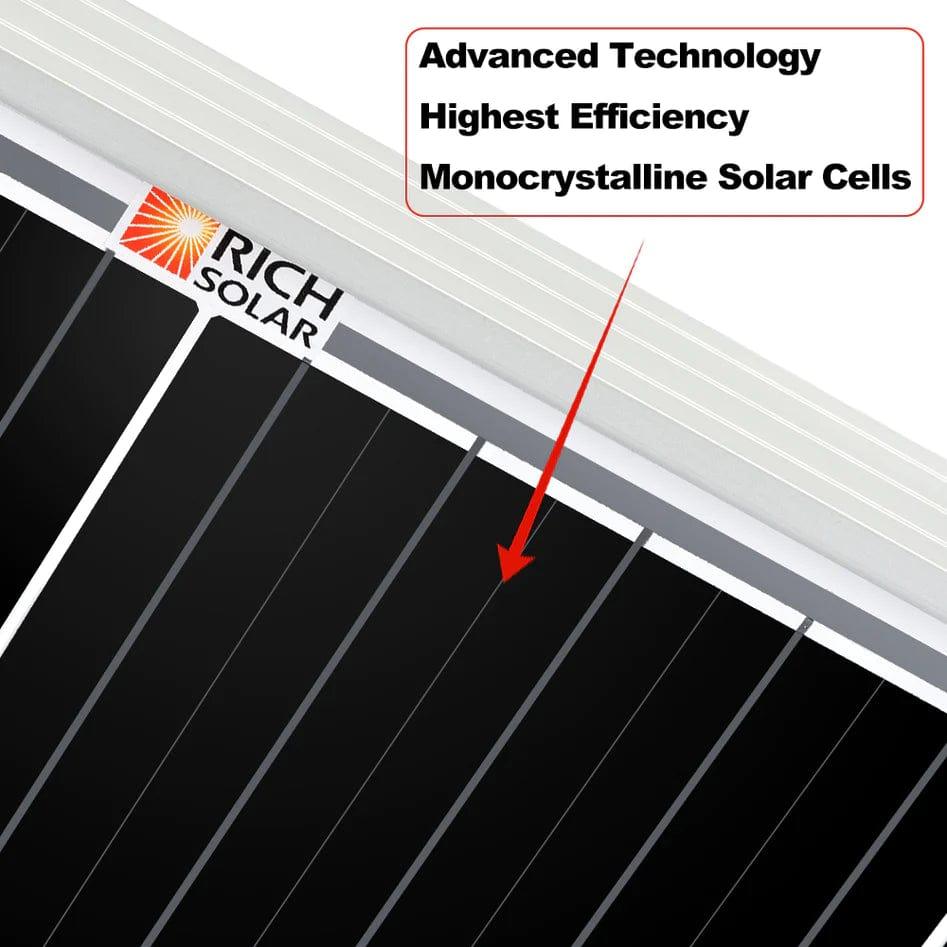

- Mono PERC Technology
- Lightweight anodized aluminum frame
- High Transmission, AR (anti-reflective) Coated Tempered Glass
- Plug and play junction box
- Industry standard quick connect cables work in series or in parallel
- Certified to withstand challenging environmental conditions
- Excellent low light performance on cloudy days, mornings and evenings
Installation
- Easy installation and handling for various applications (high-end off-grid and mobile applications)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
- Compatible with on-grid and off-grid inverters
Warranty
- 25 year limited power output
Built-in Components

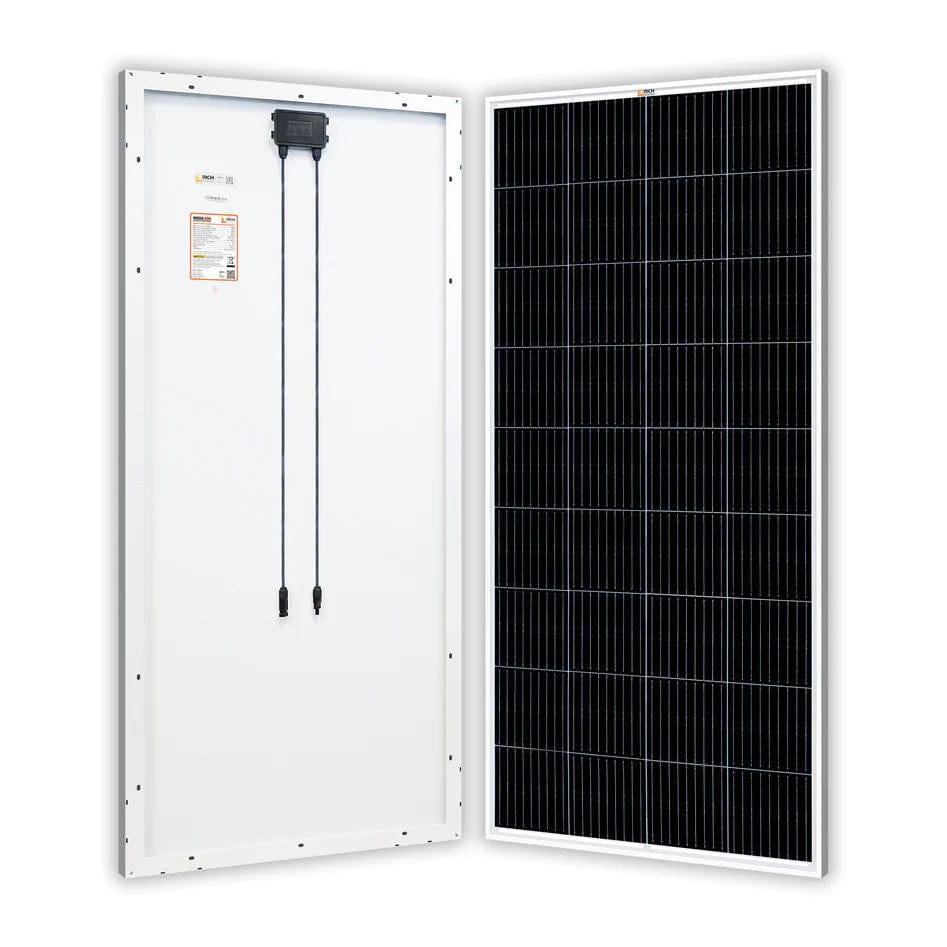

- 200 watt monocrystalline solar panel
- Panel leads (pair): 3 feet each
- IP65 rated waterproof junction box
- IP67 rated waterproof solar connectors
- Bypass diodes built-in the junction box
Specifications
- Maximum Power (Pmax): 200W
- Maximum Power Voltage (Vmp): 20.4V
- Maximum Power Current (Imp): 9.80A
- Open Circuit Voltage (Voc): 24.3V
- Short Circuit Current (Isc): 10.2A
- Maximum System Voltage (Vmax): 1000VDC
- Temperature Range: -40°C ~ 90°C
- Max Series Fuse Rating: 20A
- Weight: 26.5 lbs
- Dimensions: 58.7 x 26.8 x 1.4 in
