This 23 cu.ft. upright pharmacy freezer provides ample storage for all your temperature-sensitive pharmaceuticals. With precise temperature control and a uniform freezing pattern, keep your medications at their optimal conditions. Its sleek design and durable construction make it the perfect choice for any pharmacy.Designed and purpose built to meet demanding needs of life science, vaccine, laboratory and medical cold storage applications

Accucold's Pharma-Lab Performance Series features reach-in refrigerators and matching freezers designed and purpose-built to meet the demanding needs for pharmacy, medication, vaccine, laboratory, and life science applications.

The AFS23ML is a 23 cu.ft. all-freezer with an adjustable control range from -30 to -15ºC. The microprocessor temperature controller features a large digital LED display viewable in Celsius or Fahrenheit, making it easy for staff to manage and monitor the temperature. The unit is equipped with an air sensor for rapid control response and a product sensor for a more accurate reading of the interior, including a display of the min/max temperature in 15 minute increments The audible and visual temperature alarm sounds if the unit rises or falls above a user-set range. Additional alarms include a power failure alert, door open alarm, and a condenser cleaning reminder.

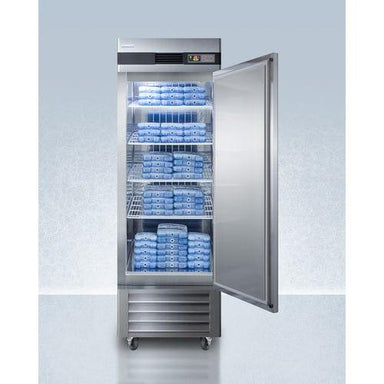

Inside, the AFS23ML utilizes adjustable cycle defrost operation to avoid temperature spikes, with a top-mounted forced air cooling system to ensure rapid temperature recovery. Four vinyl-coated wire shelves on cantilevered clips allow you to accommodate virtually any sized item. The LED lighting displays automatically when the door is open, providing a full and energy efficient display.

The AFS23ML features a durable stainless steel cabinet and interior, with a sealed back for easier cleanup. We include a set of casters (2 locking) for optional installation. A factory-installed lock offers added security, with two keys included for your facility. Magnetic door gaskets ensure a strong seal. The door is self-closing to help protect contents, but will remain open at 90º for easier loading.

Designed with hydrocarbon refrigerant, the AFS23ML provides an energy efficient solution to large capacity storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible and meets NSF-7 commercial standards. For a matching refrigerator, see the ARS23ML.

NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.

Overview
Height of Cabinet	83.75" (213 cm)
Width	27.5" (70 cm)
Depth	31.0" (79 cm)
Depth with Handle	32.75" (83 cm)
Depth with door at 90°	56.5" (144 cm)
Capacity	23.0 cu.ft. (651 L)
Defrost Type	Frost-Free
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	ETL-S
Amps	8.0
Voltage/Frequency	115 V AC/60 Hz
Weight	273.0 lbs. (124 kg)
Parts & Labor Warranty	2 Years
Compressor Warranty	5 Years
UPC	761101062310
Freezer
Door Swing	RHD
Reversible	No
Interior Height	51.5" (131 cm)
Interior Width	23.5" (60 cm)
Interior Depth	27.0" (69 cm)
Shelf Type	Wire
Shelf Qty	4
Adjustable Shelves	Yes
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior
Refrigerant Type	R290a
Refrigerant Amount	3.5 oz.
Wheels	4
Temperature Range	-30 to -15ºC
Sound Level	39 dB

Exterior

TM1A - Factory-installed dry contacts with remote alarm	PHRI - Probe Hole
DL2B - Factory installed NIST calibrated digital data logger (DDL)

Purpose-built design

Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions

Adjustable temperature

Interior is pre-set to -25ºC, with an adjustable control range from -30 to -15ºC

Temperature alarm

Visual and audible alarms alert if the interior temperature rises or falls out of set range

Complete stainless steel construction

Interior and exterior are entirely constructed from stainless steel for lasting durability and easy cleanup

Forced air cooling

Top-mounted commercial fan ensures rapid temperature recovery

Automatic defrost with adjustable cycle defrost

Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

Self-closing door

Closes to save energy but will remain open when the door is opened at a 90º angle for easier loading

Open door alarm

Alarm will beep 3 times if the door is left open for 30 seconds, 5 times at 60 seconds, and will sound continuously if the door is open for more than 5 minutes

Commercial grade casters

Ships with a set of casters (2 locking) for easy mobility as needed

Microprocessor control panel

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Min/max display

Control panel provides a readout of the low and high temperatures in 15 minute increments

Factory-installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Adjustable plastic-coated wire shelves for improved circulation

Multiple shelf positions spaced at 1/2" to allow flexible adjusting to support smaller items

Interior light

Energy efficient LED lighting with internal on/off switch

Large capacity

23 cubic feet of storage space inside

Condenser cleaning alarm

In order to prevent dust from impeding performance, this unit is equipped with audible and visual alarm that reminds you to clean the condenser every 6 months

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Sealed back

Space-saving design that ensures easier cleanup

Extended warranty

2 years parts and labor/5 years compressor

Commercially approved

Commercial construction meeting UL commercial listing standards

Matching refrigerator

Pair with ARS23ML for a matching set in stainless steel

Eco-Friendly

Using environmentally friendly hydrocarbons refrigerants for a greener footprint

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
