Here's a great deal on a 24v 3000W low frequency inverter with AC charger Model #LFP3K24V120VSG
Purchase your SungoldPower products from our store and get our added lifetime support for free.
If you are looking for a high pure sine-wave inverter and high capacity charger, SunGoldPower low frequency inverter is your best choice. it is a combination of an inverter, battery charger and transfer switch into one complete system, This 24V dc to 120v ac inverter boasts a 300% surge capacity for 20 seconds to reliably support tools and equipment longer. the inverter charger is found on practically every RV, trailer, motorhome, truck camper and is a good solution for backup or off grid power solutions. This inverter requires120VAC input and can provide 120VAC output power for the appliances, and it can output 50 or 60Hz via the SW4.
This LFP Series Pure Sine Wave Inverter is a combination of an inverter, battery charger, and AC auto-transfer switch. Low frequency, low Idle Current, BTS cable, remote control.
This power inverter 3000w requires 120VAC input and can provide 120VAC output power for the appliances, and it can output 50 or 60Hz via the SW4.
AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.
Adjustable Charging Current: The max charge current can be adjusted from 0%-100% via a liner switch.
Auto Gen Start: The inverter can start up a generator when the battery voltage goes low, and turn the generator off after battery charging is finished.
Main Features:

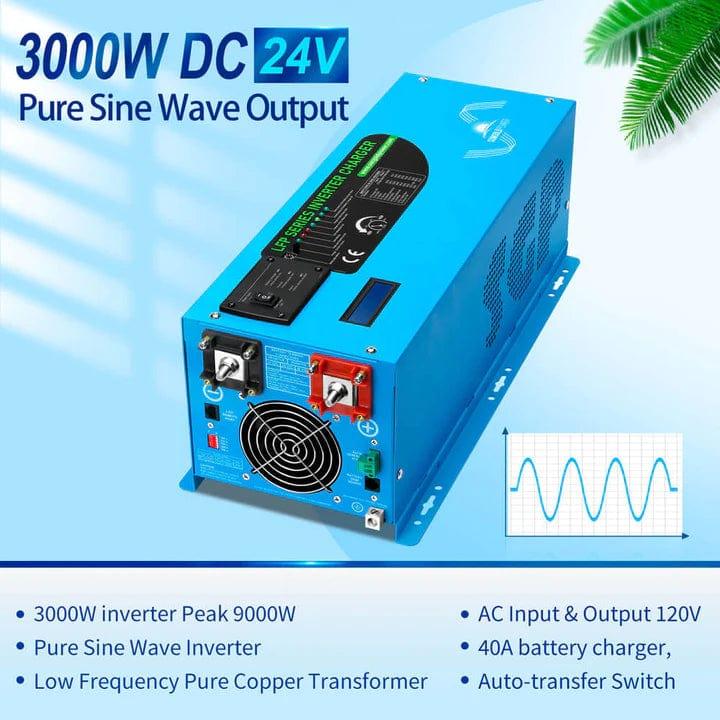

- 3000W Low Frequency Pure Sine Inverter With Charger
- AC/Battery Priority Selector.
- Automatic Generator Start.
- GFCI Socket, Safety and Convenient.
- The low frequency inverter can power all kinds of appliances.

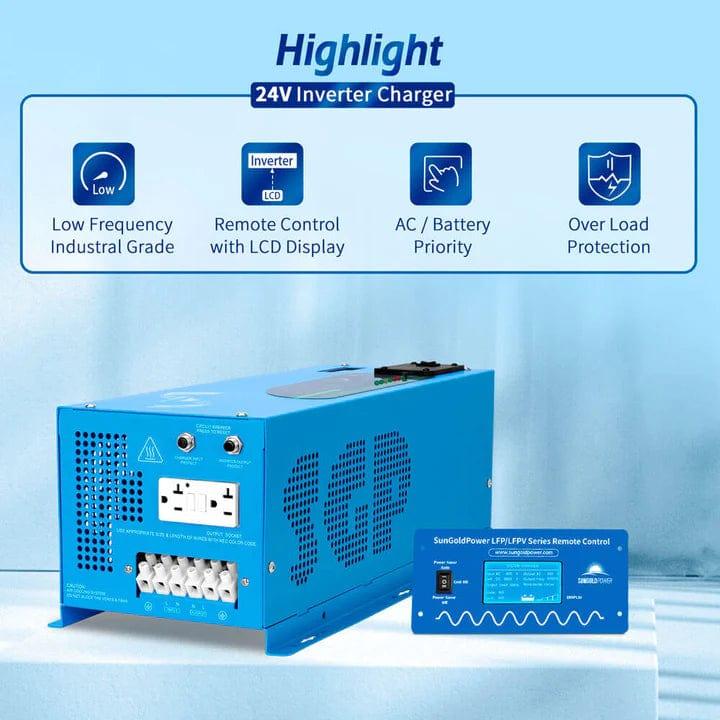

- LCD Display, Remote Control, BTS including.
- Low Idle Consumption.

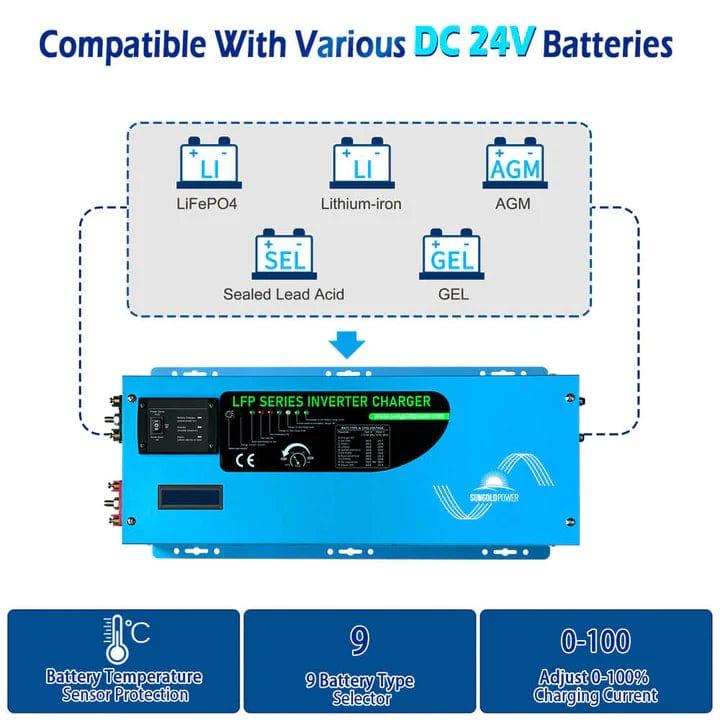

- 9 battery type settings for charger.
- Multi Stage Smart charger Max 40A, charger can be disable.
- 10msec typical transfer time.
Specifications:
Inverter Output:
- Continuous Output Power: 3000W
- Surge Rating: 9000W (20 Seconds)
- AC Output: 120VAC
- AC Input: 120VAC
- Output Wave: Pure Sine Wave (bypass mode)
- Typical Transfer Time: 10ms (MAX)
- Nominal Efficiency: >88%
DC Input:
- Nominal Input Voltage: 24.0Vdc
- Minimum Start Voltage: 20.0Vdc
- Low Battery Alarm: 21.0Vdc-22.0Vdc
- Low battery Trip: 20.0Vdc-21.0Vdc (select by SW1)
- High Voltage Alarm: 32.0Vdc
- Low battery Voltage Restart: 26Vdc
- Idle Consumption: 39W
- Power Saver Mode Idle Consumption: 16W
AC Charger :
- Charger Rate: Max 40A
- AC input Range (Grid or Generator): 90V-135VAC/100V-135VAC (select by SW2)
- Over Charge Protection Shutdown:31.4V
- Selectable Charge Setting based on battery type Adjustable charge current: off 0%-100%
- 3-step intelligent battery charger

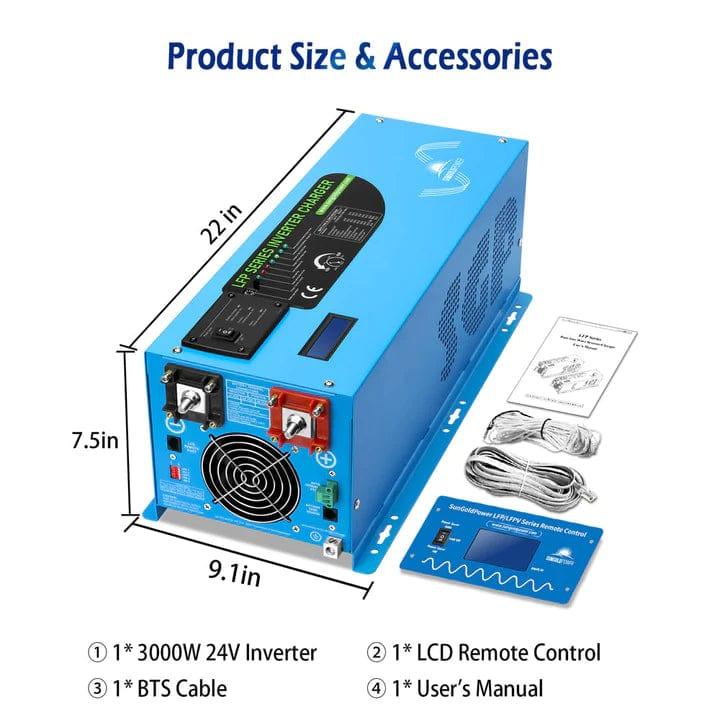

Packaging:
- 3000W 24V Low Frequency Pure Sine Inverter
- English Manual
- Remote Control
- BTS Cable
- Unit Weight: 48.5LB
- Unit Size: 22.05 x 9.1 x 7.5 inch
- Shipping Weight: 57LB
- Shipping Size: 26.8 x 13.4 x 13 inch
If you are looking for a high pure sine-wave inverter and high capacity charger, SunGoldPower low frequency inverter is your best choice. it is a combination of an inverter, battery charger and transfer switch into one complete system, This 24V dc to 120v ac inverter boasts a 300% surge capacity for 20 seconds to reliably support tools and equipment longer. the inverter charger is found on practically every RV, trailer, motorhome, truck camper and is a good solution for backup or off grid power solutions. This inverter requires 120VAC input and can provide 120VAC output power for the appliances, and it can output 50 or 60Hz via the SW4.
