Summit 21" Wide Built-In All-Refrigerator, ADA Compliant ALR47BCSSHV

ALR47BCSSHV

32" height and front-breathing system for built-in installation under ADA compliant counters

Summit Appliance offers a quality selection of 21" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.

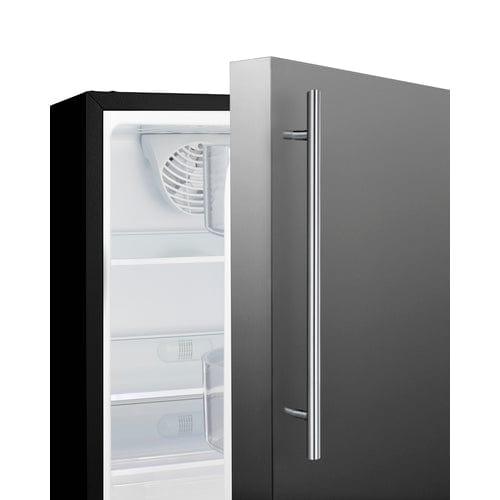

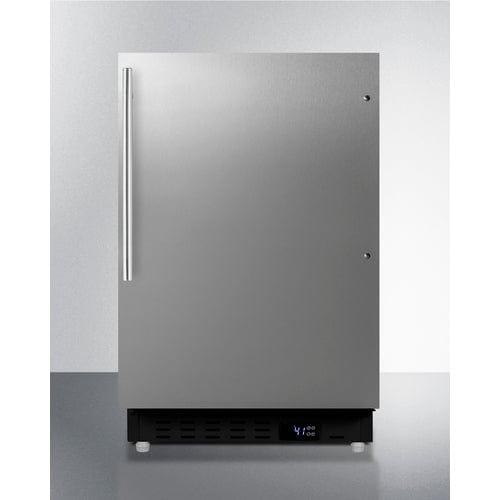

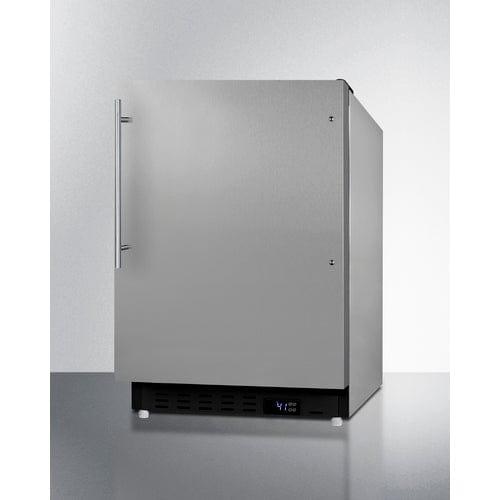

The ALR47BCSSHV is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished stainless steel cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible, stainless steel, door is 3" thick for efficient insulation, with a sleek vertical handle with a thin 14mm diameter, a popular style that matches many common cabinet handles. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.

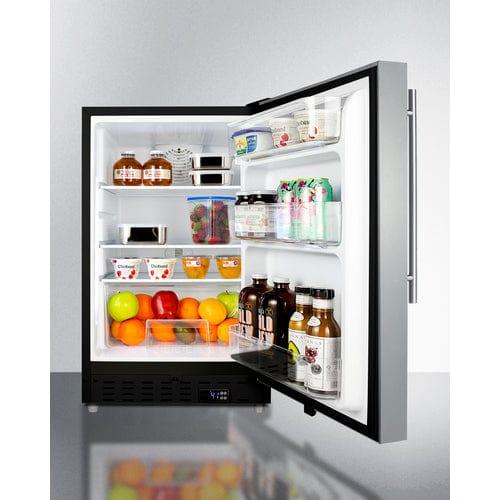

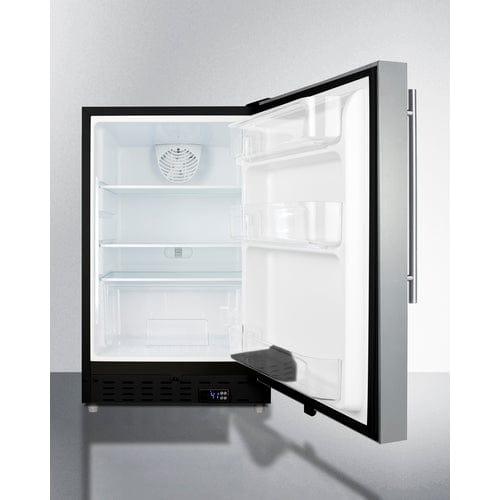

Inside, the ALR47BCSSHV features an all-white interior for easy cleaning and viewing of contents. An LED light located toward the front of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help ensure even cooling throughout the 3.53 cu.ft. interior. Three adjustable glass shelves offer optimal storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. The user-set high and low-temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs.

Sized at just 21" wide, the ALR47BCSSHV is the perfect addition for space-challenged environments seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALFZ37BCSSHV all-freezer. Additional choices with a black cabinet exterior and panel-ready styles are available.

SPECIFICATIONS

Overview
Height of Cabinet 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Width 20.88" (53 cm)
Depth 22.5" (57 cm)
Depth with Handle 24.0" (61 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 3.53 cu.ft. (100 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 251.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 105.0 lbs. (48 kg)
Shipping Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101076812
Refrigerator Features
Door Swing RHD
Reversible Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 2
Wheel Qty 2
Interior Light Yes
Temperature Range 35 to 46°F
Sound Level 33.2 dB
Dimensions
Interior Height 23.5" (60 cm)
Interior Width 16.25" (41 cm)
Interior Depth 17.0" (43 cm)
Compressor Step Height 6.25" (16 cm)
Compressor Step Width 16.25" (41 cm)
Compressor Step Depth 6.0" (15 cm)

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL) Alarm/Thermometer - Factory-installed alarm with external temperature readout
HG - Hospital grade cord LHD - Left hand door swing
PH - Probe Hole
Lock
AC Keypad - AC powered keypad lock L-SideLock
KEYPAD - Battery-powered keypad door lock



FEATURES

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Adjustable thermostat

Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

Door shelves

Three removable door racks for additional storage of larger items

Adjustable glass shelves

Three adjustable spill-proof shelves for optimal storage in 3.53 cu. ft. interior

Fruit and vegetable crisper

Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

3" thick door

Improved insulation for an efficient performance

Reversible stainless steel door

User-reversible stainless steel door for added flexibility to best accommodate your setting

Temperature alarms

User-set high/low temperature alarms provide added security if temperature goes beyond setpoint

Open door alarm

Audible alarm will sound if the door is left ajar for over a minute

Sealed back

Space-saving design that offers easier cleanability

Right-angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Professional handle

Brushed stainless steel handle with a thin 14mm diameter is mounted vertically for a sleek look

Automatic defrost

Reduced user maintenance with an auto defrost system

Interior light

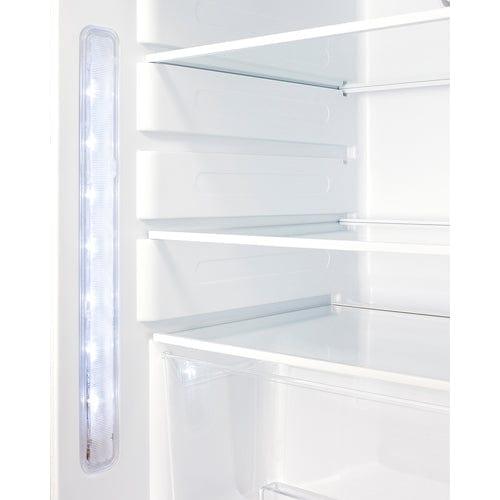

Front-located LED light ensures entire interior is lit when door opens

Matching all-freezer

This unit can be paired with the ALFZ37BCSSHV all-freezer for a complete set

Fully finished stainless steel cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
