-25°C storage with extra thick insulation and slide-out drawers that help protect stored contents
Accucold by Summit Appliance's MED series all-freezers come fully featured for stabilized temperature performance for use in medical, scientific, pharmaceutical, and laboratory institutions.

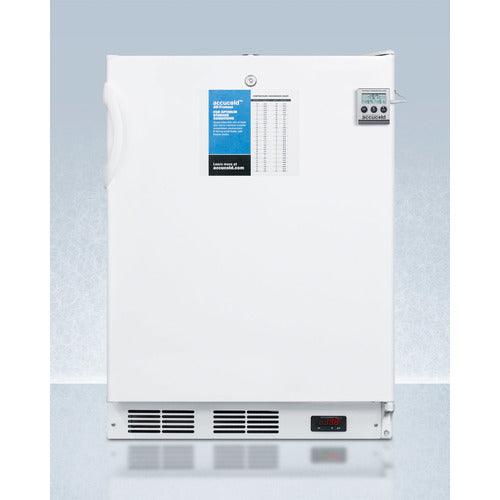

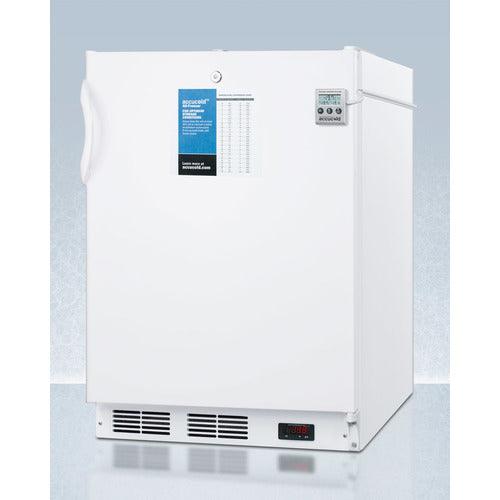

The VT65MLBIMEDADA has a 24" footprint, with a 32" height that allows it to fit under lower ADA compliant counters. Designed for built-in installation, it can also function freestanding. It comes in a white finish and includes a front-mounted lock for added security.

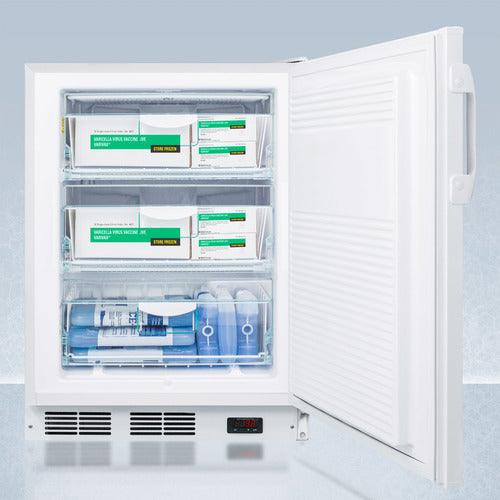

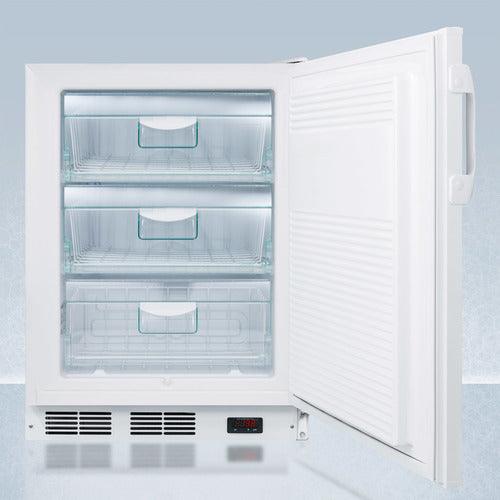

The manual defrost VT65MLBIMEDADA operates several degrees colder than most freezers for safe long-term storage of food, vaccines, or pharmaceuticals. Temperatures can reach and maintain -25º C. Three removable pull-out basket drawers provide convenient storage solutions, while extra thick insulation limits energy waste and keeps the cold inside.
We include an audible NIST calibrated temperature alarm complete with an external display of the current and high/low temperature mounted on the door. A green dot hospital grade plug is installed for added safety in high traffic areas. An access port allows users to connect their own monitoring equipment.
With its slim size and reliable construction, the VT65MLBIMEDADA works well in any setting in need trusted storage. Additionally, we offer a variety of options to customize this unit, including USB data loggers, digital thermostats, self-closing doors, and more.
NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.
|
Overview
|
| Height of Cabinet |
32.0" (81 cm) |
| Height to Hinge Cap |
32.25" (82 cm) |
| Width |
23.63" (60 cm) |
| Depth |
23.5" (60 cm) |
| Depth with Handle |
24.25" (62 cm) |
| Depth with door at 90° |
45.13" (115 cm) |
| Capacity |
3.2 cu.ft. (91 L) |
| Defrost Type |
Manual |
| Door |
White |
| Cabinet |
White |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Amps |
1.3 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
105.0 lbs. (48 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101044705 |
|
Freezer
|
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Interior Height |
24.25" (62 cm) |
| Interior Width |
17.75" (45 cm) |
| Interior Depth |
16.5" (42 cm) |
| Thermostat Type |
Digital |
| Fan Type |
Exterior |
| Refrigerant Type |
R134a |
| Refrigerant Amount |
2.7 oz. |
| High Side PSI |
235.0 |
| Low Side PSI |
70.0 |
| Interior Drawers |
Yes |
| Drawers Qty |
3 |
| Compressor Step Height |
6.5" (17 cm) |
| Compressor Step Width |
17.5" (44 cm) |
| Compressor Step Depth |
5.5" (14 cm) |
| Temperature Range |
-12ºC to -25ºC |
| Exterior |
| TM1A - Factory-installed dry contacts with remote alarm |
SSK - Stainless steel kickplate |
| Latch - Factory-installed door latch requires manual release to open unit |
LHD - Left hand door swing |
| SCD - Self-closing door |
DT - Digital thermostat |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) |
|
| Lock |
| AC Keypad - AC powered keypad lock |
KEYPAD - Battery-powered keypad door lock |
|
| Handle |
| TBC Copper Towel Bar Handle |
CP Full-Length Copper Pipe Handle |
|
| Door |
| STO-Step-To-Open Door Pedal |
|
ADA compliant
32" high to fit under lower ADA compliant counters
Built-in capable
Make the best use of space by installing your appliance under the counter
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
Factory installed lock
Keyed lock for secure interior
-25ºC capable
Low temperature capability ideal for certain sensitive items
High temperature alarm
Warns of temperature fluctuations and includes an external temperature readout on the door
Manual defrost
Efficient performance with reliable temperature stability
Three removable storage baskets
Conveniently organize your items while keeping the temperature stable when the door is opened
Access port
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
Adjustable thermostat
Manage the temperature with ease and accuracy
Fully finished white cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design without ozone-damaging chemicals
