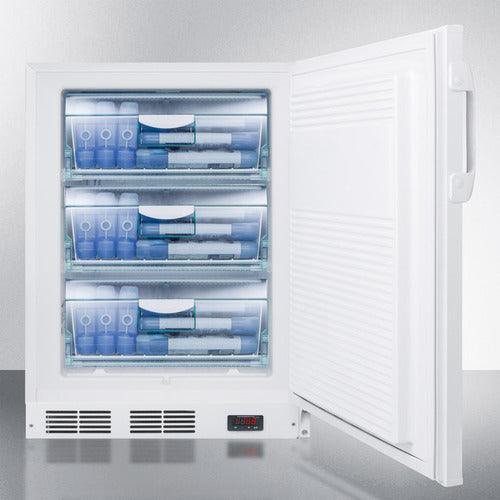

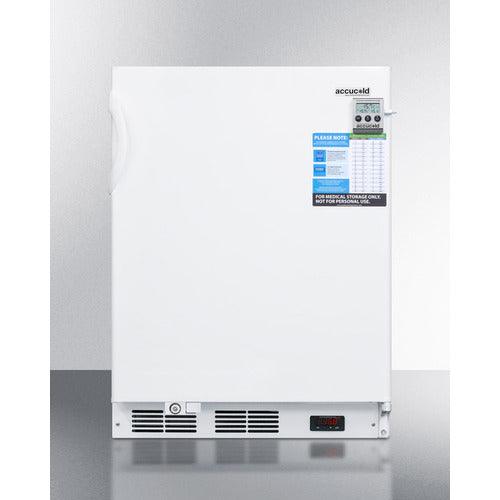

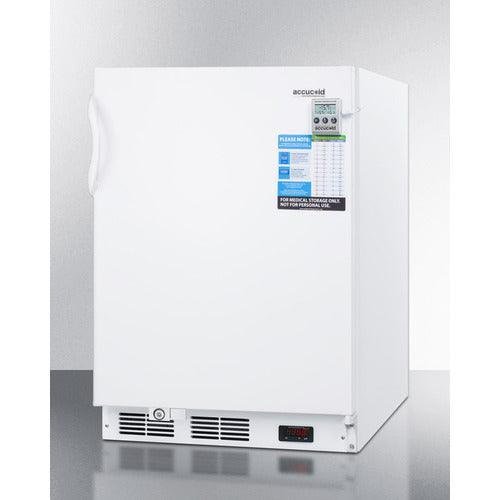

Expertly crafted in Europe, the VT65MLBIVACADA is a front-breathing all-freezer that stands at 32" high, perfect for built-in installation under lower counters that are ADA compliant. With a 3.2 cu.ft. capacity, this freezer utilizes static cooling for consistently reliable results. Keep your stored items well-preserved with four slide-out storage baskets featuring clear plastic fronts that protect against exposure to room temperature. This unit also adheres to CDC recommendations with its flat door liner.
-25°C storage with extra thick insulation and slide-out drawers that help protect stored contents
The Accucold® VAC Series freezers are specially designed to store sensitive medical and pharmaceutical materials under the proper conditions, with innovative construction for temperature stability and user-friendly features for added convenience.
For optimum temperature assurance, the VT65MLBIVACADA includes a digital thermostat and a high/low temperature alarm with a NIST calibrated temperature display to the nearest tenth of a degree. A hospital grade cord includes a 'green dot' plug for added safety in high traffic settings, while the self-closing door ensures stored items aren't accidentally exposed to room temperature. This model comes in a white finish and includes a factory installed lock. A pre-installed probe hole/access port allows users to install additional monitoring equipment.
The VT65MLBIVACADA can be paired with the FF7LBIVACADA all-refrigerator for a matching set. All models can be ordered with more advanced medical features, including a power-out alarm, temperature logger, and more.
NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.
|
Overview
|
| Height of Cabinet |
32.0" (81 cm) |
| Height to Hinge Cap |
32.25" (82 cm) |
| Width |
23.63" (60 cm) |
| Depth |
23.5" (60 cm) |
| Depth with Handle |
24.25" (62 cm) |
| Depth with door at 90° |
45.13" (115 cm) |
| Capacity |
3.2 cu.ft. (91 L) |
| Defrost Type |
Manual |
| Door |
White |
| Cabinet |
White |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Amps |
1.3 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
105.0 lbs. (48 kg) |
| Parts & Labor Warranty |
2 Years |
| Compressor Warranty |
5 Years |
| UPC |
761101043517 |
|
Freezer
|
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Interior Height |
24.25" (62 cm) |
| Interior Width |
17.75" (45 cm) |
| Interior Depth |
16.5" (42 cm) |
| Thermostat Type |
Digital |
| Fan Type |
Exterior |
| Refrigerant Type |
R134a |
| Refrigerant Amount |
2.7 oz. |
| High Side PSI |
235.0 |
| Low Side PSI |
70.0 |
| Interior Drawers |
Yes |
| Drawers Qty |
3 |
| Compressor Step Height |
6.5" (17 cm) |
| Compressor Step Width |
17.5" (44 cm) |
| Compressor Step Depth |
5.5" (14 cm) |
| Temperature Range |
-12ºC to -25ºC |
| Exterior |
| TM1A - Factory-installed dry contacts with remote alarm |
SSK - Stainless steel kickplate |
| Latch - Factory-installed door latch requires manual release to open unit |
LHD - Left hand door swing |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) |
|
| Lock |
| AC Keypad - AC powered keypad lock |
KEYPAD - Battery-powered keypad door lock |
|
| Handle |
| TBC Copper Towel Bar Handle |
CP Full-Length Copper Pipe Handle |
|
| Door |
| STO-Step-To-Open Door Pedal |
|
ADA compliant
32" height to fit under lower ADA compliant counters
Slim undercounter dimensions
24" footprint is ideal for use under the counter
Built-in capable
Front-breathing design allows built-in installation under counters
-25º C/-13º F capable
Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
Digital thermostat
Electronic controls for more precise temperature management
High/low temperature alarm
Audible alarm sounds if the interior temperature rises or falls out of set range
NIST calibrated temperature display
Alarm includes NIST calibrated display of the current interior and high/low temperature to the nearest tenth of a degree
Self-closing door
Door closes automatically when opened at angles less than 90º
3/8" access port
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
Hospital grade cord
Secure three-pronged cord for added unit safety
Factory installed lock
Keep contents secure with a front lock on the door

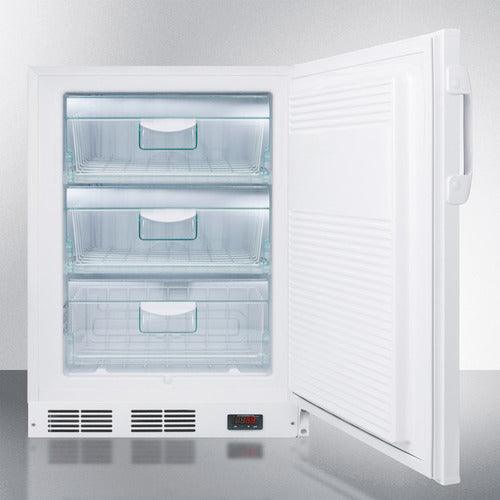

Three slide-out drawers
Slide-out wire baskets with plastic fronts offer convenient storage solutions while protecting stored items when the door is open
Manual defrost
Static cooling system for reduced temperature fluctuations
Fully finished white cabinet
Allows the unit to be used freestanding
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Factory reversible door
Standard unit ships RHD but can be ordered LHD
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
