Introducing the Summit 24" Wide Beverage Center, designed to fit your needs while being ADA compliant. With a spacious interior, you can easily store all your drinks, while enjoying its sleek and modern design. Stay cool and organized with this must-have appliance.
Made in Europe with a double pane tempered glass door for reliable storage in ADA compliant commercial settings
SUMMIT COMMERCIAL's freestanding SCR600BGLADA Series features 32" high beverage refrigerators designed and manufactured in Europe for quality storage and presentation in commercial establishments following ADA guidelines for lower counter height.

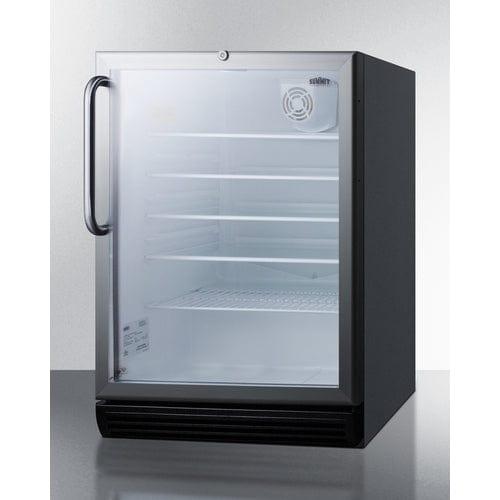

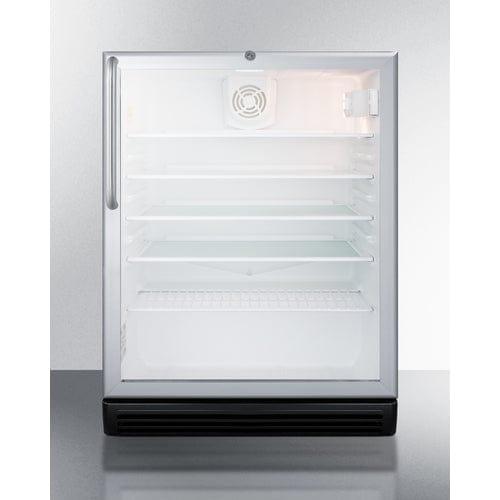

Sized just under 24" wide and deep, the SCR600BGLTBADA offers a generous 5.5 cu.ft. of storage capacity. At 32" high, this unit is perfect for applications with lower ADA compliant counters. The door features double pane tempered glass for added protection, with a brushed aluminum finish on the frame. We include our signature "TB" towel bar handle in a brushed stainless steel finish. The factory-installed front lock is located towards the top of the door for easier access. This unit comes with a black cabinet finish and is designed for freestanding use. For a built-in version, see the SCR600BGLBITBADA.
Inside, the SCR600BGLTBADA includes four adjustable glass shelves for spill-proof storage and a half-sized wire shelf ideal for holding bottles in place. Automatic defrost ensures minimum user maintenance and a dial thermostat makes it simple to manage the temperature. This unit features an interior light operated with an ON/OFF rocker switch and a white interior finish to ensure optimum product visibility. Our unique "hidden" evaporator is located in the rear wall to help protect the unit's system and maximize shelf space. An internal fan helps to ensure the interior is more evenly cooled from top to bottom.
The SCR600BGLTBADA is ETL-S listed to NSF-7 commercial standards. Additional handle styles are available.
|
Overview
|
| Height of Cabinet |
32.0" (81 cm) |
| Height to Hinge Cap |
32.38" (82 cm) |
| Width |
23.63" (60 cm) |
| Depth |
23.5" (60 cm) |
| Depth with Handle |
25.38" (64 cm) |
| Depth with door at 90° |
45.63" (116 cm) |
| Capacity |
5.5 cu.ft. (156 L) |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Black |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Sanitation |
ETL-S |
| Amps |
1.8 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
100.0 lbs. (45 kg) |
| Shipping Weight |
140.0 lbs. (64 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101057033 |
|
Refrigerator Features
|
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Shelf Type |
Glass |
| Shelf Qty |
4 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Dial |
| Fan Type |
Interior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.67oz. |
| High Side PSI |
124.0 |
| Low Side PSI |
30.0 |
| Level Legs Qty |
2 |
| Interior Light |
Yes |
| Sound Level |
33.5 dB |
|
Dimensions
|
| Interior Height |
26.0" (66 cm) |
| Interior Width |
20.75" (53 cm) |
| Interior Depth |
17.5" (44 cm) |
| Compressor Step Height |
6.0" (15 cm) |
| Compressor Step Width |
20.75" (53 cm) |
| Compressor Step Depth |
5.0" (13 cm) |
| Handle |
| TB - Stainless steel towel bar style handle |
SH |
| HV |
HH |
| TBC Copper Towel Bar Handle Upgrade |
|
| Exterior |
| PH - Probe Hole |
DT - Digital thermostat |
| Alarm/Thermometer - Factory-installed alarm with external temperature readout |
LHD - Left hand door swing |
| Latch - Factory-installed door latch requires manual release to open unit |
SSK - Stainless steel kickplate |
| HG - Hospital grade cord |
Red DT - Digital thermostat for red wine |
| CAS3 3" casters |
DL2B - Factory installed NIST calibrated digital data logger (DDL) |
| TOPSS |
CAS1 |
|
| Door |
| T4 Door Tint |
T3 Door Tint |
| T2 Door Tint |
T1S Door Tint |
| T1 Door Tint |
STO-Step-To-Open Door Pedal |
|
| Interior |
| LockBox24 - Interior locking compartment |
|
Commercially approved
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
ADA Compliant
Sized at 32" high for use in ADA compliant settings
Factory installed lock
Keyed lock for added security, with two keys included
Double pane tempered glass door
Heat resistant design provides clear view of stored products, with an elegant trim in brushed aluminum
Professional towel bar handle
Curved handle in brushed stainless steel offers an easy grip with professional style
Automatic defrost
Reduced user maintenance with automatic defrost
Internal fan
Fan-forced cooling helps to maintain a more evenly cooled interior
White interior finish
Interior offers more visibility with a brighter look
Adjustable glass shelves
Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
Half-sized wire shelf
Sits on top of the compressor and features wire slots ideal for holding bottles on their sides
Interior light on rocker switch
Turn the light on when you need it and off when you're done with a a convenient switch located behind the thermostat
Hidden evaporator
SUMMIT's original "hidden" evaporator is concealed in the wall for easier cleaning and more efficient cooling
One piece interior liner
Simple cleanup with a seamless liner that won't hold a mess in hidden crevices
Adjustable thermostat
Dial thermostat for easy and intuitive temperature management
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
