Made in Europe with a double pane tempered glass door for reliable storage in commercial settings

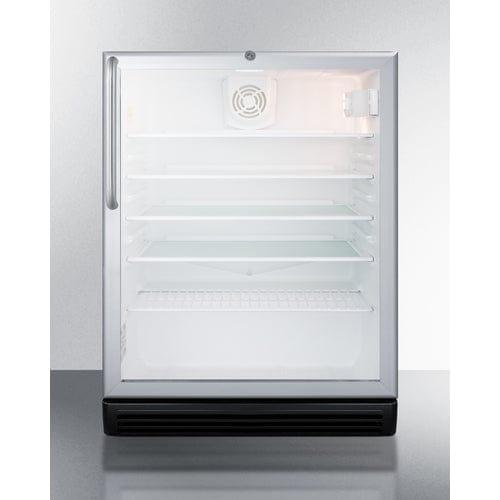

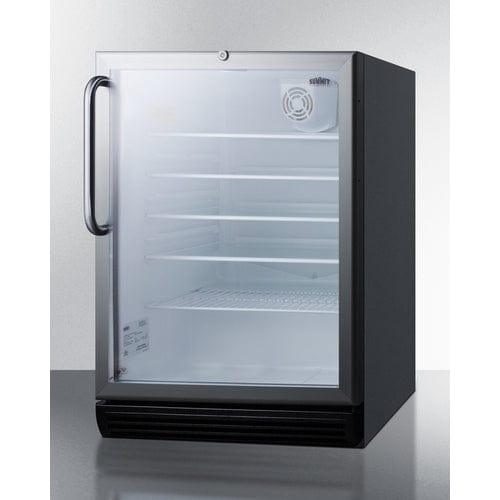

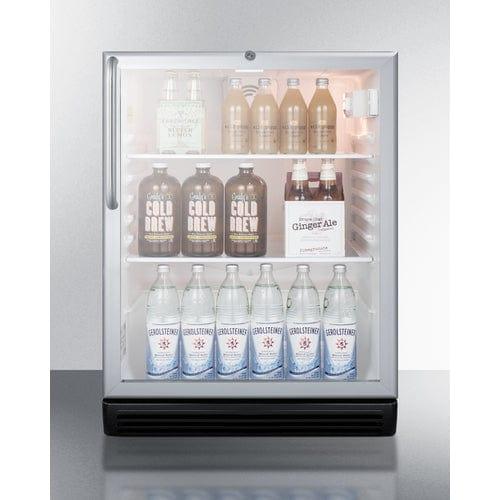

SUMMIT COMMERCIAL's SCR600BGLBIADA Series features 32" high beverage refrigerators designed and manufactured in Europe for built-in installation under lower ADA compliant counters in commercial settings.
The SCR600BGLBITBADA comes in a convenient 24" footprint with a generous 5.5 cu.ft. capacity. It has a front-breathing design for built-in installation and a fully finished black cabinet that also allows freestanding use. The door features double pane tempered glass for added protection, with a brushed aluminum finish on the frame. We include our signature "TB" towel bar style handle in brushed stainless steel. The factory-installed front lock is located towards the top of the door for easier access.
Inside, the SCR600BGLBITBADA includes four adjustable glass shelves for spill-proof storage and a half-sized wire shelf ideal for holding bottles in place. Automatic defrost ensures minimum user maintenance and a dial thermostat makes it simple to manage the temperature. This unit features an interior light operated with an ON/OFF rocker switch and a white interior finish to ensure optimum product visibility. Our unique "hidden" evaporator is located in the rear wall to help protect the unit's system and maximize shelf space. An internal fan helps to ensure the interior is more evenly cooled from top to bottom.
Made in Europe, the SCR600BGLBITBADA is ETL-S listed to NSF-7 commercial standards. With its ADA compliant design, this unit is the perfect choice for any setting in need of a reliable commercial display refrigerator that fits in ADA compliant applications.
|
Overview
|
| Height of Cabinet |
32.0" (81 cm) |
| Height to Hinge Cap |
32.38" (82 cm) |
| Width |
23.63" (60 cm) |
| Depth |
23.5" (60 cm) |
| Depth with Handle |
25.38" (64 cm) |
| Depth with door at 90° |
45.63" (116 cm) |
| Capacity |
5.5 cu.ft. (156 L) |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Black |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Sanitation |
ETL-S |
| Amps |
1.8 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
100.0 lbs. (45 kg) |
| Shipping Weight |
140.0 lbs. (64 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101056920 |
|
Refrigerator Features
|
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Shelf Type |
Glass |
| Shelf Qty |
4 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Dial |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.67oz. |
| High Side PSI |
124.0 |
| Low Side PSI |
30.0 |
| Level Legs Qty |
4 |
| Interior Light |
Yes |
| Sound Level |
33.5 dB |
|
Dimensions
|
| Interior Height |
26.0" (66 cm) |
| Interior Width |
20.75" (53 cm) |
| Interior Depth |
17.5" (44 cm) |
| Compressor Step Height |
6.0" (15 cm) |
| Compressor Step Width |
20.75" (53 cm) |
| Compressor Step Depth |
5.0" (13 cm) |
| Handle |
| TB - Stainless steel towel bar style handle |
SH |
| HV |
HH |
| TBC Copper Towel Bar Handle Upgrade |
|
| Exterior |
| PH - Probe Hole |
DT - Digital thermostat |
| Alarm/Thermometer - Factory-installed alarm with external temperature readout |
LHD - Left hand door swing |
| Latch - Factory-installed door latch requires manual release to open unit |
SSK - Stainless steel kickplate |
| HG - Hospital grade cord |
Red DT - Digital thermostat for red wine |
| CAS3 3" casters |
DL2B - Factory installed NIST calibrated digital data logger (DDL) |
| TOPSS |
CAS1 |
|
| Door |
| T4 Door Tint |
T3 Door Tint |
| T2 Door Tint |
T1S Door Tint |
| T1 Door Tint |
STO-Step-To-Open Door Pedal |
|
| Interior |
| LockBox24 - Interior locking compartment |
|
ADA Compliant
32 inch height is designed to fit under ADA compliant counters
Commercially approved
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Factory installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)
Built-in capable
Front-breathing design allows you to install the unit under counters with minimum clearance
Double pane tempered glass door
Heat resistant design provides clear display to promote impulse buys
Professional towel bar handle
Curved handle in brushed stainless steel offers an easy grip with professional style
Automatic defrost
Reduced user maintenance with automatic defrost
Internal fan
Fan-forced cooling helps to maintain a more evenly cooled interior
Adjustable glass shelves
Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
Half-sized wire shelf
Sits on top of the compressor and features wire slots ideal for holding bottles on their sides
Interior light on rocker switch
Turn the light on when you need it and off when you're done with a a convenient switch located behind the thermostat
White interior finish
Interior offers more visibility with a brighter look
Hidden evaporator
SUMMIT's original "hidden" evaporator is concealed in the wall for easier cleaning and more efficient cooling
One piece interior liner
Simple cleanup with a seamless liner that won't hold a mess in hidden crevices
Adjustable thermostat
Dial thermostat for easy and intuitive temperature management
Fully finished black cabinet
Allows the unit to be used freestanding
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals
