Introducing the Summit 24" Wide Built-In Beverage Center. Keep drinks chilled and within reach with this convenient and stylish built-in center. With its spacious design, it's perfect for entertaining and storing a variety of beverages. Plus, its sleek appearance adds a touch of elegance to any home.
Made in Europe with a double pane tempered glass door for reliable storage in commercial settings

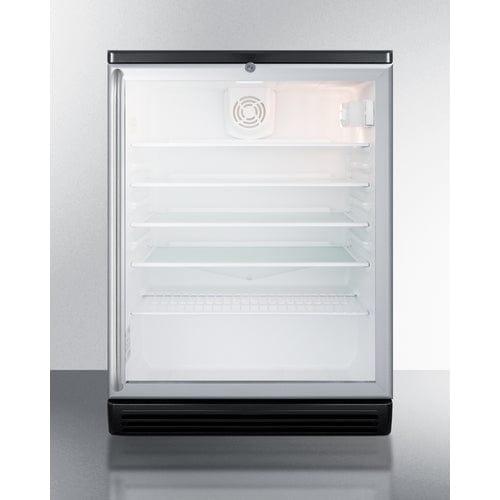

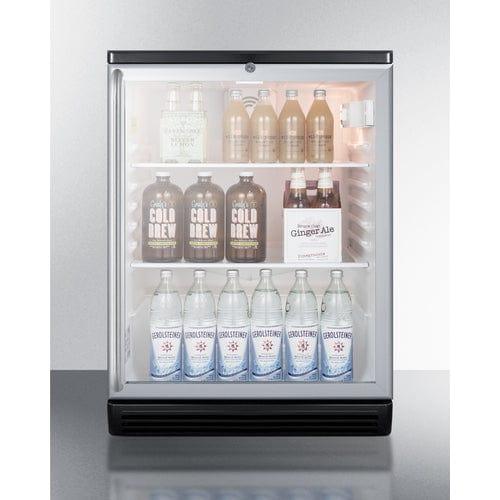

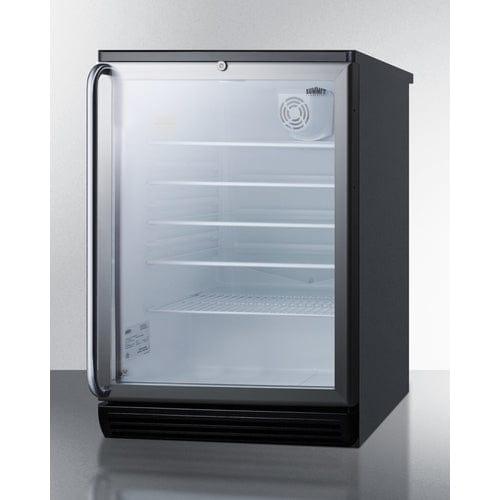

SUMMIT COMMERCIAL's SCR600BGLBI Series features 24" wide beverage refrigerators designed and manufactured in Europe for built-in undercounter installation in commercial settings.
Sized with a convenient 24" footprint and generous 5.5 cu.ft. interior, the SCR600BGLBISH features a front-breathing design for built-in installation under counters, with a fully finished black cabinet that also allows freestanding use. The door features double pane tempered glass for added protection, with a brushed aluminum finish on the frame. We include our "SH" full-length towel bar style handle in brushed stainless steel. The factory-installed front lock is located towards the top of the door for easier access.
Inside, the SCR600BGLBISH includes four adjustable glass shelves for spill-proof storage and a half-sized wire shelf ideal for holding bottles in place. Automatic defrost ensures minimum user maintenance and a dial thermostat makes it simple to manage the temperature. This unit features an interior light operated with an ON/OFF rocker switch and a white interior finish to ensure optimum product visibility. Our unique "hidden" evaporator is located in the rear wall to help protect the unit's system and maximize shelf space. An internal fan helps to ensure the interior is more evenly cooled from top to bottom.
The SCR600BGLBISH is ETL-S listed to NSF-7 commercial standards. For this unit sized at 32" for use under lower ADA compliant counters, see the SCR600GBLBIADA series.
|
Overview
|
| Height of Cabinet |
33.5" (85 cm) |
| Width |
23.63" (60 cm) |
| Depth |
23.5" (60 cm) |
| Depth with Handle |
25.5" (65 cm) |
| Depth with door at 90° |
46.0" (117 cm) |
| Capacity |
5.5 cu.ft. (156 L) |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Black |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Sanitation |
ETL-S |
| Amps |
1.8 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
100.0 lbs. (45 kg) |
| Shipping Weight |
140.0 lbs. (64 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101056890 |
|
Refrigerator Features
|
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Height Adjustable |
1 |
| Shelf Type |
Glass |
| Shelf Qty |
4 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Dial |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.67oz. |
| High Side PSI |
124.0 |
| Low Side PSI |
30.0 |
| Level Legs Qty |
4 |
| Interior Light |
Yes |
| Sound Level |
33.5 dB |
|
Dimensions
|
| Interior Height |
26.0" (66 cm) |
| Interior Width |
20.75" (53 cm) |
| Interior Depth |
17.5" (44 cm) |
| Compressor Step Height |
6.0" (15 cm) |
| Compressor Step Width |
20.75" (53 cm) |
| Compressor Step Depth |
5.0" (13 cm) |
| Handle |
| TB - Stainless steel towel bar style handle |
SH |
| HV |
HH |
|
| Exterior |
| PH - Probe Hole |
Legs to raise unit height |
| DT - Digital thermostat |
CAS3 3" casters |
| Alarm/Thermometer - Factory-installed alarm with external temperature readout |
LHD - Left hand door swing |
| Latch - Factory-installed door latch requires manual release to open unit |
SSK - Stainless steel kickplate |
| HG - Hospital grade cord |
Red DT - Digital thermostat for red wine |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) |
TOPSS |
| CAS1 |
|
| Door |
| T4 Door Tint |
T3 Door Tint |
| T2 Door Tint |
T1S Door Tint |
| T1 Door Tint |
STO-Step-To-Open Door Pedal |
|
| Interior |
| LockBox24 - Interior locking compartment |
|
Commercially approved
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Slim undercounter dimensions
Less than 24 inches wide to fit tight spaces
Built-in capable
Front-breathing design allows you to install the unit under counters with minimum clearance
Double pane tempered glass door
Heat resistant design provides clear view to promote impulse buys
Full-length towel bar handle
Curved handle in brushed stainless steel offers an easy grip with professional style
Factory installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)
Automatic defrost
Reduced user maintenance with automatic defrost
Internal fan
Fan-forced cooling helps to maintain a more evenly cooled interior
White interior finish
Interior offers more visibility with a brighter look
Adjustable glass shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Half-sized wire shelf
Sits on top of the compressor and features wire slots ideal for holding bottles on their sides
Interior light on rocker switch
Turn the light on when you need it and off when you're done with a convenient rocker switch
Hidden evaporator
SUMMIT's original "hidden" evaporator is concealed in the wall for easier cleaning and more efficient cooling
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Adjustable thermostat
Dial thermostat for easy and intuitive temperature management
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
