Stainless steel interior for better sanitation in commercial settings

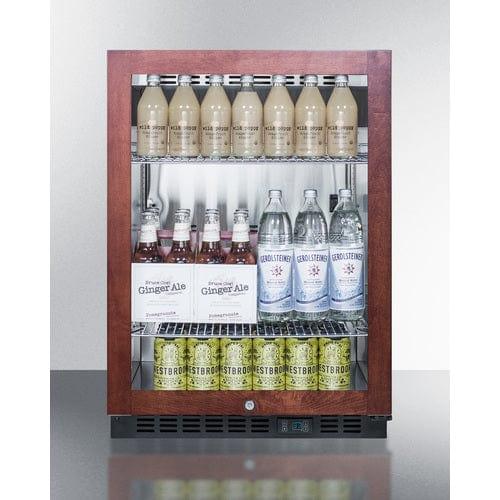

SUMMIT's commercial beverage centers offer an attractive display for products under reliable cold storage conditions.

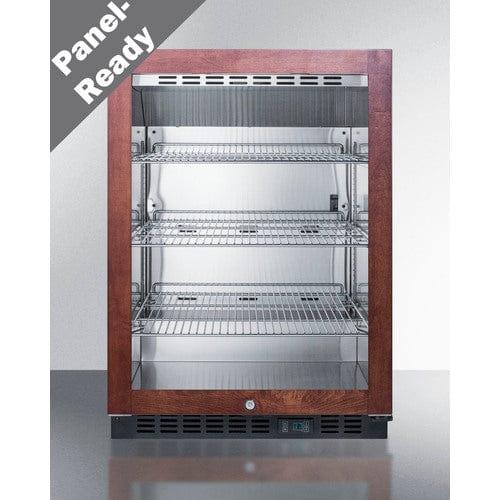

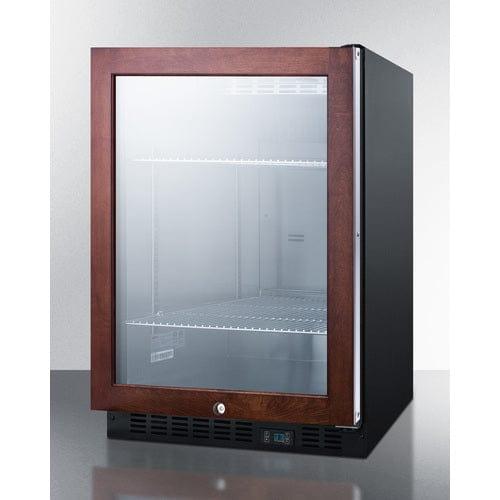

The SCR610BLPNR comes in an easy-fitting 24" footprint, with a front-breathing design that can be built-in under counters or used freestanding. The double tempered glass door door features a panel-ready door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 29 7/8" H x 23 1/8" W at 3/4" minimum thickness). A factory-installed lock offers additional security. This unit ships with a right hand door swing, but can be ordered to open from the other side by adding option LHD. Users provide their own handle. A digital thermostat is located in the kickplate for easy temperature management.
Inside, the SCR610BLPNR utilizes low maintenance automatic defrost operation with an internal fan to ensure even temperature distribution. Recessed LED lighting offers the perfect display conditions inside the durable and easy-to-clean stainless steel interior. This unit includes three cantilevered chrome shelves to ensure flexible storage that accommodates any item size. High temperature and open door alarms offer added protection.
The SCR610BLPNR is ETL-S listed to NSF-7 for use in commercial settings and is ENERGY STAR certified as a commercial refrigerator.
|
Overview
|
| Height of Cabinet |
34.0" (86 cm) |
| Width |
23.63" (60 cm) |
| Depth |
23.5" (60 cm) |
| Depth with door at 90° |
45.5" (116 cm) |
| Capacity |
5.0 cu.ft. (142 L) |
| Defrost Type |
Automatic |
| Door |
Glass/Panel-Ready Frame |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Amps |
0.8 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
100.0 lbs. (45 kg) |
| Shipping Weight |
148.0 lbs. (67 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101065526 |
|
Refrigerator Features
|
| Sabbath Mode |
Yes |
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Shelf Type |
Chrome |
| Shelf Qty |
3 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Digital |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.99oz. |
| High Side PSI |
270.0 |
| Low Side PSI |
105.0 |
| Level Legs Qty |
2 |
| Interior Light |
Yes |
| Temperature Range |
36°F to 43°F |
| Sound Level |
37.4 dB |
|
Dimensions
|
| Interior Height |
25.0" (64 cm) |
| Interior Width |
19.38" (49 cm) |
| Interior Depth |
17.38" (44 cm) |
| Compressor Step Height |
3.75" (10 cm) |
| Compressor Step Width |
19.38" (49 cm) |
| Compressor Step Depth |
4.63" (12 cm) |
| Exterior |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) |
PH - Probe Hole |
| Alarm/Thermometer - Factory-installed alarm with external temperature readout |
LHD - Left hand door swing |
| Latch - Factory-installed door latch requires manual release to open unit |
HG - Hospital grade cord |
| SSK - Stainless steel kickplate |
|
| Door |
| T4 Door Tint |
T3 Door Tint |
| T2 Door Tint |
T1S Door Tint |
| T1 Door Tint |
|
| Interior |
| LockBoxSS - Interior locking compartment |
|
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Built-in capable
Make the best use of space by installing this unit under the counter and flush with other cabinetry
ENERGY STAR certified commercial performance
Meets ENERGY STAR standards as a commercial refrigerator
Panel-ready door trim
Door frame can be customized with a custom overlay panel (panel frame dimensions: 29 7/8" H x 23 1/8" W at 3/4" minimum thickness)
Double pane tempered glass door
Stainless steel trimmed glass door offers a full display of stored items
Stainless steel interior
Walls are constructed from stainless steel for added strength and easy cleanup
Factory installed lock
Keyed lock for a secure interior
Digital thermostat
Intuitive digital controls ensure easy temperature management
Cantilevered chrome shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Recessed LED lighting
Efficient and attractive lighting illuminates stored products
Open door alarm
Audible alarm will sound if the door is left ajar for over a minute
High temperature alarm
Alarm sounds if the interior temperature rises out of suggested range
Automatic defrost
Reduced user maintenance with automatic defrost
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Fan-forced cooling
Internal fan ensures the interior is evenly cooled from top to bottom
Sealed back
Space saving design with easier cleanability
Fully finished black cabinet
Allows the unit to be used freestanding
Factory-reversible door swing
Door ships with a right hand door swing. For a left hand version, add option "LHD"
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
