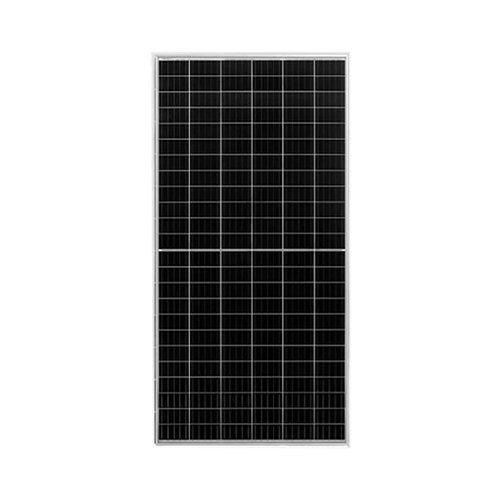

Jinko Solar Eagle 72HM G2 400W Solar Panel | JKM400M-72HL-V

The Jinko Solar Eagle 72HM G2 delivers 400W of reliable power generation with advanced monocrystalline technology. This 72-cell panel features optimized light absorption and reduced hot-spot effects for consistent performance across varying weather conditions.

Features:

• Diamond Cell Technology - Uniquely designed high performance 5 busbar mono PERC half cell
• High Voltage - UL and IEC 1500V certified; lowers BOS costs and yields better LCOE
• Higher Module Power - Decrease in current loss yields higher module efficiency
• Shade Tolerance - More shade tolerance due to twin arrays
• PID FREE - Reinforced cell prevents potential induced degradation
• Strength and Durability - Certified for high snow (5400Pa) and wind (2400 Pa) loads

Specifications:

• MaximumPower(Pmax): 400W
• MaximumPowerVoltage(Vmp): 41.7V
• MaximumPowerCurrent(Imp): 9.60A
• Open-circuitVoltage(Voc): 49.8V
• Short-circuitCurrent(Isc): 10.36A
• ModuleEfficiencySTC(%): 19.88%
• OperatingTemperature(℃): -40C~+85C
• MaximumSystemVoltage: 1500VDC(UL)/1500VDC(IEC)
• MaximumSeriesFuseRating: 20A
• PowerTolerance: 0~+3%
• TemperatureCoefficientsofPmax: 0.36%/C
• TemperatureCoefficientsofVoc: -0.28%/C
• TemperatureCoefficientsofIsc: 0.048%/C
• NominalOperatingCellTemperature(NOCT): 45±2C

Downloads:

• Specification Sheet
