SunGoldPower SPH302460A 3KW 24V Solar Inverter Charger
SKU SPH302460A
$445.00
Purchase your SungoldPower products from our store and get our added lifetime support for free!

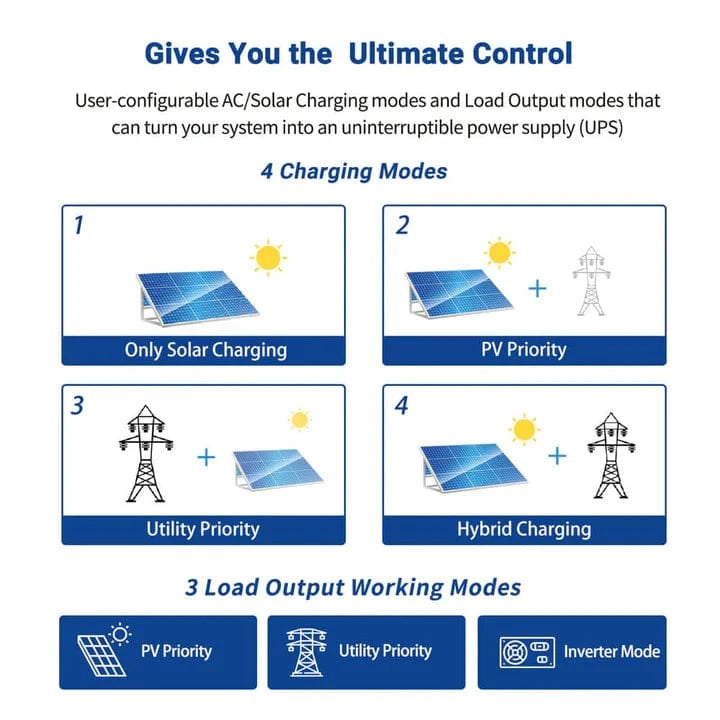

SUNGOLDPOWER 3000W 24V solar inverter combines solar charging, AC/generator battery charging and battery inverter into one complete unit to make your off-grid system working. This solar inverter charger is compatible with 24V battery packs. It provides four user-configurable AC/solar charging modes and three load output modes. It can turn your system into an uninterruptible power supply (UPS )with only 10 milliseconds automatically switching to off-grid to ensure the load powered.

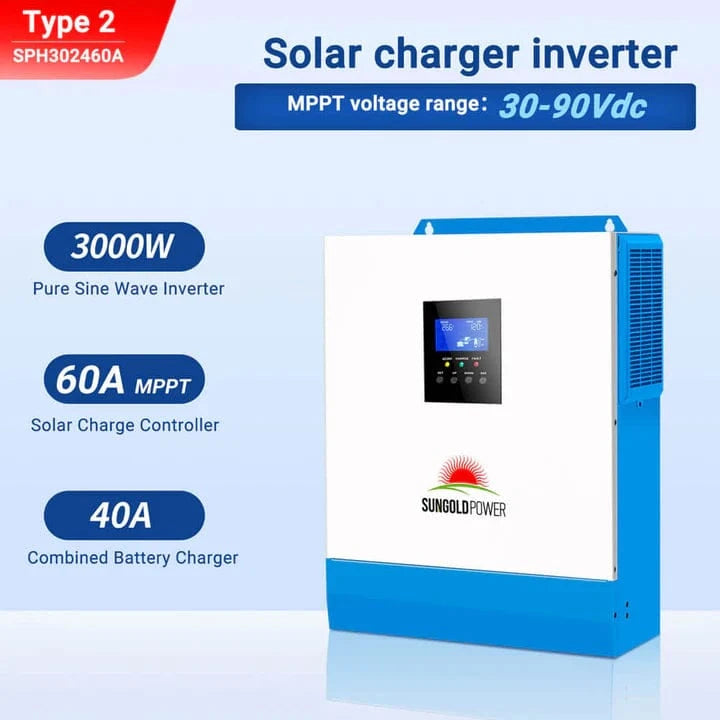

Main Features:
- SPH302460A Built-in 60A MPPT solar charge controller, max PV input 1600W
- 40A Smart AC charger
- High frequency transformer-less compact design
- Pure sine wave AC 120V output with 50hz/60hz switch
- Optional WiFi/ GPRS remote monitoring (extral cost)
- Overload, short circuit, over discharge protection
- Auto-start the generator ( Dry Contacts for delivering signal)
Inverter Mode:
- Output: Pure Sine Wave
- Peak Power : 6000VA
- AC Output : 120VAC ,50HZ/60HZ
- Input Voltage / Rated Battery : 24VDC (minimum start-up voltage:22V)
- Bypass Breaker Current: 40A
- Idle Power: 50W
- Power Saver Mode Idle Consumption: 25W

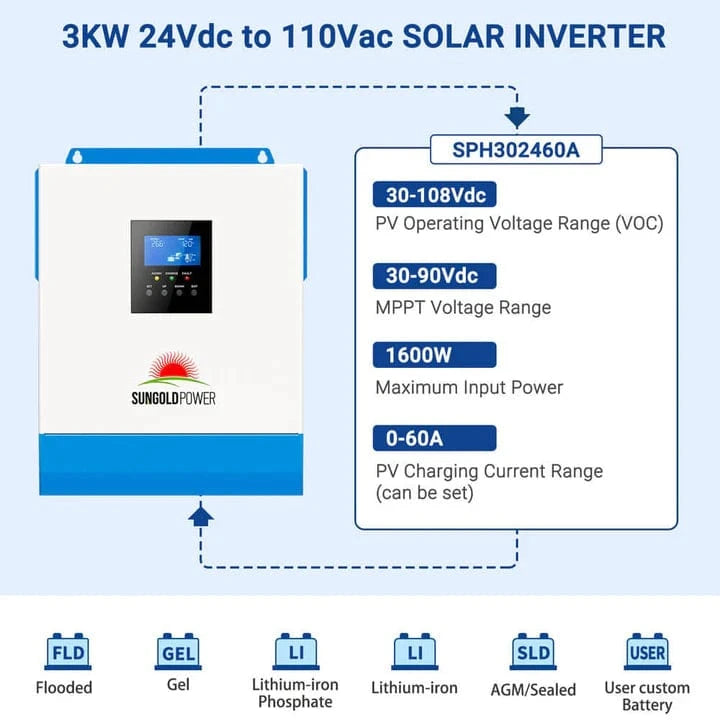

SPH302460A MPPT Solar Charging Mode:
- Maximum Input Power: 1600W
- PV Charging Current : 0-60A
- Max.PV Open Circuit Voltage: 108V
- PV operation voltage range: 30-108Vdc
- Mppt Voltage Range: 30-90Vdc
- Recommended wire: 12 AWG
AC Charging Mode:
- Rated AC input: 110V, 50HZ/60HZ
- Input Voltage Range: 90VAC-140VAC
- Conversion Time: 10ms
- Battery Type: Lead Acid and Lithium Battery
- Maximum Charging Current: 40A
- Charging Voltage Range:20-33VDC
- Short-Circuit Protection: Breakers and fuses
- Overcharge Protection: Yes. Automatically alerts and turns off charging after 1 min
Mechanical Specification:
- Size: 15.0 x 11.0 x 4.1 inch
- Net Weight: 16.8lbs
- Noise: ≤60dB
- Operating Temperature Range:5°F ~ 131°F/ -10°C ~ 55°C
- Cooling Fan: Yes
Specifications:
- Click Here - 3000W Solar Inverter User's Manual
