An advanced charge controller that maximizes the performance of your solar system.
Maximize Your System Efficiency
The Rover 40A Solar Charge Controller is the ultimate solution for both 12V and 24V systems, offering unparalleled versatility. It harnesses the maximum power from your solar panels, ensuring optimal charging efficiency.
Prioritize Safety with Battery Voltage Setting
It is essential to set the battery voltage before connecting the Rover Charge Controller. This crucial step ensures enhanced safety and optimal performance.
Simple and Intuitive Programming
Customize settings and monitor charging parameters with ease.
Multiple Protections for Various Battery Types
Ensuring the utmost protection for your batteries, safeguarding against overcharging, over-discharging, short-circuiting, overloading, reverse polarity, and reverse current, and providing temperature compensation.
Enhanced Connectivity for a Superior Experience
Monitor, control, and optimize charging anywhere with Renogy Charge Controller's Bluetooth connectivity.
Powerful Heat Dissipation
Operates at peak performance even in extreme temperatures, ensuring your system is always running smoothly and efficiently.
Exceptional Resilience and Long-lasting Performance
Designed with materials and coatings that prevent rust and corrosion, ensuring your solar energy system is durable and reliable.

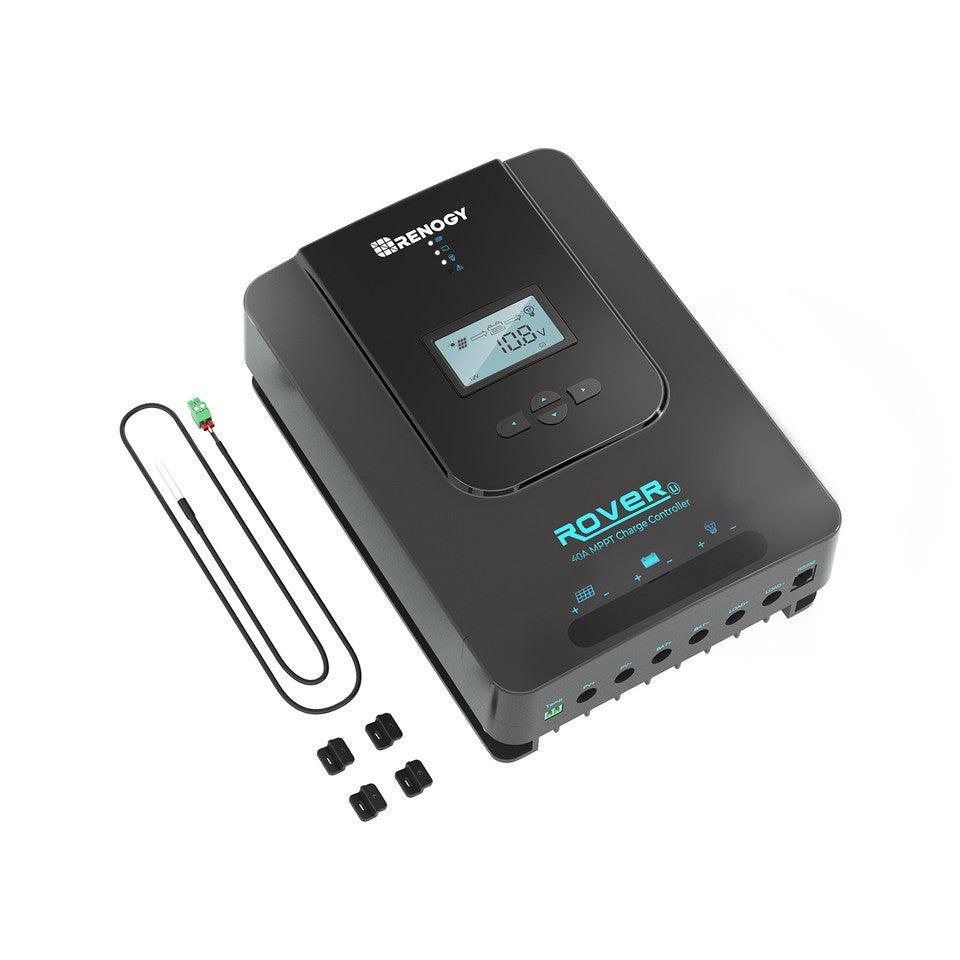

Package Includes:
- Rover 40 Amp MPPT Solar Charge Controller x 1
- Remote Temperature Sensor x 1
- Mounting Brackets x 4
Specifications:
Electrical Parameters
- Nominal System Voltage: 12/24V Auto-Detect
- Rated Charge Current: 40A
- Solar Input Voltage Range (Voc): 15VDC~100VDC
- Max. PV Input Power: 12V/520W, 24V/1040W
- Power Consumption: ＜100mA/12V; ＜58mA/24V
- Battery Input Voltage Range: 10VDC~32VDC
- Ground Type: Negative
- Electrical Protection: Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries.
Environmental Data
- Protection Level: IP32
- Operating Temperature Range: -35°C to 45°C; -31°F to 113°F
- Storage Temperature Range: -35°C to 75°C; -31°F to 167°F
- Operating / Storage Humidity: ≤ 90%, No Condensation
- Temperature Compensation: -3mV/°C/2V
Mechanical Specifications
- Dimensions: 238 x 172 x 77 mm;9.38 x 6.78 x 3.05 in
- Weight: 2.0kg / 4.41 lb
- Max. Terminals Size: 8 AWG 10mm2
Accessories
- Temperature Sensor: 9.8ft cable length
Certifications
- CE: YES
- FCC Class B Part 15 Compliant: YES
Warranty
- Material and workmanship warranty: 3 Year
