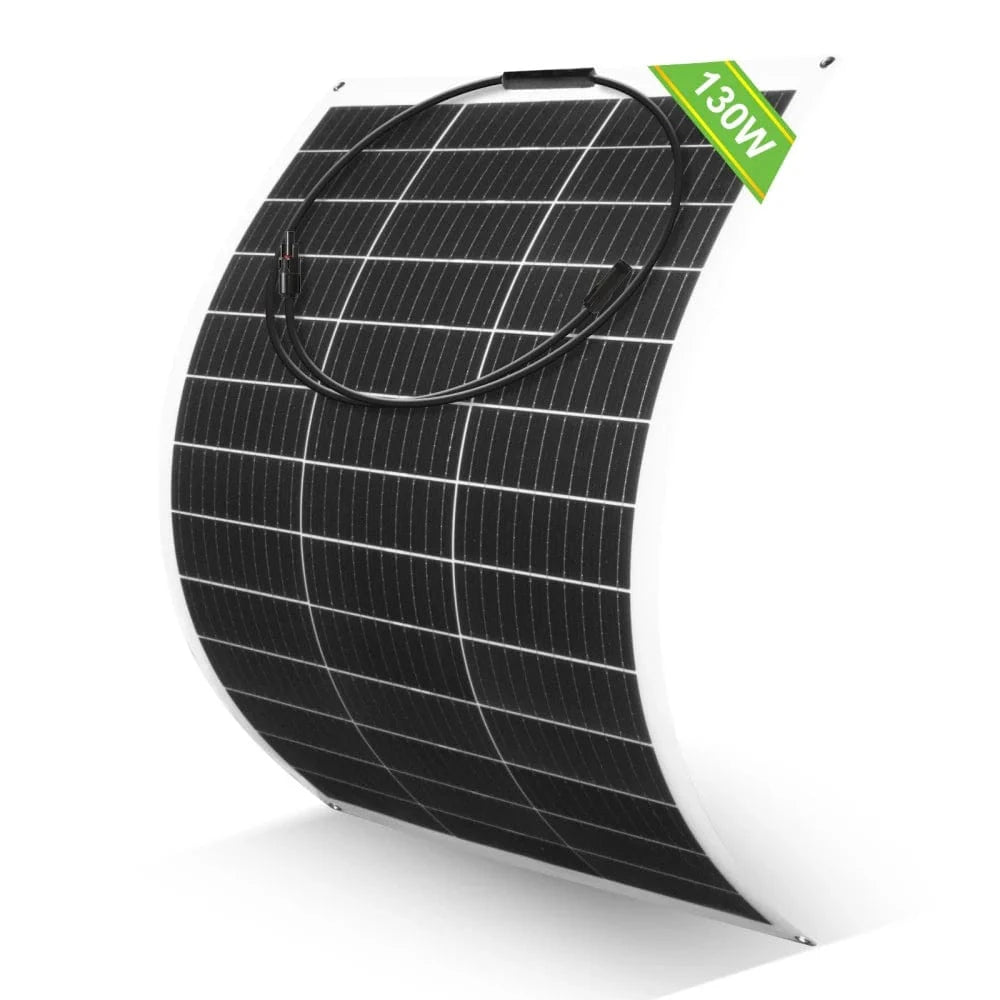

Eco-Worthy 130W 12V Flexible Panel Module
ECO-WORTHY 130W is a flexible high-performance solar cell that is ideally suited both as a solar module for the mobile home and especially for marine use on sailing yachts, motor yachts and other types of boats.
Wide Application: ECO-WORTHY 130W is a flexible high-performance solar cell that is ideally suited both as a solar module for the mobile home and especially for marine use on sailing yachts, motor yachts and other types of boats.
Maximum Stability: Our flexible solar modules are made from a special aluminum-plastic composite. The aluminum core of the base plate is 0.8 mm thick and encased in plastic to give the entire module greater stability without reducing flexibility. Thanks to the integrated bypass diodes in the junction box, the module can continue to produce electricity even when it is shaded or in poor lighting conditions.

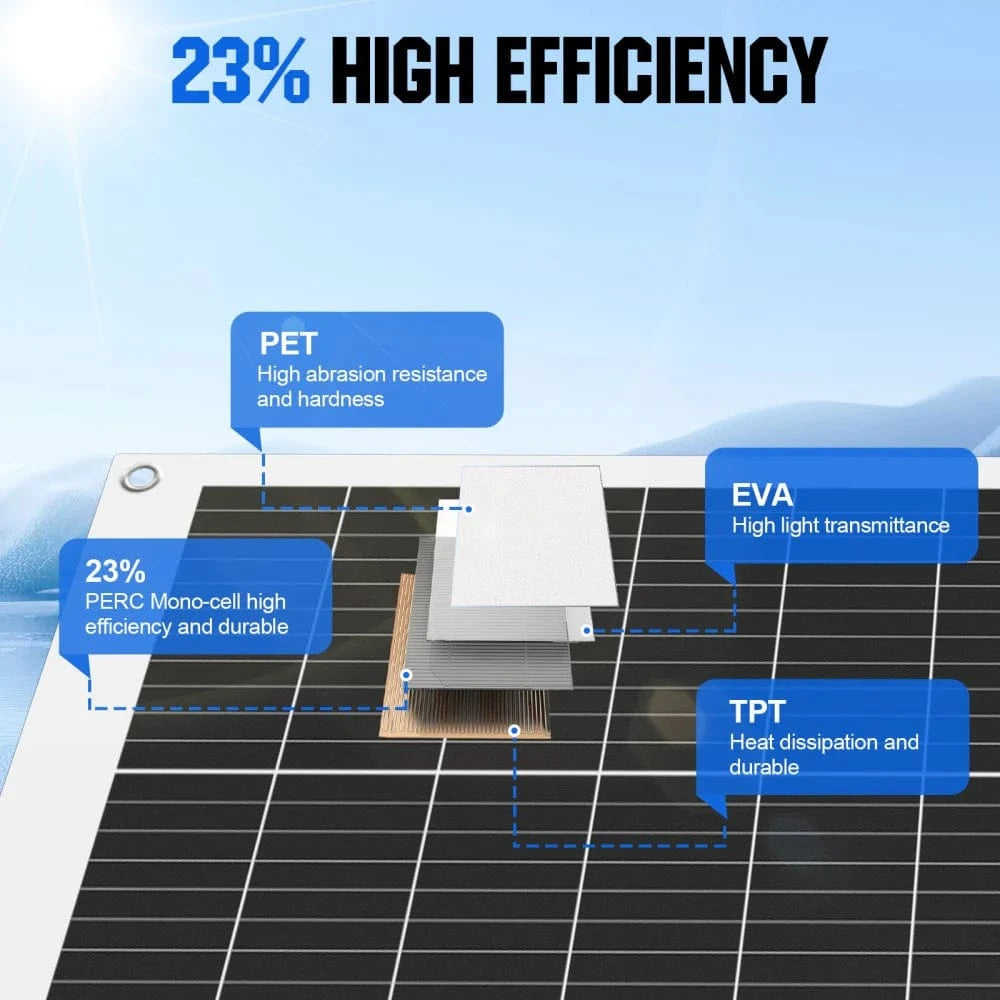

PET Coating: The particularly translucent, structured PET coating of the solar modules ensures very high scratch and weather resistance and thus a long service life, even under difficult conditions. In the marine sector in particular, PET stands out from other plastics because of its high resistance to salt water.

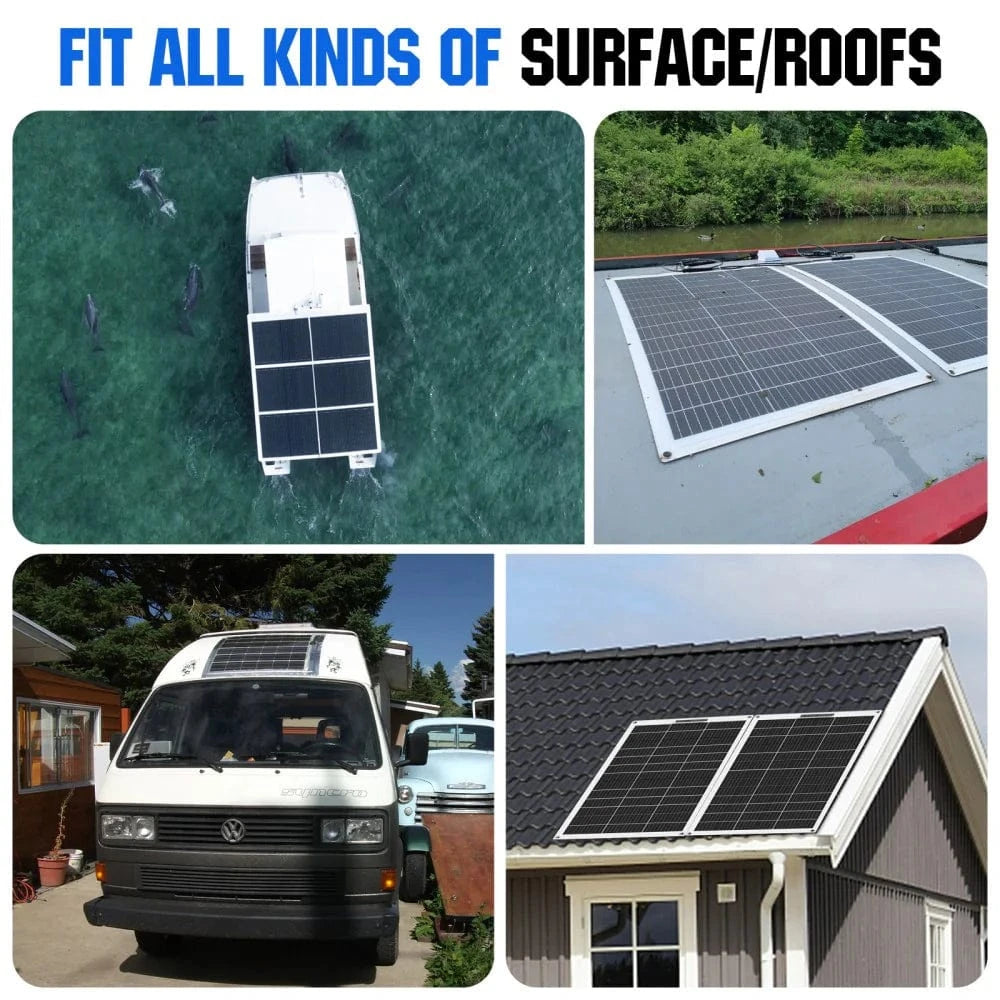

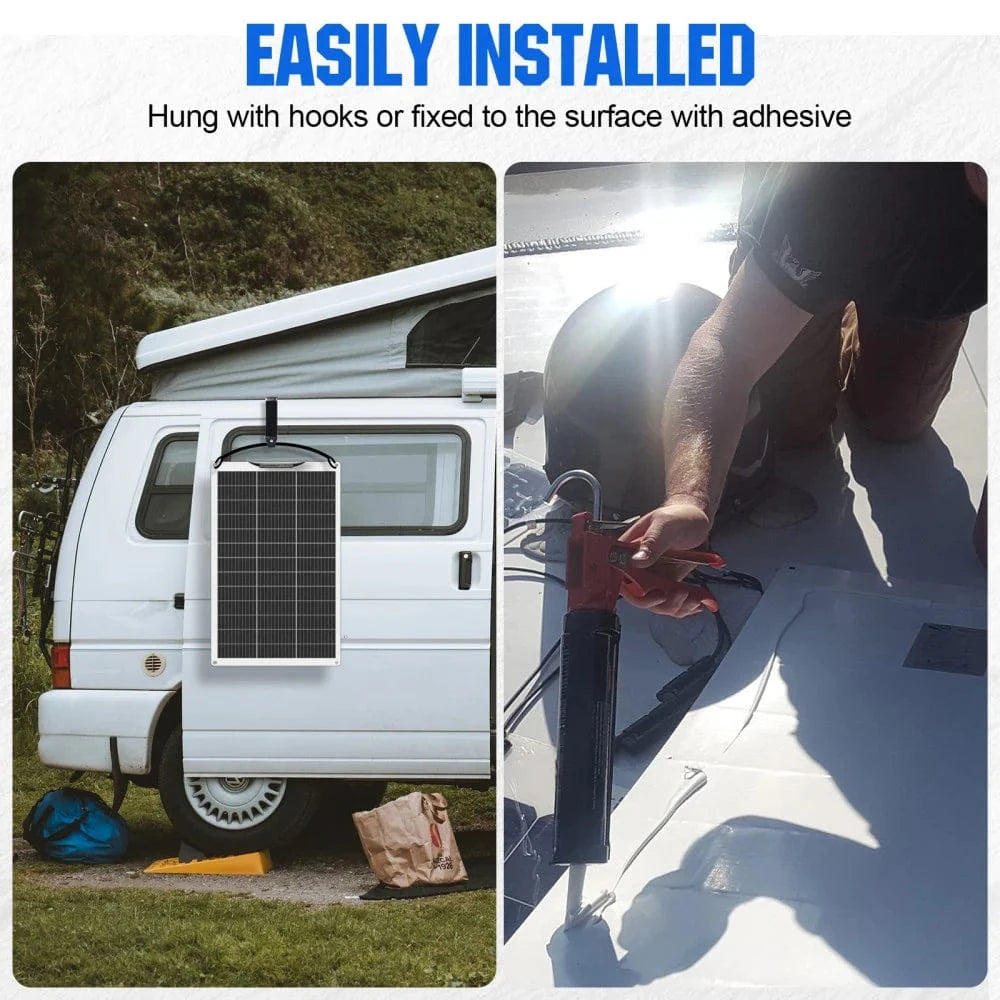

Easy Construction: Thanks to the junction box on the front, the modules can be glued to almost any surface. Installation is very easy: the modules are glued quickly and easily with a special adhesive. There are few limits to the choice of surfaces. Previously unused areas can now be used.
Specifications:
| Rated Power: 130W | Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 21.10V | Open Circuit Voltage(Voc): 24.50V |
| Short circuit current: 6.50A | Maximum current: 6.16A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: －40℃～ +85℃ |
| Length of extension cable: 90cm（2.95ft） | Size of extension cable: 4mm²（11AWG）/MC4 Connector |

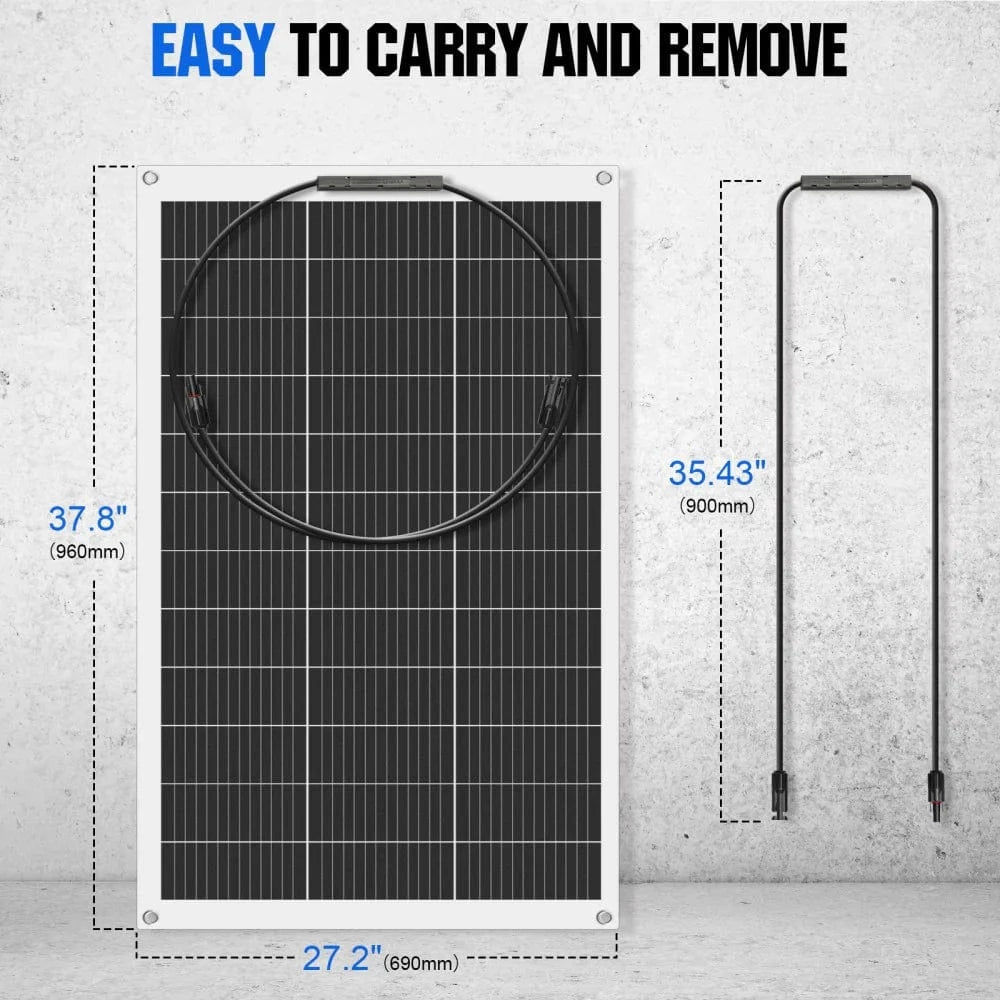

| Weight: 4.40 lbs(2.0 kg) | Size: 960x690x2.5 mm (37.8 x 27.16"x 0.1 in) |
