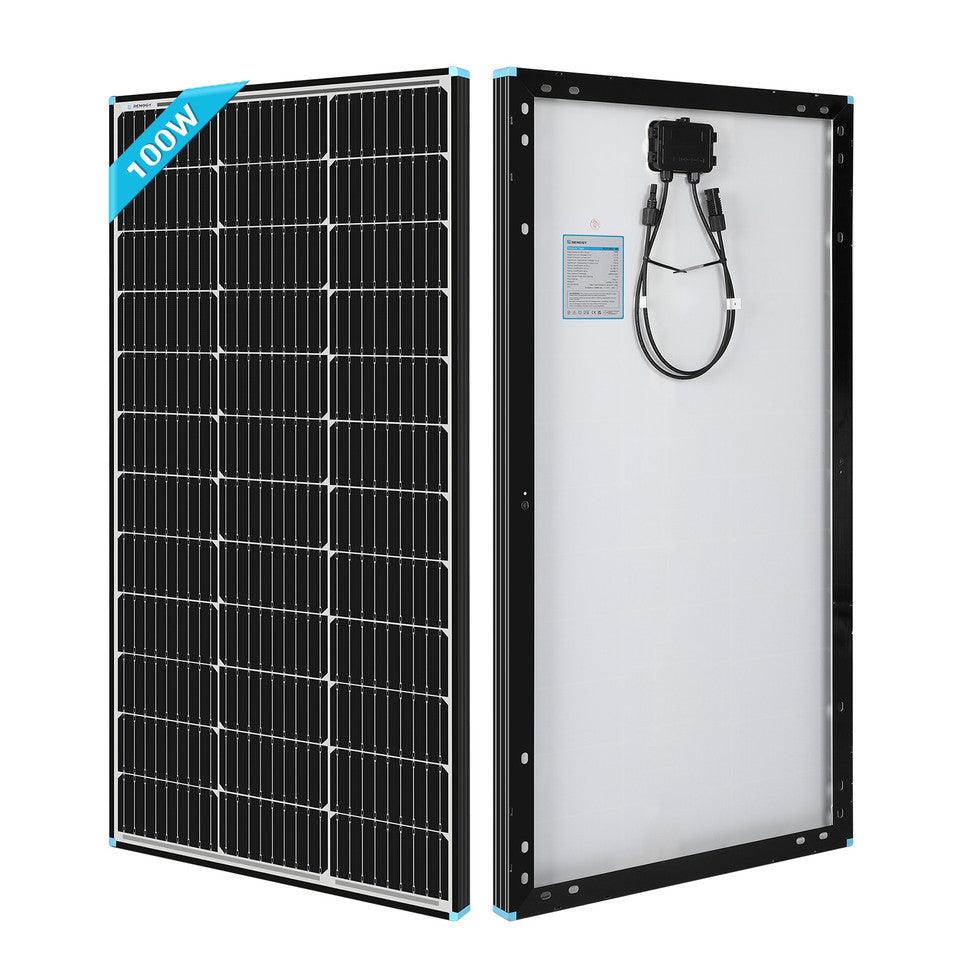

The Renogy 100 Watt 12 Volt Monocrystalline Solar Panel is the perfect item for off-grid applications! High in power but compact in size, this 100W solar panel is a favorite for RVs, boats, campers, and similar applications, providing excellent efficiency per space. Ideal for starting a new project or expanding an existing one, Renogy 100W Monocrystalline Solar Panels will not disappoint.
Key Features
Reliable
- Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life
- EL-tested solar modules; no hot-spot heating guaranteed
- Bypass diodes minimize power drop caused by shade
- TPT back sheet ensures smooth performance over a long period of time
Durable
- Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)
- Corrosion-resistant aluminum frame allows extended outdoor use; the panels can last for decades
- Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance
- IP65 rated junction box provides complete protection against environmental particles and low-pressure water jets
Versatile
- Can be used for many different applications
- Ground mount compatible
- Compatible with on-grid and off-grid inverters
Installation Ready
- Pre-drilled holes on the back of the panel allow for fast mounting and securing
- Pre-drilled holes included for grounding
- Compatible with different Renogy mounting systems such as Z-Brackets, Pole Mounts, and Tilt Mounts
Includes:
- 100 Watt 12 Volt Monocrystalline Solar Panel
Specifications:
- Max Power at STC: 100W
- Open Circuit Voltage: 24.3V
- Short Circuit Current: 5.21A
- Opitimum Operating Voltage: 20.4V
- Optimum Operating Current: 4.91A
- Operating Temperature: -40°F to 185°F(-40°C to +85°C)
- Maximum System Voltage: 600 VDC UL
- Maximum Series Fuse Rating: 15A
- Output Cable: 14 AWG 1.97 ft (0.6m) long
- Dimensions: 1062 x 530 x 35 mm (41.8 x 20.9 x 1.38 in)
- Weight: 6.4 kg (14.1 lb)
- Material and workmanship warranty: 10 years
- Performance Warranty: Over 80% Output at 25 Years
