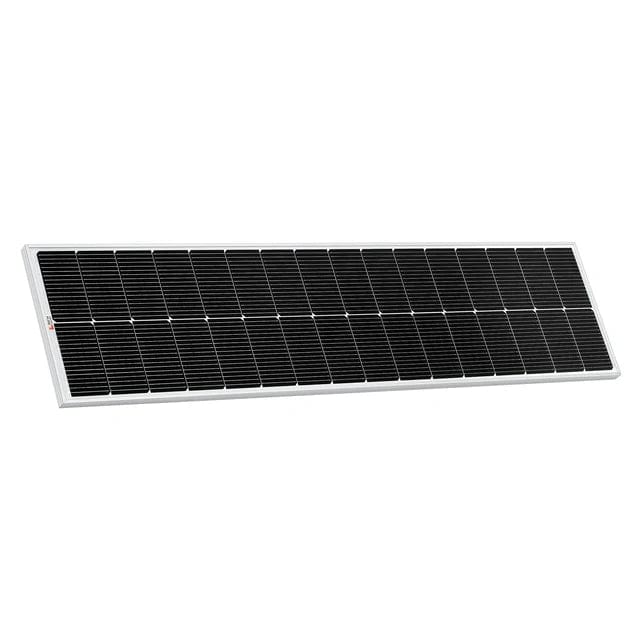

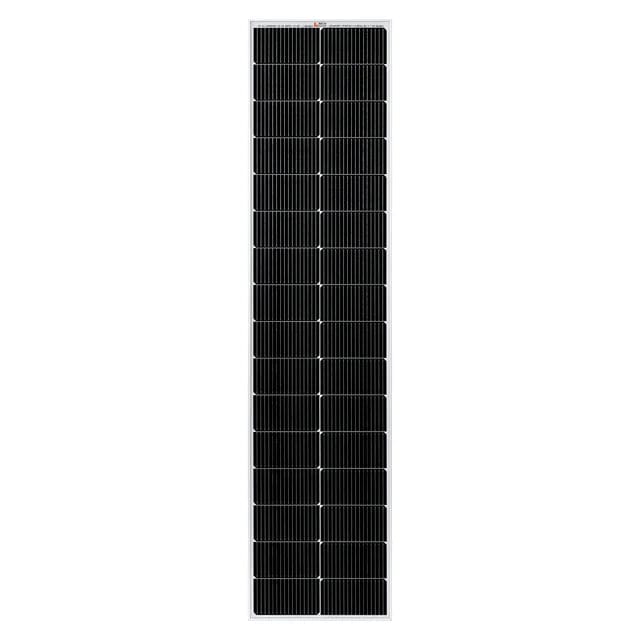

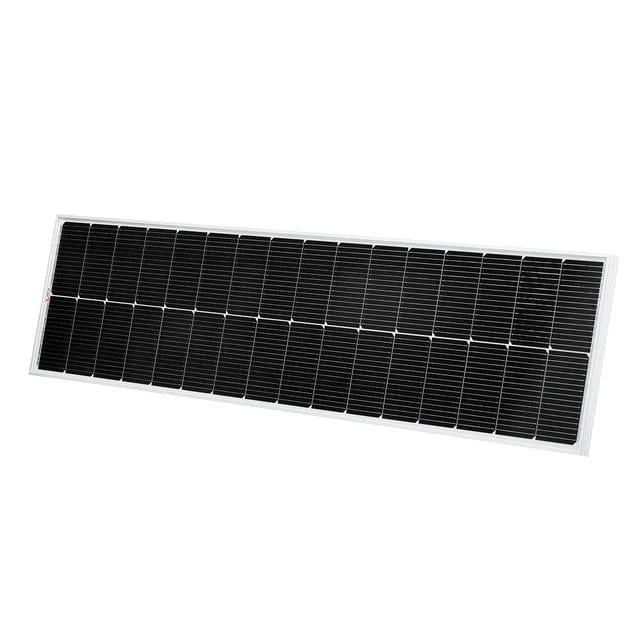

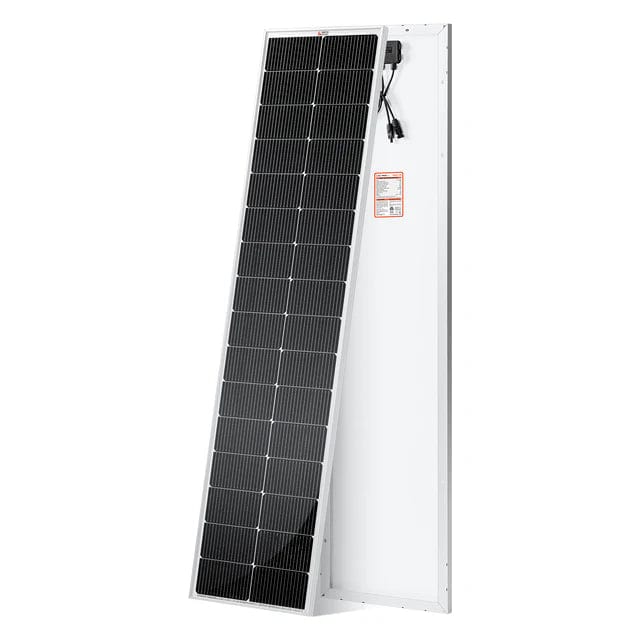

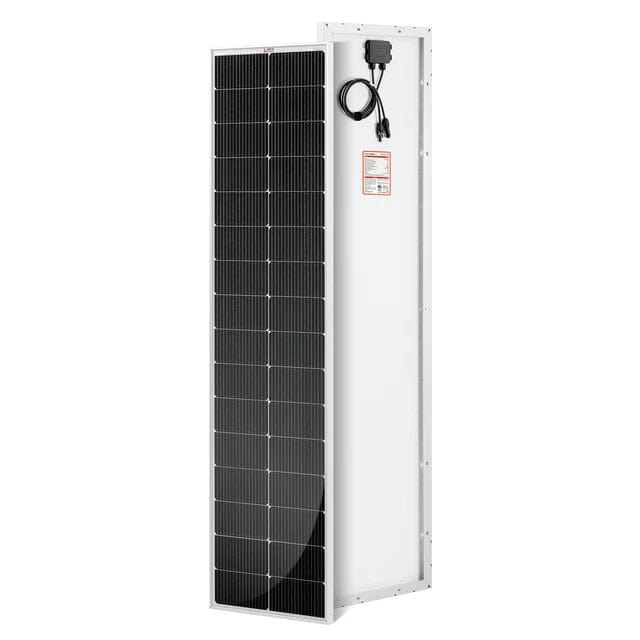

Rich Solar MEGA 130 SLIM | 130 Watt Slim Solar Panel

BDRS-M130SL

Been looking for the best RV off-grid solar system for you? This MEGA 100 Slim 100 Watt 12V Solar Panel will help start your camper solar setup. Get this to start your off grid solar trailer adventure today!

Features:

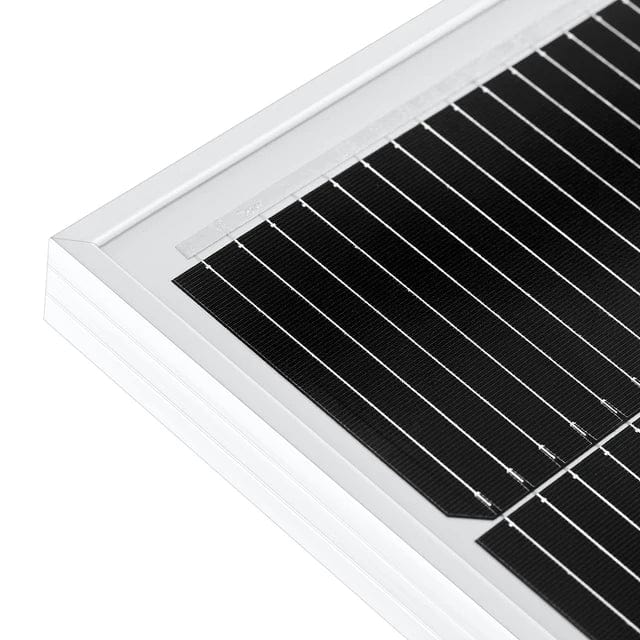

  • 15-busbar solar cell configuration
  • Lightweight, anodized aluminum frame
  • High Transmission, AR (anti-reflective) Coated Tempered Glass
  • Plug-and-play junction box
  • Industry-standard quick-connect cables work in series or parallel
  • Excellent low-light performance on cloudy days, mornings and evenings
  • Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF, and many more), PID resistant, 100% EL double inspection)
  • Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h)

Installation:

  • Easy installation and handling for various applications (high-end off-grid and mobile applications)
  • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
  • Compatible with on-grid and off-grid inverters

Warranty:

  • 25-year output warranty
  • 10-year workmanship warranty

Built-in Components

  • 130W solar panel
  • Panel leads (pair): 3 feet each

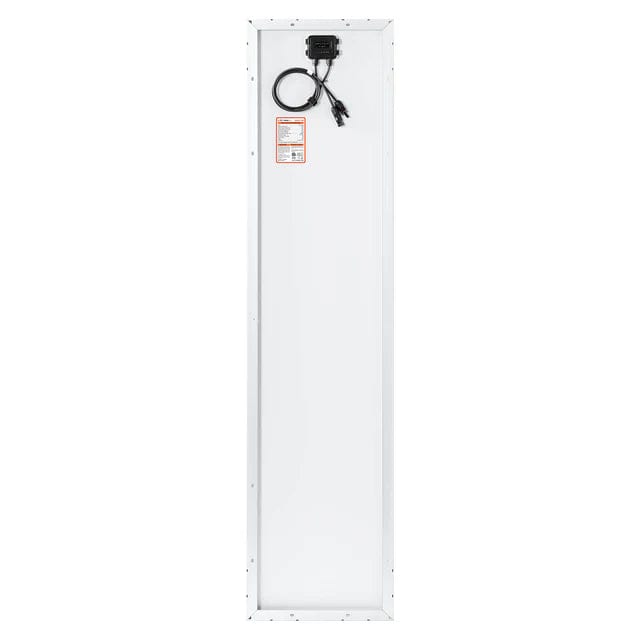

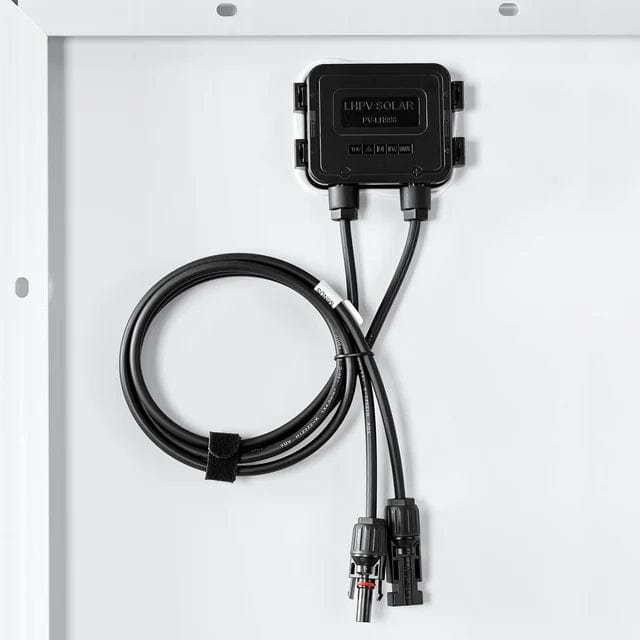

  • IP67-rated waterproof junction box
  • IP67-rated waterproof solar connectors
  • Bypass diodes built into the junction box

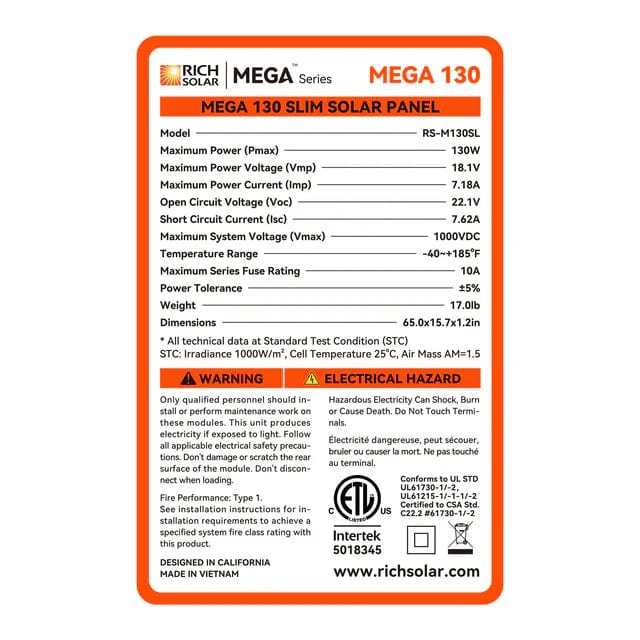

Specifications

  • Model: RS-M130SL
  • Maximum Power(Pmax): 130W
  • Maximum Power Voltage(Vmp): 18.1V
  • Maximum Power Current(Imp): 7.18A
  • Open Circuit Voltage(Voc): 22.1V
  • Short Circuit Current(Isc): 17.62A
  • Maximum System Voltage(Vmax): 1000 VDC
  • Maximum Series Fuse Rating: 10A
  • Module Efficiency: 19.7%
  • Temperature Range: -40~ +185℉
  • Weight: 17.0lb (7.7kg)

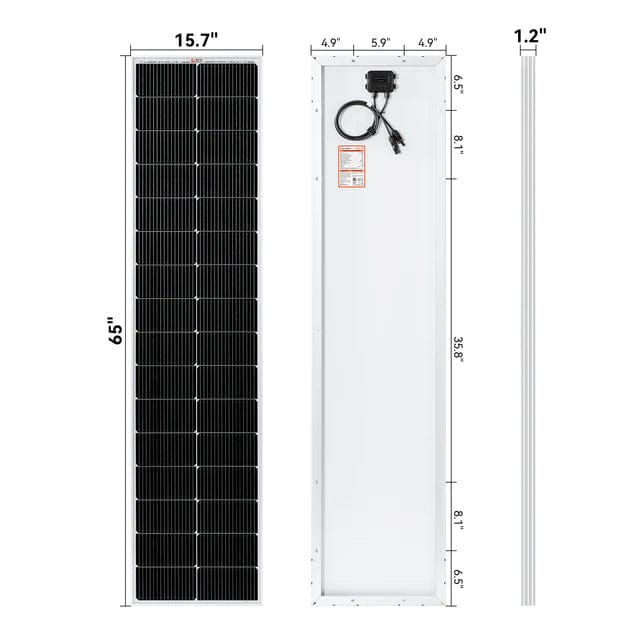

  • Dimensions: 65.0in x 15.7in x 1.2in (1650mm x 400mm x 30mm)
