The Summit Refrigerator-Freezer CT66BK2SSIFADALHD is a 24" wide appliance that is ADA compliant and does not include a panel. With its sleek design and advanced technology, this refrigerator-freezer offers optimal storage space while meeting accessibility standards. Make your life easier and more efficient with this high-quality addition to your kitchen.
Made in Europe with 5 cu.ft. of interior storage, including a full freezer compartment
Summit's ADA compliant undercounter lineup of European-made refrigeration features 32" high choices that offer the largest capacity in the industry, including fully featured refrigerators with freezer compartments to meet all of your storage needs.
Sized at 32" high with a 24" footprint, model CT66BK2SSIFADALHD is an ENERGY STAR certified refrigerator-freezer designed for residential use under lower ADA compliant counters.The door features an integrated stainless steel exterior frame designed to accept overlay panels, allowing you to create a custom look that can seamlessly blend into your kitchen (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick). This unit has a jet black exterior cabinet comes with a left hand door swing. It operates quietly at less than 33 dB.

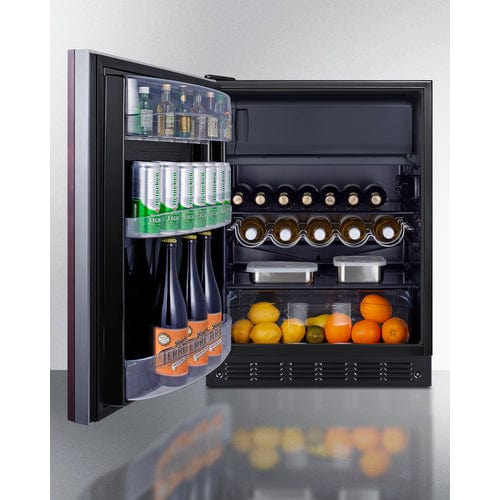

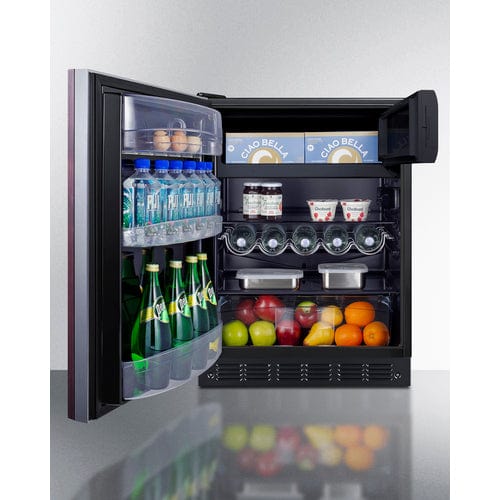

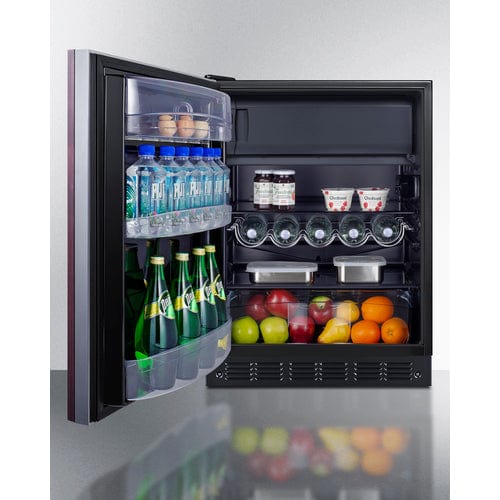

Inside, the CT66BK2SSIFADALHD offers 5 cu.ft. of storage, a higher capacity than virtually any refrigerator-freezer in this size class. It features a black interior liner and black trimmed adjustable glass shelves for spill-proof storage. We also include a removable scalloped steel rack ideal for holding bottles in a horizontal position. A large clear crisper makes it easy to store produce at its best and three clear door racks let you keep condiments in easy reach. A light automatically illuminates the interior when the door is open.
Summit's European lineup features classic mechanical controls. The dial thermostat ensures an intuitive, trouble-free performance without any internal boards or chips. The advanced dual evaporator system allows separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food.
The CT66BK2SSIFADALHD is UL listed for residential use. With its large capacity, professional finish, and user-friendly features, this refrigerator-freezer is a convenient option for homes, offices, schools, and other settings in need of reliable cold storage. Additional finish options are available, as well as in freezerless configurations (model FF6BK2SSIFADALHD). Browse the full Summit catalog to discover the perfect appliance for your refrigeration needs.
|
Overview
|
| Height of Cabinet |
32.0" (81 cm) |
| Height to Hinge Cap |
32.13" (82 cm) |
| Width |
23.63" (60 cm) |
| Depth |
22.38" (57 cm) |
| Depth with Handle |
24.0" (61 cm) |
| Depth with door at 90° |
44.25" (112 cm) |
| Capacity |
5.0 cu.ft. (142 L) |
| Defrost Type |
Cycle |
| Door |
Panel-Ready |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Energy Usage/Year |
330.0kWh/year |
| Amps |
1.2 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
100.0 lbs. (45 kg) |
| Shipping Weight |
122.0 lbs. (55 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101103419 |
|
Refrigerator-Freezer
|
| Door Swing |
LHD |
| Reversible |
No |
| Adjustable Shelves |
Yes |
| Crisper Qty |
1 |
| Crisper Finish |
Transparent |
| Crisper Cover |
Glass |
| Wine Bottle Shelving |
Yes |
| Interior Light |
Yes |
| Refrigerator - Interior Height |
18.0" (46 cm) |
| Refrigerator - Interior Width |
21.0" (53 cm) |
| Refrigerator - Interior Depth |
18.0" (46 cm) |
| Refrigerator - Capacity |
4.3 cu.ft |
| Refrigerator - Shelf Type |
Glass |
| Refrigerator - Shelf Qty |
2 |
| Refrigerator - Full Door Shelves |
3 |
| Refrigerator - Temperature Range |
36°F to 46°F |
| Freezer - Interior Height |
5.25" (13 cm) |
| Freezer - Interior Width |
19.0" (48 cm) |
| Freezer - Interior Depth |
11.5" (29 cm) |
| Freezer - Capacity |
0.7 cu.ft |
| Thermostat Type |
Dial |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.92 oz. |
| High Side PSI |
180.0 |
| Low Side PSI |
80.0 |
| Level Legs |
2 |
| Compressor Step Height |
5.5" (14 cm) |
| Compressor Step Width |
21.0" (53 cm) |
| Compressor Step Depth |
6.0" (15 cm) |
| Sound Level |
32.6 |
| Exterior |
| SSK - Stainless steel kickplate |
|
European refrigerator with freezer
24" wide refrigerator-freezer designed and manufactured in Europe for residential use

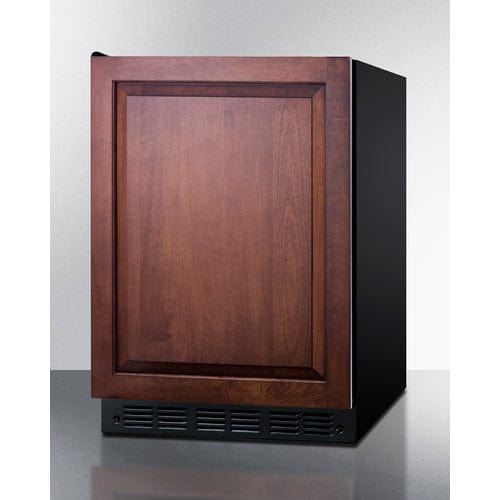

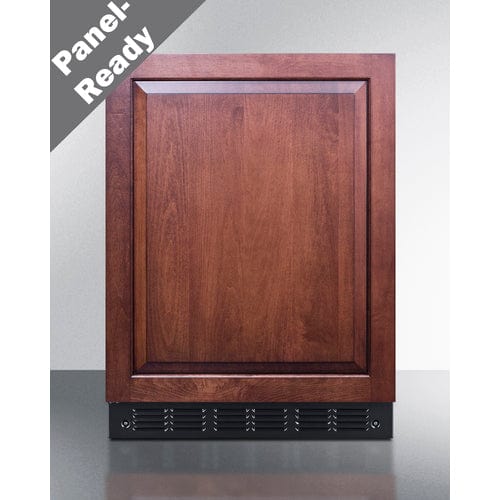

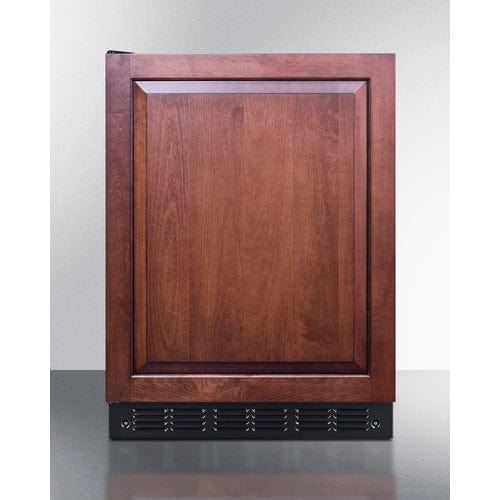

Panel-ready door
Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
ENERGY STAR certified
Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
Large capacity
5 cu.ft. of interior storage, larger than virtually any other refrigerator-freezer in this size class
ADA Compliant height
32" height allows easy installation under lower ADA compliant counters
Slim counter height dimensions
Ideal 24" footprint for an easy fit

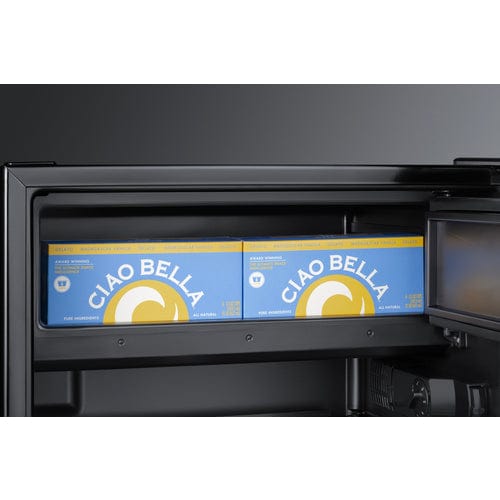

Freezer included
Interior .7 cu.ft. freezer compartment with reversible door
Dual evaporator
Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
Cycle defrost
This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
Adjustable glass shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

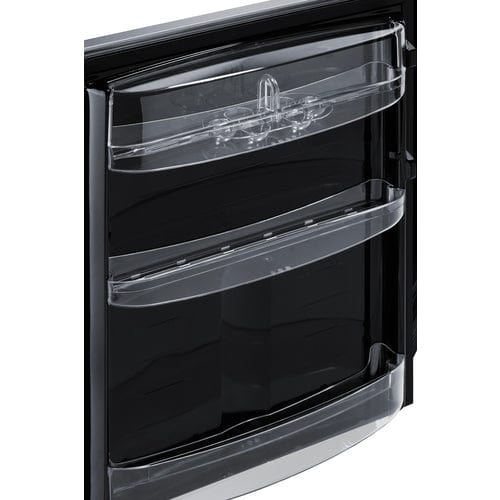

Door storage
Store tall bottles and condiments right on the door for convenient access
Bottle shelf included
Removable scalloped steel shelf lets you keep wine and other bottles stored horizontally
Fruit and vegetable crisper
Removable clear crisper drawer offers the ideal conditions for keeping produce at its best
Interior light
Automatically illuminates when you open the door
One piece interior liner
Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Hidden evaporator
Cold wall design with hidden evaporator creates a seamless, easy to clean interior
Black interior
Attractive jet black finish inside to match the cabinet and kickplate

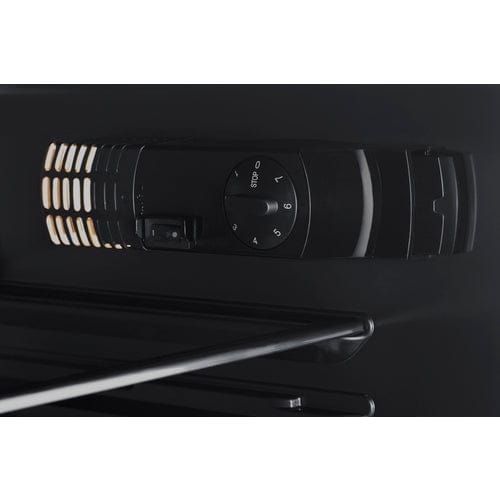

Adjustable mechanical thermostat
Simple and intuitive analog controls located inside for easy temperature management
Left hand door swing
For this unit with the door opening from the other side, see model CT66BK2SSIFADA
Fully finished cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
