Two temperature zones for versatile storage in a uniquely slim 18" width
SUMMIT's collection of built-in wine cellars offers fully featured choices in slim fits, allowing smaller kitchens to bring convenient and reliable wine storage for every undercounter space.
Sized just under 18" wide, the SWC182ZCSS is front-breathing for built-in installation under counters but can also be used freestanding. The cabinet is wrapped in 304 grade stainless steel for a professional look built to last. The reversible glass door features an elegant stainless steel trim and professional handle. A factory installed lock offers added security, with two keys included.
Two separate zones allow you to store your reds and whites at their own temperature, ensuring each bottle is kept under the proper conditions. This unit can hold up to 28 standard Bordeaux style bottles or 22 wider Burgundy style bottles. The wooden shelves feature a black finish for a modern look, with recessed LED lighting to provide an attractive and efficient presentation. The digital controls are located in the center for easy temperature management.
With its slim fit and convenient design, the SWC182ZCSS makes an attractive addition to any room.
|
Overview
|
| Height of Cabinet |
34.25" (87 cm) |
| Width |
17.94" (46 cm) |
| Depth |
23.5" (60 cm) |
| Depth with Handle |
25.25" (64 cm) |
| Depth with door at 90° |
39.75" (101 cm) |
| Capacity |
3.3 cu.ft. (93 L) |
| Bottles |
28 bottles |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Amps |
1.25 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
95.0 lbs. (43 kg) |
| Shipping Weight |
131.0 lbs. (59 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101058429 |
|
Wine Cellar
|
| Number of Zones |
2 |
| Door Swing |
RHD |
| Reversible |
Yes |
| Shelf Type |
Wood |
| Shelf Qty |
4 |
| Thermostat Type |
Digital |
| Interior Light |
Yes |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.23 oz. |
| High Side PSI |
150.0 |
| Low Side PSI |
50.0 |
| Interior Height 1 |
10.63" (27 cm) |
| Interior Width 1 |
14.25" (36 cm) |
| Interior Depth 1 |
18.0" (46 cm) |
| Compressor Step Height |
5.25" (13 cm) |
| Compressor Step Width |
14.25" (36 cm) |
| Compressor Step Depth |
5.0" (13 cm) |
| Level Legs |
4 |
| Temperature Range |
41º to 64ºF |
| Interior Height 2 |
12.25" (31 cm) |
| Interior Width 2 |
14.25" (36 cm) |
| Interior Depth 2 |
18.0" (46 cm) |
| Exterior |
| SSK - Stainless steel kickplate |
LHD - Left hand door swing |
| Latch - Factory-installed door latch requires manual release to open unit |
|
| Door |
| T4 Door Tint |
T3 Door Tint |
| T2 Door Tint |
T1S Door Tint |
| T1 Door Tint |
|
Dual zone storage
Keep white wine in the upper compartment stored between 41 and 50ºF and red wine at a warmer 50 to 64ºF range in the lower chamber
Built-in capable
Make the best use of space by installing your appliance under the counter
Stainless steel wrapped cabinet
304 grade finish on the exterior cabinet for a professional look with lasting durability
28 bottle capacity

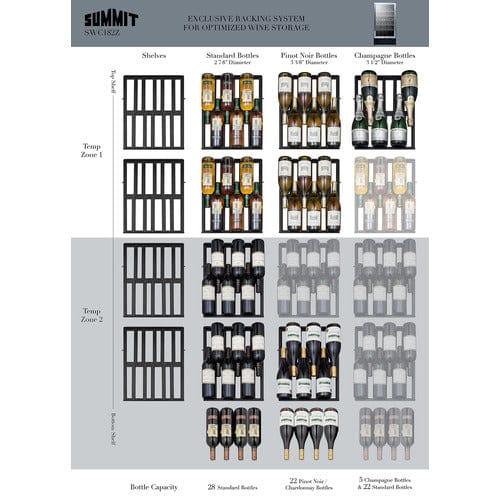

Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles
Glass door with stainless steel trim
Provides a full display of stored contents with a heat-safe double tempered design
Factory installed lock
Keyed lock for a secure interior, with 2 keys included

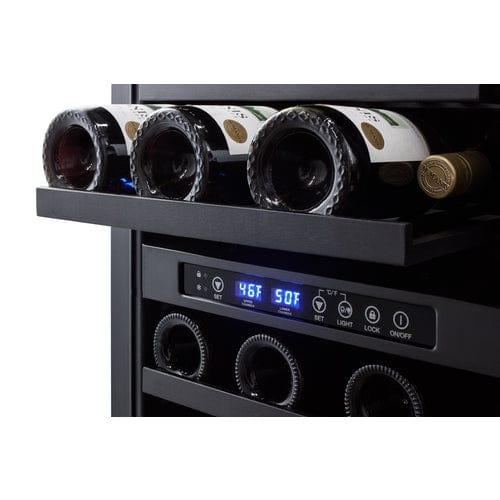

Digital thermostat
Electronic controls for precise temperature management.
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
LED lighting
Gentle illumination for each temperature zone for an elegant presentation
Wooden shelves
4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish
Automatic defrost
Reduced maintenance with the convenience of auto defrost
Reversible door
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Professional handle
Stainless steel handle completes the look
Integrated door hinge
Hinge is flush with cabinet, adding no additional height to the unit
Freestanding capable
Fully finished cabinet also allows freestanding use
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
