The success of the Excel design meant that a three chamber unit could be specifically designed for those with NO continuous 110 volt supply. First launched in 1981, the Excel NE has long been the standard toilet for those living off the grid. A 1998 redesign gave the unit a rounded look, and recessed the drum handle.

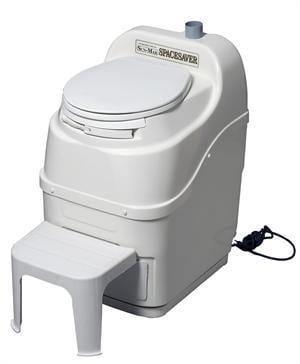

The SPACESAVER is a standard three chamber unit designed specifically for situations where space is extremely limited. With a width of only 19" and depth of 22", even a closet or small corner can now be turned into a bathroom!
The SPACESAVER is fitted with the same kind of high quality turbo-fan as other electric units have. The difference is that on the Space Saver, a 3" vent stack is included.
The SPACESAVER has almost the same size Bio-drum as the COMPACT, so composting capacity is similar to that of the Compact. On the other hand, evaporation is limited by the smaller heater and evaporating surface, so the safety drains should be connected.
Capacity
Listed capacities refer to the amount of people, on average, using the unit per day. Do not pick a unit that is below your capacity.
Residential/Continuous (Adults/Families) 1 adults or families of 2
Seasonal/Vacation (Adults/Families) 3 adults or families of 4
Electricals
Electricals must be connected while the unit is in AC use for proper operation
Maximum Amps (With Heater On) 1.2
Fan Watts (Required or Optional Hookup) 35 Required
Heater Watts (When Thermostat switches it on) 160
Average Power Use in Watts (Heater on 1/2 time) 110
Vent & Drains
Vent Pipe 2" PVC Thinwall
Drains (Required or Optional Hookup) 1" Drain, Required Use
Weights (Lbs.) & Dimensions
Product Weight/Shipping Weight 40-75
Shipping Carton Dimensions (W by L by H) 22" by 29" by 37"
Depth Required to Remove Drawer 38"
Vent outlet center distance from right side 7"
Height to center of vent 27 3/4"
Unit Height/Width/Depth 30" by 19 1/2" by 23"
Electric Unit Medium Capacity, Most Sun-Mar products are made to order, expect a 2 week delivery time.
