Rich Solar MEGA 200 MAX Watt Monocrystalline Solar Panel | Best 24V Panel for RVs and Off-Grid | 25-Year Output Warranty | UL Certified

BDRS-M200D

Introducing the Mega 200 MAX 24 Volt Solar Panel - the ultimate solar panel for maximum power efficiency. With its advanced technology and high-quality materials, this panel offers up to 200 watts of clean, renewable energy.

Features

  • 9 buss bar solar cell configuration
  • Mono PERC Technology
  • Lightweight anodized aluminum frame
  • High Transmission, AR (anti-reflective) Coated Tempered Glass
  • Plug and play junction box
  • Industry standard quick connect cables work in series or in parallel
  • Certified to withstand challenging environmental conditions
  • Excellent low light performance on cloudy days, mornings and evenings

    Installation

    • Easy installation and handling for various applications (high-end off-grid and mobile applications)

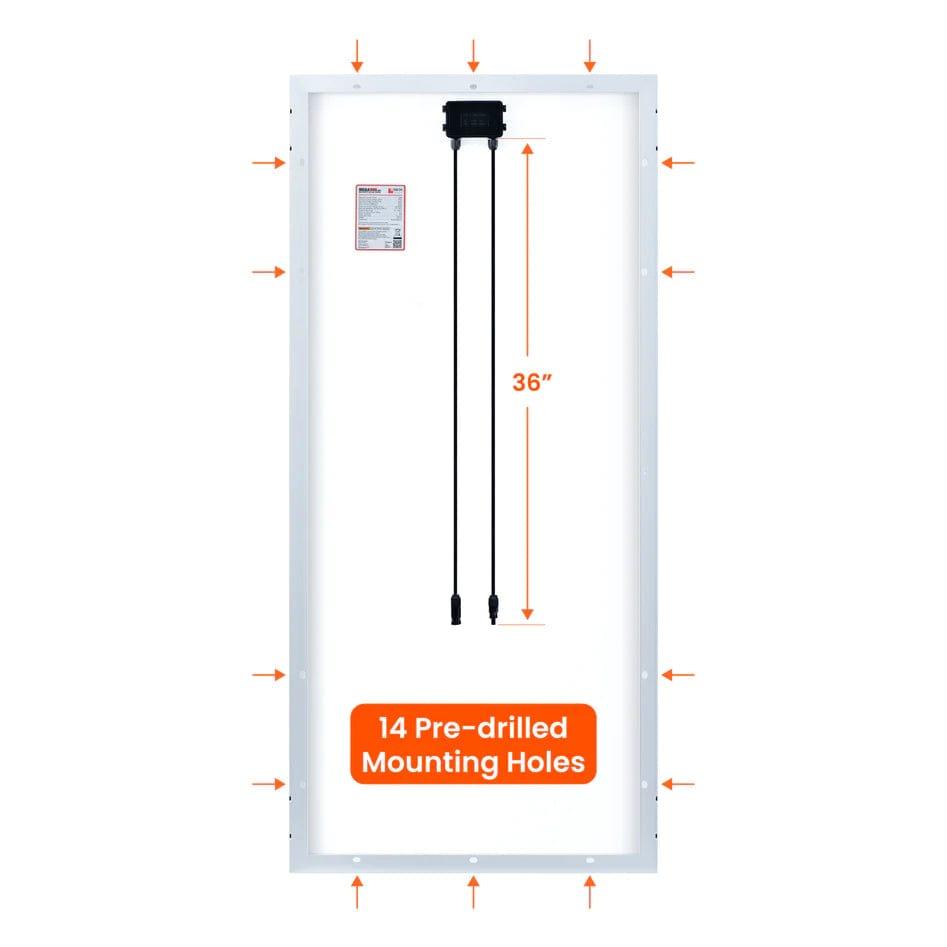

    • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
    • Compatible with on-grid and off-grid inverters

    Warranty

    • 25 year limited power output

    Built-in Components

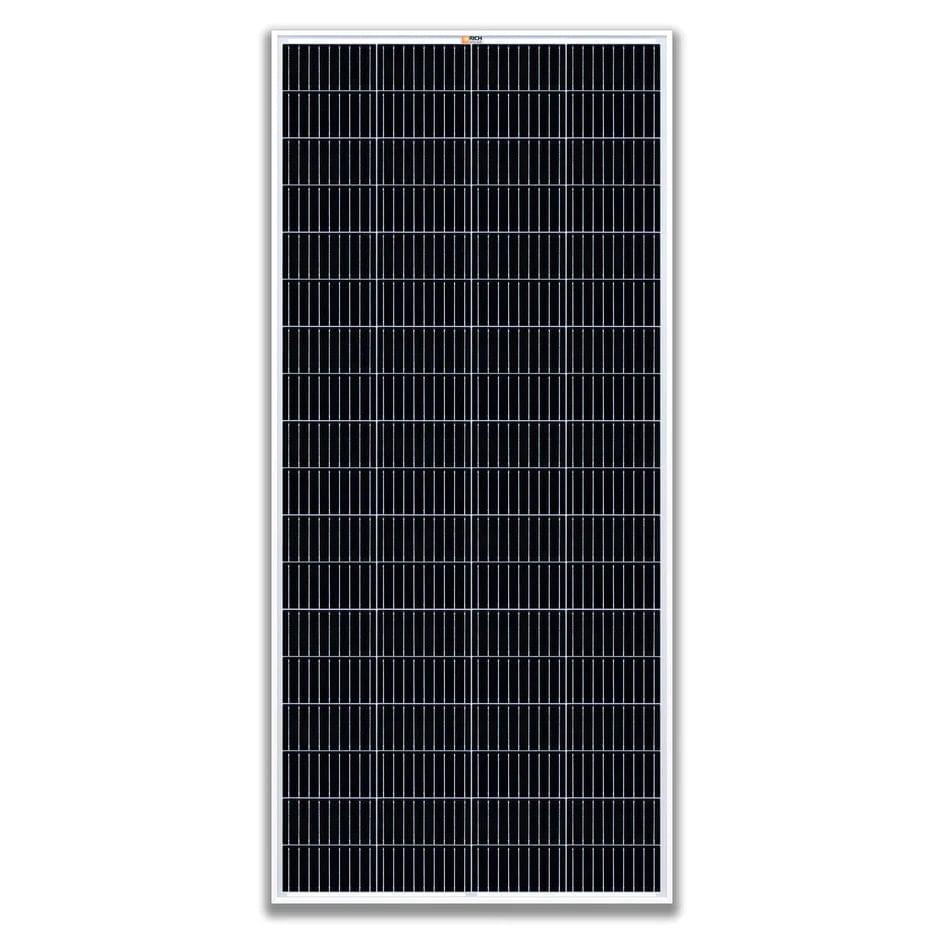

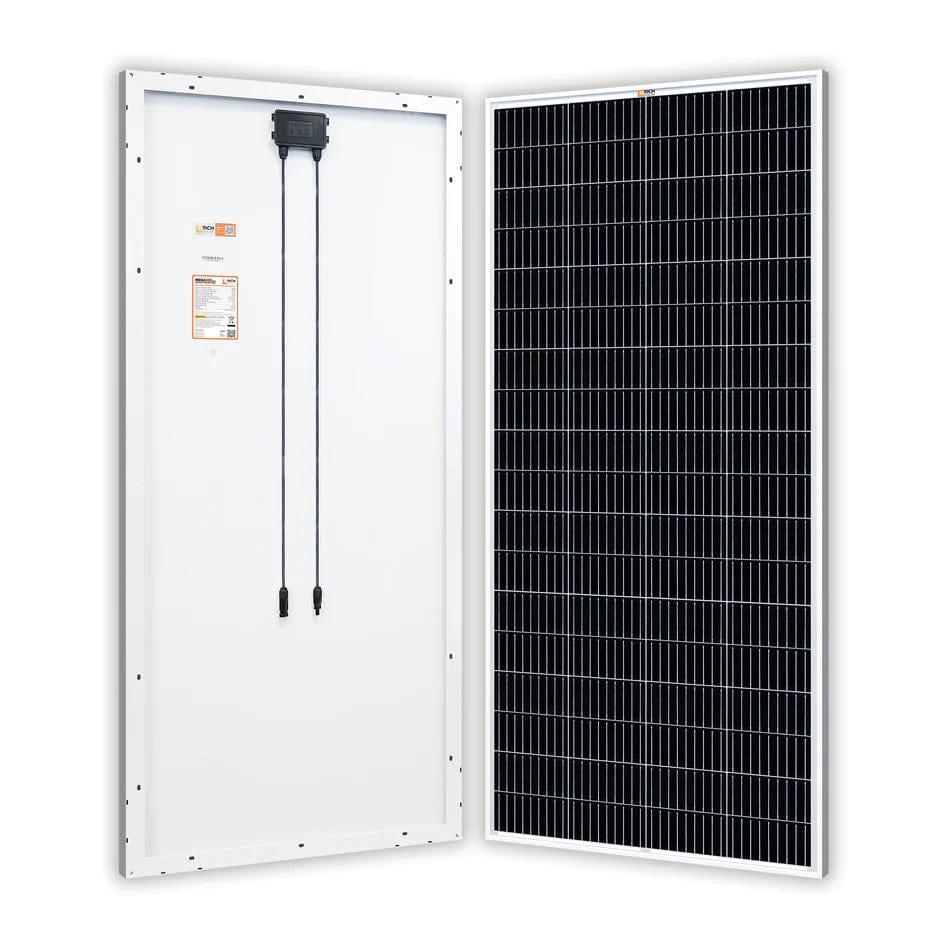

    • 200 watt monocrystalline solar panel
    • Panel leads (pair): 3 feet each
    • IP65 rated waterproof junction box
    • IP67 rated waterproof connectors
    • Bypass diodes built-in the junction box

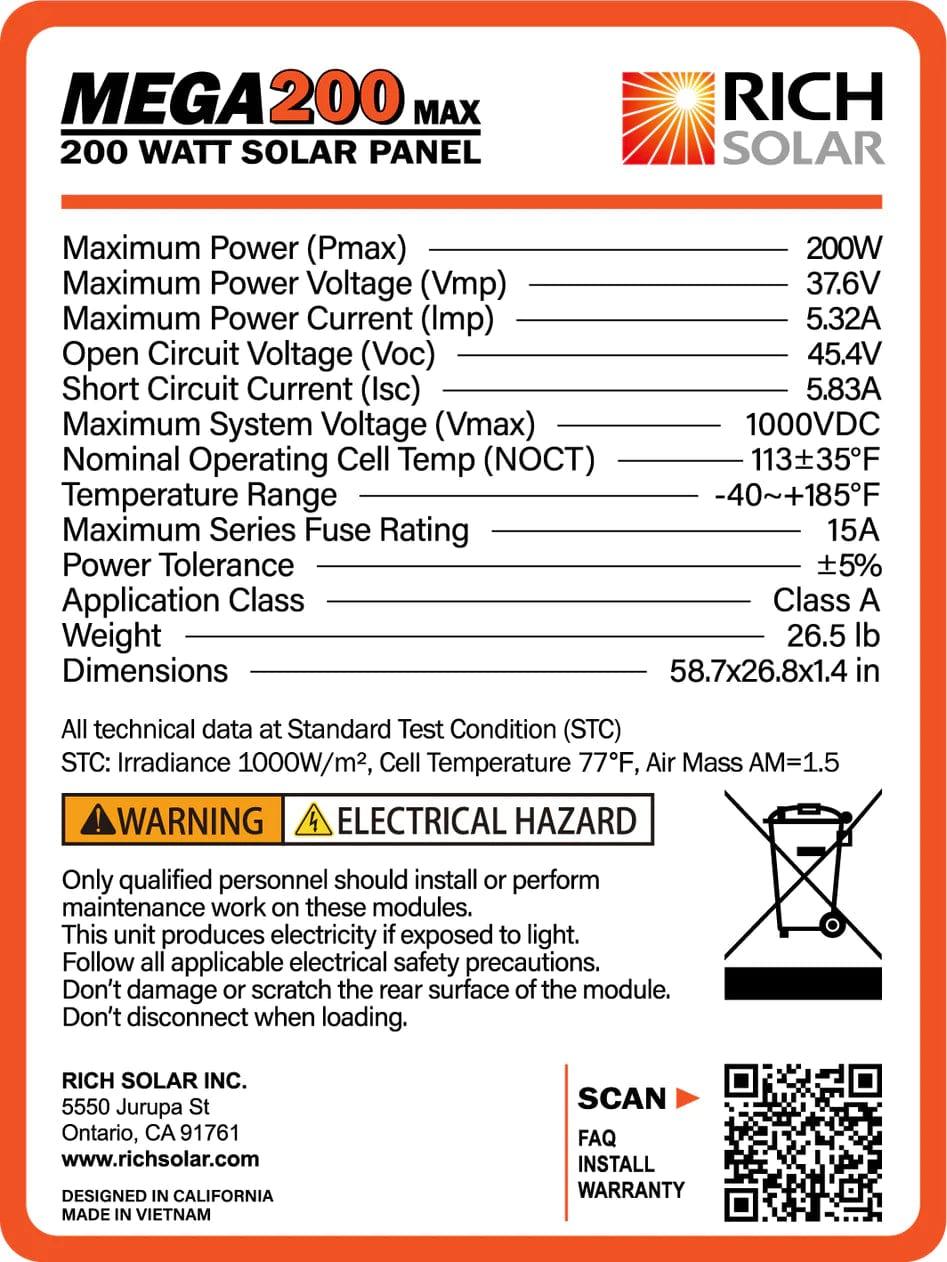

    Specifications

    • Maximum Power (Pmax): 200W
    • Maximum Power Voltage (Vmp): 37.6V
    • Maximum Power Current (Imp): 5.32A
    • Open Circuit Voltage (Voc): 45.4V
    • Short Circuit Current (Isc): 5.83A
    • Maximum System Voltage (Vmax): 1000VDC
    • Temperature Range: -40°C ~ 90°C
    • Max Series Fuse Rating: 15A
    • Weight: 26.5 lb
    • Dimensions: 58.7 x 26.8 x 1.4 in
