36" wide, ADA compliant side-by-side refrigerator-freezer ideal for commercial or residential settings
SUMMIT brings quality and value under the counter with the industry’s largest collection of ADA compliant built-in refrigeration.

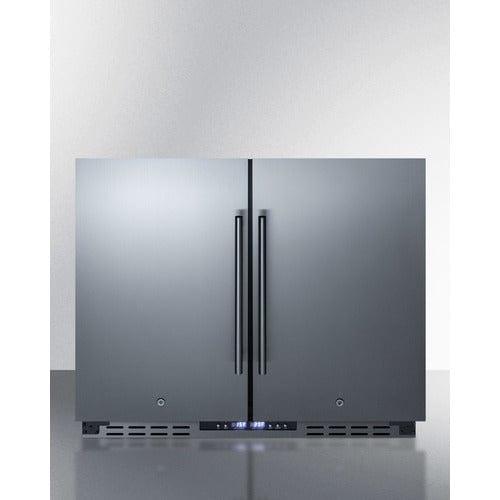

The FFRF36ADA features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential use. Sized at 36" wide, this all-in-one, side-by-side refrigerator-freezer is designed for built-in or freestanding installation. This unit features a jet black cabinet and stainless steel doors complete with pro style handles. Both sections include factory-installed keyed locks for added security. Digital controls are located in the kickplate, allowing you to adjust the temperature without opening the door. This unit has a sealed back design to enable easier cleanup and added space savings.

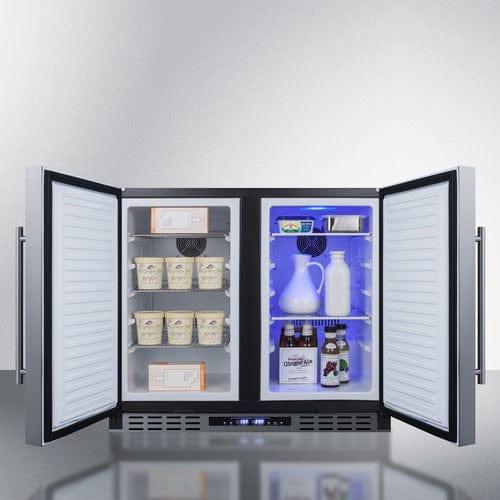

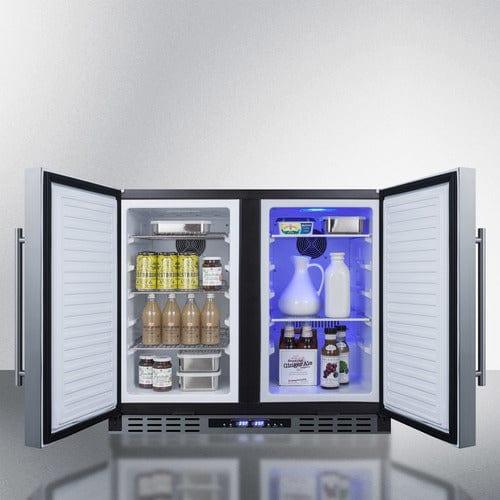

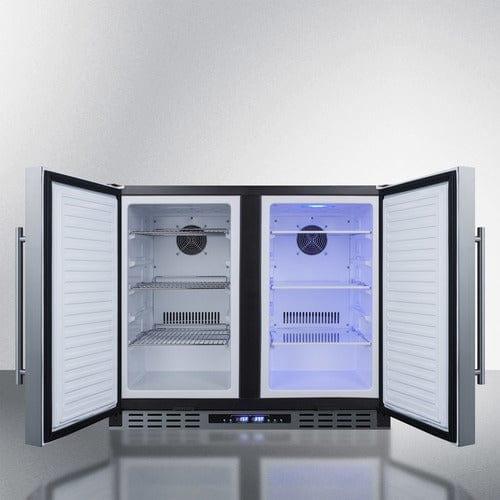

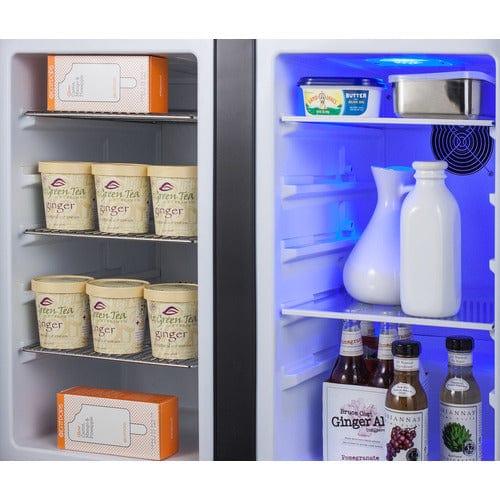

Inside, the FFRF36ADA features a 2.9 cu.ft. frost-free freezer compartment on the left and a 2.9 cu.ft. frost-free refrigerator compartment on the right. Both sections are frost-free for easy maintenance, with internal fans to help provide even cooling. The refrigerator compartment includes three adjustable glass shelves with five placement options that offer multiple spill-proof storage options. The freezer compartment includes three adjustable chrome shelves, with five placement options for optimal storage options and proper cold air circulation. The freezer compartment includes three adjustable chrome shelves for proper cold air circulation. Additionally, the freezer section can be converted to run as a refrigerator, allowing you to adjust the temperature range to best accommodate your storage needs at the touch of a button.
The FFRF36ADA is sized at 31 1/2 inches high to fit under lower ADA compliant counters. For this unit with panel ready doors, see the FFRF36IFADA.
NOTE: Due to its larger commercial design, the FFRF36ADA requires an additional 5/8" of width for each door to open to a full 90º. If placing this unit against a right angle wall, be sure to accommodate this extra space.
|
Overview
|
| Height of Cabinet |
31.5" (80 cm) |
| Width |
35.5" (90 cm) |
| Width with Door Open |
36.75" (93 cm) |
| Depth |
24.25" (62 cm) |
| Depth with Handle |
25.13" (64 cm) |
| Depth with door at 90° |
40.0" (102 cm) |
| Capacity |
5.8 cu.ft. (164 L) |
| Defrost Type |
Frost-Free |
| Door |
Stainless Steel |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Energy Usage/Year |
504.0kWh/year |
| Amps |
1.3 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
160.0 lbs. (73 kg) |
| Shipping Weight |
155.5 lbs. (71 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101063324 |
|
Refrigerator-Freezer
|
| Door Swing |
French |
| Adjustable Shelves |
Yes |
| Interior Light |
Yes |
| Refrigerator - Interior Height |
23.5" (60 cm) |
| Refrigerator - Interior Width |
12.75" (32 cm) |
| Refrigerator - Interior Depth |
16.75" (43 cm) |
| Refrigerator - Capacity |
2.9 cu.ft |
| Refrigerator - Shelf Type |
Glass |
| Refrigerator - Shelf Qty |
3 |
| Refrigerator - Temperature Range |
36°F to 46°F |
| Refrigerator - Refrigerant Type |
R600a |
| Refrigerator - Refrigerant Amount |
1.59 oz. |
| Freezer - Interior Height |
23.5" (60 cm) |
| Freezer - Interior Width |
12.75" (32 cm) |
| Freezer - Interior Depth |
16.75" (43 cm) |
| Freezer - Capacity |
2.9 cu.ft |
| Freezer - Shelf Type |
Chrome |
| Freezer - Shelf Qty |
3 |
| Thermostat Type |
Digital |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.59 oz. |
| High Side PSI |
150.0 |
| Low Side PSI |
50.0 |
| Level Legs |
2 |
| Freezer - Temperature Range |
-22°F to 46°F |
| Compressor Step Height |
4.75" (12 cm) |
| Compressor Step Width |
12.75" (32 cm) |
| Compressor Step Depth |
4.25" (11 cm) |
| Handle |
| TBC Copper Towel Bar Handles |
CP Full-Length Copper Pipe Handles |
|
Commercially approved
ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
ADA compliant design
31 1/2 height for use under lower ADA compliant counters
Built-in capable
Front-breathing system allows the unit to be used built-in
All-in-one design
Separate refrigerator and freezer sections with single compressor operation
Frost-free operation
No-frost operation ensures reduced maintenance in both the refrigerator and freezer compartments
Factory-installed locks
Keyed locks for each section offer added security
Pro style handles
Stainless steel handles offer an attractive finish for the appliance
Digital thermostat
Digital control panel allows for easy temperature control, with a clear readout in Fahrenheit or Celsius
LED lighting (refrigerator)
Interior LED lighting in the primary refrigerator section offers an attractive and energy efficient presentation
Adjustable shelves (5 placement options)
Refrigerator section includes three spill-proof glass shelves for easier cleaning, while the freezer includes three adjustable chrome shelves to ensure proper cold air circulation
Convertible freezer
Freezer compartment temperature can be set to serve as a second refrigerator as needed
Internal fans
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Sealed back
Space-saving design with no exposed coils in the rear offers easy cleanability
Temperature memory function
In the event of power loss, the unit will retain its last temperature settings upon power recovery
Fully finished cabinet
Allows the unit to be used freestanding
Leveling legs
Two leveling legs ensure the unit is even when placed on uneven surfaces
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
