Specially designed for accessible use in ADA-compliant kitchens
Summit's selection of European-style range hoods includes units specially designed to be installed in compliance with Sections 308 and 309 of the ADA Guidelines.
Sized at 36" wide, model SEH3636SSADA is perfect for all kitchens looking for elegant style and powerful ventilation. This unit features brushed stainless steel construction with a horizontal grain and a rectangular T-shaped canopy to suit any setting. We include a chimney extender that lets you adjust the height to best fit your space. Two pre-installed LED light bulbs offer convenient illumination for your cooking surface.
The SEH3636SSADA comes with a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height following ADA guidelines. The 3-speed fan and 15-minute timer are operated from an easy-to-use slider control panel. Some assembly is required.
This range hood can be used ducted with a 6" round duct, or for recirculating/ducted operation. We include two charcoal filters for use in kitchens where there is no exhaust connection to the outside. Two aluminum mesh cassette filters offer plenty of ventilation coverage. This model includes a pre-installed 3-prong 115V cord and mounting bracket.
Additional ADA-compliant wall-mounted and under cabinet range hoods are available in a variety of sizes and styles. Browse our website for more choices.
|
Overview
|
| Height of Cabinet |
37.0" (94 cm) |
| Width |
35.44" (90 cm) |
| Depth |
19.69" (50 cm) |
| Door |
Stainless Steel |
| US Electrical Safety |
ETL |
| Amps |
2.6 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
45.0 lbs. (20 kg) |
| Shipping Weight |
70.5 lbs. (32 kg) |
| Parts & Labor Warranty |
1 Year |
| UPC |
761101107301 |
|
Range Hood
|
| Installation |
Wall-Mounted |
| Venting |
Convertible |
| Controls |
Push Button |
| Light |
Yes |
| Number of Lights |
2 |
| Light Type |
LED |
| Number of Fan Speeds |
3 |
| Maximum Air Movement |
400.0 CFM |
| Sone Rating |
10 |
| Minimum Height |
25.25" (64 cm) |
| Maximum Height |
37.0" (94 cm) |
| Duct Shape |
6" Round |
36" wide wall-mounted range hood
European style range hood designed to bring effective ventilation over 36" wide cooking surfaces
ADA-compliant design

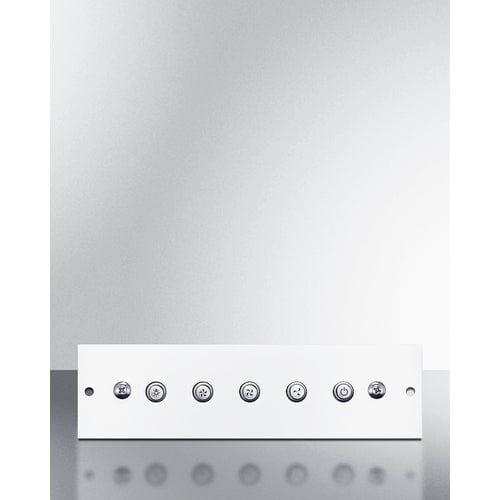

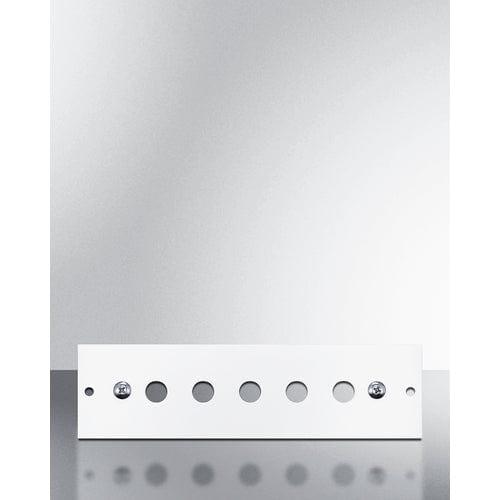

Control panel comes on a remote terminal block to be installed according to ADA compliant guidelines for improved accessibility (some assembly required)
Convertible design with no additional purchase necessary
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

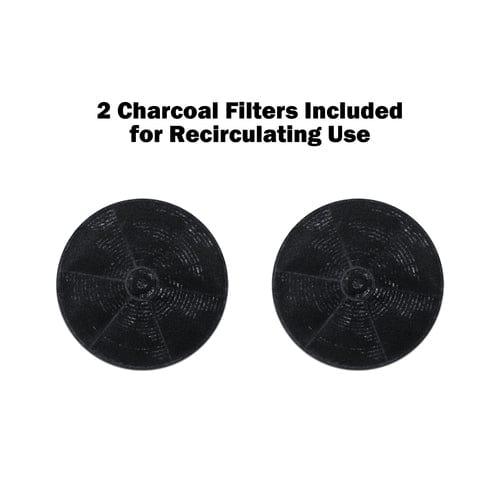

Charcoal filter set included
Two round carbon filters attach to the blower to absorb grease and odors when using the hood in recirculating mode
Powerful ventilation
400 CFM blower to effectively remove smoke and cooking odors from your kitchen

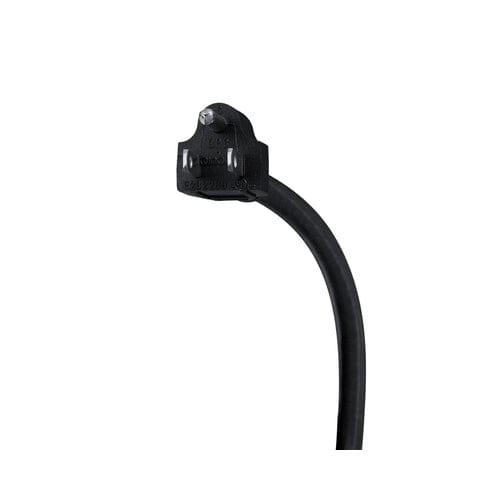

Cord included
Pre-installed power cord with 3-prong plug for 115V outlets
LED lighting (bulbs included)
Includes two pre-installed LED bulbs to illuminate your cooking surface
Adjustable height
Includes a telescoping chimney extender that allows you to adjust the overall height between 25 1/4" to 37"

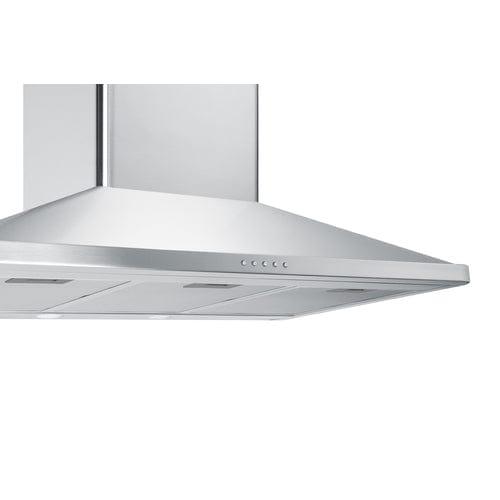

Stainless steel finish
Durable construction in an attractive style with a horizontal grain
Intuitive controls
Touch buttons located towards the front of the hood let you adjust your ventilation and lighting as needed
Multi-speed fan
Choose from three speeds to provide the proper level of ventilation for your cooking

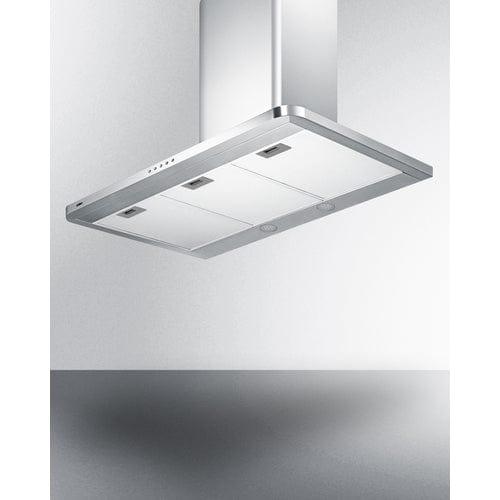

Removable aluminum cassette filters
Two mesh filters capture grease particles and are removable for easy cleanup
6" round ducting
Ideal for most kitchen settings

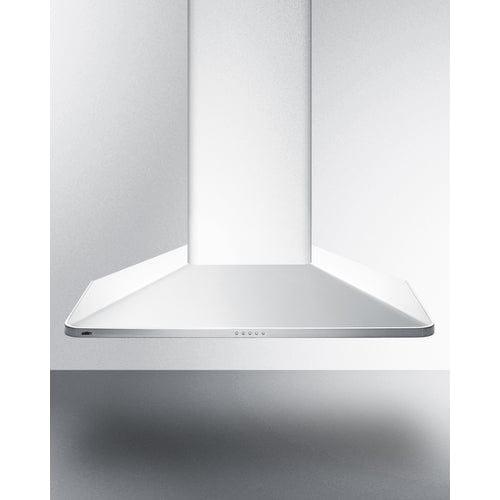

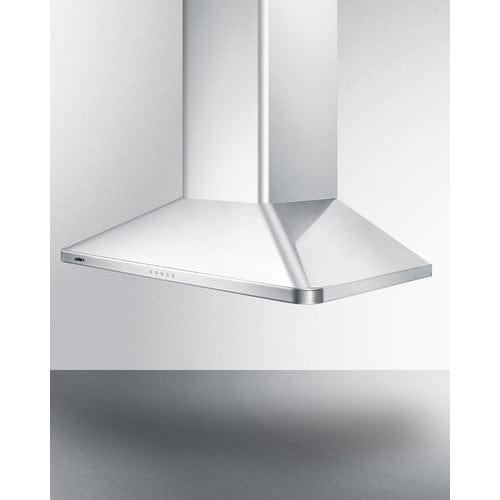

Classic design
Full canopy in a curved trapezoidal/low pyramid shape offers an attractive look to complement any style of kitchen
