-25°C storage with extra thick insulation and slide-out drawers that help protect stored contents
Accucold VT65MBIADA medical all-freezers offer low temperature storage in a perfectly sized footprint designed for built-in installation under lower ADA compliant counters.
The 32” high VT65MLBIADA can be used built-in or freestanding in any 24” space, with low temperature manual defrost operation that can reach -25ºC. The interior includes three slide-out basket drawers for convenient storage that keeps items cold when the door is opened. Additional features include an adjustable thermostat and one-piece interior liner for easier cleanup.
This medical unit has a white cabinet and reversible door. A factory installed lock offers added security.
NOTE: ALL VT65M FREEZERS ARE DESIGNED FOR MEDICAL OR COMMERCIAL USE ONLY. THESE ARE NOT HOUSEHOLD FREEZERS.
|
Overview
|
| Height of Cabinet |
32.0" (81 cm) |
| Height to Hinge Cap |
32.25" (82 cm) |
| Width |
23.63" (60 cm) |
| Depth |
23.5" (60 cm) |
| Depth with Handle |
24.25" (62 cm) |
| Depth with door at 90° |
45.13" (115 cm) |
| Capacity |
3.5 cu.ft. (99 L) |
| Defrost Type |
Manual |
| Door |
White |
| Cabinet |
White |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Amps |
1.3 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
105.0 lbs. (48 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101043401 |
|
Freezer
|
| Door Swing |
RHD |
| Reversible |
Yes |
| Crisper Finish |
Opaque |
| Crisper Cover |
Glass |
| Interior Height |
24.25" (62 cm) |
| Interior Width |
17.75" (45 cm) |
| Interior Depth |
16.5" (42 cm) |
| Shelf Type |
Glass |
| Thermostat Type |
Digital |
| Refrigerant Type |
R134a |
| Refrigerant Amount |
2.7 oz. |
| High Side PSI |
235.0 |
| Low Side PSI |
70.0 |
| Interior Drawers |
Yes |
| Drawers Qty |
3 |
| Compressor Step Height |
6.5" (17 cm) |
| Compressor Step Width |
17.5" (44 cm) |
| Compressor Step Depth |
5.5" (14 cm) |
| Temperature Range |
-12ºC to -25ºC |
| Exterior |
| HG - Hospital grade cord |
SSK - Stainless steel kickplate |
| Latch - Factory-installed door latch requires manual release to open unit |
LHD - Left hand door swing |
| SCD - Self-closing door |
SS Hinges |
| Alarm/Thermometer - Factory-installed alarm with external temperature readout |
PH - Probe Hole |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) |
|
| Lock |
| AC Keypad - AC powered keypad lock |
KEYPAD - Battery-powered keypad door lock |
|
| Handle |
| TBC Copper Towel Bar Handle |
CP Full-Length Copper Pipe Handle |
|
| Door |
| STO-Step-To-Open Door Pedal |
|
ADA Compliant
32 inch height is designed to fit under ADA compliant counters
Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinetry

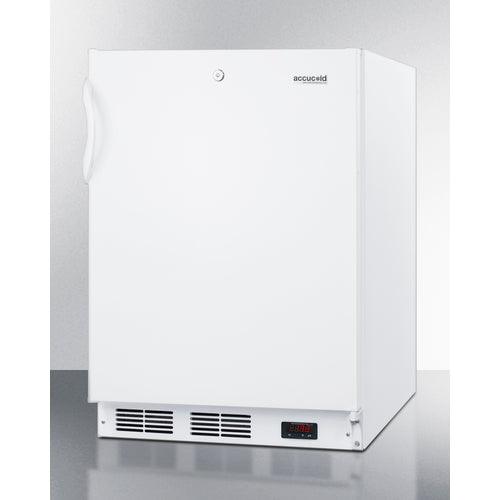

Fully finished white cabinet
Allows the unit to be used freestanding
Slim undercounter dimensions
Less than 24 inches wide to fit tight spaces
Reversible door
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Factory installed lock
Keep contents secure with a front lock on the door
-25º capable
Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive materials

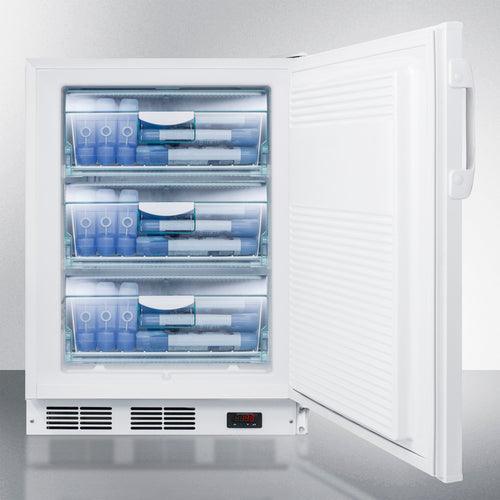

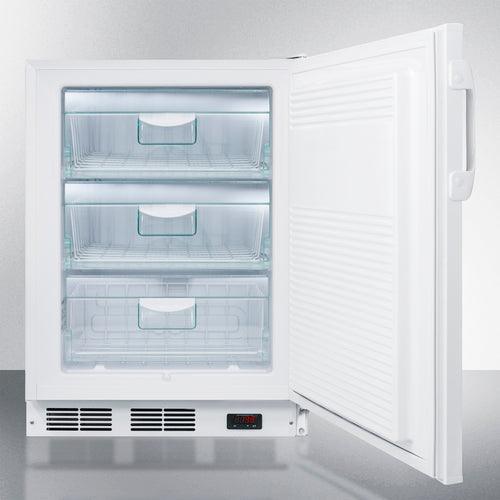

Three slide-out drawers
Conveniently organize your items while keeping the temperature stable when the door is opened
No internal fans
Static cooling system
Manual defrost
Energy efficient operation for stable interior temperature
One piece interior liner
Simple cleanup with a seamless liner that won't hold a mess in hidden crevices
Digital thermostat
Electronic controls located in the front kickplate for easy and intuitive temperature management
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
