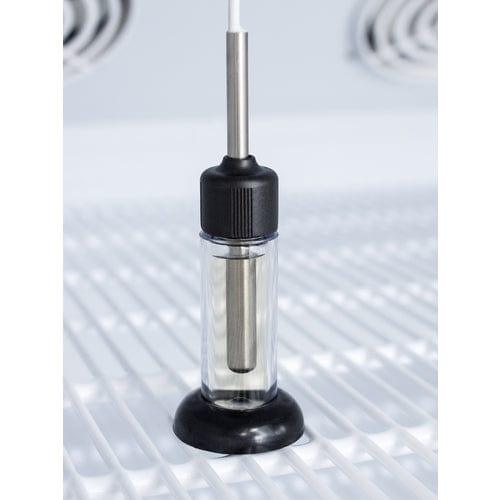

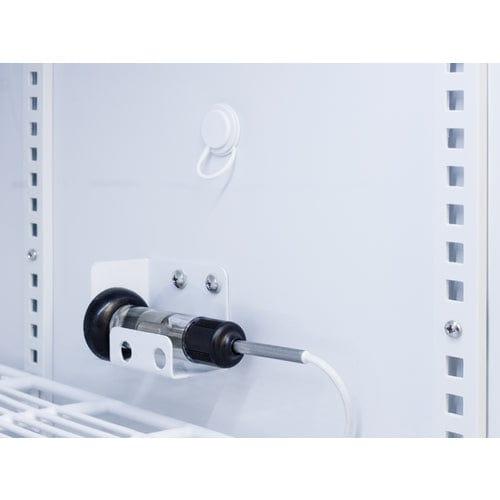

The Accucold ARS3PV456 is a 3 cu.ft. refrigerator designed for storing vaccines, with an adjustable temperature range of +2 to +8ºC. The external microprocessor temperature controller helps keep the door closed, minimizing temperature fluctuations that could negatively affect stored contents. The temperature probe is surrounded by glycol to mimic the temperature of the stored product, and an extra sensor monitors air temperature for precise control. The current and min/max temperatures are displayed in both Celsius and Fahrenheit, accurate to the nearest tenth of a degree. An audible and visual alarm will sound if the interior temperature goes outside of the desired range, and additional alarms cover power failure, open door, and sensor malfunction. The unit also features remote alarm contacts and a probe port for additional monitoring options. For added safety in high-traffic areas, a hospital-grade cord with a 'green dot' plug is included.
Purpose-built design to meet CDC guidelines and certified to the NSF 456 Vaccine Storage Standard
Accucold is proud to lead the industry with the largest line of cold storage product sizes certified to NSF/ANSI 456 Vaccine Storage Standard. The Pharma-Vac Performance Series supports meeting regulations and guidelines from the CDC, State Agencies, World Health Organization, and other Health Ministries on vaccine storage and handling.

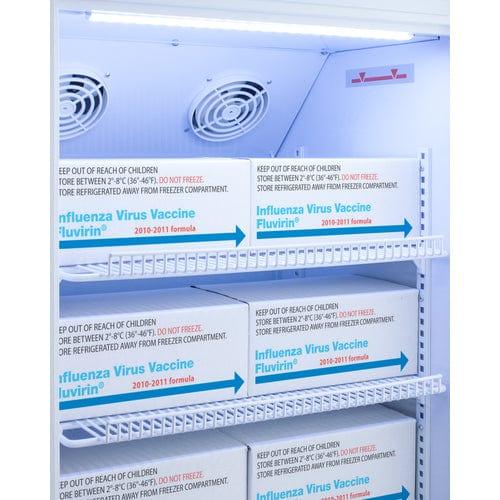

Inside, the ARS3PV456 utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with one internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.

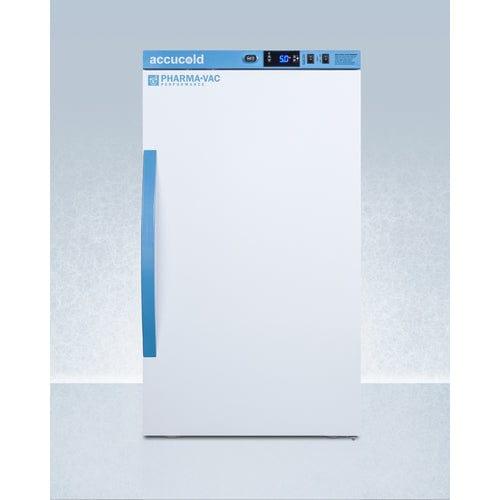

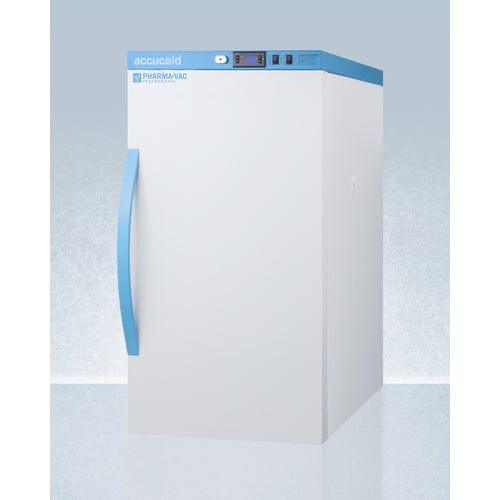

The ARS3PV456 comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The door ships with a right hand swing and self-closing function. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.
Designed with hydrocarbon refrigerant, the ARS3PV456 provides an energy efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as solid door options, are also available. Explore the full Pharma-Vac NSF 456 series at accucold.com/pharmavac.
ABOUT NSF 456: NSF/ANSI 456 is a voluntary standard introduced in 2021 that was designed to establish the performance and construction requirements for vaccine refrigeration. Models certified to this standard undergo strict testing to confirm temperatury consistency. All Accucold units approved to NSF 456 for vaccine storage are certified by an independent testing agency.
|
Overview
|
| Height of Cabinet |
34.0" (86 cm) |
| Width |
18.5" (47 cm) |
| Width with Door Open |
19.0" (48 cm) |
| Depth |
19.0" (48 cm) |
| Depth with Handle |
20.75" (53 cm) |
| Depth with door at 90° |
36.0" (91 cm) |
| Capacity |
3.0 cu.ft. (85 L) |
| Defrost Type |
Automatic |
| Door |
White |
| Cabinet |
White |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S to NSF 456 |
| Amps |
0.6 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
85.0 lbs. (39 kg) |
| Parts & Labor Warranty |
2 Years |
| Compressor Warranty |
5 Years |
| UPC |
761101090719 |
|
Refrigerator Features
|
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Shelf Type |
Wire |
| Shelf Qty |
4 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Digital |
| Fan Type |
Interior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.06oz. |
| Interior Light |
Yes |
| Temperature Range |
2 to 8ºC |
|
Dimensions
|
| Interior Height |
28.38" (72 cm) |
| Interior Width |
15.25" (39 cm) |
| Interior Depth |
11.75" (30 cm) |
| Compressor Step Height |
8.0" (20 cm) |
| Compressor Step Width |
15.25" (39 cm) |
| Compressor Step Depth |
3.75" (10 cm) |
| Exterior |
| DTFAR-Temperature display converted to Fahrenheit |
DL2B - Factory installed NIST calibrated digital data logger (DDL) |
| LHD - Left hand door swing |
|
| Lock |
|
|

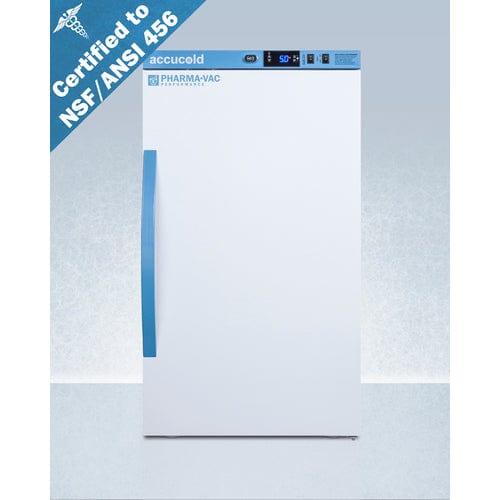

Certified to NSF/ANSI 456 Vaccine Storage Standard
Designed and tested to comply with the new NSF Vaccine Storage Standard
Purpose-built design
Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines
+/-1ºC Variation
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
Certificate of calibration included
2-year calibration certificate included for your records
Adjustable temperature
Intuitive controls let you adjust the interior temperature between +2 to +8ºC
Temperature alarm
Visual and audible alarms alert if the interior temperature rises or falls out of set range

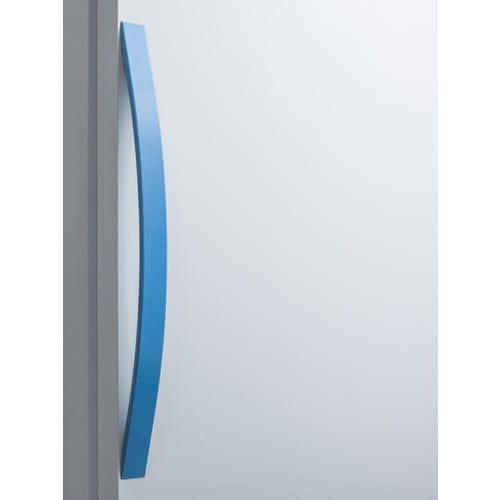

Antimicrobial silver ion-coated handle
Powder-coated handle with naturally occurring silver ions to help reduce germ spread

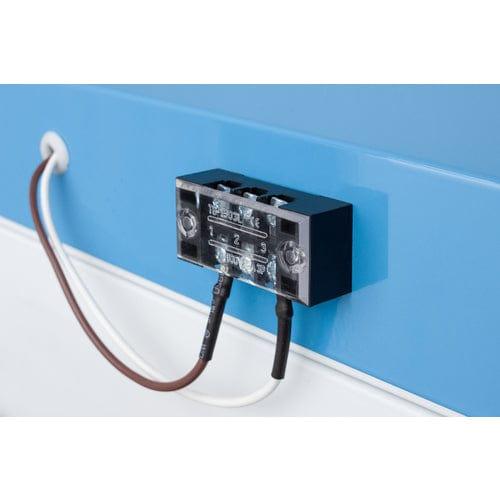

Remote alarm contacts
Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Automatic defrost with adjustable cycle defrost
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
Access port

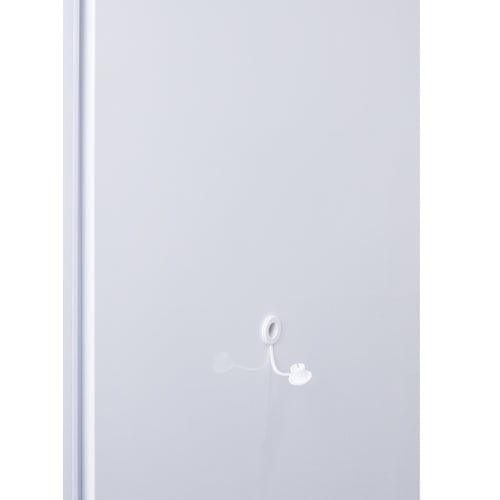

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
Open door alarm
Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Audible power failure alarm
Battery-powered alarm sounds if the power connection is interrupted
Sensor failure alarm
Audible and visual alarm warns if the sensor is disrupted
Password protection
Control panel requires password entry to adjust the parameters beyond the set point

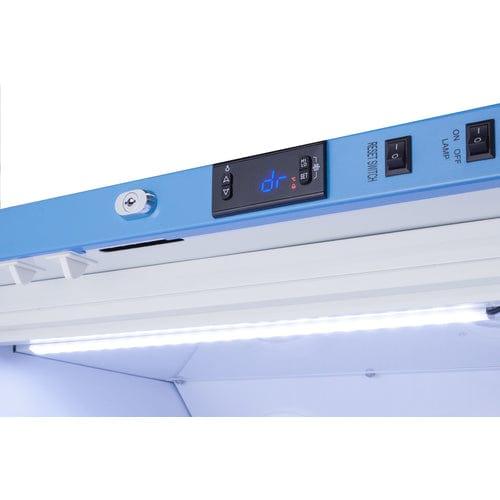

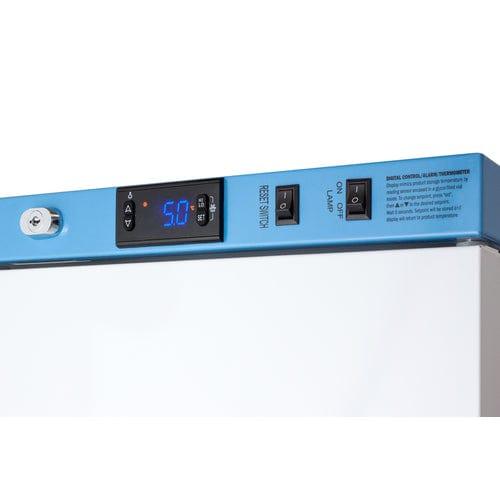

Microprocessor control panel
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Resettable min/max display
Control panel provides a readout of the low and high temperatures in 15 minute increments

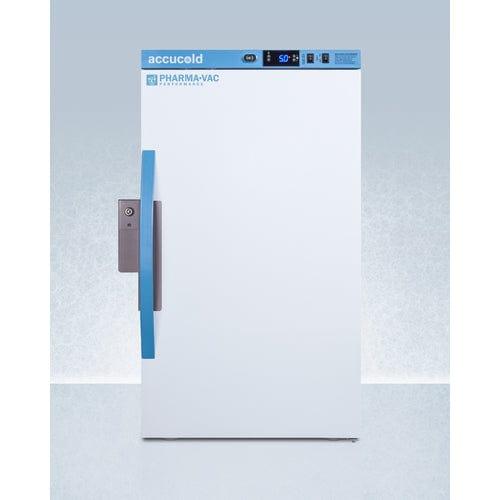

Factory-installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)

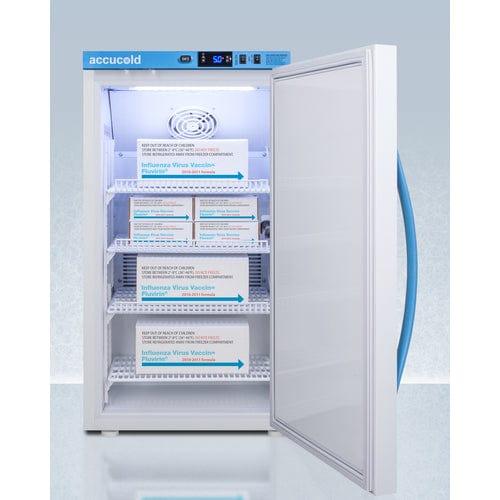

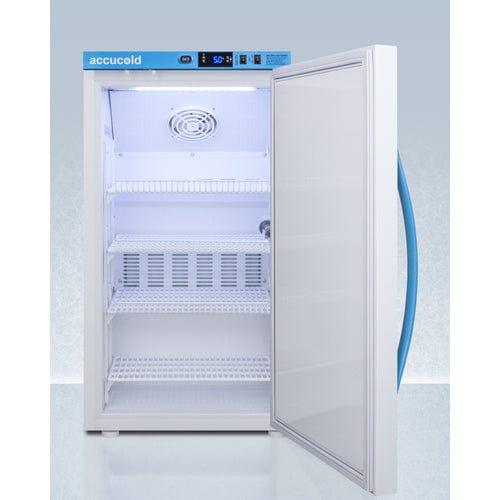

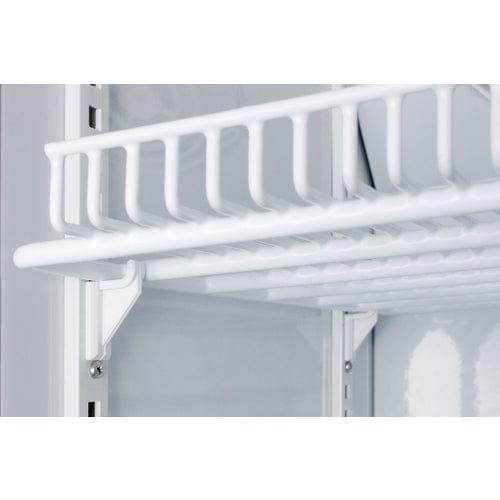

Adjustable plastic-coated wire shelves for improved circulation
Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size
Durable interior
Walls are constructed from white powder coated metal for added strength and improved temperature retention
Interior light
Energy efficient LED lighting with internal on/off switch
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
Self-closing door
Added protection in busy settings
Right hand door swing
For this unit with the door opening from the other side, order with option "LHD" or as SKU ARS3PV456LHD
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Extended warranty
2 years parts and labor/5 years compressor
Eco-Friendly
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Usage stickers
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
Additional choices
Solid and glass door choices available from 1 to 15 cu.ft. Browse the Pharma-Vac series for more information
Versatile design
Compatible with Pyxis®, Omnicell®, and AcuDose RX®
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
