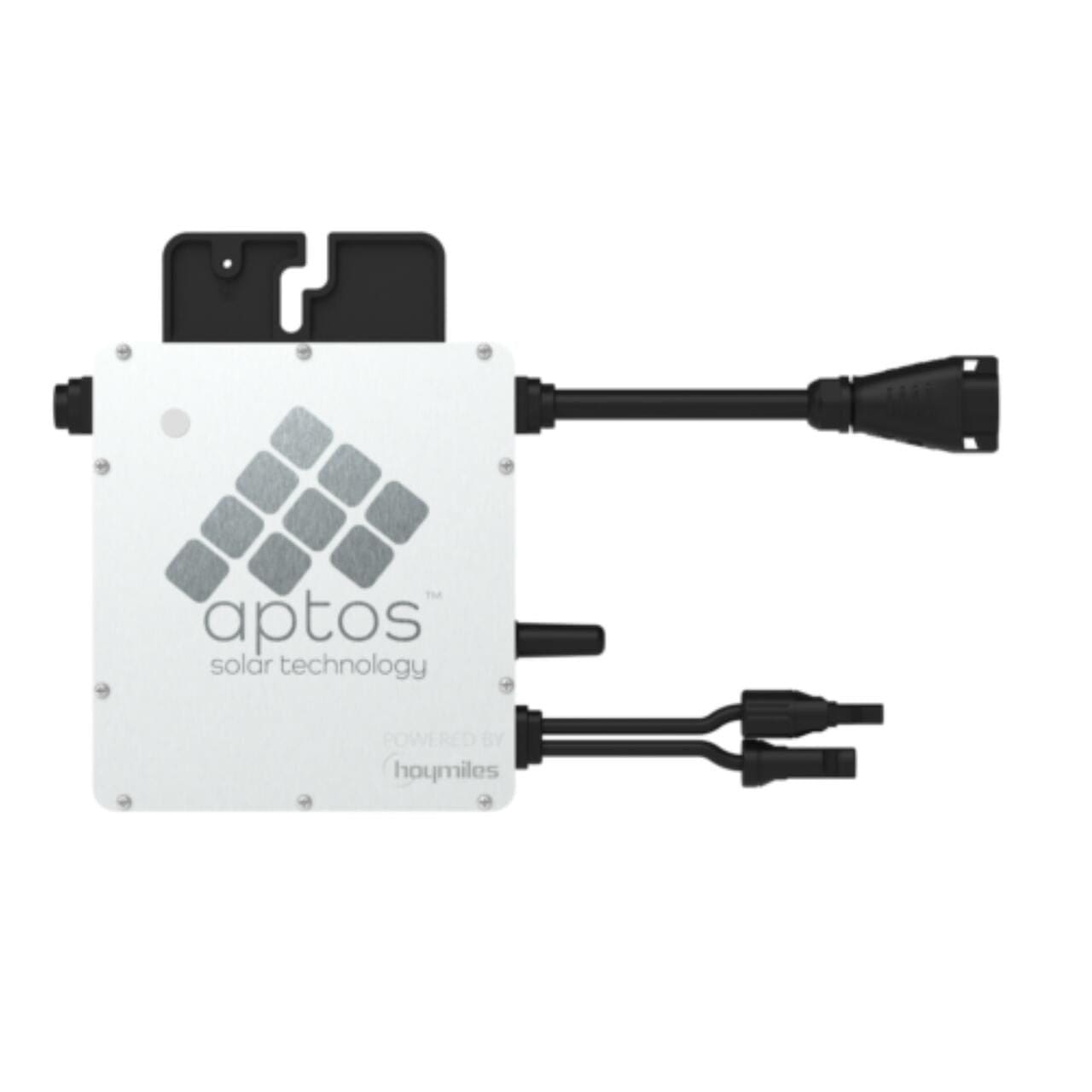

APTOS MAC-400 | 1:1 Trunk Version Microinverter
by APTOS
SKU 1504026
$142.00
Aptos MAC-400 | 1:1 Trunk Version Microinverter
The high-performance MAC-400 single unit microinverter is engineered for maximum AC power output when paired with Aptos Solar Technology’s high-power solar panels. The MAC-400 is built for simple system integration and is compatible with third-party devices. The MAC-400 is equipped and ready for system monitoring and trend tracking through Aptos Solar Technology’s cloud-based software.
Features:
- Up to 400W max output
- Compatible with 120 & 144 cell PV panels
- IP67-rated enclosure for protection in harsh weather conditions
- Built-in NEC compliant rapid shutdown feature
- 6,000V surge protection
- Ambient temperature range (°C): -40° to +65°
Compliance:
- UL 1741, IEEE 1547, UL 1741 SA (240Vac), CA Rule 21 (240Vac), CSA C22.2 No. 107.1-16, FCC Part 15B, FCC Part 15C
Additional Information
SKU: 1504026
Maximum Input Voltage:: 60V
Maximum Output Wattage:: 400W
MPPT Voltage Range:: 16-60
Communication:: 2.4GHz Proprietary RF(Nordic)
Enclosure Rating:: Outdoor-NEMA (IP67)
Click Here to Download Specification Sheet
