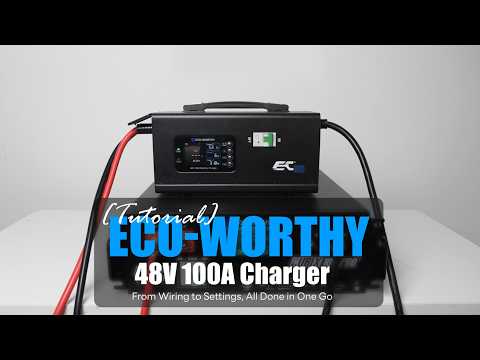

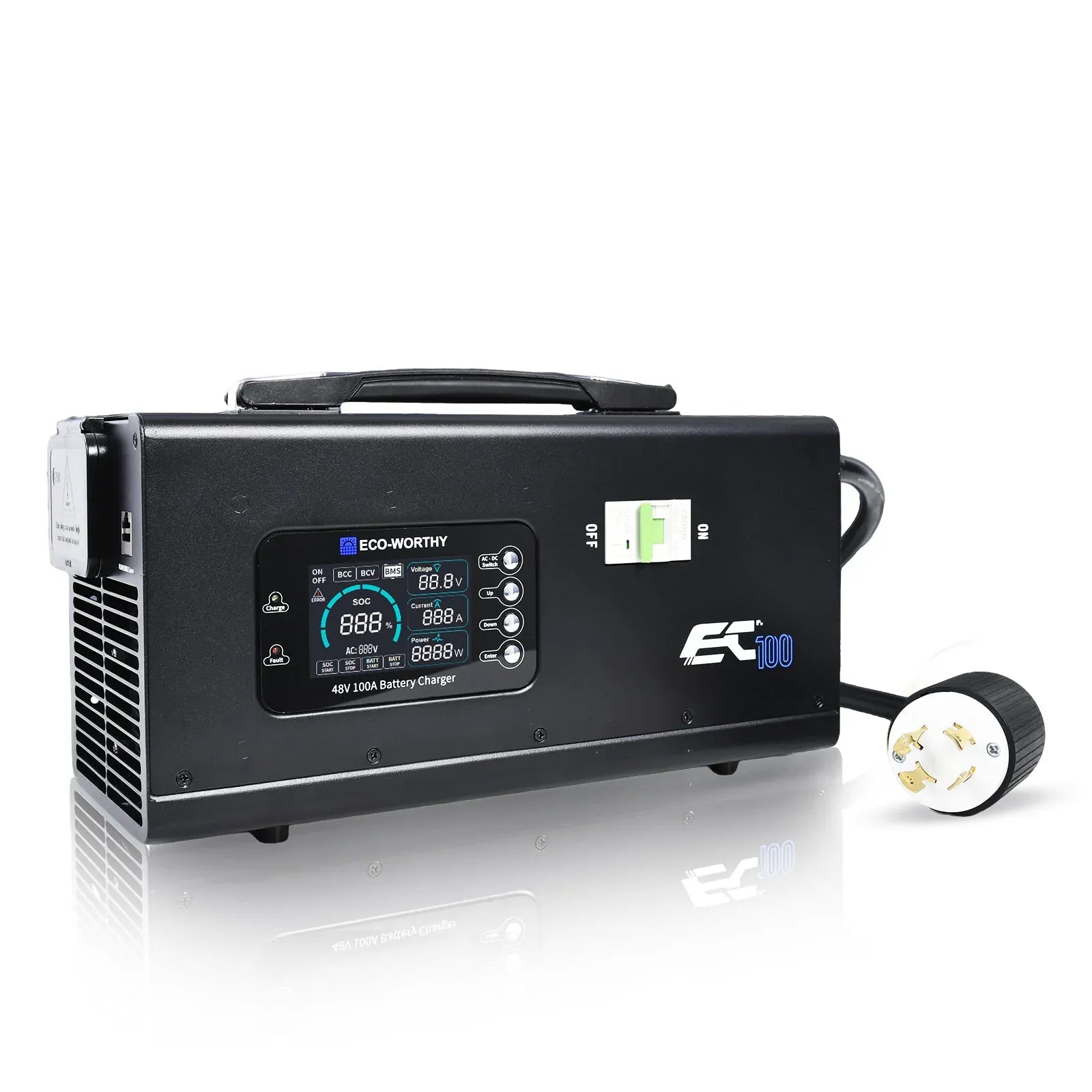

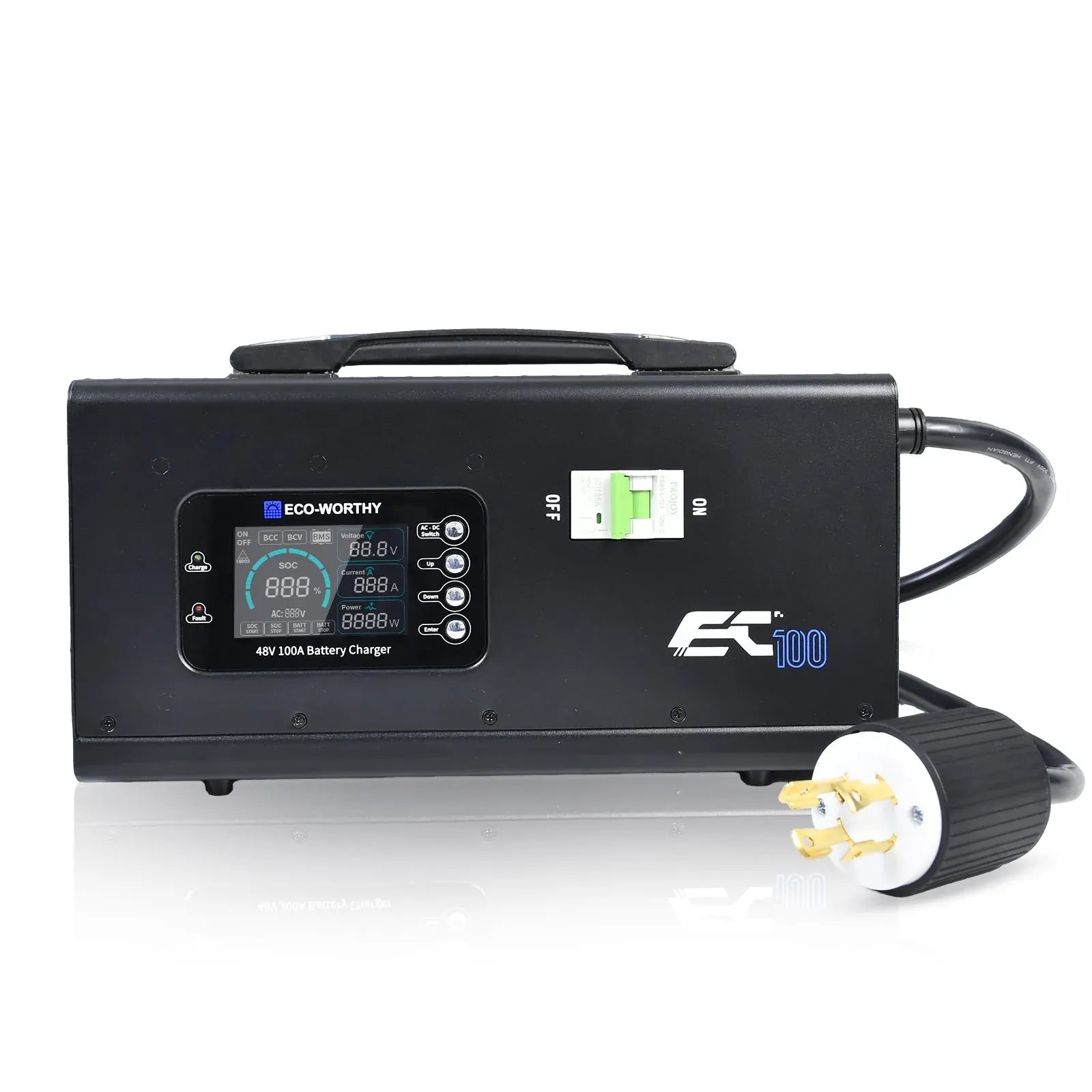

Eco-Worthy EC100 48V 100A Battery Charger | 5.78KW Max Output - In Store Offer Only

Features:

• Wide Voltage Input & Fast Charging:

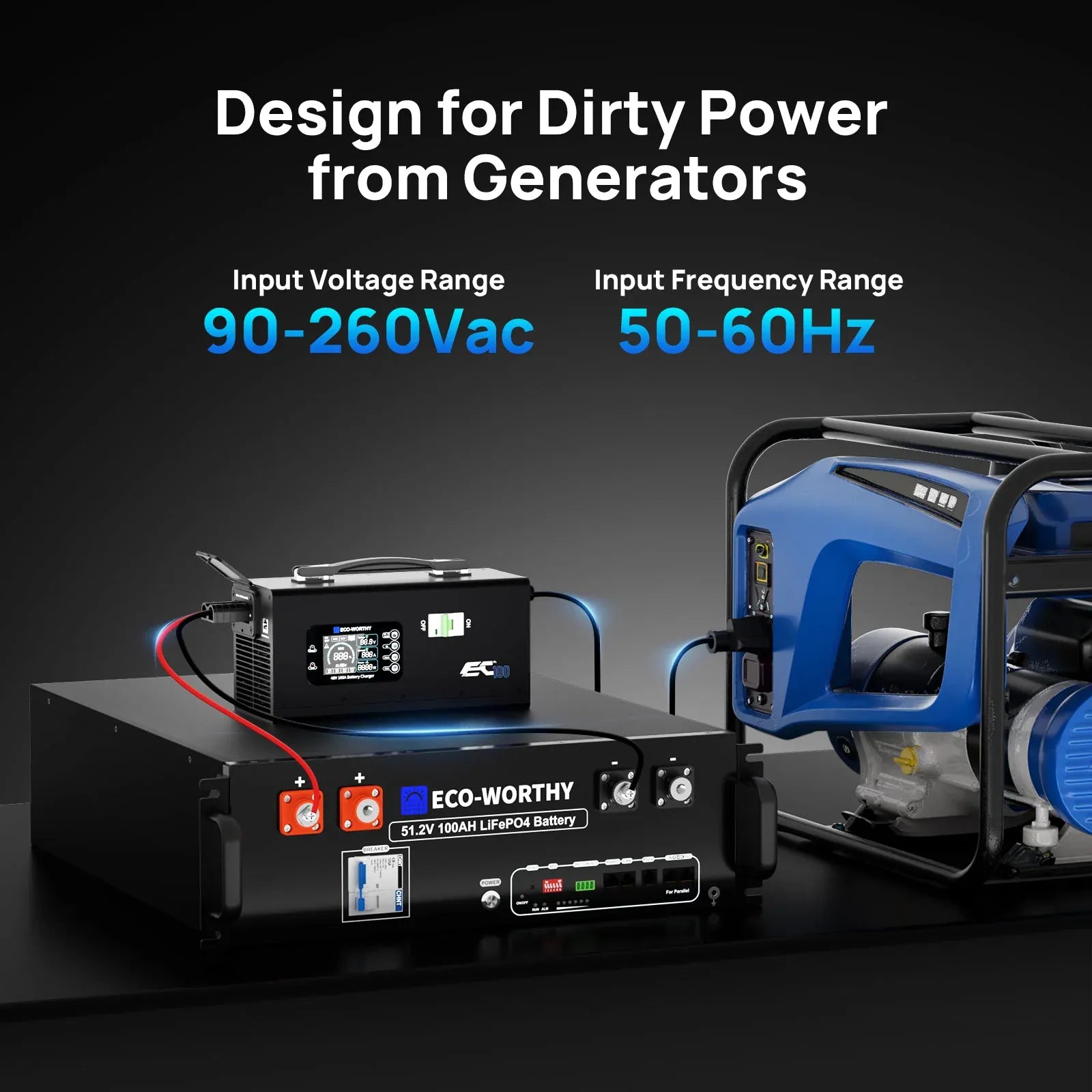

  Handles 90-260V AC input—even unstable or generator-powered "dirty power"—and delivers fast, adjustable charging from 2A to 100A to fit everything from maintenance to rapid refueling.
• Flexible Setup & Easy Installation:

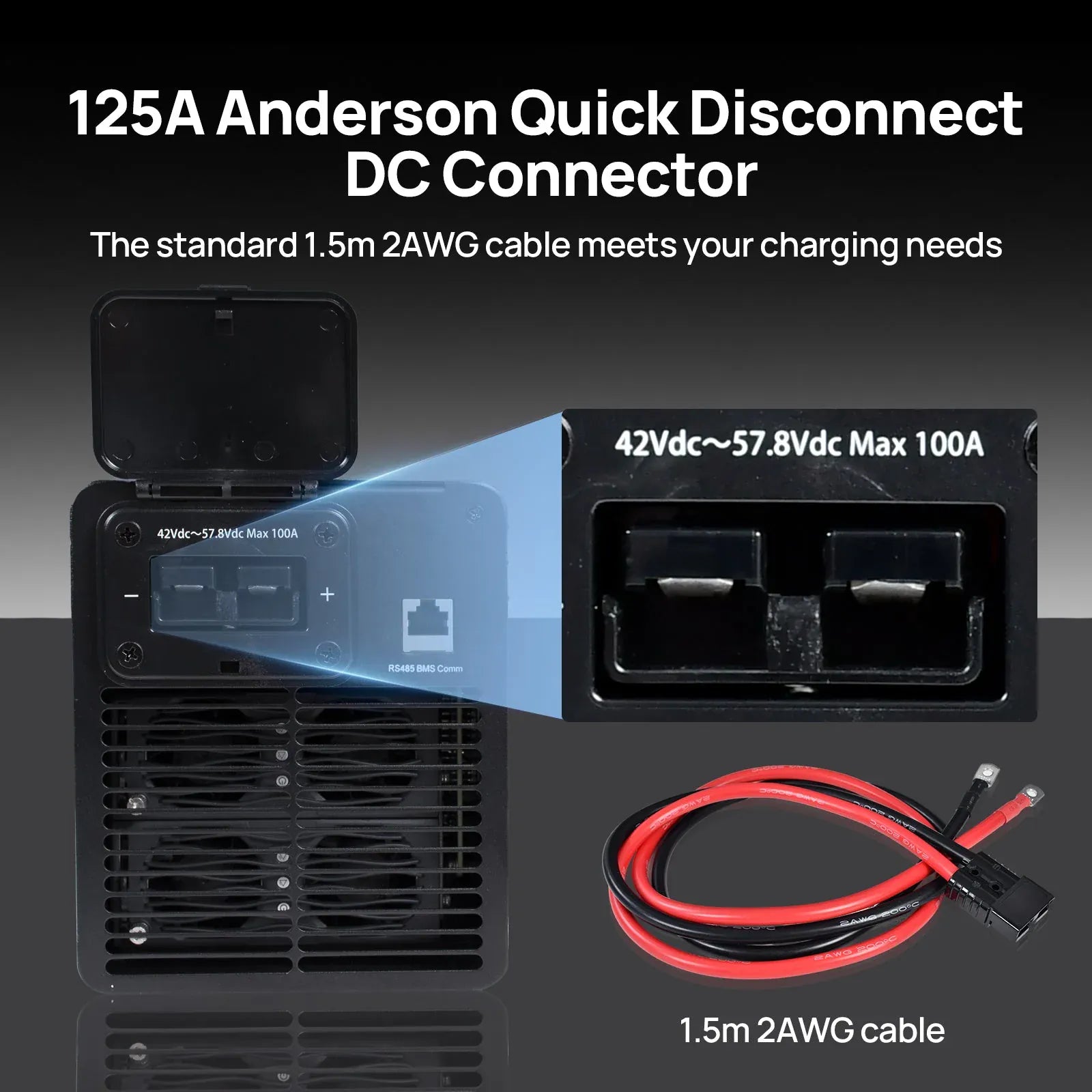

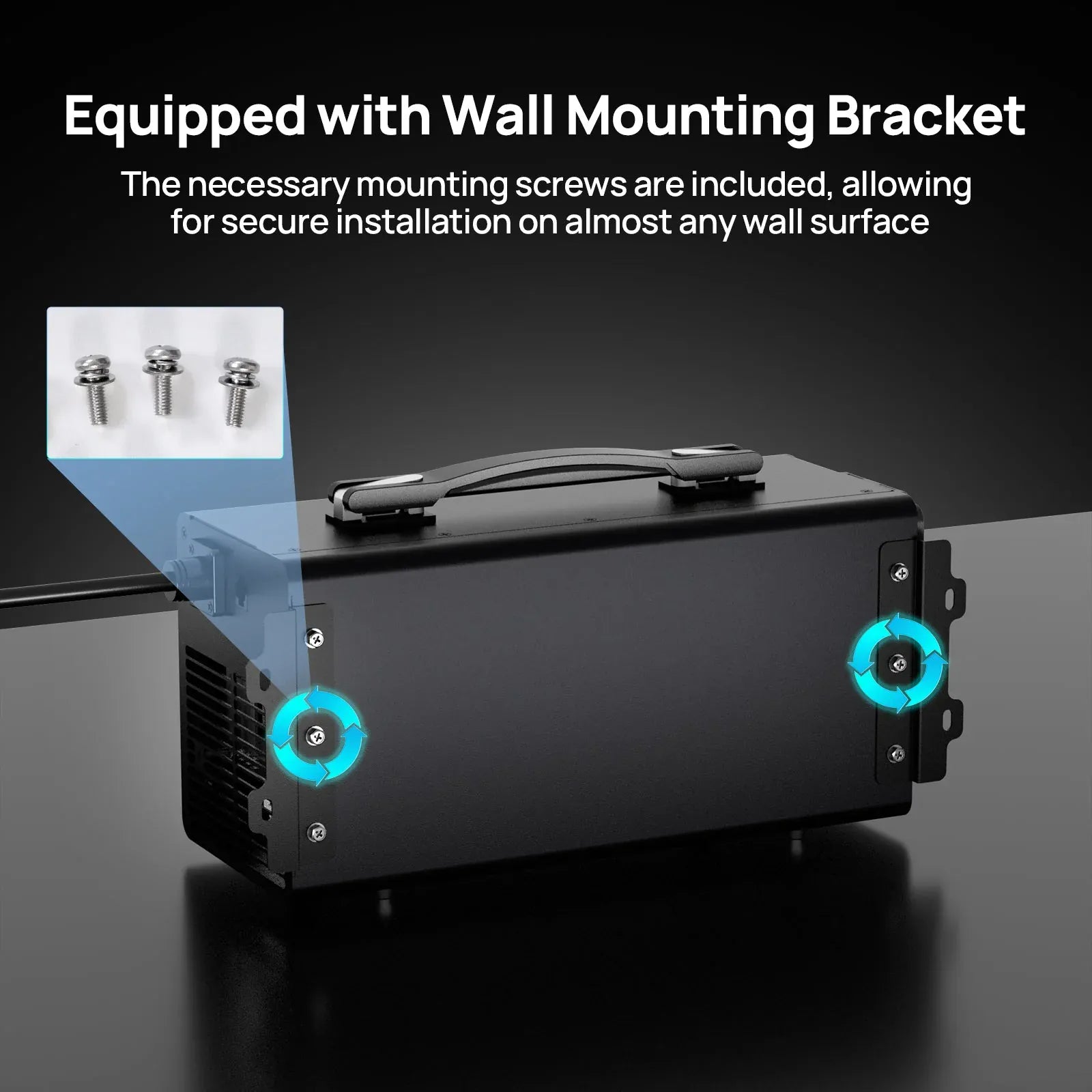

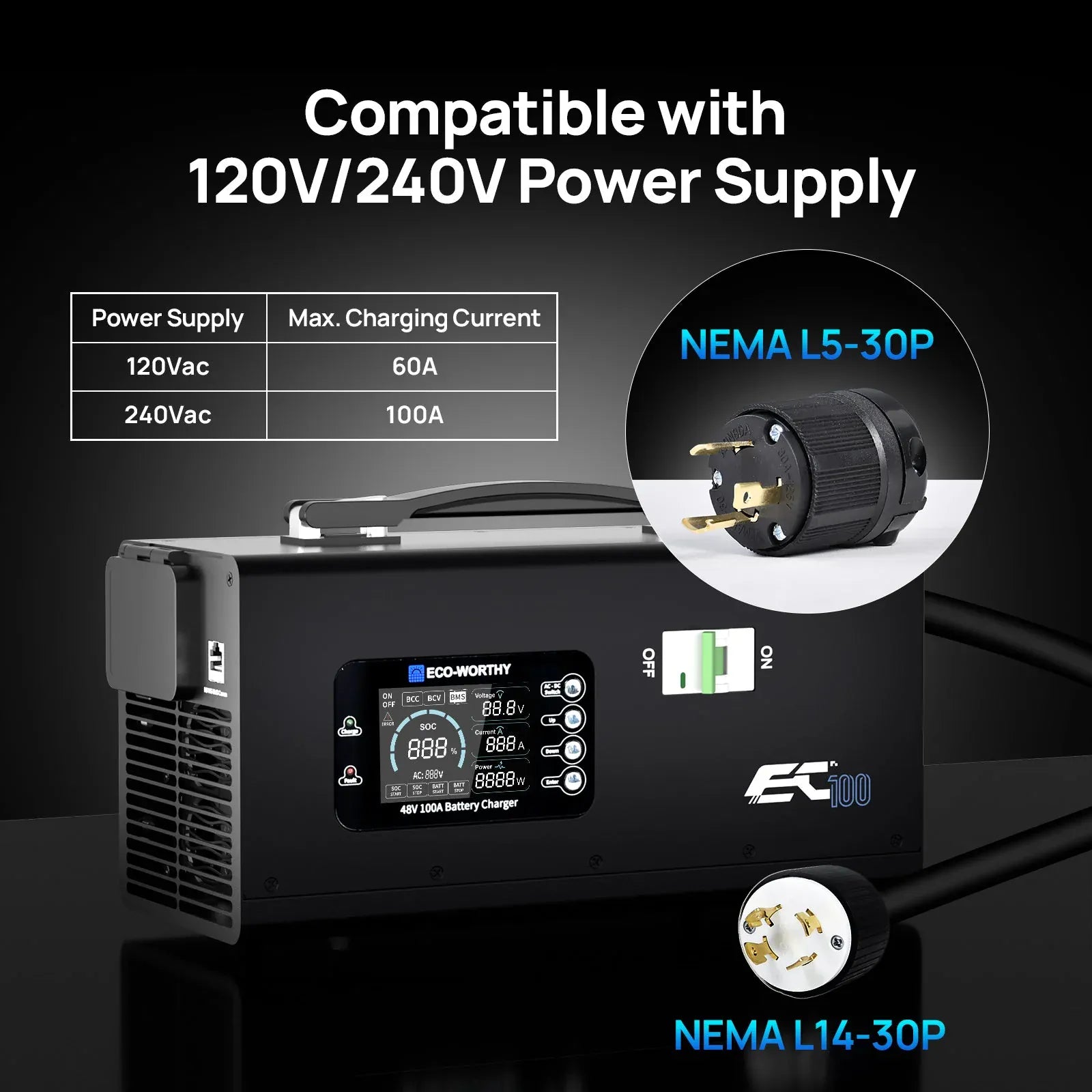

  Comes with a NEMA L14-30P plug plus an extra L5-30P plug for easy connection. Features removable Anderson DC outputs, a comfortable handle, wall-mount bracket, and non-slip feet for total setup freedom.

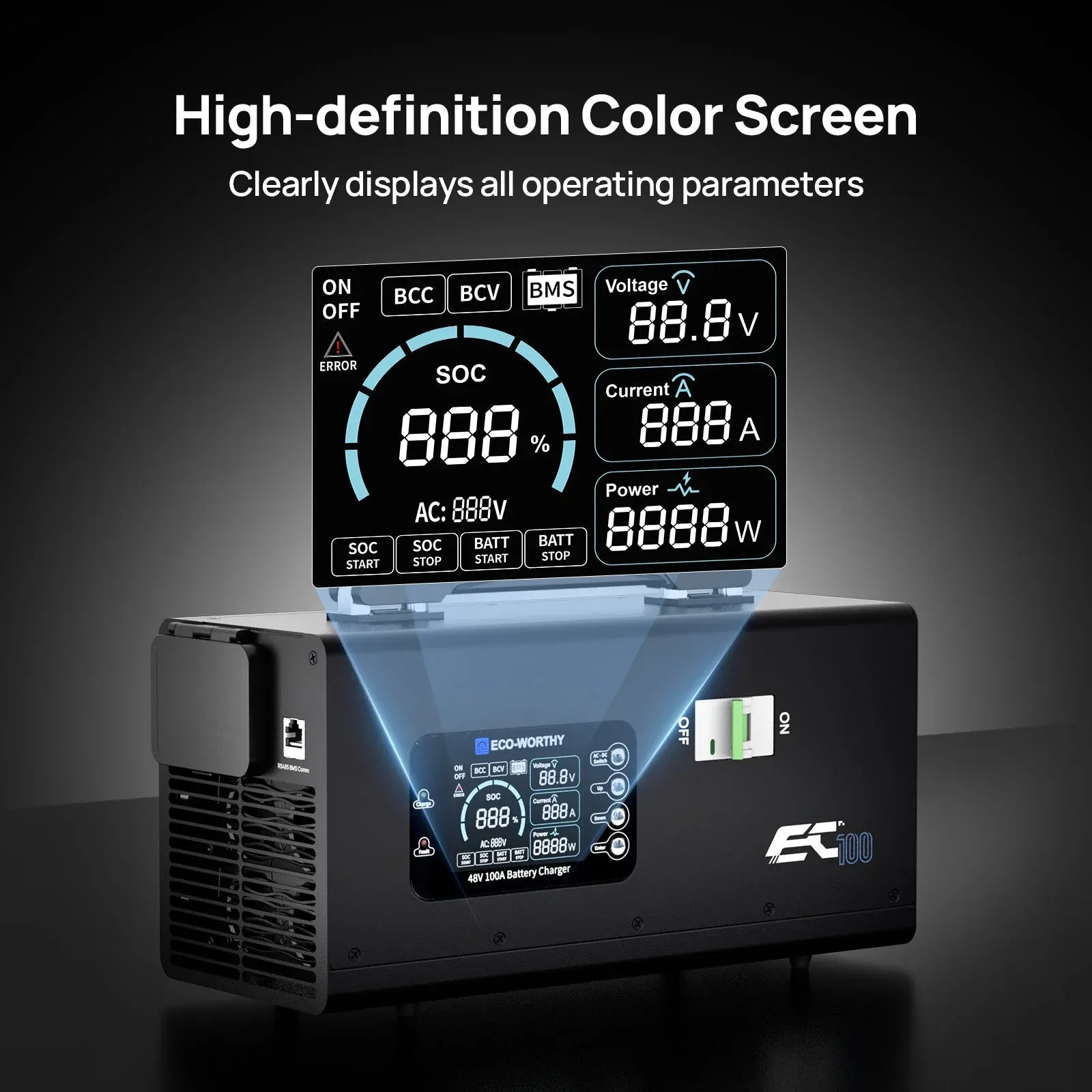

• Clear Display & Simple Controls:
  A bright 3.5" color LCD screen works in any light, and four intuitive buttons make adjusting settings quick and easy.
• Smart Charging Based on Real Battery Data:
  Automatically starts and stops charging using battery voltage or real-time SOC, and communicates directly with compatible batteries for precise, efficient power management.

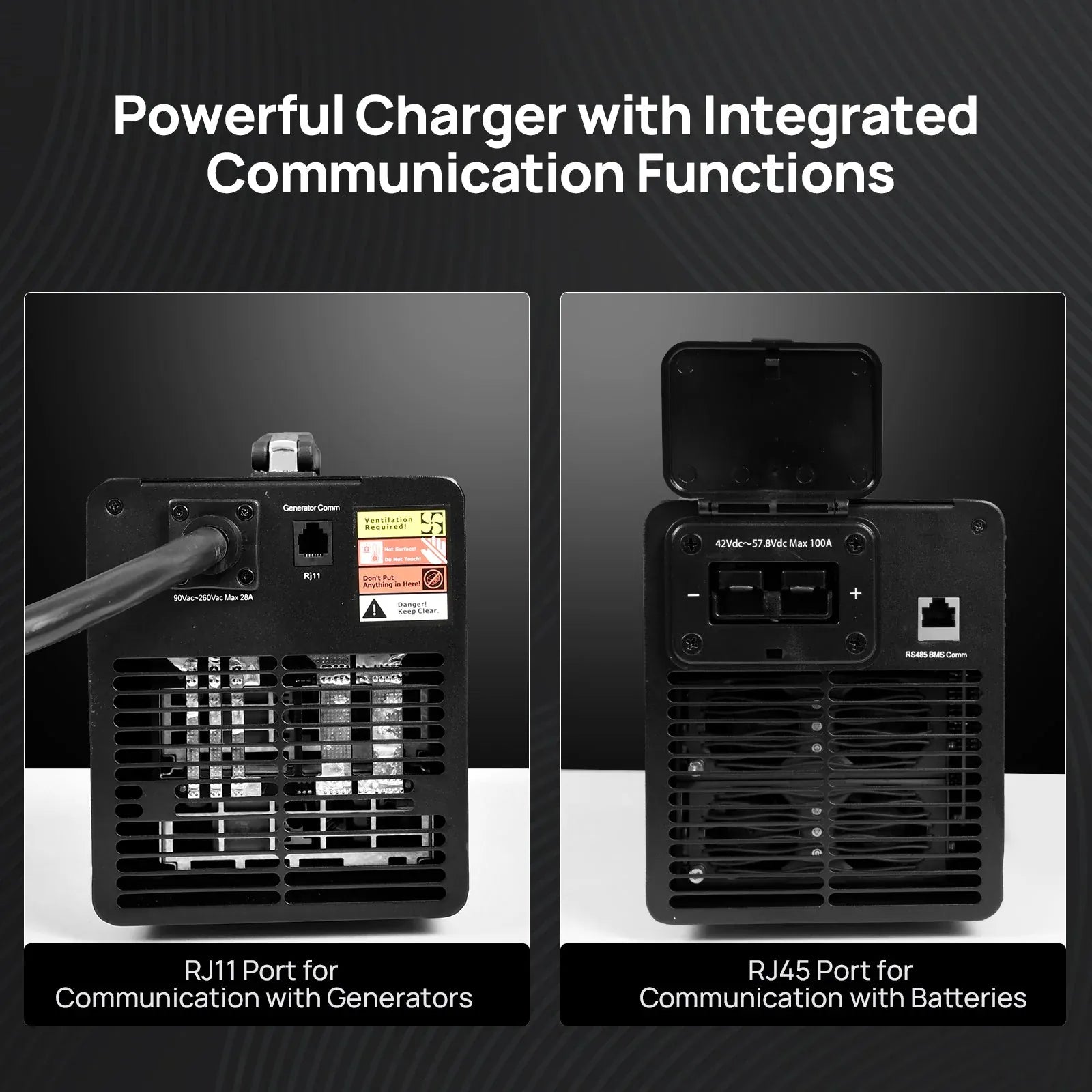

• Auto Generator Control for Full System Automation: Use the RJ11 port to automatically start/stop your generator—perfect for off-grid setups, backup power, and hands-free operation.

EC100 48V 100A battery charger delivers up to 5.78kW output with soft start and 120V/240V AC input for fast, stable charging of 48V systems.

Technical Specifications

• Battery Voltage: 48V
• Rated AC Input Voltage: 90-260Vac
• Max AC Input Current: 28A@240Vac/14A@120Vac
• Recommended Generator: 8KW@240Vac/4KW@120Vac
• Efficiency: 92% @240Vac ；88% @120Vac
• Rated AC Input Frequency: 50-60Hz
• Battery Type; LiFePO4、Lead-acid、AGM、LiNiCoMn
• DC Charge Voltage (Adjustable): 42-57.8V（default 57.6Vdc）
• DC Charge Current(Adjustable): 2-100A@240Vac；2-60A@120Vac

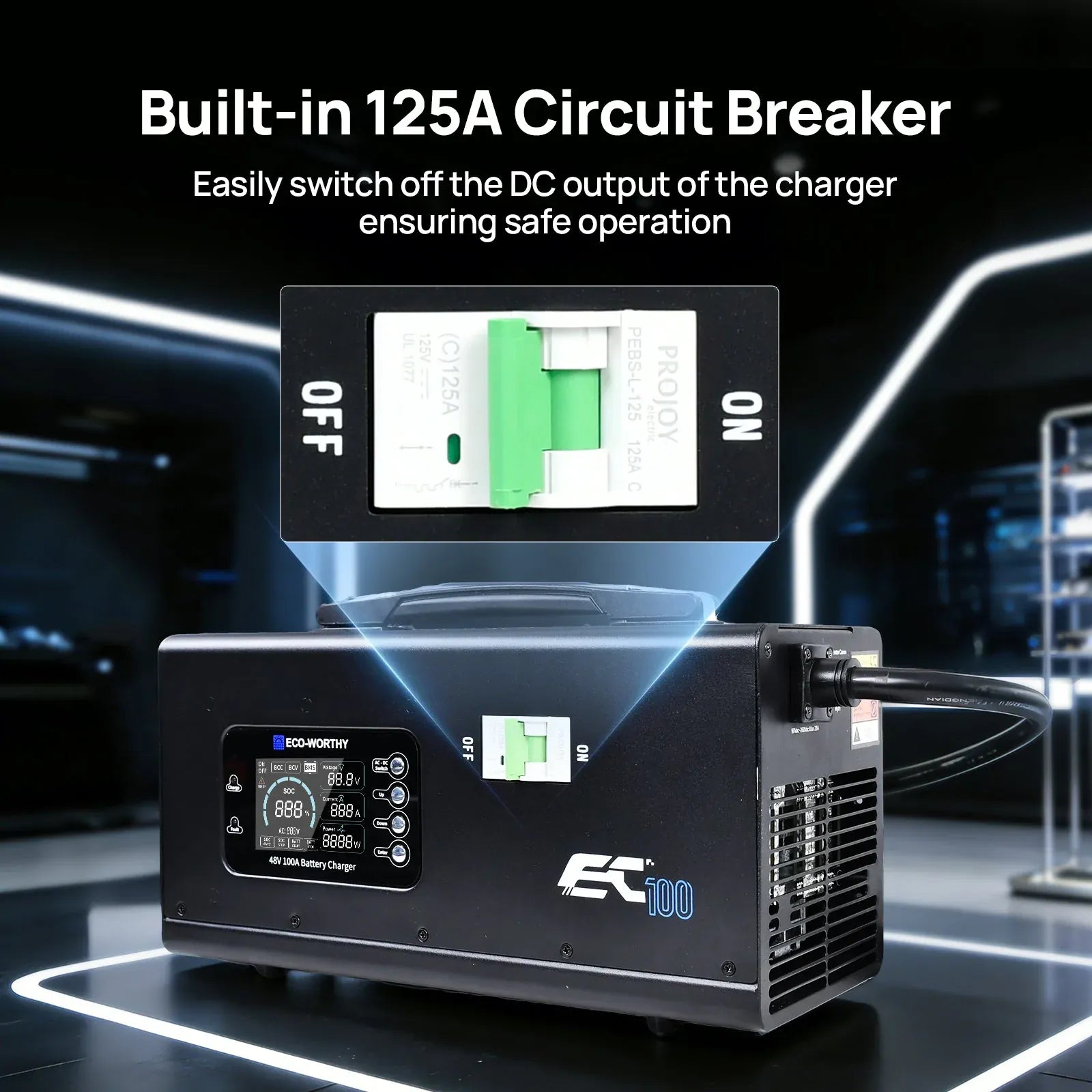

• DC Output Circuit Breaker: 125A
• Max. Output: 5780W@240Vac/2890W@120Vac
• IP Rating: IP20（Indoor）
• Weight: 14.33Ibs/6.5kg
• Dimensions (L × W × H): 12.8*5.3*6.3in/325*135*160mm
• Warranty: 3 Years
• BMS Communication Protocol: RS485 (RJ45 Jack)
• Dry Contact Port: NO, NC, and C (RJ11 Jack

Downloads:

• User Manual
