Introducing the Summit ALBV15PNRLHD, a 15" wide built-in beverage center that is ADA compliant, providing easy accessibility for all. With its sleek design and adjustable shelving, this beverage center can fit a variety of drinks and can keep them at the perfect temperature for ultimate refreshment. (50 words)
Uniquely sized under 32" high for an easy fit under lower ADA compliant counters
Summit offers the industry's largest selection of 32" high ADA compliant appliances, with quality choices for built-in or freestanding use in 15" wide spaces.
The ALBV15PNRLHD is a beverage center sized just under 15" wide and 32" high to fit under lower ADA compliant counters. The front-breathing system allows built-in installation, while the fully finished black cabinet also makes it safe for freestanding use. This unit includes a fully articulating European-style hinge and 2-piece bracket kit that lets you easily install overlay panels over the door trim to create a custom look. The double pane tempered glass door provides a full view of stored contents and a front lock offers convenient security. For added space savings, the ALBV15PNRLHD is designed with a sealed back and right angle cord. This unit is also height adjustable with adjustable leveling legs and an extra kickplate that allows you to raise the unit up to an additional 3".
Three adjustable glass shelves offer flexible, spill-proof storage, with black trim for added color matched style. This model utilizes automatic defrost for easy maintenance and includes an internal fan to ensure more even temperature distribution. An audible alarm sounds if the door has been left open for over one minute, or if the temperature has risen out of the recommended storage range. This unit is also equipped with Sabbath mode to allow users the option of disabling certain electrical functions during periods of religious observance.
With its unique size and user-friendly features, the ALBV15PNRLHD is the perfect choice for space-constrained ADA compliant settings. For a matching wine cellar, see the ALWC15PNR.
|
Overview
|
| Nominal Height |
32.0" (81 cm) |
| Height of Cabinet |
32.0" (81 cm) |
| Nominal Width |
15.0" (38 cm) |
| Width |
14.75" (37 cm) |
| Nominal Depth |
24.0" (61 cm) |
| Depth |
23.63" (60 cm) |
| Depth with door at 90° |
39.0" (99 cm) |
| Capacity |
2.3 cu.ft. (65 L) |
| Defrost Type |
Automatic |
| Door |
Glass/Panel-Ready Frame |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Energy Usage/Year |
270.0kWh/year |
| Amps |
1.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
68.0 lbs. (31 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101091471 |
|
Refrigerator Features
|
| Door Swing |
LHD |
| Reversible |
No |
| Shelf Type |
Glass |
| Shelf Qty |
3 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Digital |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.78oz. |
| High Side PSI |
270.0 |
| Low Side PSI |
105.0 |
| Level Legs Qty |
4 |
| Interior Light |
Yes |
| Temperature Range |
36 - 43ºF |
|
Dimensions
|
| Interior Height |
21.25" (54 cm) |
| Interior Width |
10.5" (27 cm) |
| Interior Depth |
17.25" (44 cm) |
| Compressor Step Height |
3.5" (9 cm) |
| Compressor Step Width |
10.5" (27 cm) |
| Compressor Step Depth |
5.0" (13 cm) |
| Door |
| T1 Door Tint |
T1S Door Tint |
| T2 Door Tint |
T3 Door Tint |
| T4 Door Tint |
|
| Exterior |
| Latch - Factory-installed door latch requires manual release to open unit |
|
15" Wide Undercounter Beverage Center
Built-in or freestanding glass door refrigerator sized to fit in ADA compliant spaces
ADA compliant
Sized at 32" high for use under lower ADA compliant counters

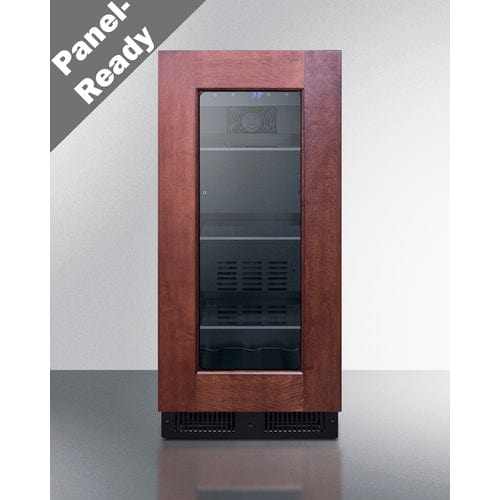

Panel-ready door trim
European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry
Built-in capable
Make the best use of space by installing your appliance under the counter
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Glass door with stainless steel trim
Provides a full display of stored contents with a heat-safe double tempered design
Factory installed lock
Keyed lock for a secure interior, with two keys included
Digital thermostat
Electronic controls for precise temperature management.
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
LED lighting
Gentle illumination with an on/off switch
Automatic defrost
Reduced maintenance with the convenience of auto defrost
Adjustable glass shelves
Flexible storage with spill-proof convenience
Slotted floor
Floor includes slots to hold bottles in place
Height adjustable
Leveling legs can raise the unit to up to 34.5" for more standardized counters. An extra kickplate cover is included to cover the added space
Professional handle
Stainless steel look for added elegance
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
High temperature alarm
Audible alarm sounds if the interior temperature rises out of set range
Open door alarm
Alarm sounds if the door is left open for more than 60 seconds
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Flush back
Space saving design makes it easier to install flush against the wall
Fully articulating European style hinge
Smoother opening and a better fit with an integrated European hinge
Matching wine cellar available
Pair with the ALWC15PNR for a perfectly matched set
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
HTS CODE: 8418.50.0080
Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door
