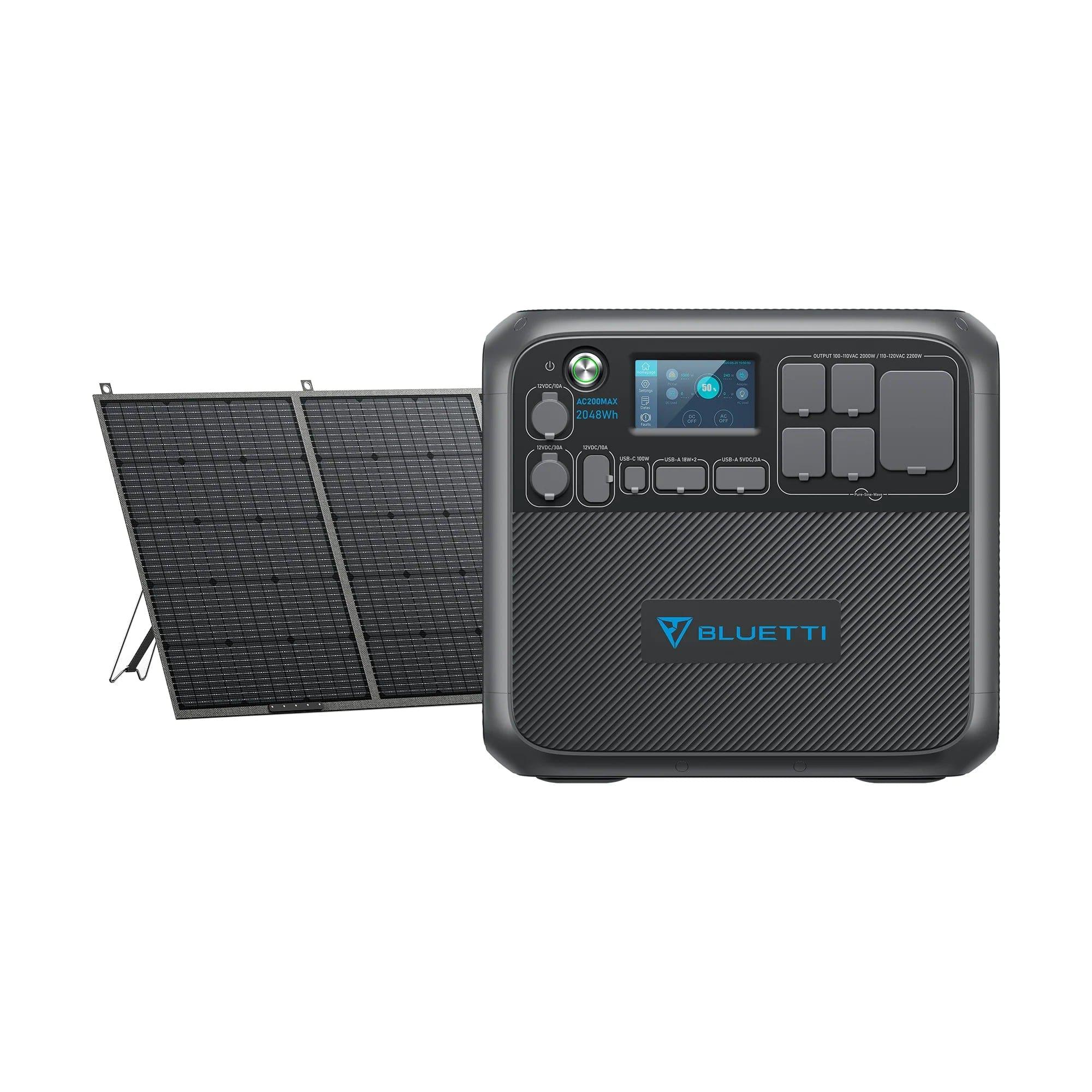

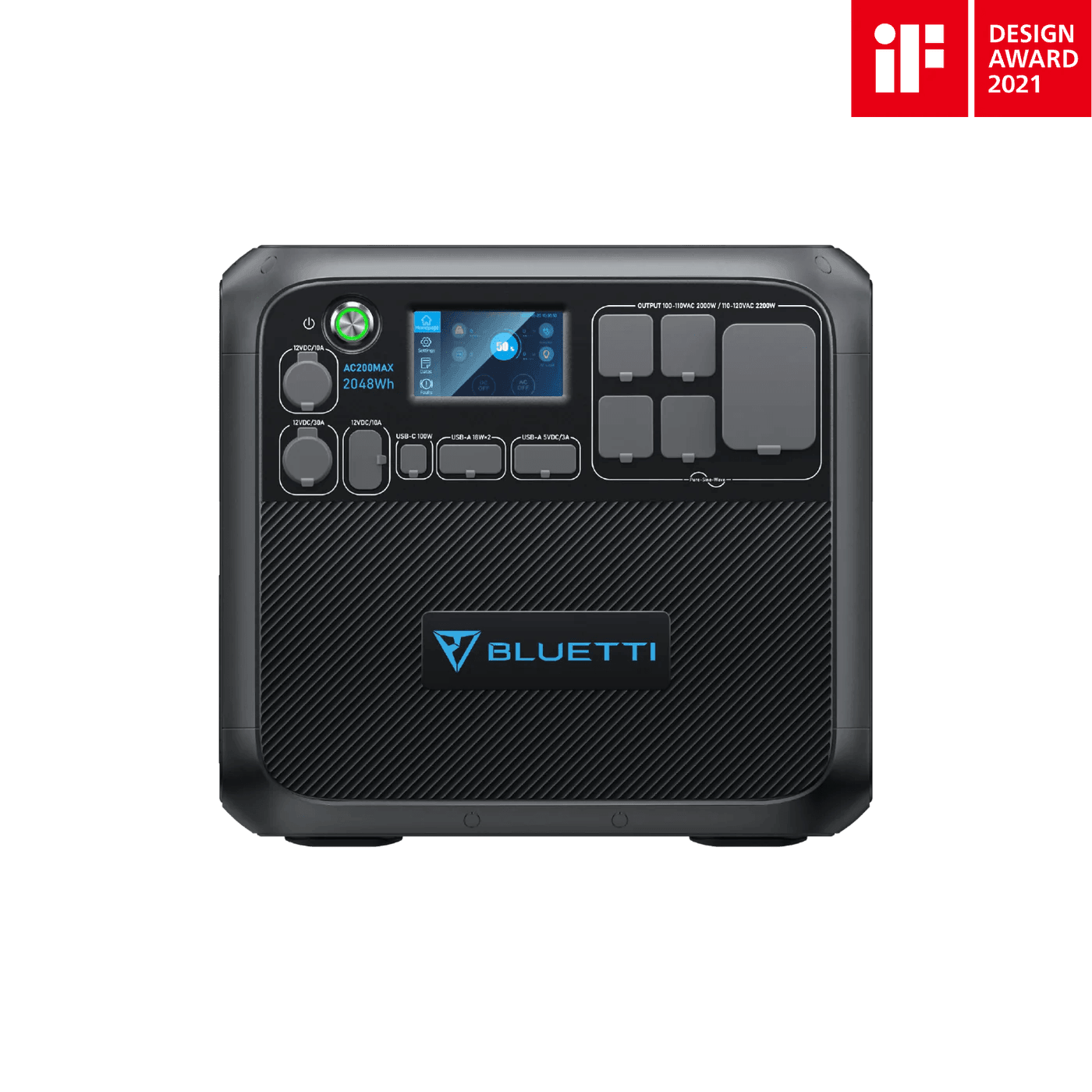

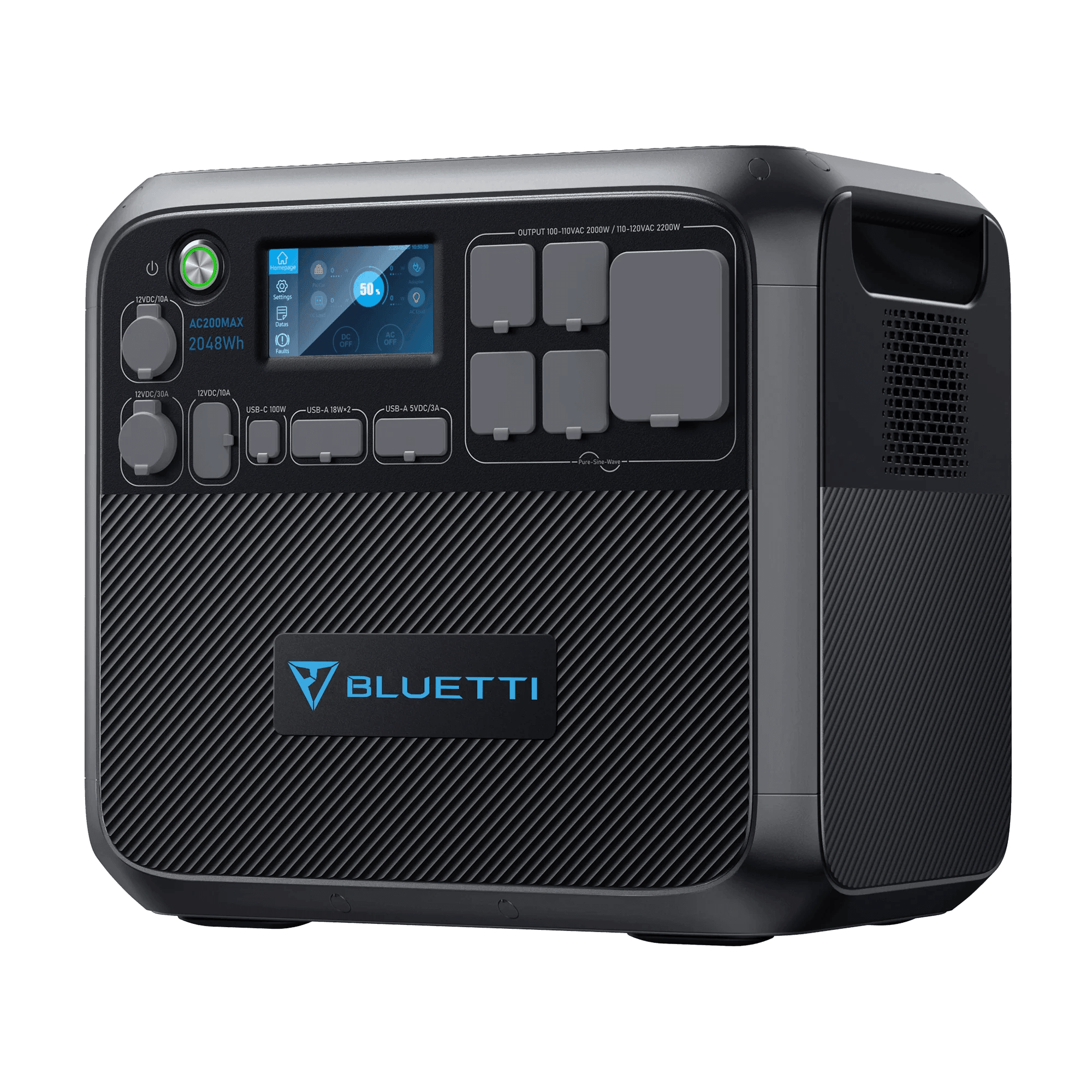

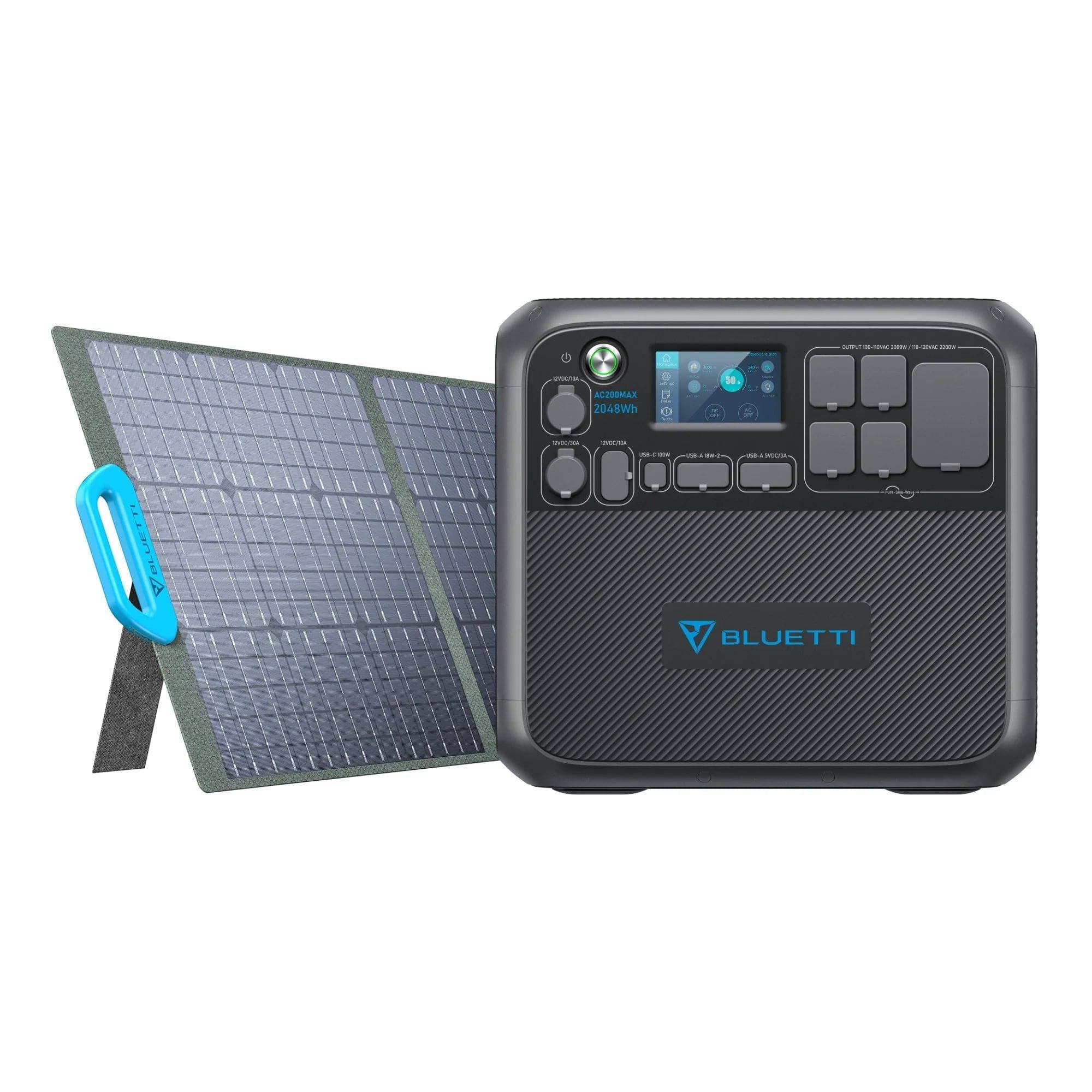

BLUETTI first expandable power station-AC200MAX with 2,048Wh LiFePO4 cells and 2,200W pure sine wave inverter. Your mobile power center at home or on the way.
Coffee Maker(1150W)
1.5 Hrs
Electric Grill(1650W)
1.5 Hrs
Refrigerator 150W(1200W)
10 Hrs
Air Conditioner(5000 BTU)
1-4 Hrs
CPAP(40W)
30-40 Hrs
Light(10W)
150+ Hrs
Less To Spend, More To Love

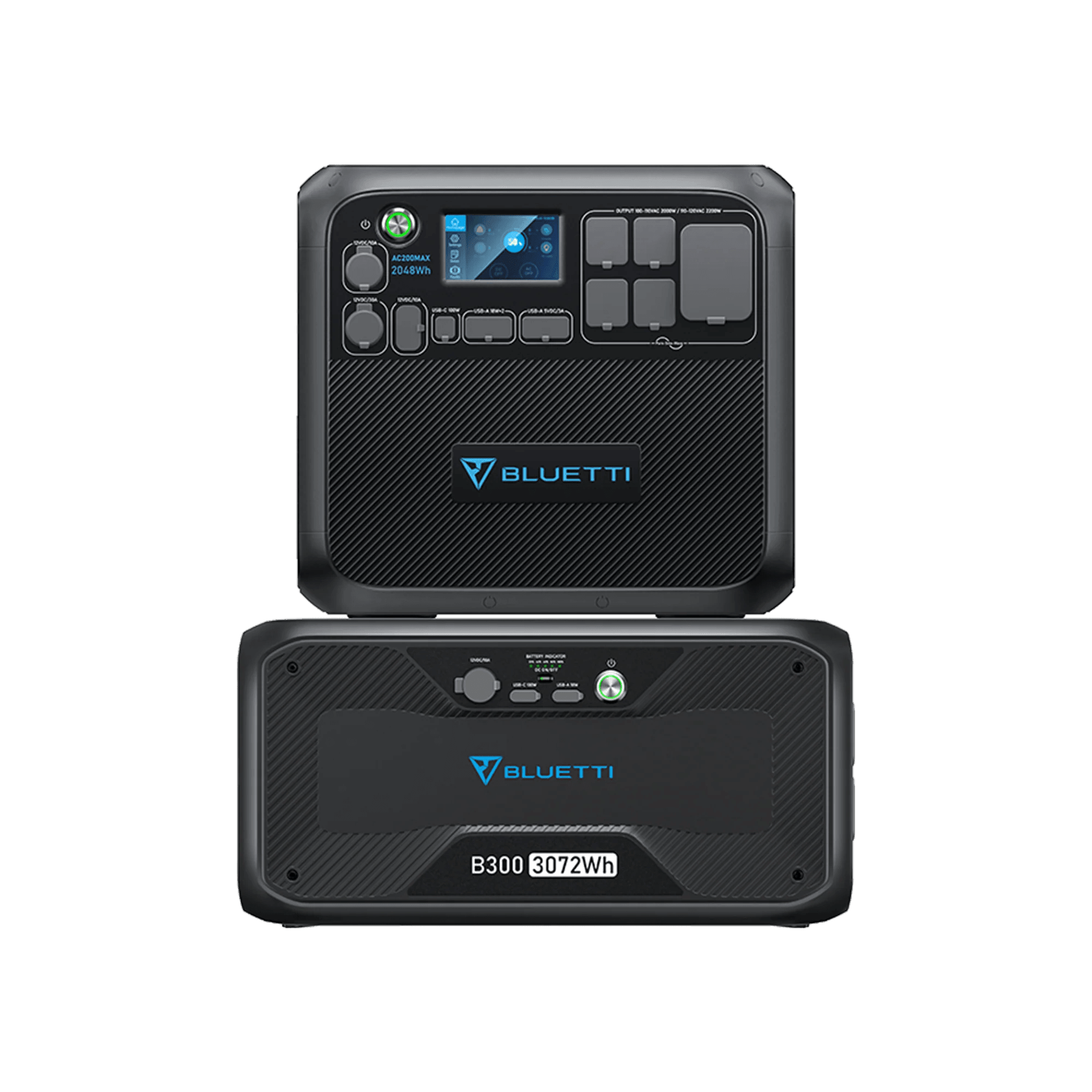

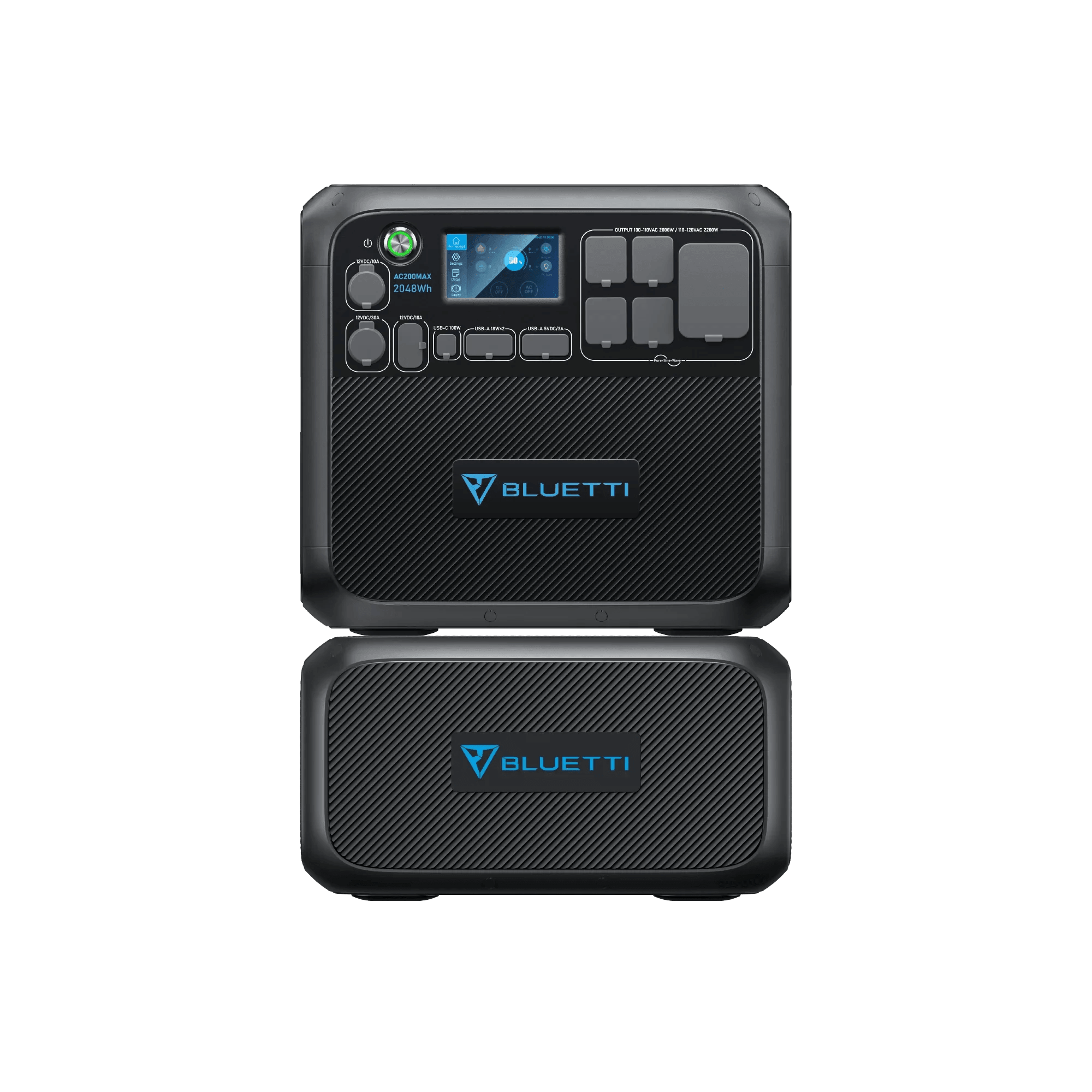

Struggling between power and flexibility? We got you covered! With two expansion ports, The AC200MAX welcomes up to two BLUETTI B230’s(2048Wh each) or B300(3072Wh each) battery modules, connecting of which can boost the total capacity to a staggering 8192Wh!
Get Charged In Anyway You Prefer

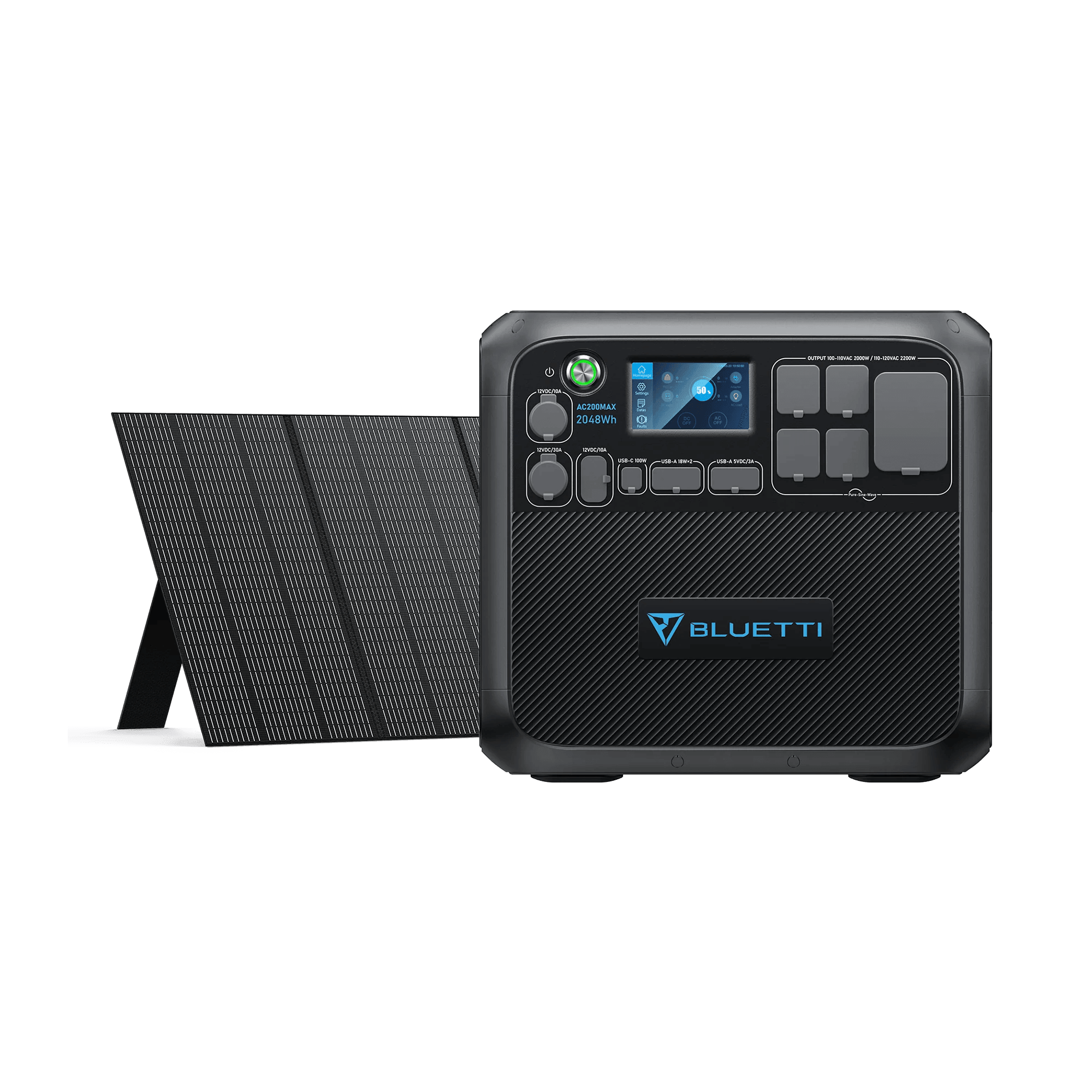

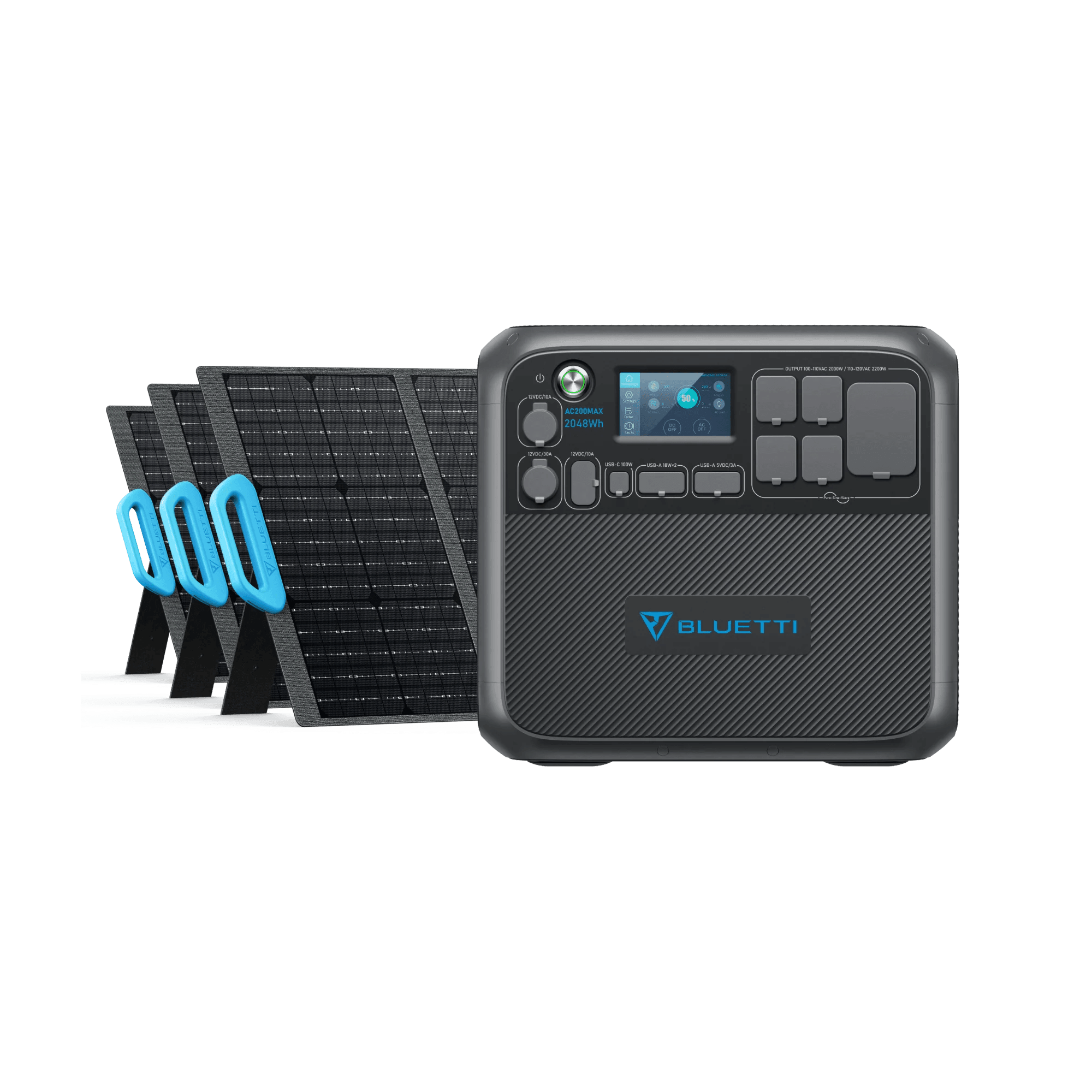

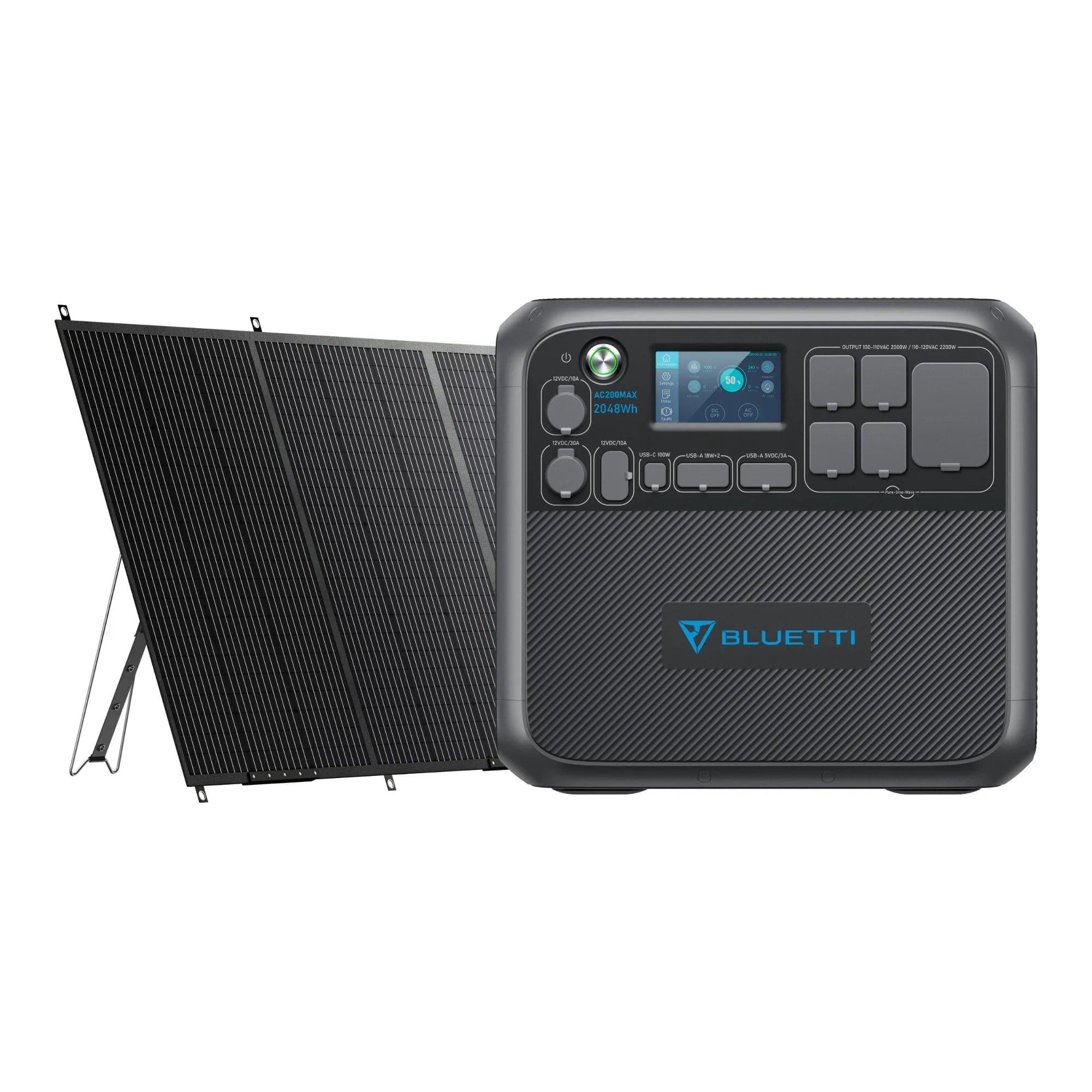

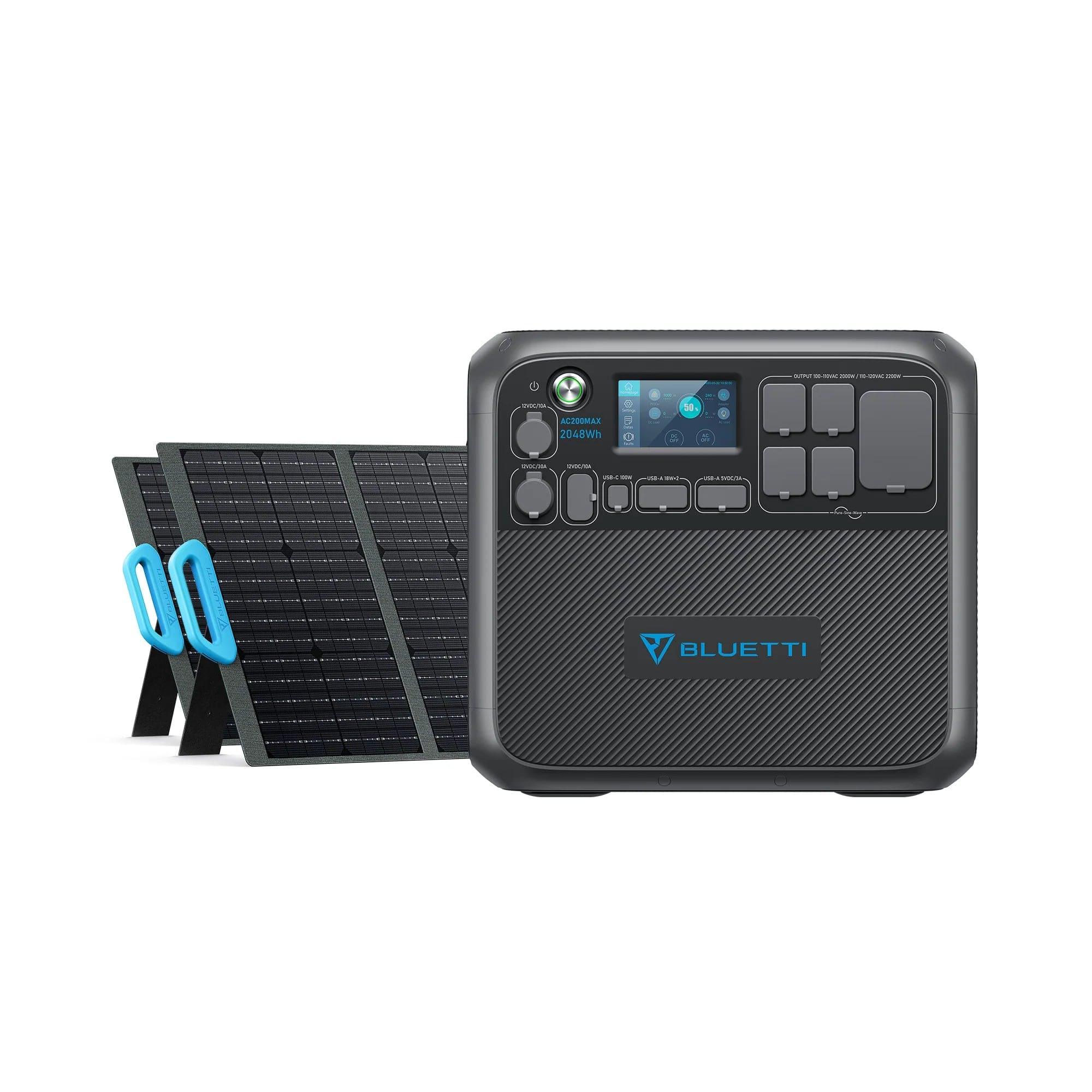

The AC200MAX allows up to 900W of solar input and 500W via the adapter, you can even charge it up via your wall outlet and solar panels simultaneously, boost a stunning 1400W total charging rate which can top up your power beast in less than two hours! Further more, every BLUETTI battery module has their own input port for AC adapters, you’ll get another 500W of input capability with every module added (Up to two for the AC200MAX).
Small Change, Huge Leap
The AC200 Max can now take one module via its solar input port with a converter cable for extra capacity!

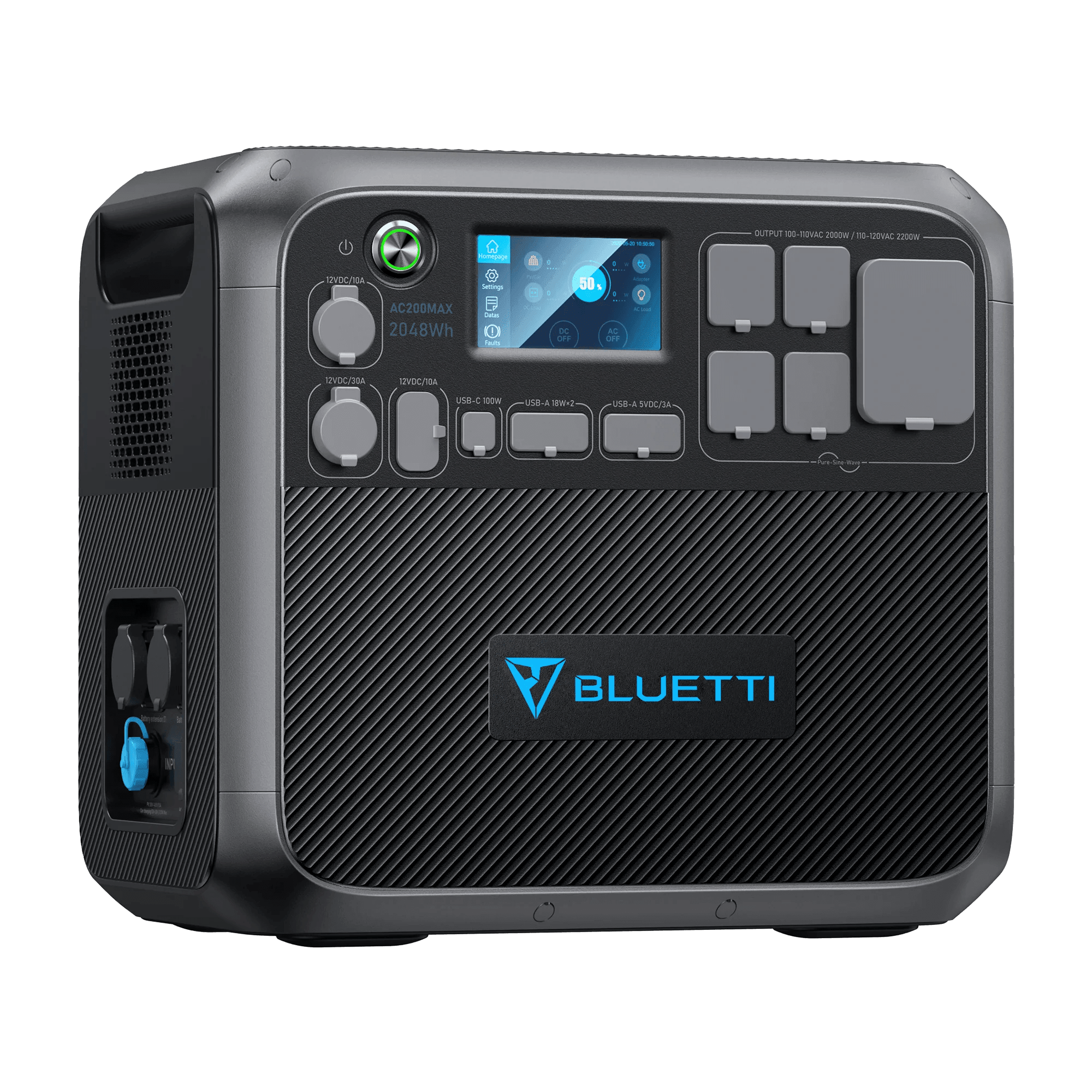

Incomparable Outlet Versatility
With AC200MAX’s 16 outlets, you get to run all your needs simultaneously without breaking a sweat. And especially for the RV enthusiasts the AC200 MAX has a specially designed built-in 30A NEMA TT-30 outlet and a 12V 30A super powerful DC outlet.
Never Run Out of Power
Suitable for various occasions
Specifications:
PREVIEW
BATTERY INFO
- Capacity: 2,048Wh (51.2V, 40Ah)
- Type: LiFePO4 (Lithium Iron Phosphate)
- Life Cycles: 3,500+ Cycles to 80% Original Capacity
- Shelf-life: Recharge to 80% Every 3-6 Months
- Management System: MPPT Controller, BMS, etc
OUTPUT
- AC Outlets:4 x 120V/20A Outlets 1 x 120V/30A NEMA TT-30 2200W In Total
- Inverter Type: Pure Sine Wave
- Surge Power: 4800W
- USB-C Port: 1 x 100W Max.
- USB-A Port: 2 x 5V/3A USB-A
- 2 x 18W USB-A
- 12V DC Outlets: 1 x 12V/30A (RV Outlet)
- 1 x 12V/10A (Car Outlet)
- 2 x 12V/10A DC 5521 (5.5mm Outlet)
- *All Regulated.

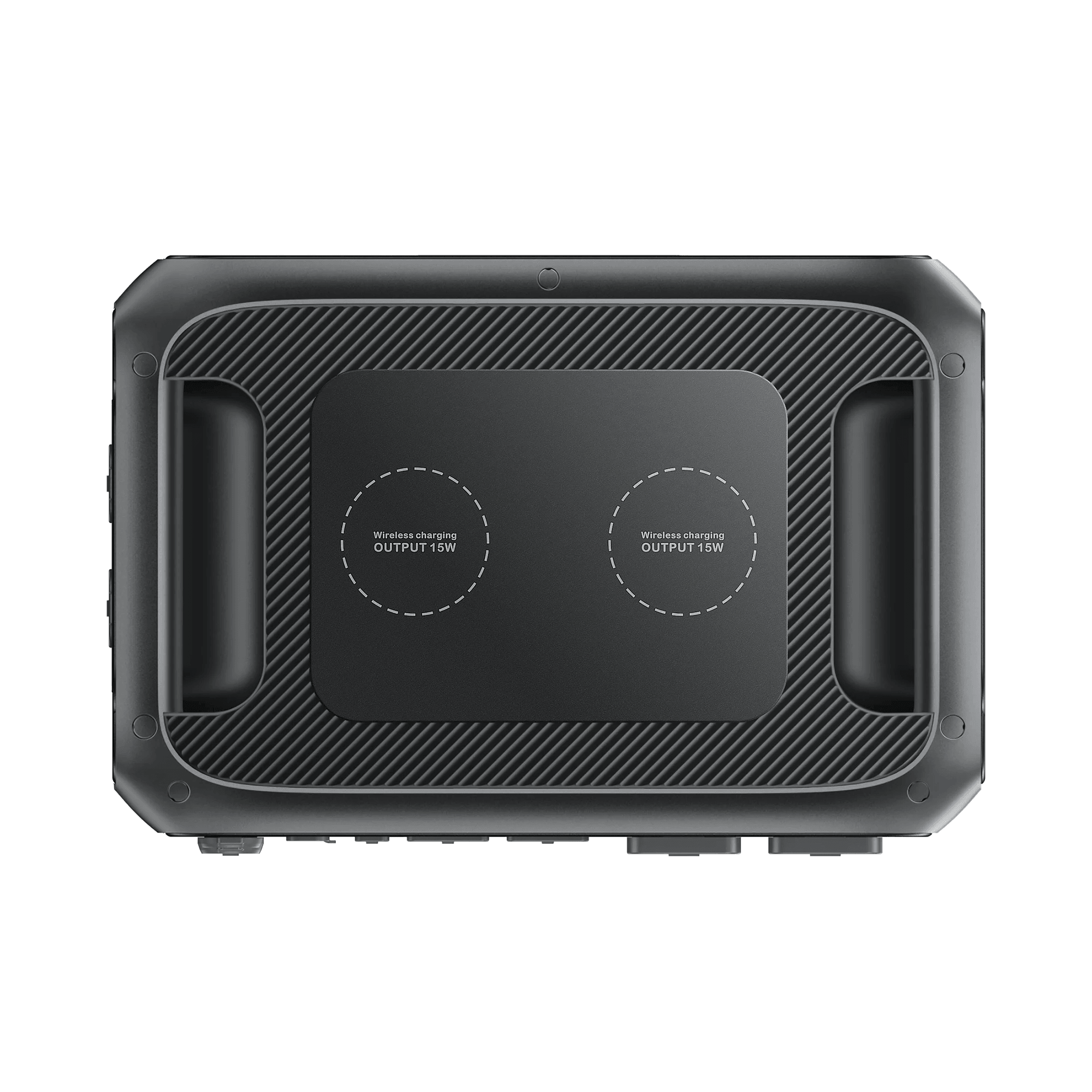

- Wireless Charging Pad: 2 x 15W Max. (For Each)
INPUT
- AC Adapter Input: 500W.
- Solar Input: 900W Max., VOC 10-145VDC, 15A
- Car Input: 12/24V from Cigarette Lighter Port
- Max Input: 1,400W, with AC+Solar Input
RECHARGE TIME
- AC Adapter (500W): ≈5.5~6 Hours
- Solar (900W): ≈3~3.5 Hours (With prime sunshine, ideal orientation and low temperature)
- 12V/24V Car Outlet (100W/200W): ≈10 or 20 Hours
- AC Adapter + Solar (1400W): ≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature)
- Dual AC Adapters (1000W): ≈3~3.5 Hours (Extra adapter is REQUIRED)
GENERAL
240V Split Phase Bonding:No. Need 240V power source.
Scalability:Expandable w/ Up to 2 x B230 or 2 x B300
Pass-through Charging:Yes
Weight: 61.9lbs (28.1kg)
Dimensions (LxWxD):16.5 x 11 x 15.2in ( 42 x 28 x 38.65cm)
Operating Temperature:-4-104℉ (-20-40℃)
Storage Temperature:14-113℉ (-10-45℃)
Certifications:UL2743, UKCA, TELEC, RCM, FCC ID, CE, PSE, NTC
Warranty:48 Months (Learn more about BLUETTI warranty policy)
