Features:
Modular Solar Power System for All Needs

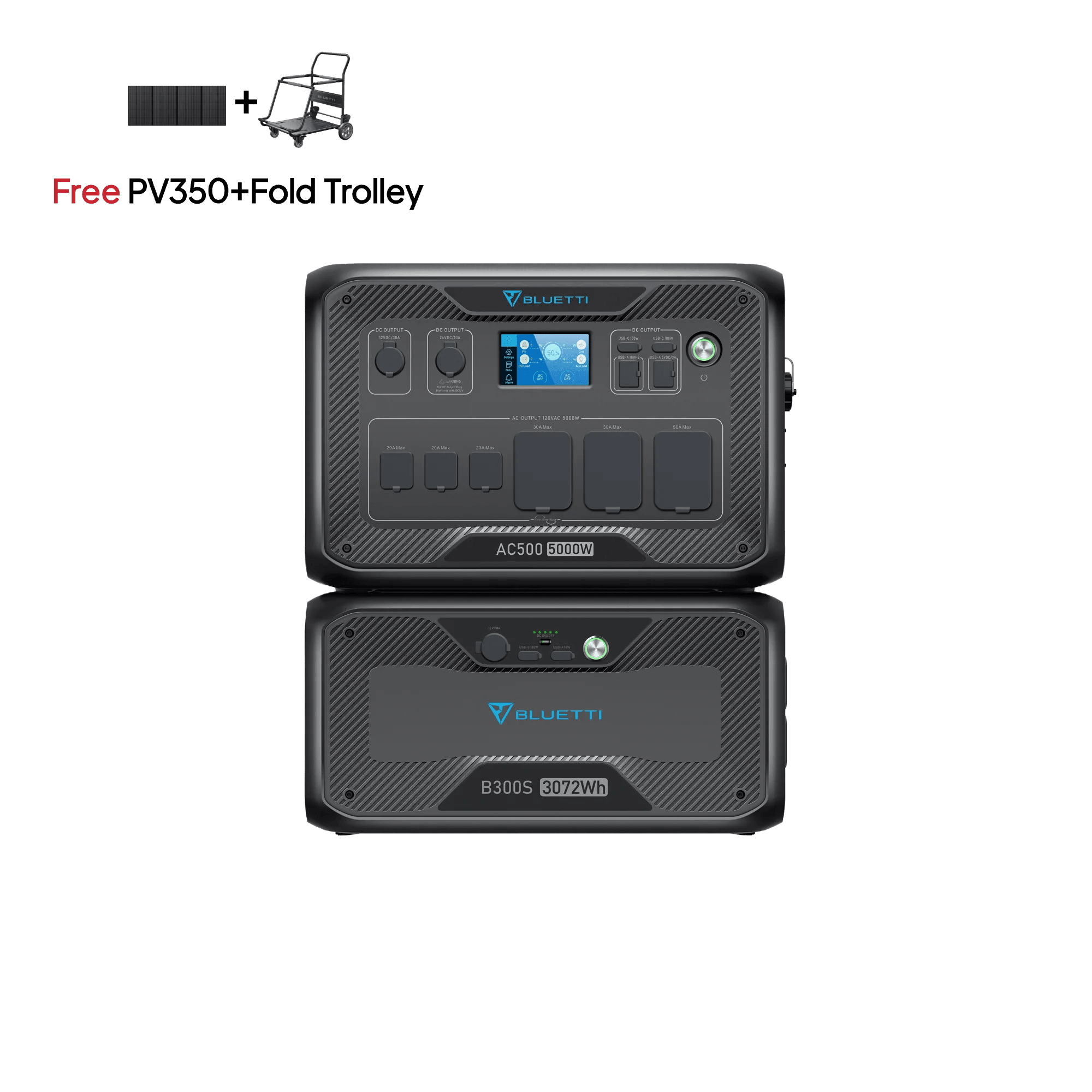

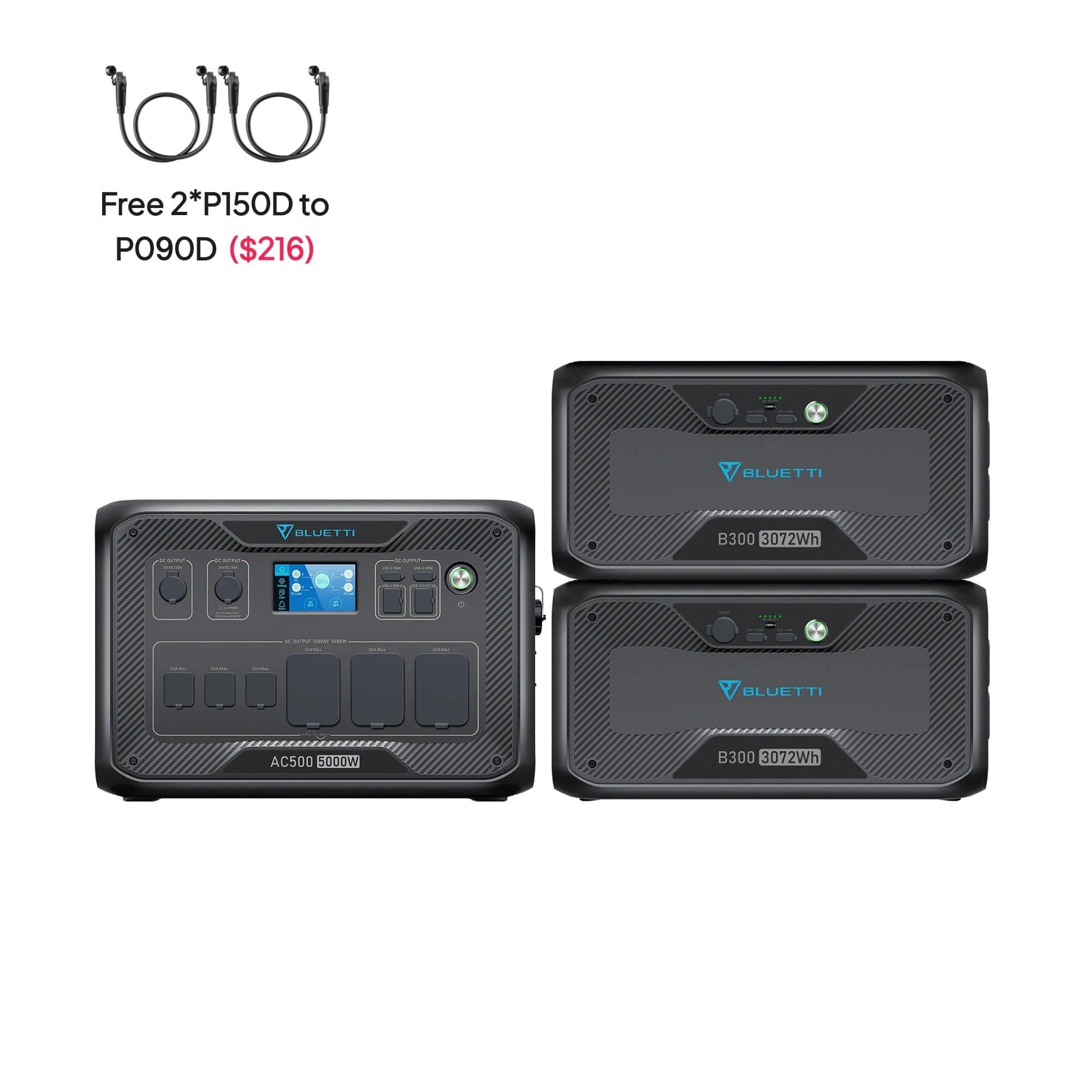

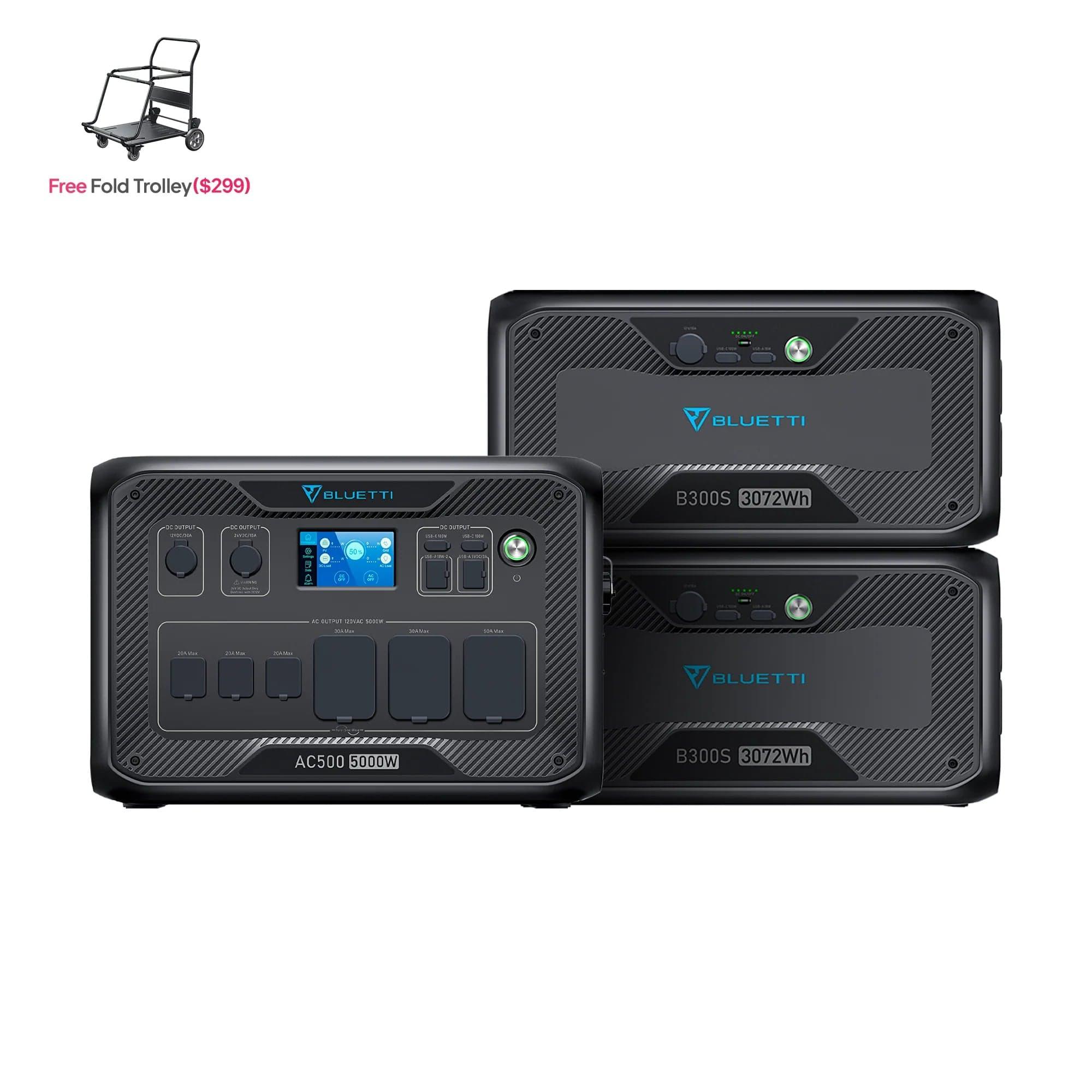

AC500 & B300S, the expandable power system, will definitely shift the way you harness the solar energy. It's designed to help you go through power outages, stay connected to unlimited energy wherever you are heading.

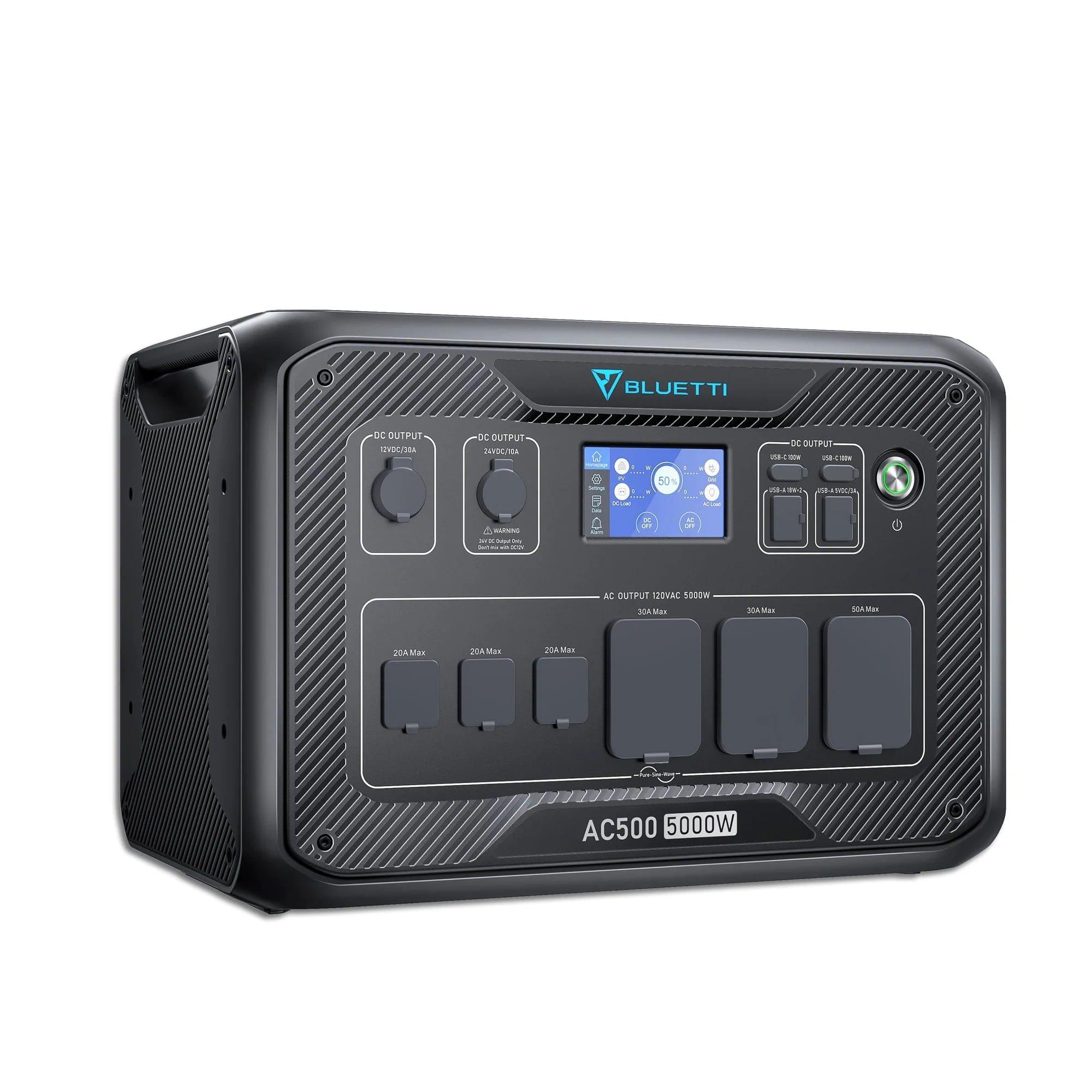

5000W Pure Sine Wave Inverter
This inverter delivers quality pure sine wave output and takes up to 10kW surge, ensuring anything you plug in will be running to its full functionality and capacity.
Charge in Any Way You Like
No matter where you are, you can charge your AC500 system at any time. With the wall outlet and solar panels plugged in, the AC500 system supports up to 8,000W* impressive input rate. Get the system recharged before you pack up for the camping, and your power will be ready when you are.At least 2*B300S packs required.
Power Option for Personalization

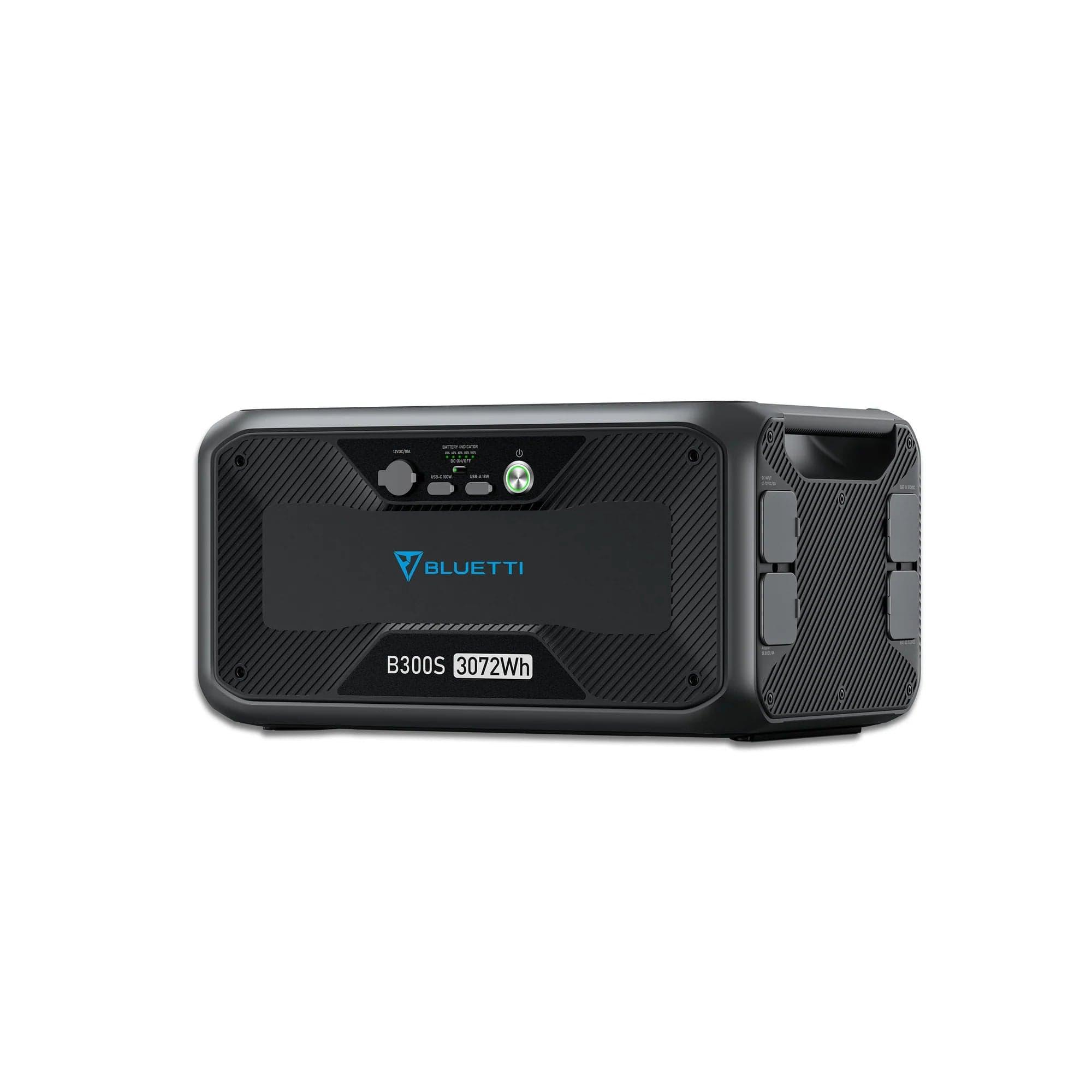

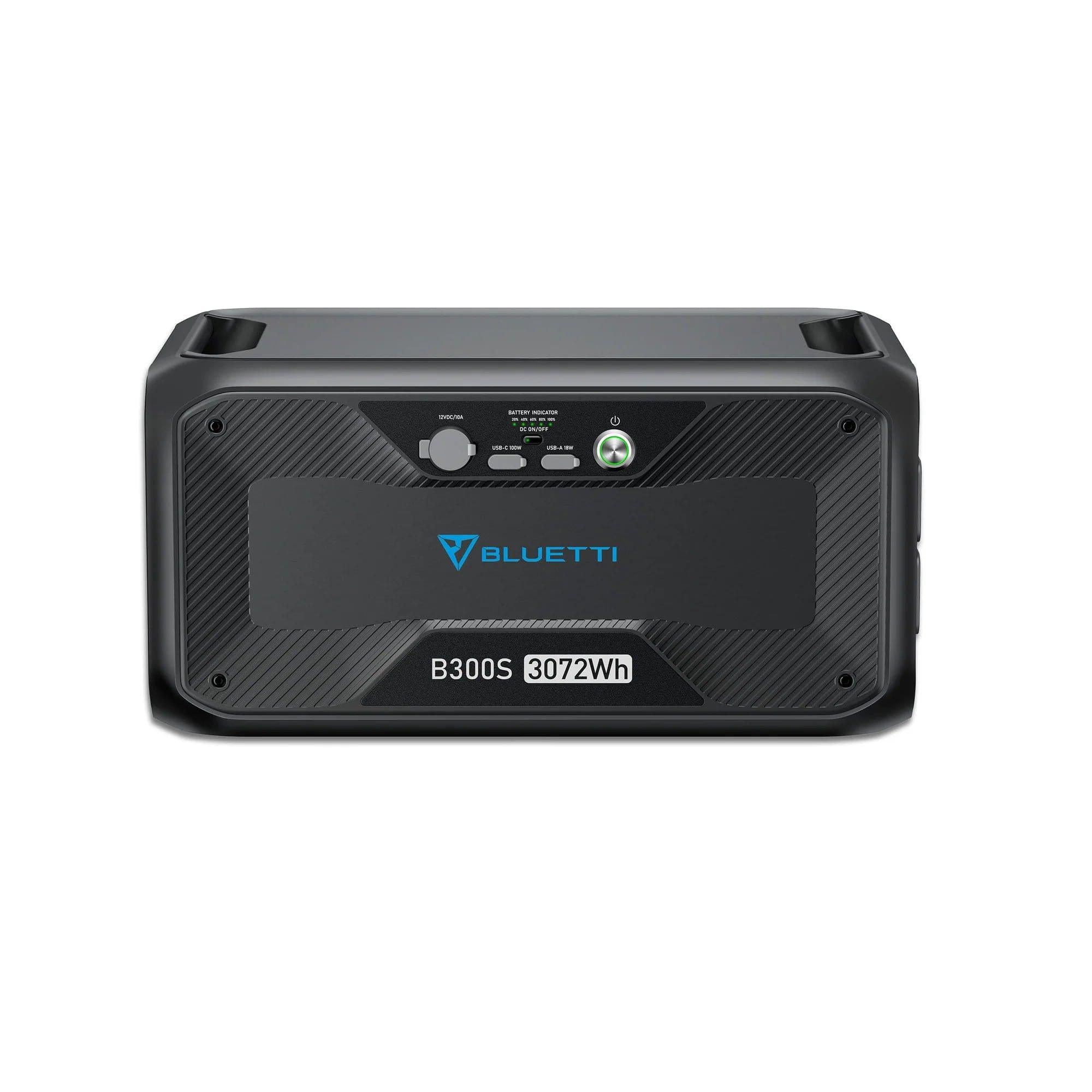

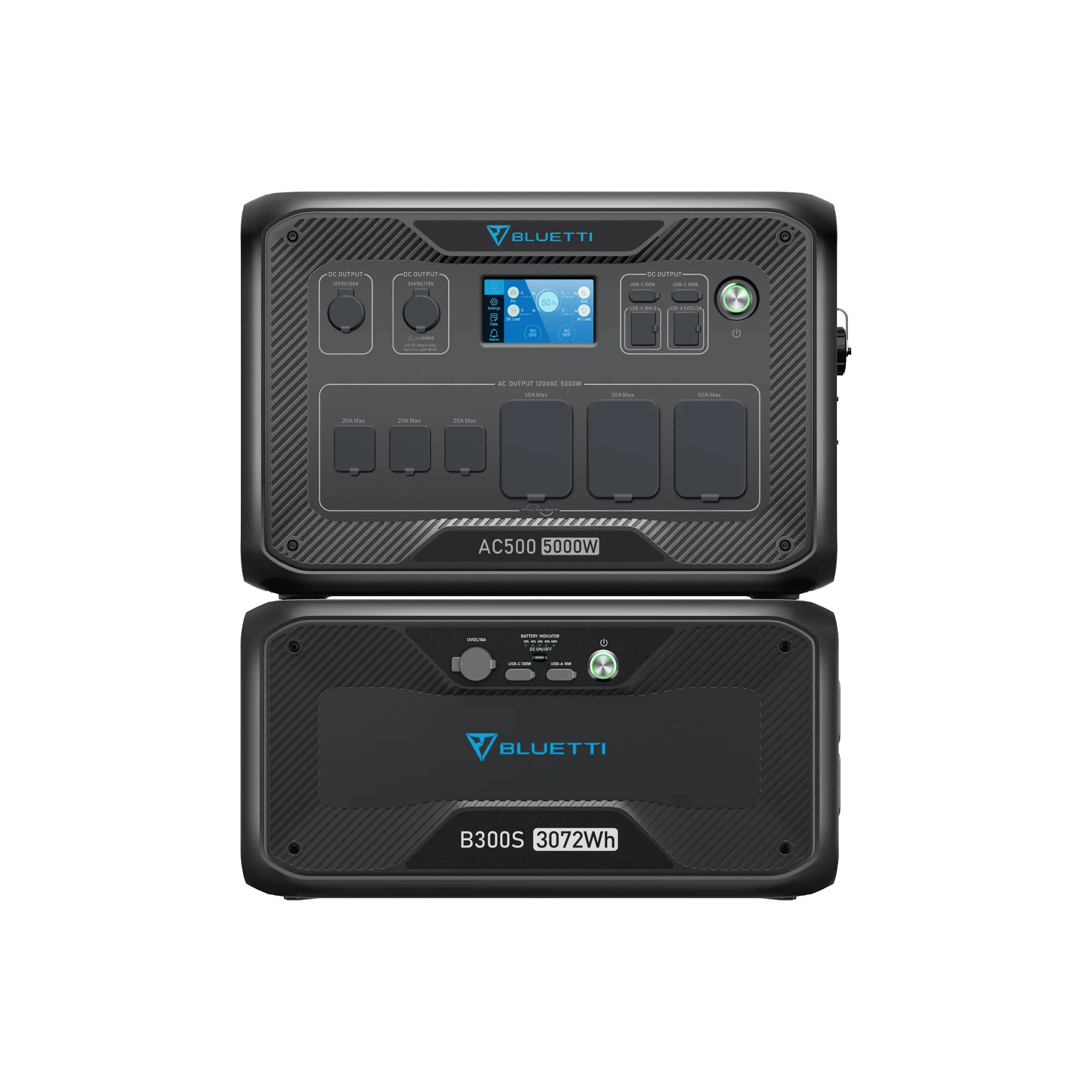

AC500 is 100% modular and can accept up to 6×B300S (3,072Wh each) expansion battery packs, adding up to an overall capacity of 18,432Wh – Power your whole family's basic needs for DAYS either in daily use or power outages!
Take Care of Your Heavy-duty Equipment

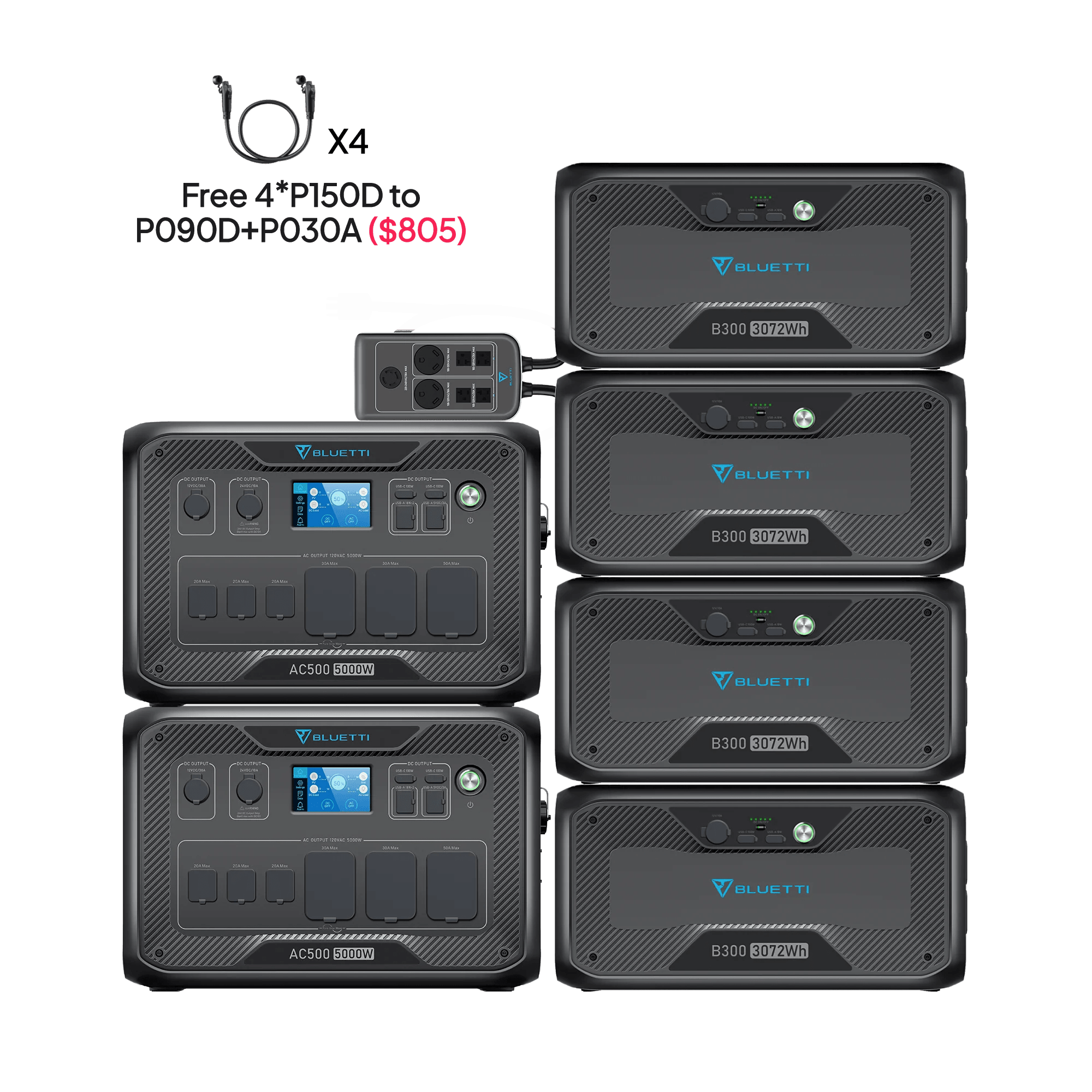

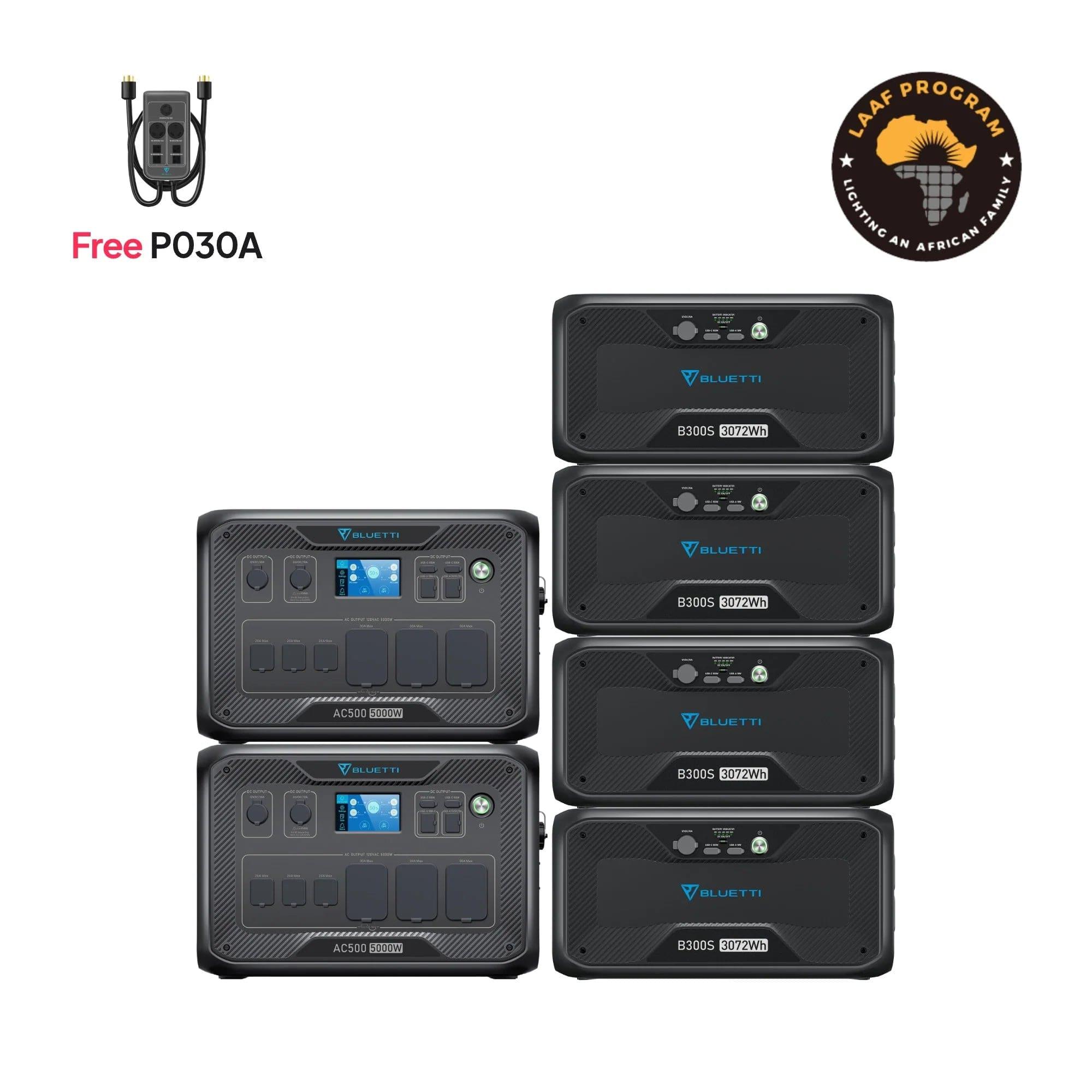

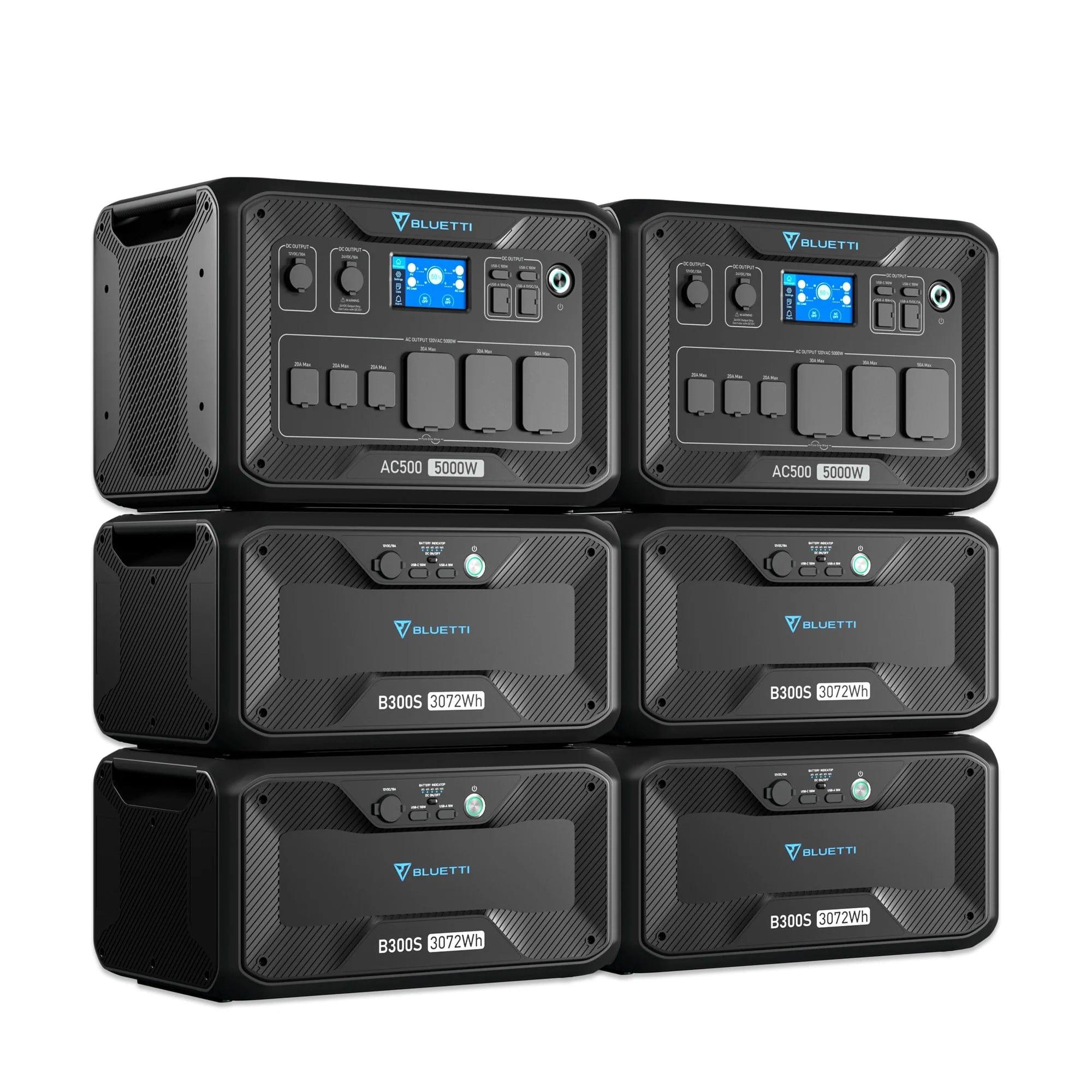

Connecting two AC500 units allows you to can run 240V appliances with ease. Plus, with 12*B300S batteries, you’ll get an impressive capacity of 36,864Wh to reduce grid dependence and pay less for electricity
Never Run Out of Power
AC500 powers your devices like a gas generator, but without any fuel costs, noise, and pollution, making it safe enough to use next to you whether you're at home, pitching a tent, or trying an RV road trip.
Manual:
Specifications:

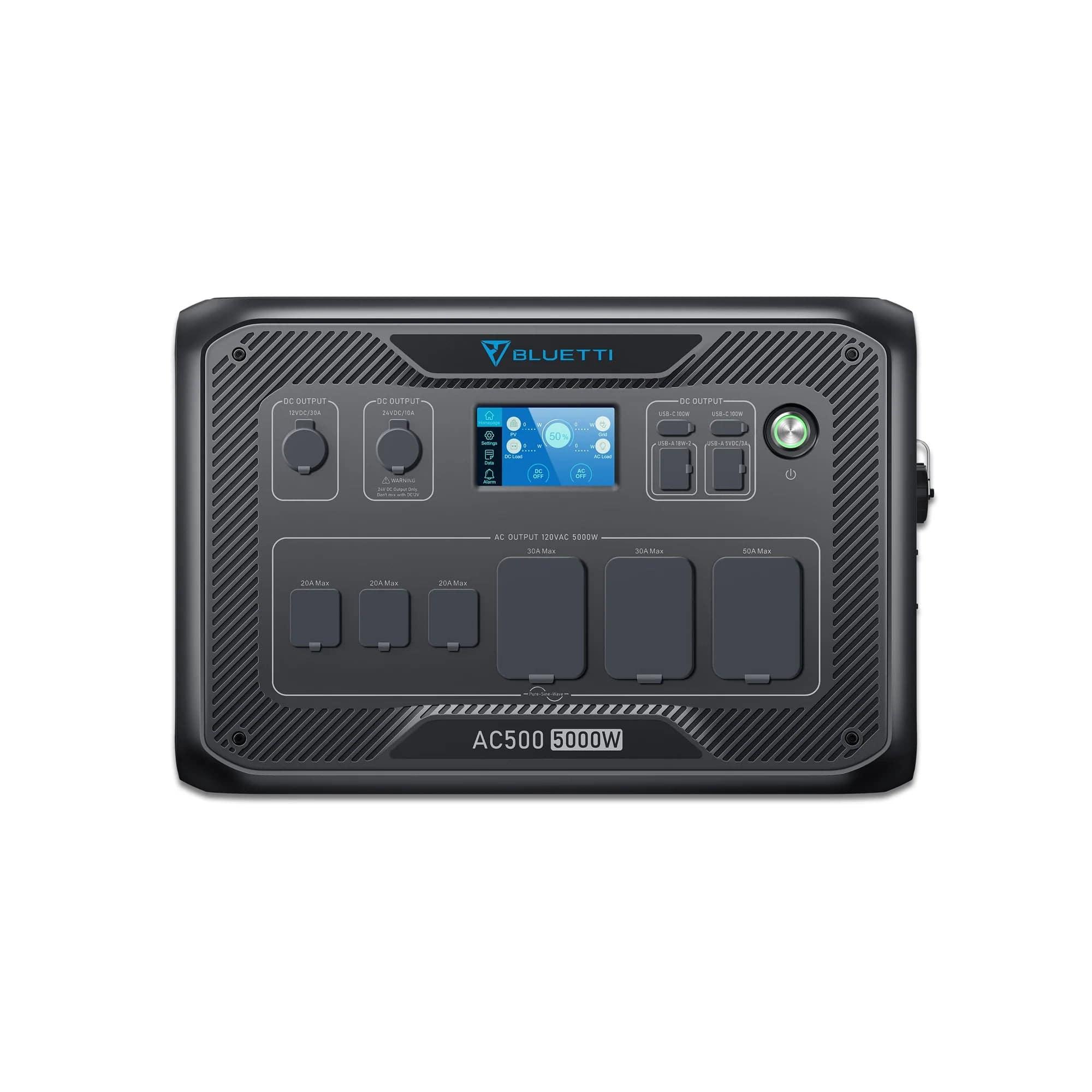

OUTPUT

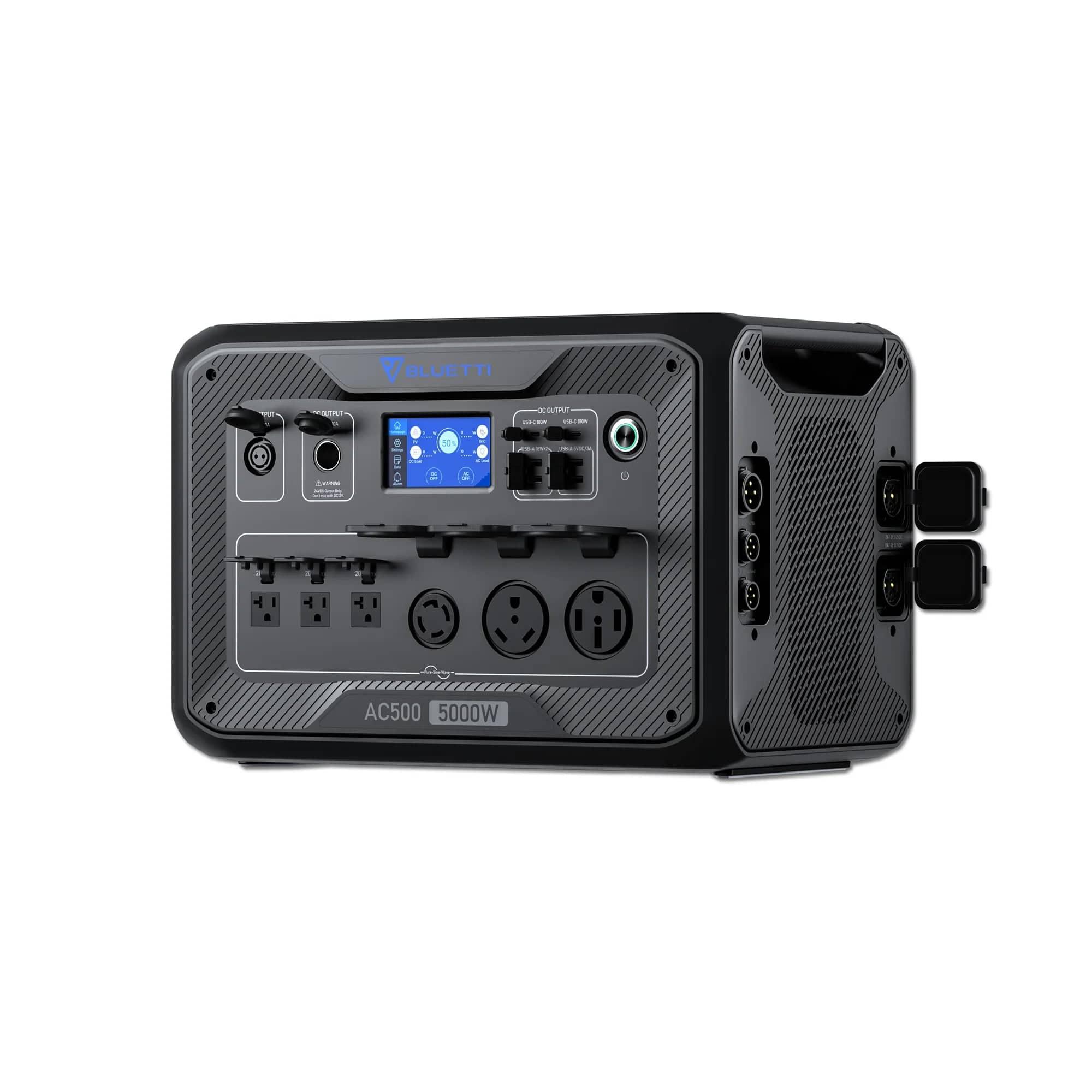

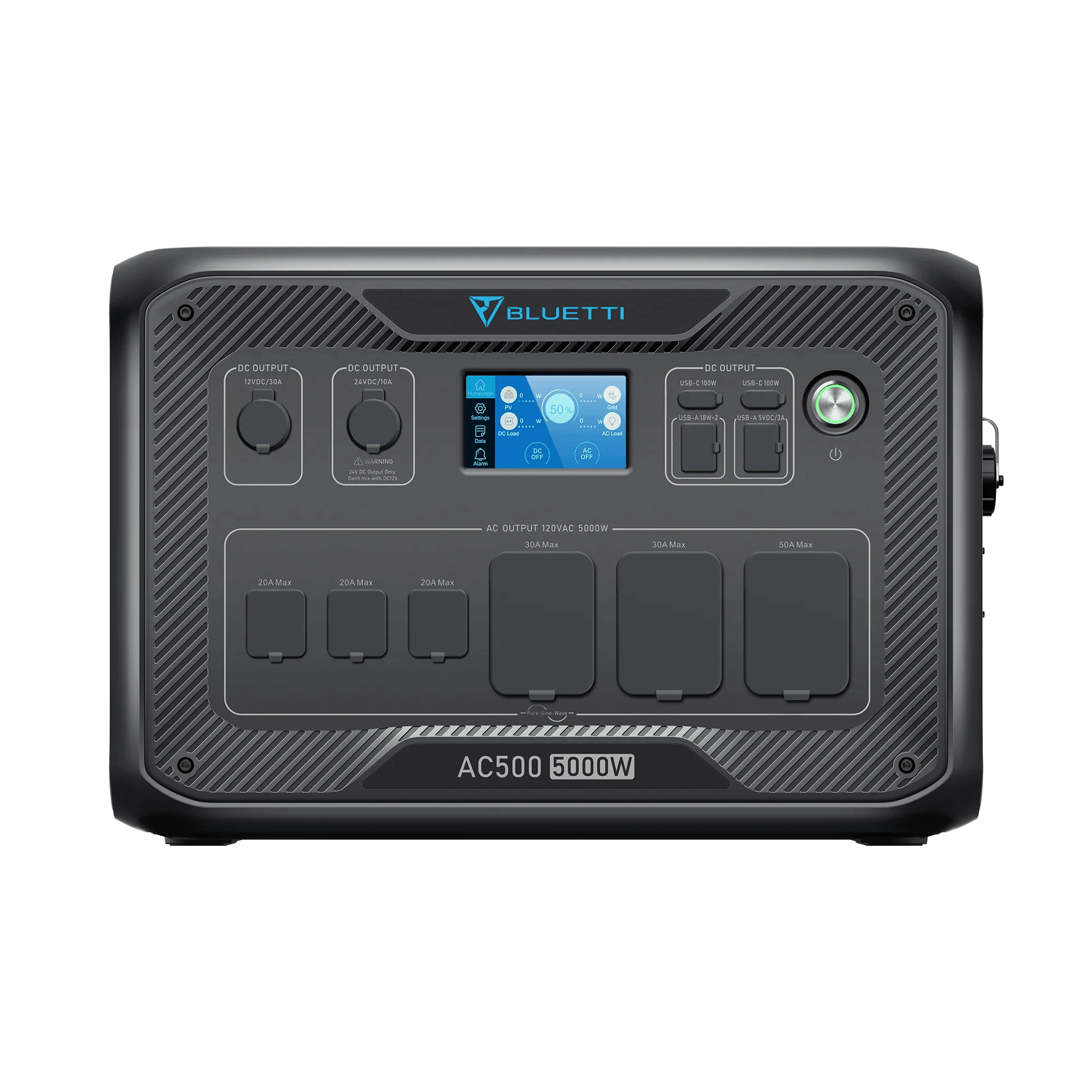

- AC Outlets: 3 x 120V/20A Outlets, 1 x 120V/30A L14-30, 1 x 120V/30A TT-30, 1 x 120V/50A NEMA14-50, 5,000W in total.
- Inverter Type: Pure Sine Wave
- Surge Power:10,000W
- USB Port:2 x 5V/3A USB-A
- 2 x 18W USB-A:2×USB-C 100W Max.
- DC Outlets:1 x 12V/30A (RV Outlet)
- 1 x 24V/10A (Car Outlet)*All regulated.

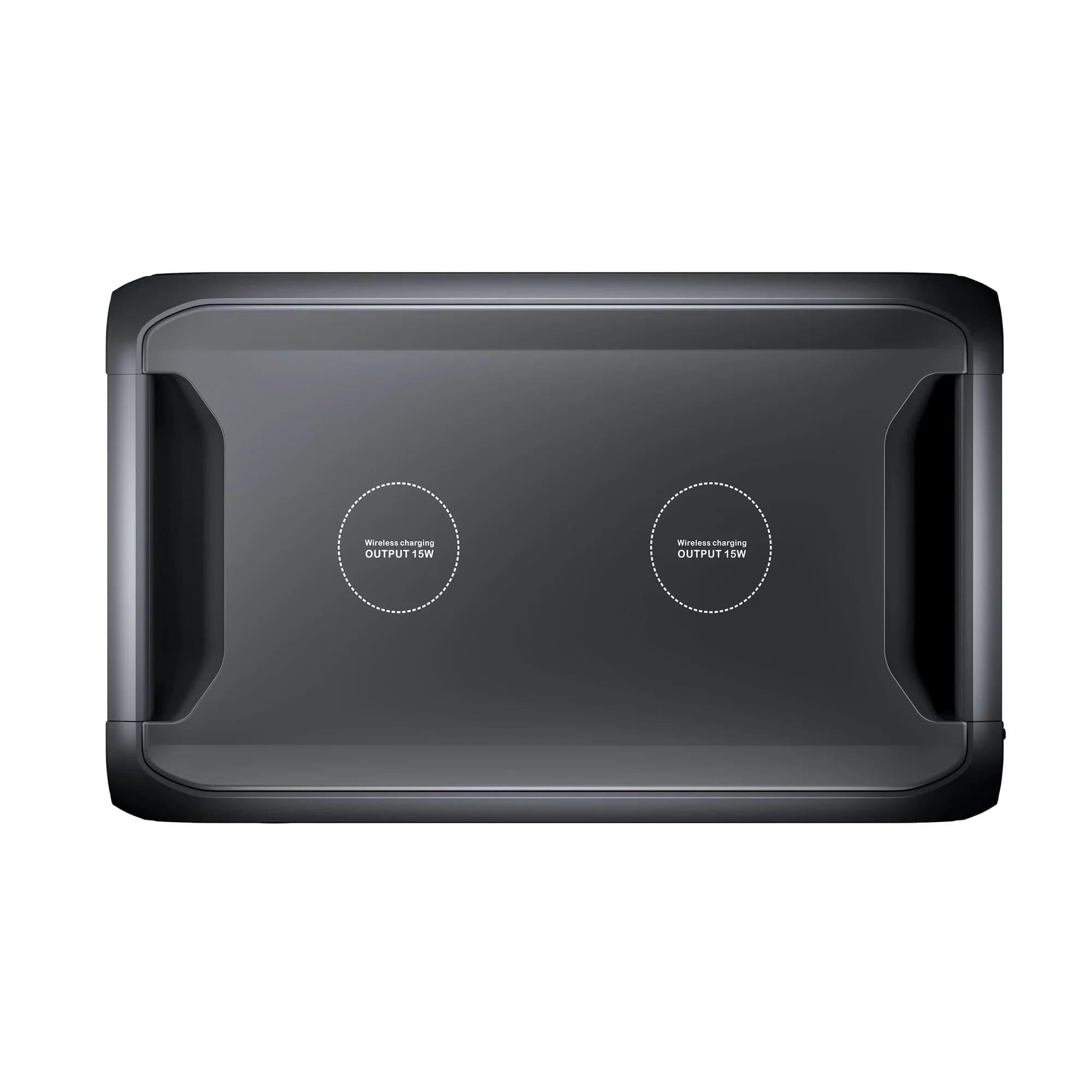

- Wireless Charging Pad:2 x 15W Max. (For Each)
-
AC Charging Cable Input:4,500W Max. (W/ 1*B300S), 5,000W Max. (W/ 2 or more B300S)
- Solar Input:3,000W Max., VOC 12-150VDC, 15A
- Car Input:12/24V from Vehicle Cigarette Lighter Port
- Maximum Input: 4,500W (W/ 1*B300S), 8,000W (W/ 2 or more B300S) with AC and Solar Input Simultaneously
GENERAL
- 240V Split Phase Bonding:Yes
- App Control:Yes, Wifi&Bluetooth
- Scalability:Expandable W/Up to 6 x B300S Or 4×B300
- Simultaneous Recharge & Discharge:Yes
- Weight:66.2lbs (30kg)
- Dimensions (LxWxD):20.5 x 12.8 x 14.1in ( 52 x 32.5 x 35.8cm)
- Operating Temperature:-4-104℉ (-20-40℃)
- Storage Temperature:-4-104℉ (-20-40℃)
- Certification:UL2743, UKCA, TELEC, RCM, FCC ID, CE
- Warranty:48 Months
