The Summit 24" Wide Beverage Center SCR600BGLHV is a must-have for any beverage lover. With its spacious design, you can store all your favorite drinks in one convenient place. Its sleek and professional appearance adds a touch of sophistication to any space. Experience the benefits of having all your beverages organized and easily accessible in this high-quality beverage center.
Made in Europe with a double pane tempered glass door for reliable storage in commercial settings
SUMMIT COMMERCIAL's freestanding SCR600BGL Series features conveniently sized beverage refrigerators designed and manufactured in Europe for quality storage and presentation in commercial establishments.

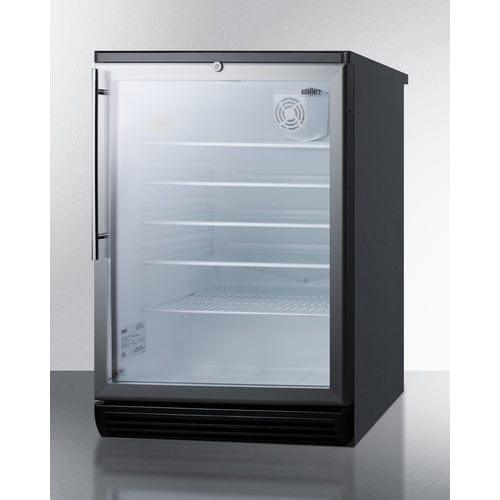

Sized under 24" wide and deep, the SCR600BGLHV offers a generous 5.5 cu.ft. of storage capacity. The door features double pane tempered glass for added protection, with a brushed aluminum finish on the frame and our pro "HV" style vertically mounted thin handle in brushed stainless steel. The factory-installed front lock is located towards the top of the door for easier access. This unit comes with a black cabinet finish and is designed for freestanding use.

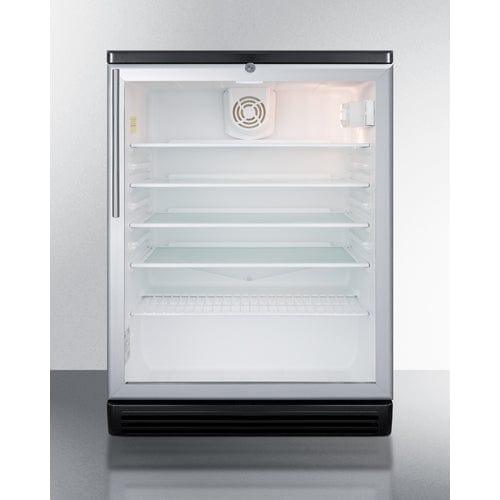

Inside, the SCR600BGLHV includes four adjustable glass shelves for spill-proof storage and a half-sized wire shelf ideal for holding bottles in place. Automatic defrost ensures minimum user maintenance and a dial thermostat makes it simple to manage the temperature. This unit features an interior light operated with an ON/OFF rocker switch and a white interior finish to ensure optimum product visibility. Our unique "hidden" evaporator is located in the rear wall to help protect the unit's system and maximize shelf space. An internal fan helps to ensure the interior is more evenly cooled from top to bottom.
The SCR600BGLHV is ETL-S listed to NSF-7 commercial standards. Built-in capable and ADA compliant choices are also available.
|
Overview
|
| Height of Cabinet |
33.5" (85 cm) |
| Width |
23.63" (60 cm) |
| Depth |
23.5" (60 cm) |
| Depth with Handle |
25.88" (66 cm) |
| Depth with door at 90° |
46.0" (117 cm) |
| Capacity |
5.5 cu.ft. (156 L) |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Black |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Sanitation |
ETL-S |
| Amps |
1.8 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
100.0 lbs. (45 kg) |
| Shipping Weight |
140.0 lbs. (64 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101059273 |
|
Refrigerator Features
|
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Shelf Type |
Glass |
| Shelf Qty |
4 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Dial |
| Fan Type |
Interior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.67oz. |
| High Side PSI |
124.0 |
| Low Side PSI |
30.0 |
| Level Legs Qty |
2 |
| Interior Light |
Yes |
| Sound Level |
33.5 dB |
|
Dimensions
|
| Interior Height |
26.0" (66 cm) |
| Interior Width |
20.75" (53 cm) |
| Interior Depth |
17.5" (44 cm) |
| Compressor Step Height |
6.0" (15 cm) |
| Compressor Step Width |
20.75" (53 cm) |
| Compressor Step Depth |
5.0" (13 cm) |
| Interior |
| LockBox24 - Interior locking compartment |
|
| Exterior |
| Red DT - Digital thermostat for red wine |
HG - Hospital grade cord |
| SSK - Stainless steel kickplate |
Latch - Factory-installed door latch requires manual release to open unit |
| LHD - Left hand door swing |
Alarm/Thermometer - Factory-installed alarm with external temperature readout |
| CAS3 3" casters |
DT - Digital thermostat |
| Legs to raise unit height |
PH - Probe Hole |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) |
TOPSS |
| CAS1 |
|
| Door |
| T1 Door Tint |
T1S Door Tint |
| T2 Door Tint |
T3 Door Tint |
| T4 Door Tint |
STO-Step-To-Open Door Pedal |
|
| Handle |
| HV |
SH |
| TB - Stainless steel towel bar style handle |
HH |
| TBC Copper Towel Bar Handle Upgrade |
|
Commercially approved
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Slim counter height dimensions
24" footprint allows versatile placement
Factory installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)
Double pane tempered glass door
Heat resistant design provides clear view to promote impulse buys
Professional handle
Vertically mounted thin handle (14mm) in brushed stainless steel matches many popular styles of cabinetry
Automatic defrost
Reduced user maintenance with automatic defrost
Internal fan
Fan-forced cooling helps to maintain a more evenly cooled interior
Adjustable glass shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Half-sized wire shelf
Sits on top of the compressor and features wire slots ideal for holding bottles on their sides
White interior finish
Interior offers more visibility with a brighter look
Interior light on rocker switch
Turn the light on when you need it and off when you're done with a convenient rocker switch
One piece interior liner
Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Hidden evaporator
SUMMIT's original "hidden" evaporator is concealed in the wall for easier cleaning and more efficient cooling
Adjustable thermostat
Dial thermostat for easy and intuitive temperature management
Fully finished black cabinet
Allows the unit to be used freestanding
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
