The Summit 24" Wide Built-In Beverage Center SCR600BGLBIHV is a must-have for any home entertainment space. With a wide built-in design, it can hold a variety of beverages for all your guests to enjoy. Perfect for keeping drinks at the ideal temperature, this beverage center ensures a refreshing and enjoyable experience.
Made in Europe with a double pane tempered glass door for reliable storage in commercial settings
SUMMIT COMMERCIAL's SCR600BGLBI Series features 24" wide beverage refrigerators designed and manufactured in Europe for built-in undercounter installation in commercial settings.
Sized with a convenient 24" footprint and generous 5.5 cu.ft. interior, the SCR600BGLBIHV features a front-breathing design for built-in installation under counters, with a fully finished black cabinet that also allows freestanding use. The door features double pane tempered glass for added protection, with a brushed aluminum finish on the frame. We include our "HV" style handle in a thin 14mm diameter and brushed stainless steel finish. The factory-installed front lock is located towards the top of the door for easier access.

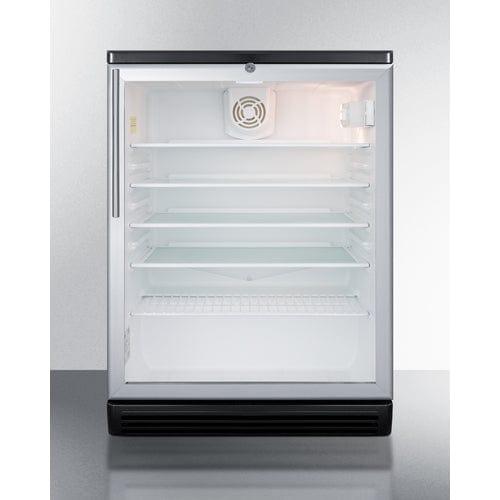

Inside, the SCR600BGLBIHV includes four adjustable glass shelves for spill-proof storage and a half-sized wire shelf ideal for holding bottles in place. Automatic defrost ensures minimum user maintenance and a dial thermostat makes it simple to manage the temperature. This unit features an interior light operated with an ON/OFF rocker switch and a white interior finish to ensure optimum product visibility. Our unique "hidden" evaporator is located in the rear wall to help protect the unit's system and maximize shelf space. An internal fan helps to ensure the interior is more evenly cooled from top to bottom.
The SCR600BGLBIHV is ETL-S listed to NSF-7 commercial standards. For this unit sized at 32" for use under lower ADA compliant counters, see the SCR600GBLBIADA series.
|
Overview
|
| Height of Cabinet |
33.5" (85 cm) |
| Width |
23.63" (60 cm) |
| Depth |
23.5" (60 cm) |
| Depth with Handle |
25.5" (65 cm) |
| Depth with door at 90° |
46.0" (117 cm) |
| Capacity |
5.5 cu.ft. (156 L) |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Black |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Sanitation |
ETL-S |
| Amps |
1.8 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
100.0 lbs. (45 kg) |
| Shipping Weight |
140.0 lbs. (64 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101056852 |
|
Refrigerator Features
|
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Height Adjustable |
1 |
| Shelf Type |
Glass |
| Shelf Qty |
4 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Dial |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.67oz. |
| High Side PSI |
124.0 |
| Low Side PSI |
30.0 |
| Level Legs Qty |
4 |
| Interior Light |
Yes |
| Sound Level |
33.5 dB |
|
Dimensions
|
| Interior Height |
26.0" (66 cm) |
| Interior Width |
20.75" (53 cm) |
| Interior Depth |
17.5" (44 cm) |
| Compressor Step Height |
6.0" (15 cm) |
| Compressor Step Width |
20.75" (53 cm) |
| Compressor Step Depth |
5.0" (13 cm) |
| Interior |
| LockBox24 - Interior locking compartment |
|
| Exterior |
| Red DT - Digital thermostat for red wine |
HG - Hospital grade cord |
| SSK - Stainless steel kickplate |
Latch - Factory-installed door latch requires manual release to open unit |
| LHD - Left hand door swing |
Alarm/Thermometer - Factory-installed alarm with external temperature readout |
| CAS3 3" casters |
DT - Digital thermostat |
| Legs to raise unit height |
PH - Probe Hole |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) |
TOPSS |
| CAS1 |
|
| Door |
| T1 Door Tint |
T1S Door Tint |
| T2 Door Tint |
T3 Door Tint |
| T4 Door Tint |
STO-Step-To-Open Door Pedal |
|
| Handle |
| HH |
HV |
| SH |
TB - Stainless steel towel bar style handle |
| TBC Copper Towel Bar Handle Upgrade |
|
Commercially approved
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
Slim undercounter dimensions
Less than 24 inches wide to fit tight spaces
Built-in capable
Front-breathing design allows you to install the unit under counters with minimum clearance
Double pane tempered glass door
Heat resistant design provides clear display to promote impulse buys
Professional handle
Vertically mounted thin handle (14mm) in brushed stainless steel matches many popular styles of cabinetry
Factory installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)
Automatic defrost
Reduced user maintenance with automatic defrost
Internal fan
Fan-forced cooling helps to maintain a more evenly cooled interior
White interior finish
Interior offers more visibility with a brighter look
Adjustable glass shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Half-sized wire shelf
Sits on top of the compressor and features wire slots ideal for holding bottles on their sides
Interior light on rocker switch
Turn the light on when you need it and off when you're done with a convenient rocker switch
Hidden evaporator
SUMMIT's original "hidden" evaporator is concealed in the wall for easier cleaning and more efficient cooling
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Adjustable thermostat
Dial thermostat for easy and intuitive temperature management
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
