Sized at just 20" deep for ideal back bar use

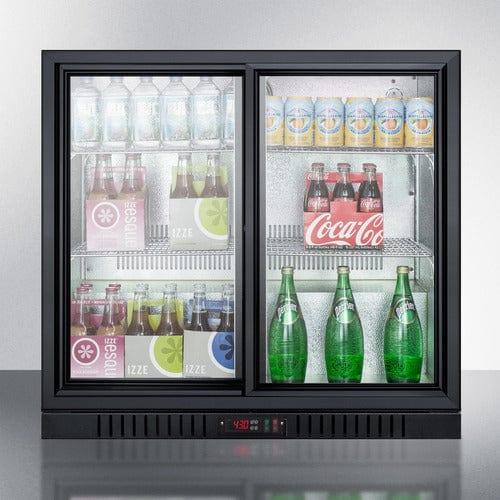

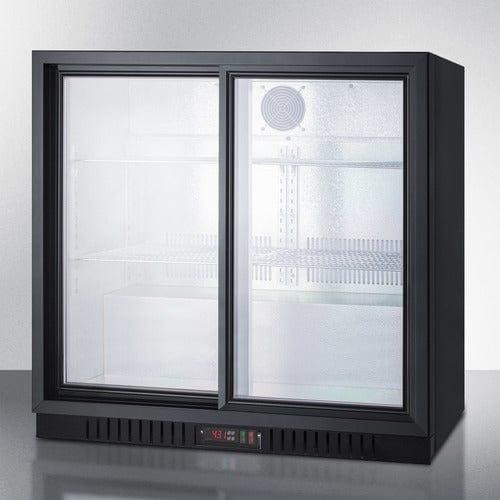

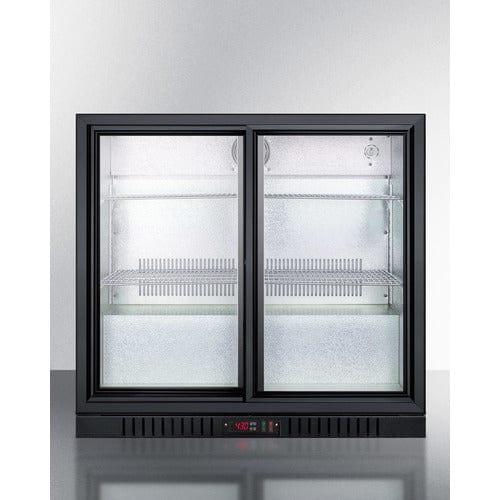

SUMMIT's SCR700B is a versatile beverage merchandiser designed to maximize impulse sales.
This commercially approved refrigerator utilizes automatic defrost for low maintenance use. Two sliding glass doors offer a full view inside the 7.4 cu.ft. hammered aluminum interior, with interior lighting for added product visibility and fan-forced cooling to help improve temperature distribution. Adjustable chrome shelves allow you to rearrange storage to accommodate a variety of sizes. This unit includes a factory installed lock for added security and a digital thermostat for easy temperature management.
The SCR700B comes with a fully finished black cabinet. This model is ETL-S listed to NSF-7 commercial standards. Set this unit above or below the counter (with proper ventilation) as a self-service refrigerator for impulse buys.
|
Overview
|
| Height of Cabinet |
34.13" (87 cm) |
| Width |
35.5" (90 cm) |
| Depth |
20.25" (51 cm) |
| Capacity |
7.4 cu.ft. (210 L) |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Amps |
1.2 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
135.0 lbs. (61 kg) |
| Shipping Weight |
140.0 lbs. (64 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101054216 |
|
Refrigerator Features
|
| Door Swing |
Sliding |
| Shelf Type |
Chrome |
| Shelf Qty |
4 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Digital |
| Fan Type |
Interior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.92oz. |
| High Side PSI |
215.0 |
| Low Side PSI |
60.0 |
| Interior Light |
Yes |
|
Dimensions
|
| Interior Height |
28.25" (72 cm) |
| Interior Width |
32.25" (82 cm) |
| Interior Depth |
15.0" (38 cm) |
| Compressor Step Height |
7.25" (18 cm) |
| Compressor Step Width |
32.25" (82 cm) |
| Compressor Step Depth |
7.25" (18 cm) |
| Exterior |
| PH - Probe Hole |
Alarm/Thermometer - Factory-installed alarm with external temperature readout |
|
| Door |
| T4F Door Tint |
T3F Door Tint |
| T2F Door Tint |
T1SF Door Tint |
|
Back bar design
Sized at just 20" deep for an easy fit behind the bar
Commercially approved
ETL-S Approved to ANSI-NSF Standard 7 for use in commercial establishments
Automatic defrost
Reduced maintenance with auto defrost system
Two sliding glass doors
Solid glass doors glide open easily while providing a clear view of stored items
Digital thermostat
Electronic controls located in the front kickplate for easy temperature management
Factory installed lock
Single keyed lock for sliding doors, with two keys included
Adjustable shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Interior light
Illuminates the interior for a an attractive view of stored contents
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
