Designed to store and dispense white wine at the proper serving temperature

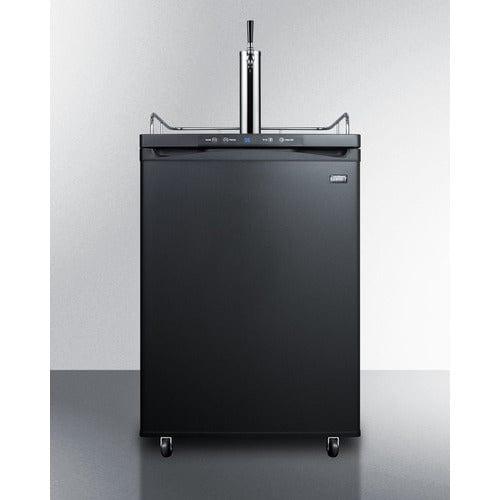

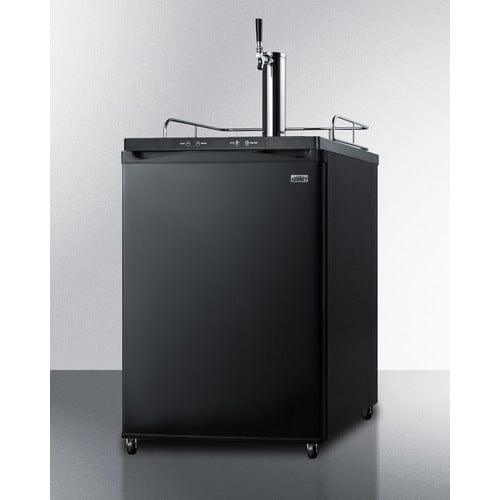

Tap into the growing industry of draft wine with Summit's SBC635MWKD, a versatile wine keg dispenser designed to store wine kegs under the proper conditions.
Sized at just under 24" wide, the SBC635MWKD features a jet black finish with a user-reversible door swing. The exterior digital thermostat allows you to store white wine or rosé between 33º and 50ºF. The single tap system can serve one 1/6 wine keg or disposable keg, but the interior offers added room to store an additional 1/6 sized barrel. Automatic defrost operation ensures minimum user maintenance.
The SBC635MWKD ships with a complete kit for serving wine on tap, including a draft tower, faucet, and keg coupler probe in complete 304 grade stainless steel. We include an empty canister best suited for a 75% nitrogen/25% CO2 mixture for optimum wine service. Additional features include a removable guard rail and drip tray for easier cleaning, as well as a caster set to allow optional mobility. This unit is designed for freestanding use.
|
Overview
|
| Height of Cabinet |
33.5" (85 cm) |
| Width |
23.63" (60 cm) |
| Width with Door Open |
25.0" (64 cm) |
| Depth |
25.0" (64 cm) |
| Depth with door at 90° |
47.0" (119 cm) |
| Capacity |
5.6 cu.ft. (159 L) |
| Defrost Type |
Automatic |
| Door |
Black |
| Cabinet |
Black |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Amps |
0.86 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
80.0 lbs. (36 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101056067 |
|
Kegerator
|
| Door Swing |
RHD |
| Reversible |
Yes |
| Tap Kit |
Yes |
| Height with Tap |
49.0" (124 cm) |
| Number of Taps |
1 |
| Thermostat Type |
Digital |
| Refrigerant |
R600a |
| Refrigerant Amount |
1.13 oz. |
| High Side PSI |
250.0 |
| Low Side PSI |
110.0 |
| Inter Height |
28.0" (71 cm) |
| Interior Width |
20.5" (52 cm) |
| Interior Depth |
19.0" (48 cm) |
| Compressor Step Height |
8.25" (21 cm) |
| Wheel Qty |
4 |
| Temperature Range |
33º to 50º F |
| Exterior |
| LHD - Left hand door swing |
Latch - Factory-installed door latch requires manual release to open unit |
|

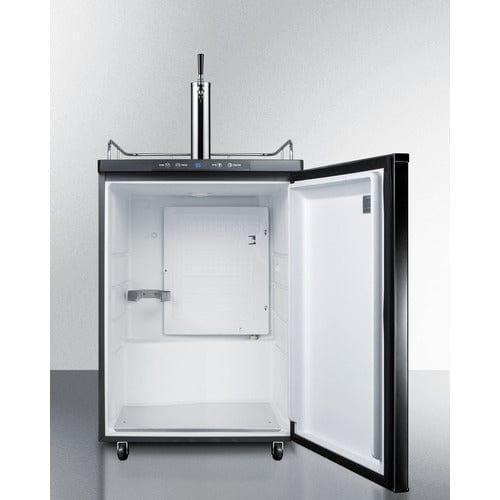

Large interior
5.6 cu.ft. interior allows you to store an extra 1/6 size wine keg inside
Tap Kit
Ships with a complete wine tap kit that includes a dispenser tower, regulator, and all the connection equipment you need to serve from a 1/6 wine keg or disposable wine keg
Automatic defrost
Reduced user maintenance with auto defrost operation
Digital thermostat
Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit
White wine/rosé temperature
Operates between 33º and 50ºF to keep a variety of white and blush wine chilled
Nitrogen/CO2 tank included
Canister is best suited for a 75% nitrogen/25% CO2 mixture
Reversible door
User-reversible door swing for added flexibility
Casters included (ships unassembled)
To make the dispenser portable, install this set of 2 1/2" high locking casters
Top guard rail (ships unassembled)
Attractive chrome guard rail helps to reduce spills and neaten service
Stainless steel floor cover
Interior includes steel cover to protect the floor when loading kegs
Cleaning kit included
Kit includes everything you need to keep your wine kegerator clean
Drip tray
Removable drip tray catches spills to help contain the mess
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
