Made in the USA
Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.

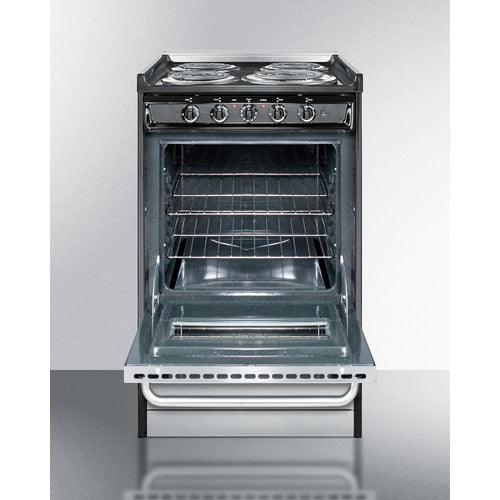

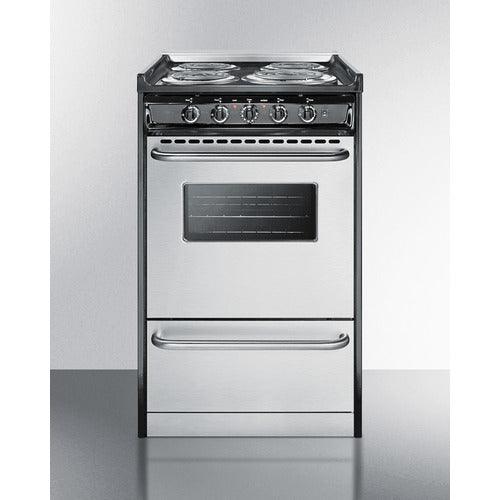

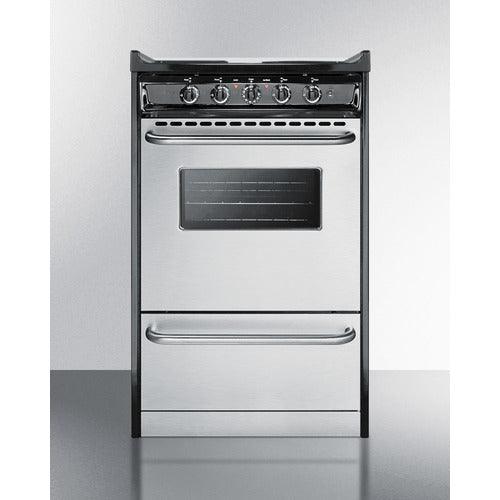

The TEM110BRWY is an apartment-sized 220V electric range sized at just 20" wide, with a generous 2.46 cu.ft oven interior that can accommodate large trays. The oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens.
Designed to meet the most current UL-858 safety standards, this unit features one 8" 2400W and three 6" 1500W coil elements with a safety sensor that will cycle the element off before reaching dangerous flashpoint temperatures. Heating resumes automatically. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines.
Stainless steel doors feature professional style towel bar handles, bringing classic elegance to smaller kitchen spaces. The low stainless steel trimmed backguard creates a slide-in look, allowing you to customize the space behind your range in the style of your choice. This unit has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 40 amp 3 or 4-prong cord can be installed by your electrician).
With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 24", 30", and 36" wide fits.
|
Overview
|
| Height of Cabinet |
36.0" (91 cm) |
| Width |
20.0" (51 cm) |
| Depth |
24.5" (62 cm) |
| Door |
Stainless Steel |
| Cabinet |
Black |
| Voltage/Frequency |
220 V AC/60 Hz |
| Weight |
125.0 lbs. (57 kg) |
| Parts & Labor Warranty |
1 Year |
| UPC |
761101024295 |
|
Electric Range
|
| Oven Capacity |
2.46 cu.ft. (70 L) |
| Cooktop Surface |
Porcelain |
| Element Type |
Coils |
| Number of Elements |
4 |
| Element #1 Size |
6.0" (15 cm) |
| Element #1 Wattage |
1500.0 |
| Element #2 Size |
6.0" (15 cm) |
| Element #2 Wattage |
1500.0 |
| Element #3 Size |
6.0" (15 cm) |
| Element #3 Wattage |
1500.0 |
| Element #4 Size |
8.0" (20 cm) |
| Element #4 Wattage |
2400.0 |
| Burner Controls |
Dial |
| Oven Controls |
Dial |
| Oven Light |
Yes |
| Cooking Timer |
Yes |
| Oven Window |
Yes |
| Oven Interior Height |
14.0" (36 cm) |
| Oven Interior Width |
16.0" (41 cm) |
| Oven Interior Depth |
19.0" (48 cm) |
| Storage Compartment |
Yes |
| Broiler Location |
Inside Oven |
| Exterior |
| RangeCord3P - Installed 3-pronged cord |
RangeCord4P - Installed 4-pronged cord |
|
| Interior |
| Canadian Range Conversion |
|
Electric Range
20" wide 220V electric range with coil elements and a full-sized oven ideal for smaller kitchens
Made in the USA
Designed and constructed domestically
Slim 20 inch width
Apartment-sized width offers all the functionality you need in a smaller footprint
24 inch depth
Shallower fit is ideal for L-shaped and galley kitchens
Stainless steel finish
Doors and backguard are constructed from brushed stainless steel for modern luxury built to last
Professional towel bar handles
Curved handles in brushed stainless steel offer an easier grip in attractive style
Slide-in look
Low backguard trimmed in stainless steel makes it easier to integrate your own backsplash design
Storage compartment
Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
Four coil elements
Three standard 6" 1500W and one large 8" 2400W element
Meets UL-858
Designed to comply with the latest UL safety standards, the elements include a sensor that will cycle the element off and on if it reaches flashpoint temperature
Chrome drip pans
Each coil element includes a removable chrome pan for easier cleaning
Oven window and interior lighting
Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
Waist-high broiler
Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
Adjustable oven racks
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Porcelain and steel construction
Solid construction built to hold up to everyday use
Recessed oven door
Smart design limits the depth and protects adjacent cabinets
Upfront controls
All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
Push-to-turn knobs
Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
Indicator lights
Control panel includes an 'on' light for the oven and burners for added safety when using the range
Removable oven door and range top
Allows for easier cleaning as needed
Broiler pan included
Two-piece porcelain broiler tray with grease well
Anti-tip bracket
Included for user installation to help prevent tipping
Cord not included
Compatible with standard 40 amp 3 or 4-wire range cords
ADA compliant
Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
