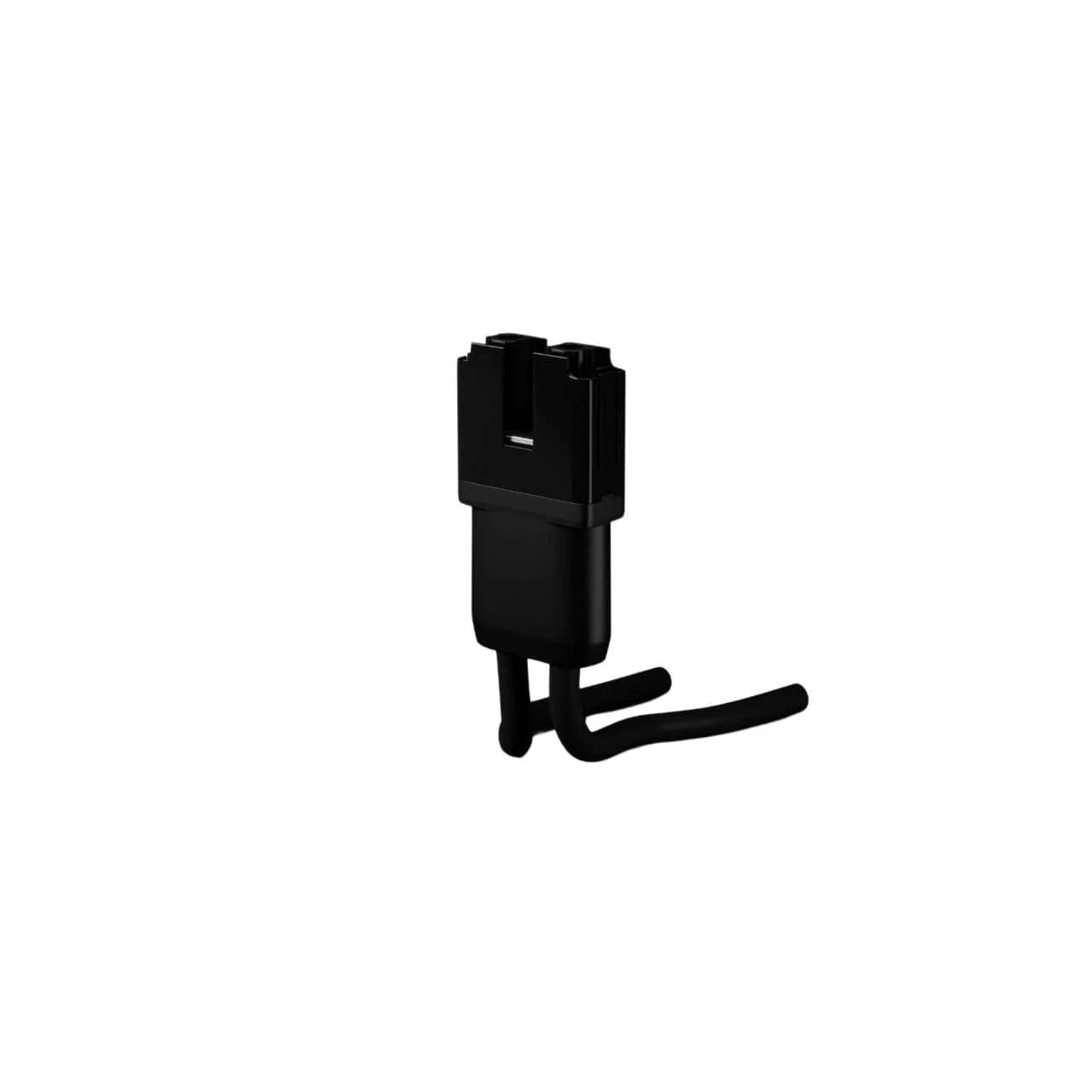

Enphase 1 Meter Cable | Portrait Orientation

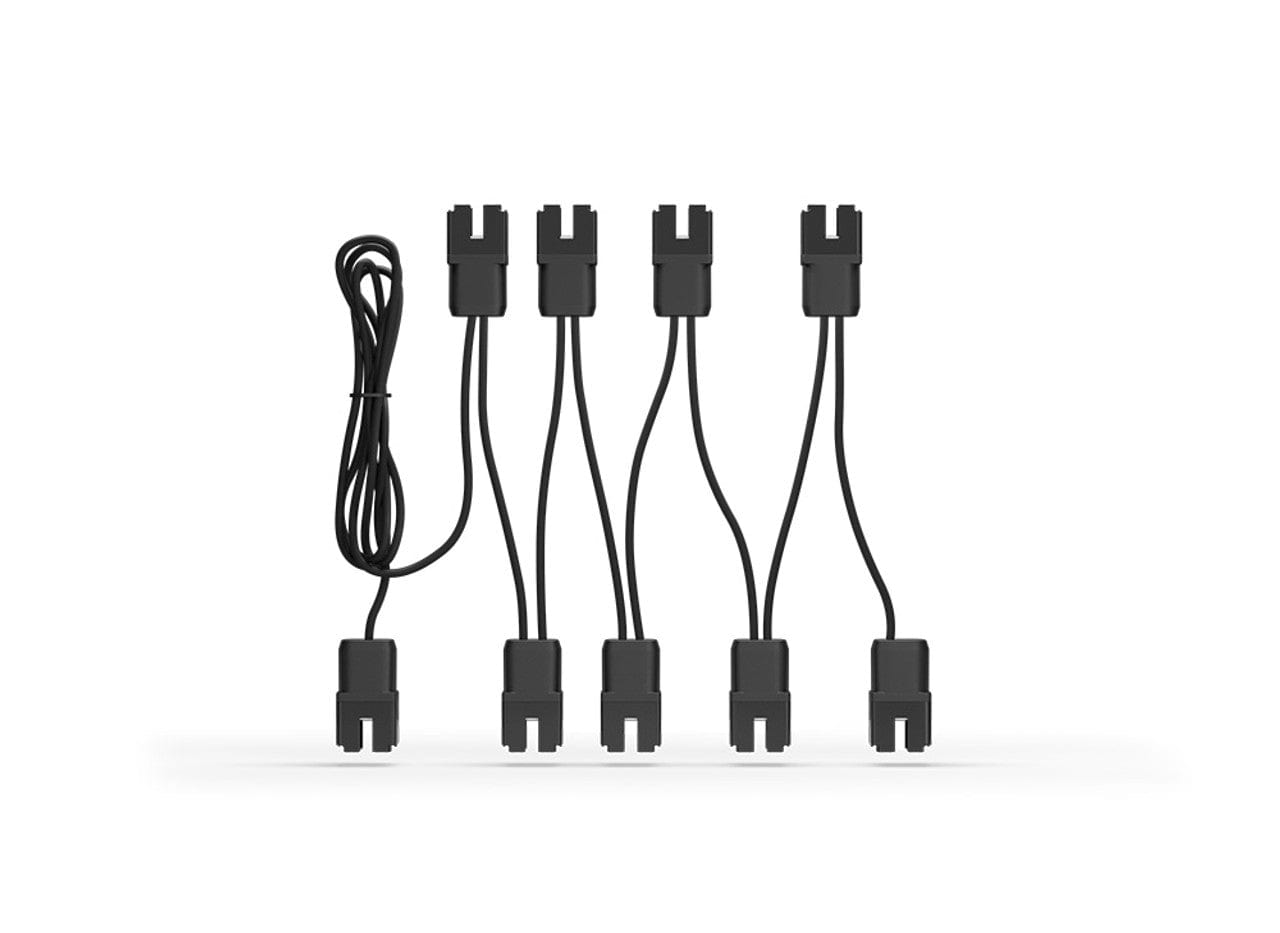

The IQ Cable is a continuous length 12 AWG cable with pre-installed connectors for IQ Microinverters that support faster, simpler, and more reliable installations. The cable is handled like standard outdoor-rated electrical wire, allowing it to be cut, spliced, and extended as needed. It is used for portrait 60-cell PV modules.

Note: This product is only available per drop.

• 2-wire cable is 50% lighter than previous generation Enphase cable
• New cable numbering simplifies wire management
• Plug-and-play connectors speed up installation
• Link connectors eliminate cable waste
• UL Listed

Additional Information

SKU: 1647005

Voltage rating:600 V / Connector rating 250 V

Size / Max nominal voltage:12 AWG / 277 VAC

PV module orientation: Portrait

Weight:1.2 lbs per drop
