This NSF/ANSI 456 certified EQTemp ACR22GNSF456 offers a 19" wide compact design specifically designed for healthcare facilities. With its compact size, this refrigerator is perfect for storing medication, vaccines, and other temperature-sensitive items. Its certification guarantees safe storage and peace of mind.
Designed for convenient, reliable storage in healthcare facilities and certified to NSF/ANSI 456
EQTemp by Accucold introduces a new series of NSF/ANSI 456 certified refrigeration designed to store a variety of materials in healthcare facilities.

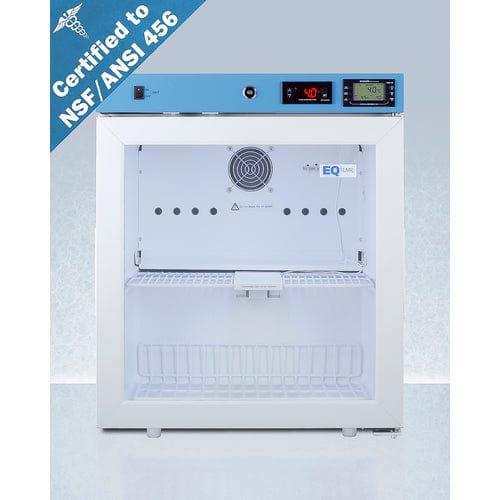

Model ACR22GNSF456 is a compact 1.94 cu.ft. all-refrigerator. It features a clean white exterior and a blue-accented control panel. The glass door is equipped with a self-closing mechanism to help protect stored items from being overexposed to room temperature. A factory-installed lock offers added security, and the hospital-grade cord with a 'green dot' plug ensures a secure connection for high-traffic areas.
The ACR22GNSF456 includes an external readout of the interior temperature, as well as the high/low temperature as required for data records. The buffered temperature probe is encased in a bottle filled with glass beads for improved accuracy and calibrated to NIST standards in our in-house ISO/IEC 17025:2017 certified laboratory. The digital temperature controls allow you to set the interior between 2 and 8ºC. An audible alarm sounds if the temperature goes out of range. We also include a pre-installed 3/8" access port for users to add their own monitoring equipment if preferred. The interior includes one wire shelf in the center to hold the temperature probe and additional adjustable shelves to accommodate different sizes. Internal LED lighting provides an efficient and convenient view. Automatic defrost reduces user maintenance and an internal fan ensures powerful temperature recovery after door openings.
EQTemp's series of ACR refrigeration is certified to the NSF/ANSI 456 Vaccine Storage Standard. All models feature hydrocarbon refrigerant for a greener footprint. Additional sizes are available, as well as more advanced cold storage equipment purpose-built for laboratory and life science storage. Browse the full product line to explore our extensive selection.
Note: EQTemp's ACR Series refrigerators are intended for a wide variety of healthcare storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For these applications, browse Accucold's purpose-built PHARMA-VAC line or contact our product specialists at 1-888-4-MED-LAB.
|
Overview
|
| Height of Cabinet |
23.13" (59 cm) |
| Width |
18.88" (48 cm) |
| Width with Door Open |
19.13" (49 cm) |
| Depth |
21.0" (53 cm) |
| Depth with door at 90° |
38.38" (97 cm) |
| Capacity |
1.94 cu.ft. (55 L) |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
White |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S to NSF 456 |
| Amps |
0.9 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
52.9 lbs. (24 kg) |
| Shipping Weight |
92.0 lbs. (42 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101083131 |
|
Refrigerator Features
|
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Shelf Type |
Wire |
| Shelf Qty |
1 |
| Thermostat Type |
Digital |
| Fan Type |
Interior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
0.85oz. |
| High Side PSI |
1.45 |
| Low Side PSI |
0.85 |
| Level Legs Qty |
2 |
| Interior Light |
Yes |
| Temperature Range |
2º to 8ºC |
| Sound Level |
37.3 dB |
|
Dimensions
|
| Interior Height |
16.25" (41 cm) |
| Interior Width |
15.5" (39 cm) |
| Interior Depth |
14.5" (37 cm) |
| Compressor Step Height |
6.5" (17 cm) |
| Compressor Step Width |
15.5" (39 cm) |
| Compressor Step Depth |
5.5" (14 cm) |
| Exterior |
| LHD - Left hand door swing |
|
EQTemp Healthcare Refrigerator
All-refrigerator designed to operate between 2 and 8ºC for a variety of storage application in medical offices and other healthcare facilities
Certified to NSF/ANSI 456 Vaccine Storage Standard
Tested to comply with the latest standards
Certificate of calibration included
The temperature monitoring device (TMD) is calibrated to NIST standards in our ISO/IEC 17025:2017 certified calibration laboratory and ships with a 2-year certificate of calibration for your records
Temperature Range: 2º to 8ºC
Preset to 5ºC as recommended for many storage applications
Compact size
Full 1.94 cu.ft. capacity inside conveniently slim footprint
External temperature readout
Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
High/low temperature alarm
Audible alarm sounds if the interior temperature rises or falls out of set range
Buffered temperature probe
Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines
Access port
3/8" probe hole with cover is pre-installed in unit's side to allow easy installation of user-provided monitoring equipment
Factory installed lock
Keyed lock for a secure interior (2 keys included)
Automatic defrost
Reduced user maintenance with automatic defrost
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety in high traffic areas
Fixed center shelf
Center shelf is fixed in place in order to provide the optimum position for the TMD to provide the most accurate temperature readings
Flat door liner
No door storage to allow for the interior to accommodate deeper trays
LED lighting
Attractively illuminates the interior in a gentle white hue for easy viewing
Foamed-in-place cabinet
Quality design ensures efficiently insulated interior
Temperature memory function
Unit will retain its last settings when power is restored in the event of power loss
Self-closing door
Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures
Pocket handle
Handle is recessed into the side of the door to ensure no added depth
Open door alarm
Audible alarm sounds if the door is left open for more than one minute
Digital thermostat
Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Fully finished white cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
