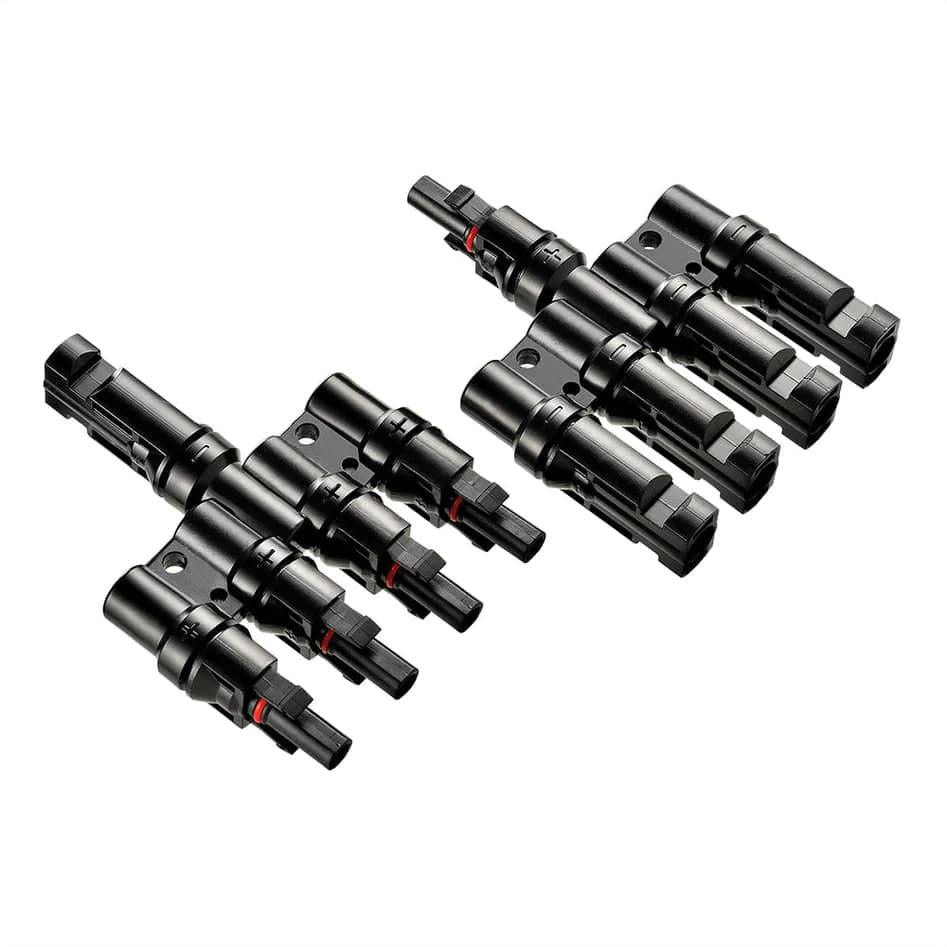

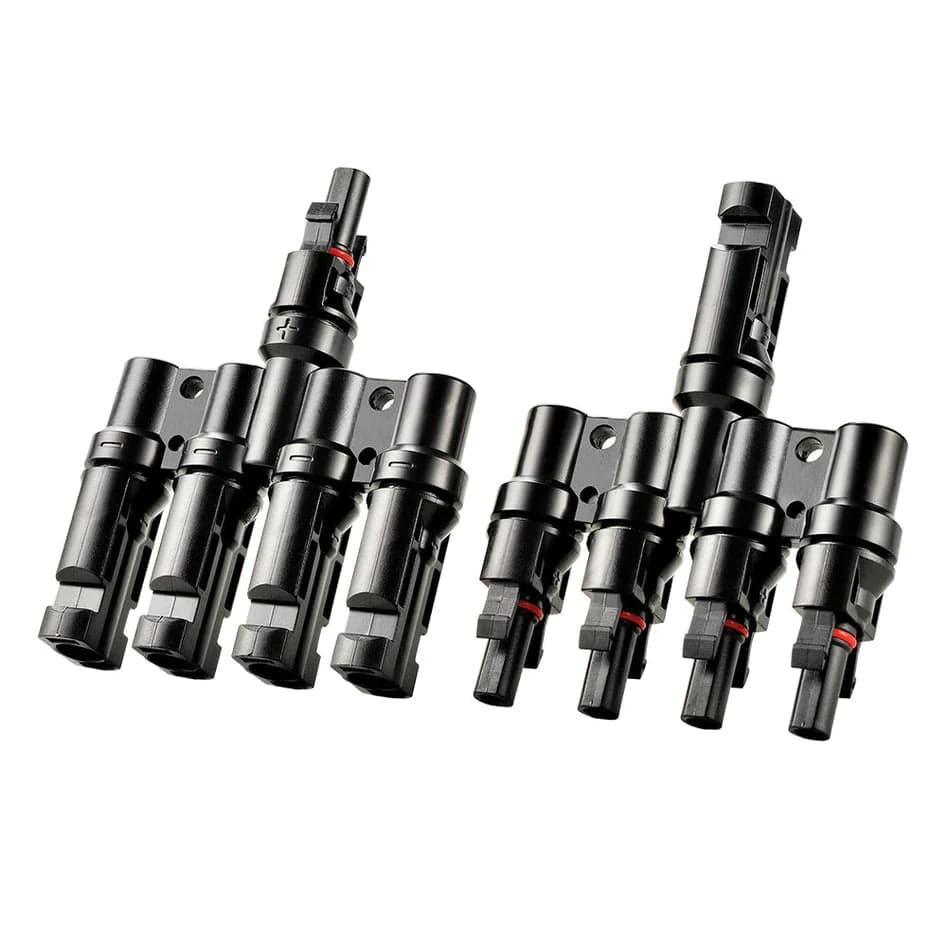

Rich Solar Solar PV Y Branch Parallel Connectors 4 to 1
by Rich Solar
SKU BDRS-T4
$17.00
This Solar PV Y Branch Parallel Connectors 4 to 1 is an essential component for solar energy systems. Made with high-quality materials, it allows up to 4 solar panels to be easily connected in parallel, increasing the overall power output and efficiency of the system. Optimize your solar energy production with this reliable and durable connector.
Features
- Provides a quick and easy parallel wiring solution for solar panels.
- Compatible with all solar connectors.
- Designed for photovoltaic solar systems with high mechanical requirements and extreme weather conditions.
- Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.
- Lower contact resistance.
- Waterproof and dustproof.
Specifications
- Rated Current: 30A
- Maximum Voltage: 1000VDC
- Waterproof: IP67
- Wire Range: 10AWG, 12AWG
- Insulation Material: PPO + PA
- Contact Material: Tinned Cooper
- Temperature Range: -40°C ~ +90°C
- Safety Class: II
BDSRS-T4
