Eco-Worthy Dual Axis Solar Tracker System

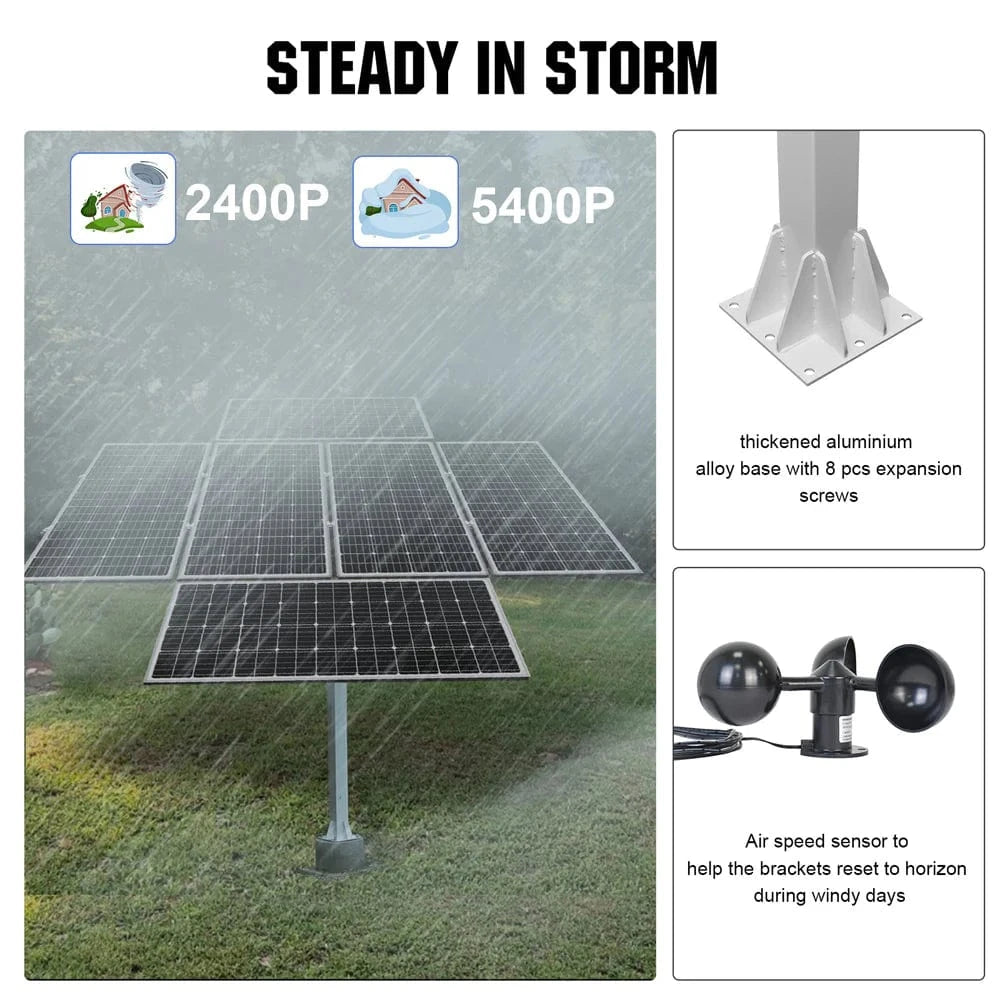

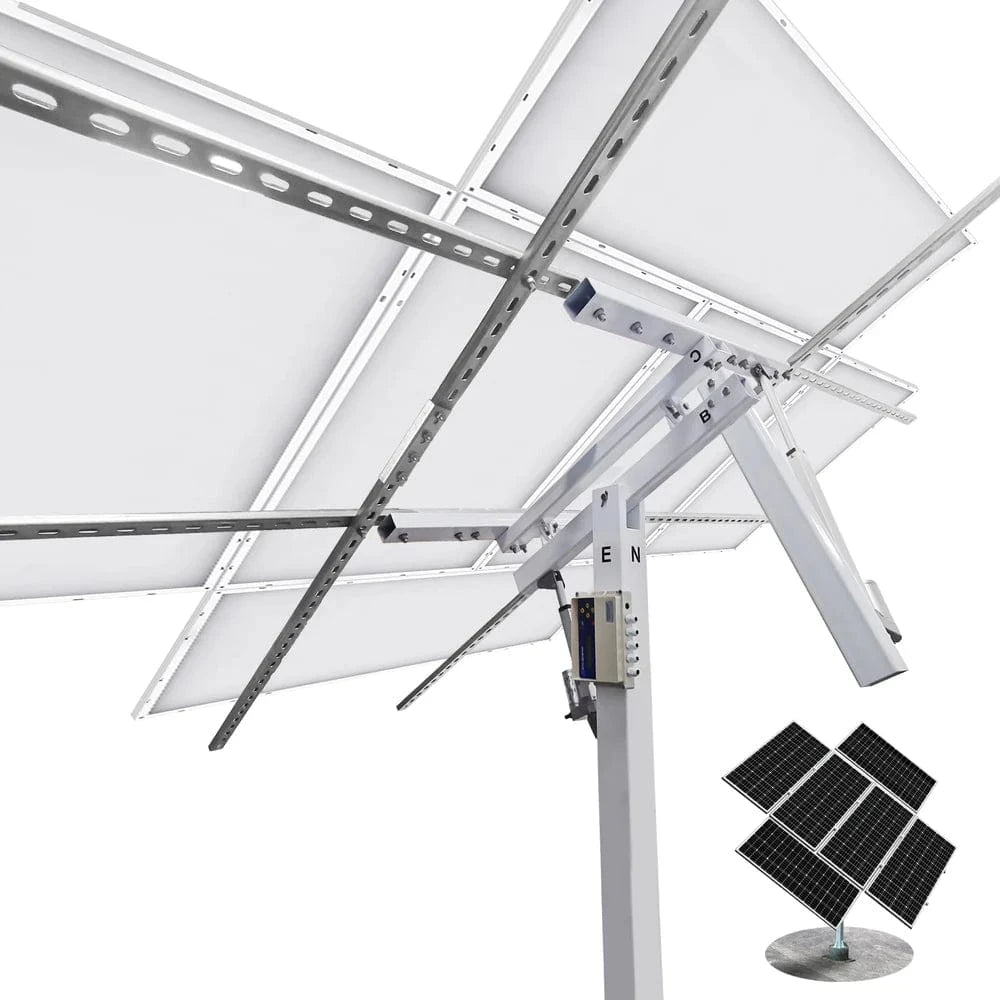

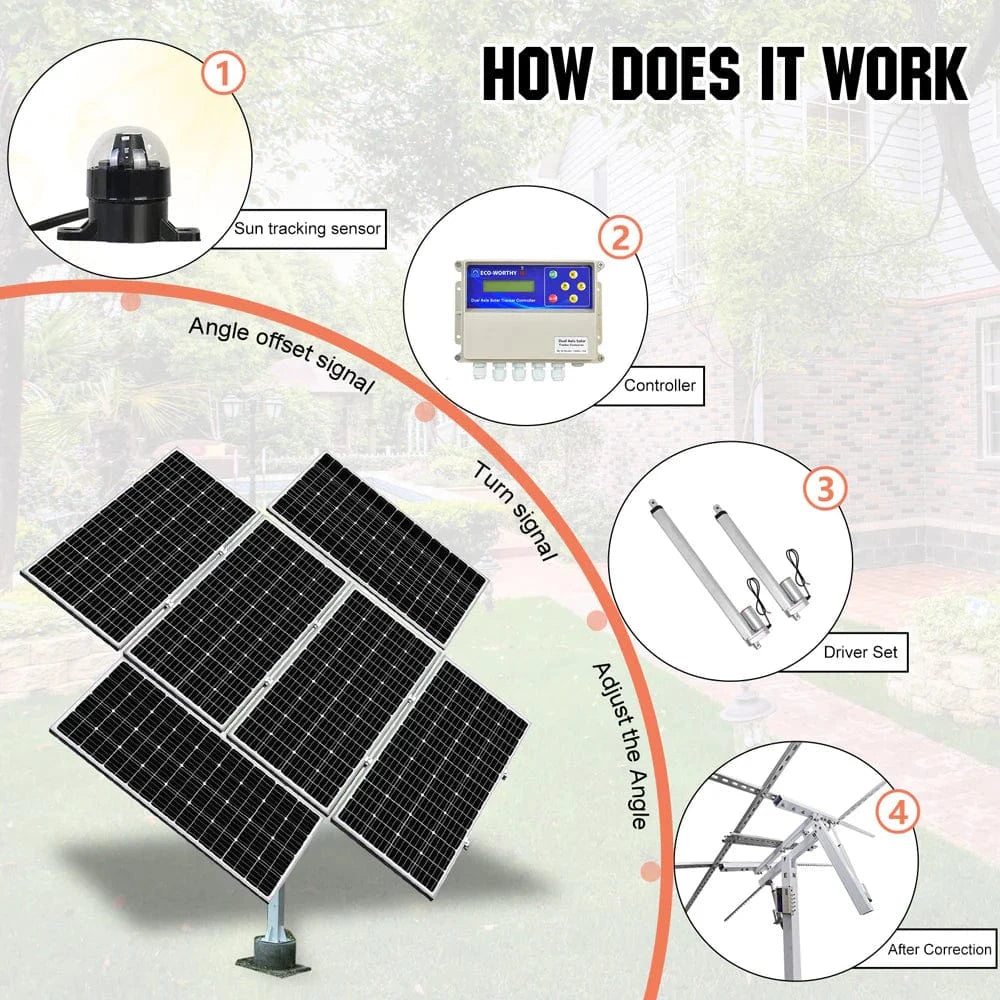

[Generate more power] Dual-axis solar tracker make the mounted panels turn face to sunlight any daytime. Compared to fixed solar panels, the PV power generation can increase at least 40% with the tracker [270°Rotation] With 2 axis driving and sensitive sunshine sensor, the solar tracker can rotate for 270°, and make the panels to absorb the sun irradiance from north, south, west and east sides [Steady in wind] There is a air speed sensor for windy days, when it detects heavy wind (data can be set manually), the solar tracker will auto reset the angle to horizon for keeping steady. Also, by drilling the expanding screws to ground, the base can firmly stand in hurricane or storm without problem [For different panels] Designed space for 6 pcs 195w ECO-WORTHY panels. For different panels, please calculate according to the length information provided. The cross rod length: 114.2in(2900mm) width:29.4in(1000mm) Vertical rod length(each side): 45.6in(1160mm) width:30.3in(770mm). With 1500N driving rods [For yard/farm/field] Only require for 114.2in * 114.2in ground space, 3.93ft height. It can be easily mounted in yard, farm, field and flat roof [Quality Support]3+2 years of quality support for the main frame, 3 years of quality support for the controller, and 1 year of quality support for other accessories
Specifications:
Package Includes:
6" 150mm Linear Actuator
| Input Voltage: 12V DC | Max. Load: 1500N/330lbs/150kg |
| Stroke Length: 6 inches (150mm) | Duty Cycle: 25% |
| Protection Class: IP65 | Material: Aluminum alloy |
| Low Noise: db<45 (A) |
12" 300mm Linear Actuator
| Input Voltage: 12V DC | Max. Load: 1500N/330lbs/150kg |
| Stroke Length: 12 inches (300mm) | Duty Cycle: 25% |
| Protection Class: IP65 | Material: Aluminum alloy |
| Low Noise: db<45 (A) |
| Rated Power: 195W | Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 19.8V | Open Circuit Voltage(Voc): 23.7V |
| Short circuit current: 10.5A | Maximum current: 9.85A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame | Weight: 20.48 lbs (9.29 kg) |
| Size: 52.6x26.38x1.38in (1335*670*35mm) |

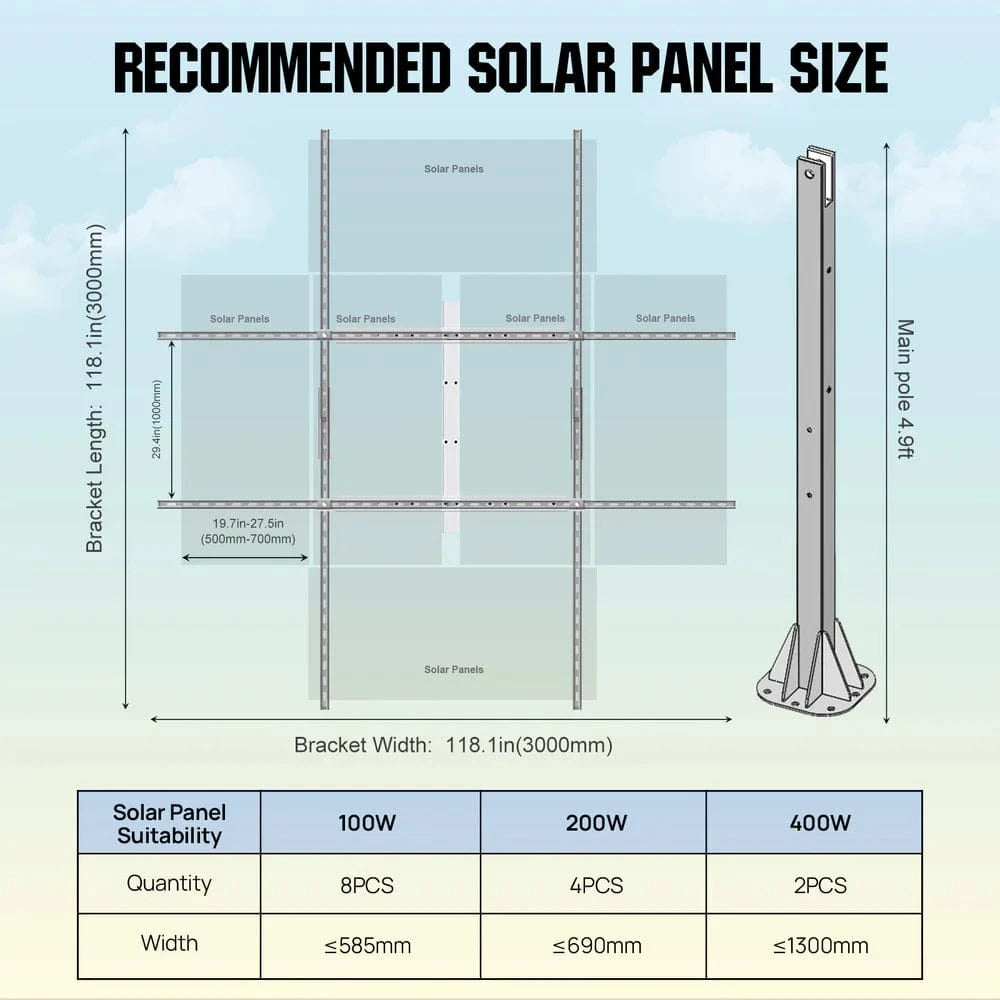

Dual Axis Solar Tracking System
| Solar Panel Suitability | 100W | 200W | 400W |
| Quantity | 6PCS | 4PCS | 2PCS |
| Width | <585mm | <690mm | <1300mm |
| Item Weight:94lbs | Max load:150kg | ||
| Product Dimensions: | 110 x 110 x 64 inches | Max wind speed: | 17.2m/s |
