Eco-Worthy Solar Panel Dual Axis Tracking System Expanded Version w/ Tracker Controller

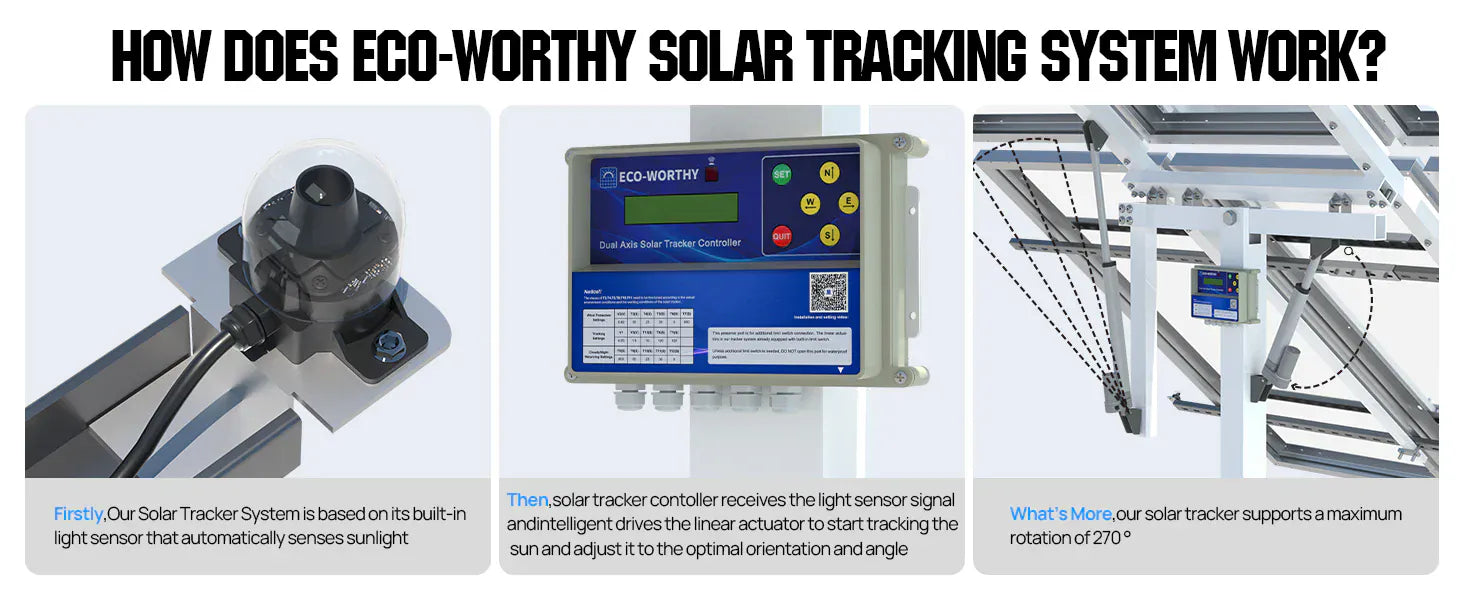

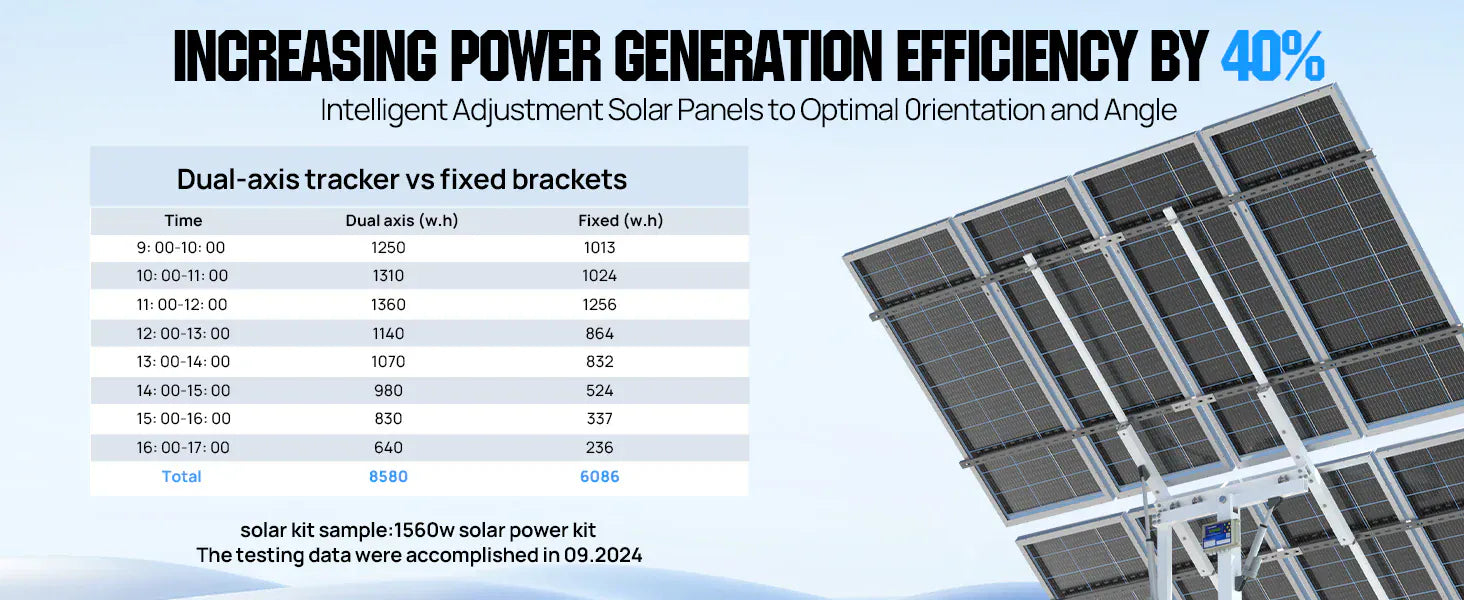

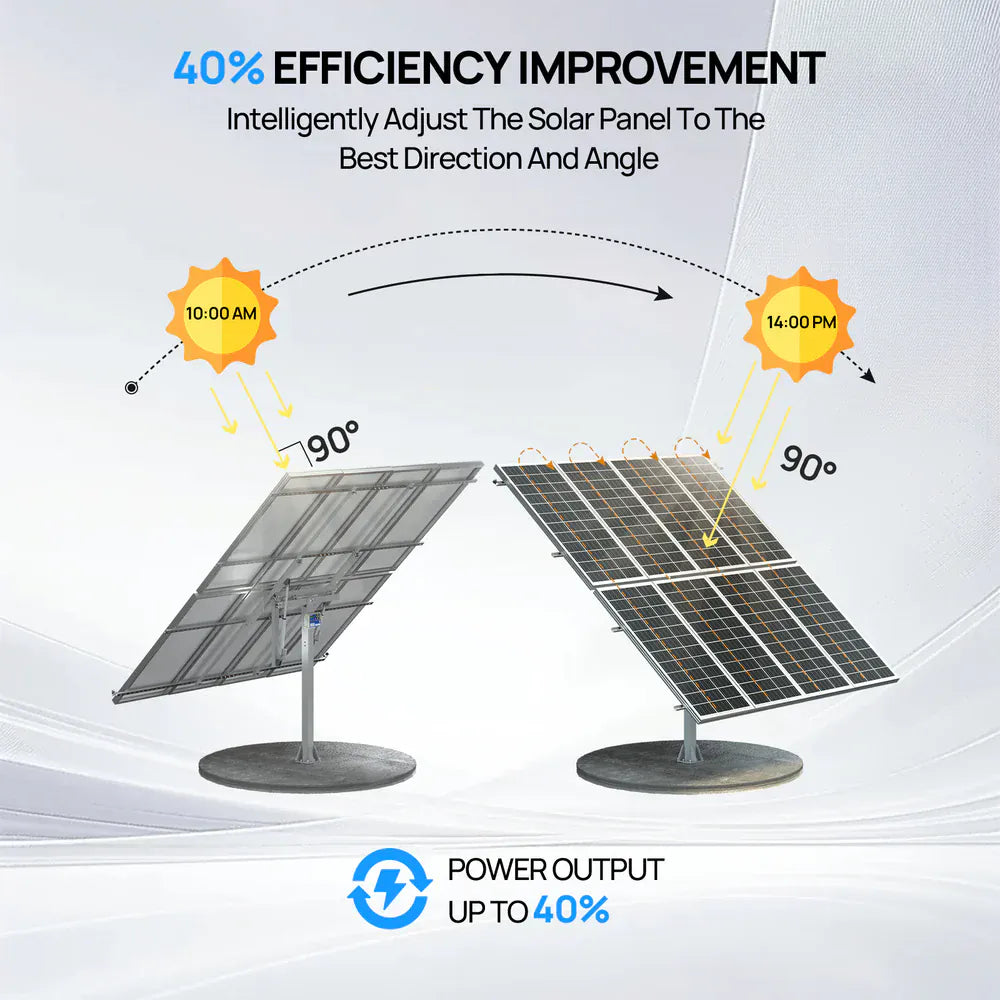

Intelligent tracking, increase efficiency by 40% High-precision light sensor monitors the light intensity in real time and intelligently adjusts the angle of the solar panel, which improves the power generation efficiency by 40% compared with the ordinary bracket.

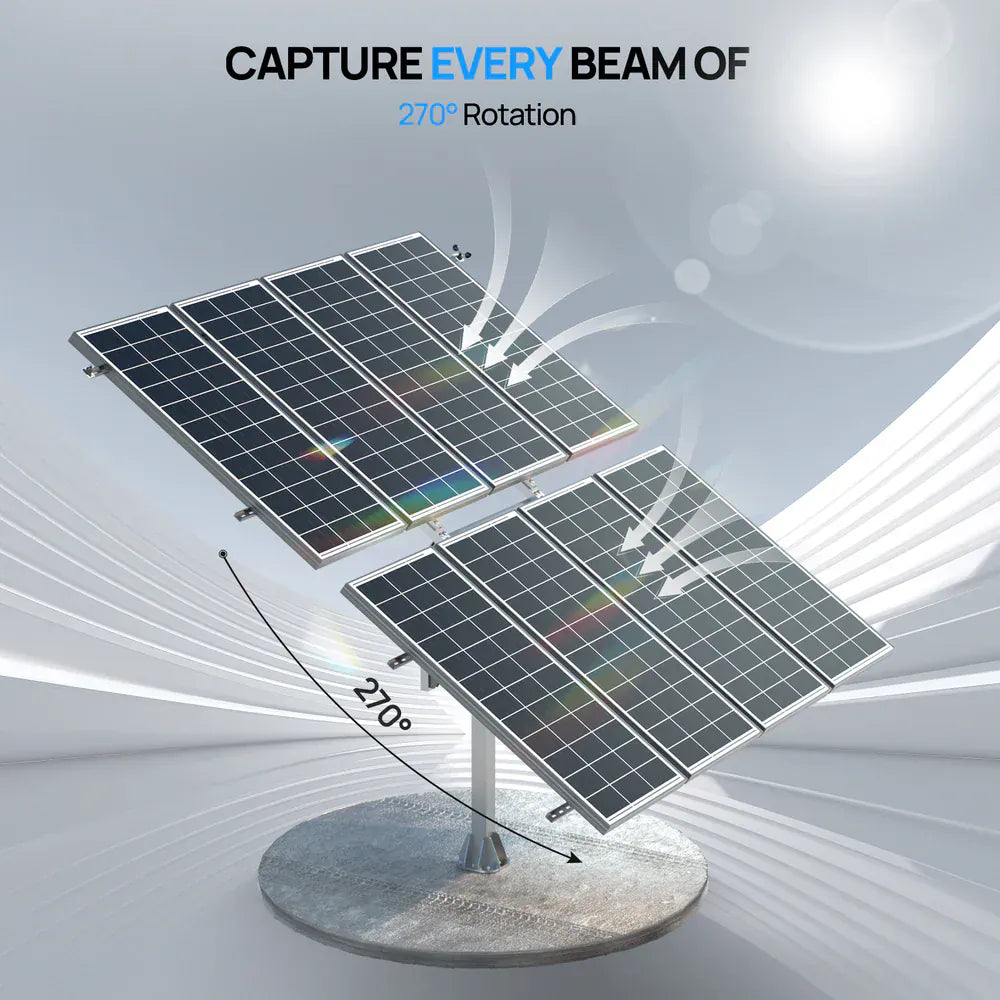

Accurate light tracking, extend time Dual-axis drive + sensitive sensors, realizing 270°accurate tracking of the sun, capturing every beam of light, and improving the efficiency of energy conversion.
Intelligent adaptation to extreme weather Wind speed over 17.2m/s automatic leveling (adjustable), support manual adjustment of bracket direction, intelligent snow removal in snowy days.

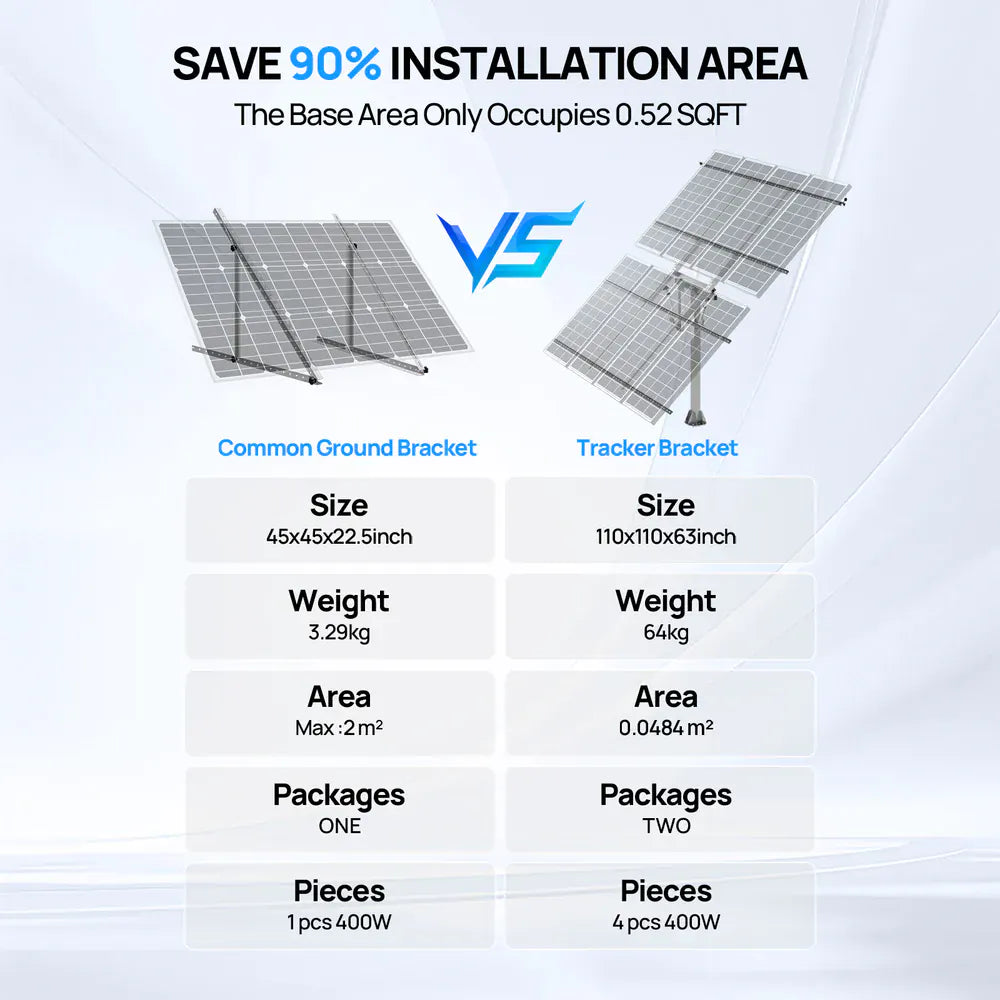

Save 90% installation space Occupies only 0.0484m², saves 90% space compared with traditional bracket, suitable for small yards/farms.

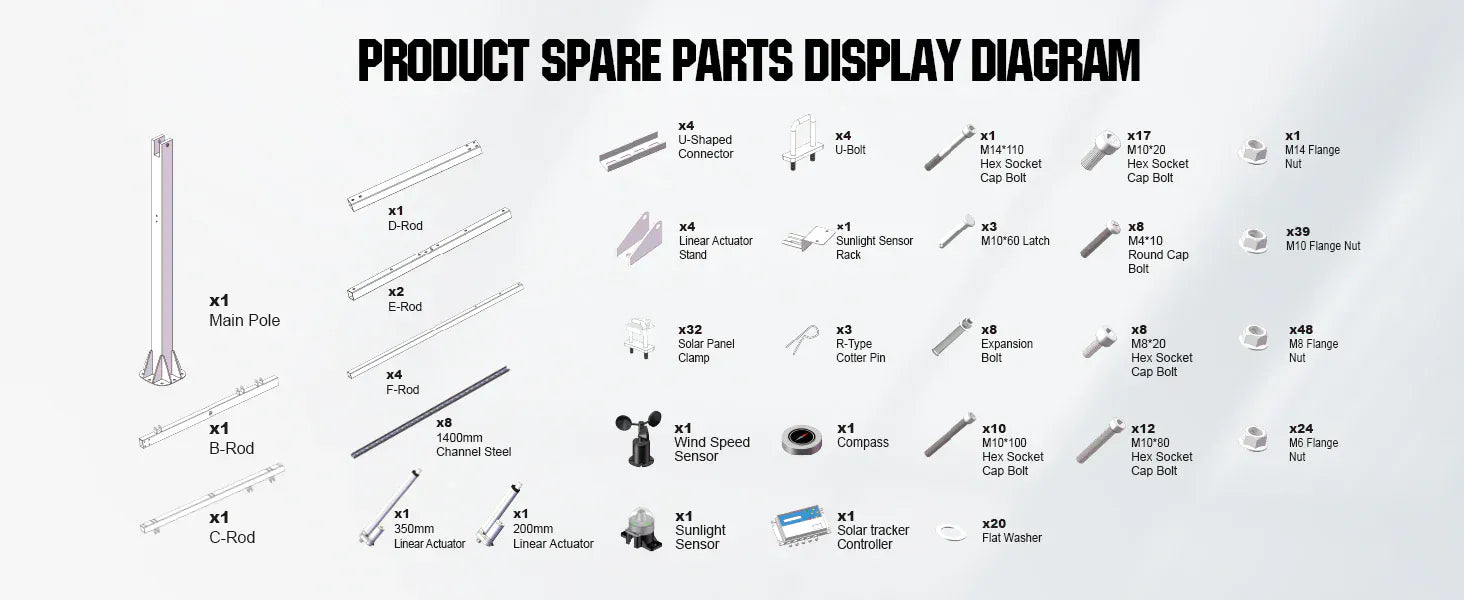

Package Includes:
Upgraded Expanded Tracking System

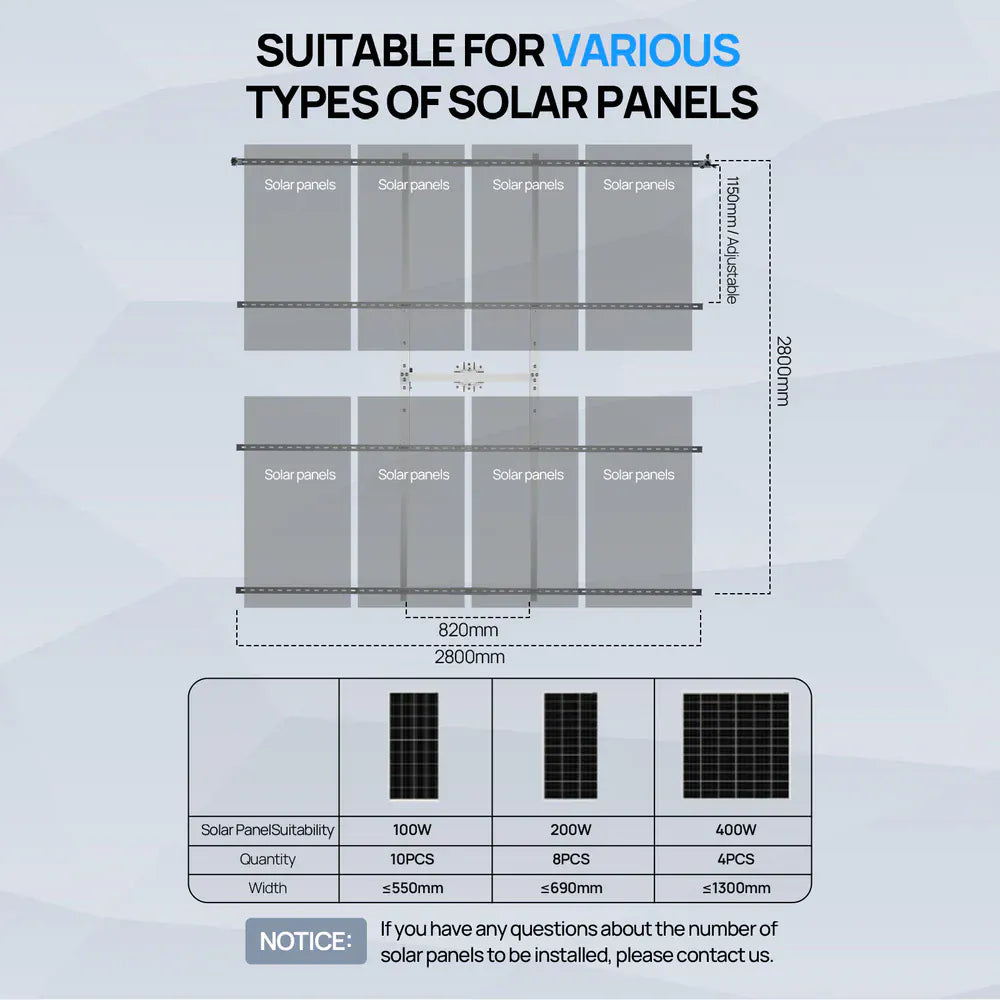

| SolarPanelSuitability | 100W | 200W | 400W |
| Quantity | 10PCS | 8PCS | 4PCS |
| Width | ≤550mm | ≤690mm | ≤1300mm |

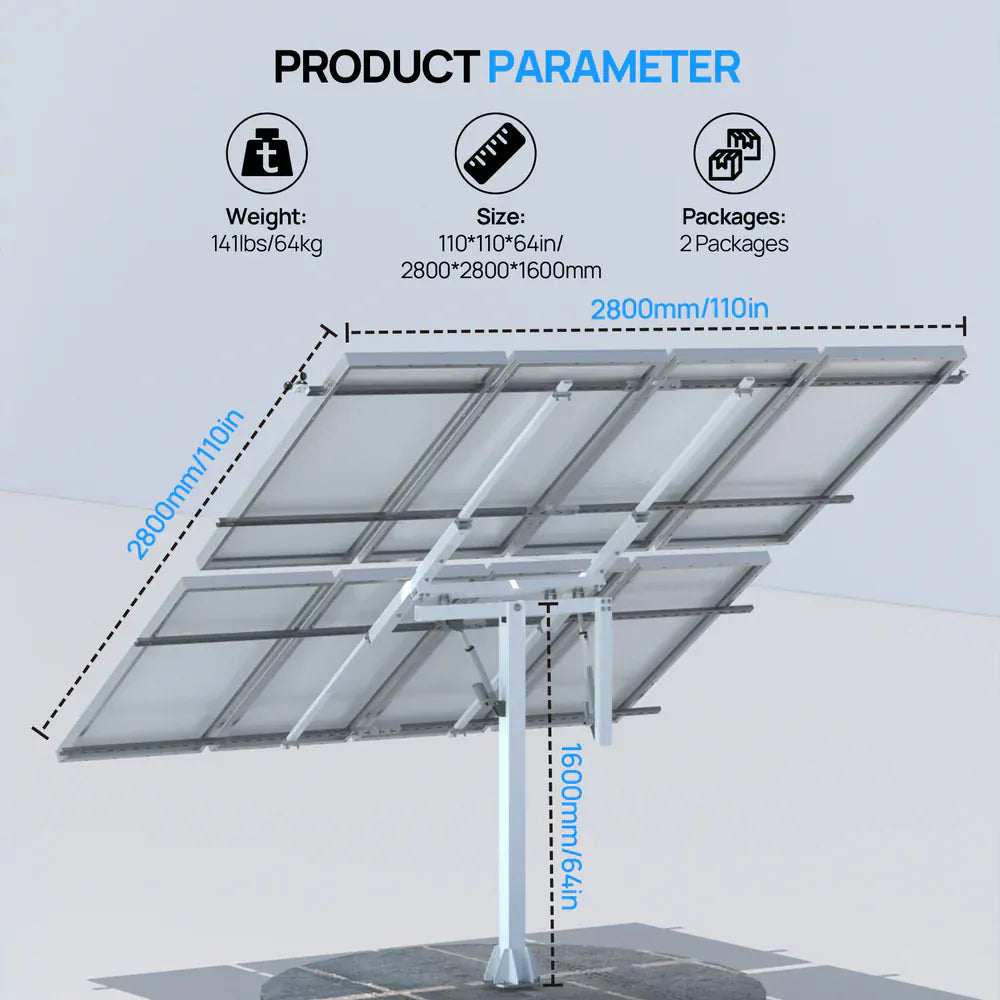

| Product Dimensions: | 110 x 110 x 64 inches | Max wind speed: | 38.48 mph (17.2m/s) |
| Item Weight: | 141 pounds | Max load: | 200kg |

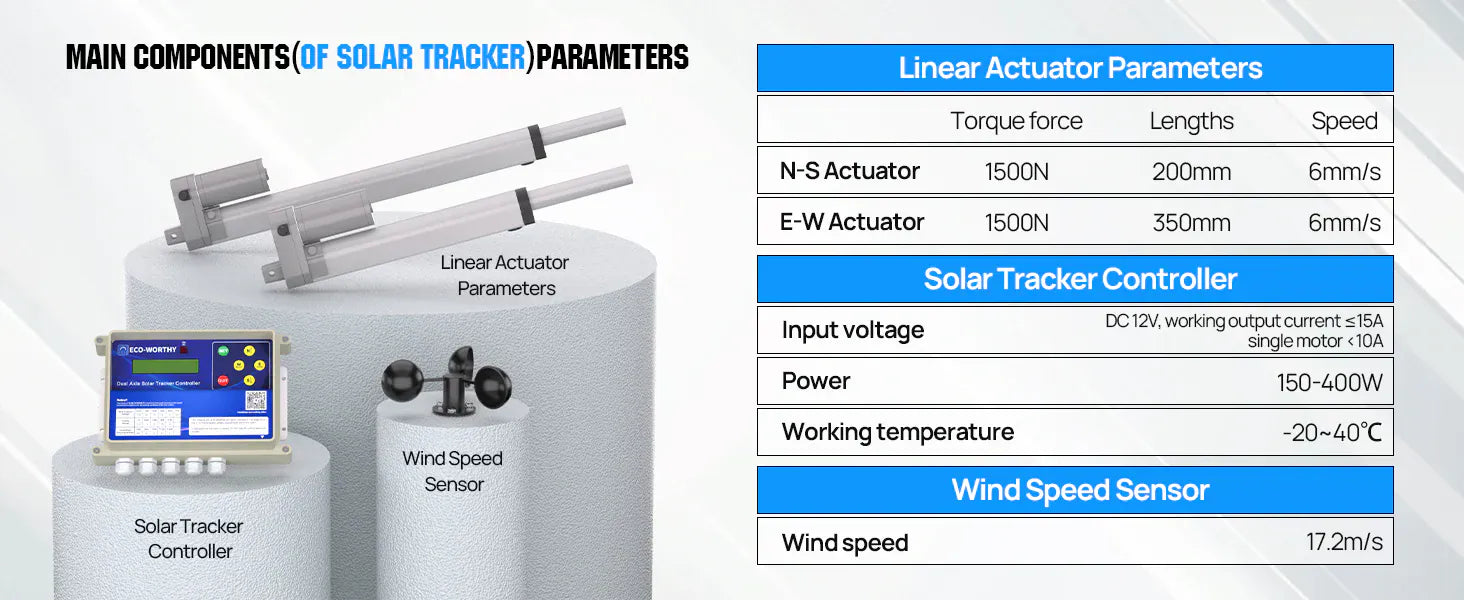

6" 150mm Linear Actuator
| Input Voltage: 12V DC | Max. Load: 1500N/330lbs/150kg |
| Stroke Length: 6 inches (150mm) | Duty Cycle: 25% |
| Protection Class: IP65 | Material: Aluminum alloy |
| Low Noise: db<45 (A) |
12" 300mm Linear Actuator
| Input Voltage: 12V DC | Max. Load: 1500N/330lbs/150kg |
| Stroke Length: 12 inches (300mm) | Duty Cycle: 25% |
| Protection Class: IP65 | Material: Aluminum alloy |
| Low Noise: db<45 (A) |
Not included: Eco-worthy Power box for Solar tracker - This has to be ordered separately.
FAQs:
- How to fix the base of main pole? (foundation length, width and depth?
- The main pole must be installed on solid concrete ground or pier with the expansion bolts. The solid ground base must be larger or equal to 600*600*700mm cube. Recommend concrete material (kg/m³):Cement(450kg)+Water(183kg)+Sand(600kg)+Gravel (1,192kg)
- Distance between multiple sets of solar tracker?
- 4.5m(14.8FT) or more
- Light sensor installation position and direction?
- The outlet of the light sensor should always face south, and it is recommended to install it at the end of the first C-shaped steel on the east side
- Installation position of "East-West"linear actuator?
- Towards the west side
- What should I do if I encounter problems with the installation?
- Please let us know,we will reply your email in 12h on weekdays
