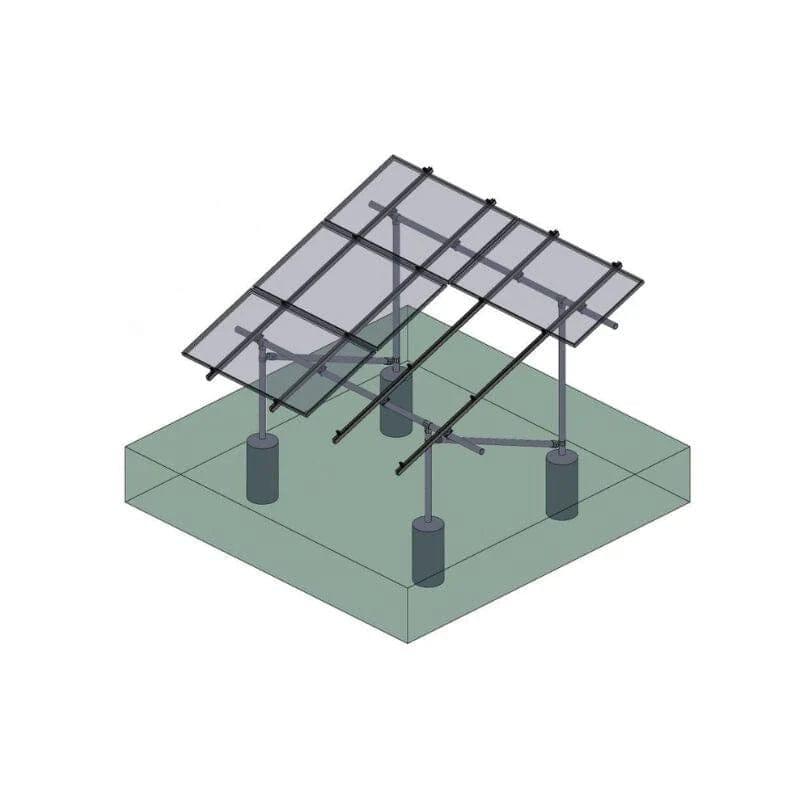

The Tamarack Solar 90835- A Ground Mount 4 Module Add-On Column Kit is designed for use with 3.1 inch rails. This kit allows for the easy and secure installation of an additional 4 modules to your ground mount system. Get the most out of your solar setup with this durable and efficient add-on column kit.
Low-cost, rail-based PV module mounting system provides easy installation, simple wire management, great strength and economical shipping.
GM KIT C - 4 Modules - 186" - for 0 Posts
Features:
- Best Wire Management - PV cables and wiring for module-level electronics fits inside rails to avoid time consuming wire management.
- UL 2703 Listed - All components meet the UL standards and have a Class A Fire Rating for Type 1 and 2 modules.
- PE Certified - Pre-stamped engineering letters available for most states.
- Utilizes our Heavy-duty 3.1 Mill-finish rails.
- UPS-Shippable
- Mount up to 64 modules on a single structure.
- Rated for up to 170 MPH wind speed and 70 psf of snow load.
- Mount typical modules with frame thickness between 30mm and 40mm.
- Kit includes all parts required except: Swivel Tee-Fittings for cross bracing, if needed 2-inch Schedule-40 pipe Concrete
- Sites with a ground slope greater than 15 degree may require additional engineering certification.
- Some situations require cross bracing - use our sizing calculator
- Maximum module width: 43-inches on 3-module kits / 45 inches on 4-module kits.
Includes:
- (4) 93" rails
- (2) Splices
- (4) Pipe Mounts
- (10) 5050 Clamps
- (4) End Caps
- (8) Module Lead Clips
- (1) Ground Lug
