Tamarack Solar Top Cap 70-0300-PGM-B

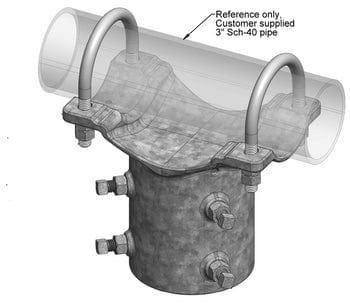

Tamarack Solar PGRM series pole cap that adds an additional vertical ole can help stabilize PGRM Top Pole Mounts that may be subject to high wind environments. Improved version of the PGRM cap where the pipe saddle is molded on the cap rather than separate pieces.
Top of Pole – Portrait Orientation (PGRM)
The popular PGRM Mounts are designed for up to 6 modules per mount in portrait orientation. Available tilt angle ranges from 0° to 90° and allows easy seasonal adjustability. Use for modules with a minimum length of 35.5-inches and a maximum sq. footage of 24.78. Clamp attachment uses the lip on the back of module frame and accommodates frame thickness between 1.18-inches and 2-inches. Rated for windspeeds up to 115 MPH. Install up to 92 square feet of modules on a single 4” Schedule 40 pole and up to 130 square feet of modules on two 4” schedule 40 poles.
FEATURES
Options, Options, Options
Mount from 1-6 modules per mount in portrait orientation
Easy to Install
Simple, one-person installation and tilt angle adjustment
Accommodates Many Sizes of Modules
For modules up to 24.78 square feet and with a minimum length of 35.5 inches
Heavy Duty Construction
Rated for windspeeds up to 110 MPH
Available Immediatly
In stock for immediate shipment using ground carriers
Adjustable
Tilt Angle
Tilt angle can be set from 0° to 90° and is easily adjusted seasonally
