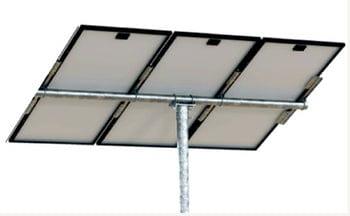

The Tamarack Solar Top Of Pole Mount - PGRM - UNI-PGRM/3P1 is a reliable and efficient mounting solution for solar panels. With this mount, you can easily install your panels on top of poles, maximizing sunlight exposure. Its universal design accommodates various panel sizes, making it versatile and cost-effective. Enhance your solar energy system with this durable mount.
UNI-PGRM/3P1 (for modules 72”- 96” long)
VERTICAL AND HORIZONTAL SCHEDULE-40* PIPE IS NOT INCLUDED. PURCHASE LOCALLY.
* Some wind speeds and snow loads require two vertical poles and/or Sch-80 horizontal/vertical pipe.
If an additional vertical pole is required order a 70-0300-PGM-B Pole Cap.
Features:
- Mount three solar modules with a total area of 75 sq-ft and a frame thickness between 1.18 and 2 inches*
- Suitable for wind speed up to 150 MPH and snow load up to 100 PSF
- Maximum post height of 6-feet above ground
- Tilt angle from 10° to 60°
- Ships via UPS
- Simple one-person installation and
adjustment
- Larger modules can be mounted with reduced wind and snow load.
