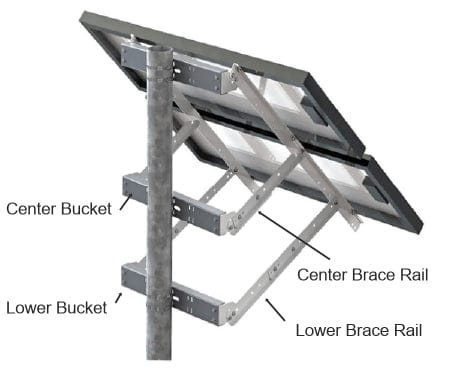

Tamarack Solar UNI-SP/03X Side Of Pole Mount

The Side of Pole Mount is a simple and universal pole mounting solution for photovoltaic modules.

The UNI-SP/03X model is designed for mounting two PV modules in landscape orientation, with a maximum combined module width of 89-inches. These mounts can be installed on a 4-inch

Schedule 40 pipe with provided band clamps, or a 4-inch to 6-1/2-inch OD pole with user-supplied U-bolts, lag bolts (flat surfaces), or on a 25G ROHN tower frame. User-adjustable angle settings from 40 to 66 degrees.

Downloads:

• Installation Manual
