Tamarack Solar Top Of Pole Mount - PGRM - UNI-PGRM/5P2

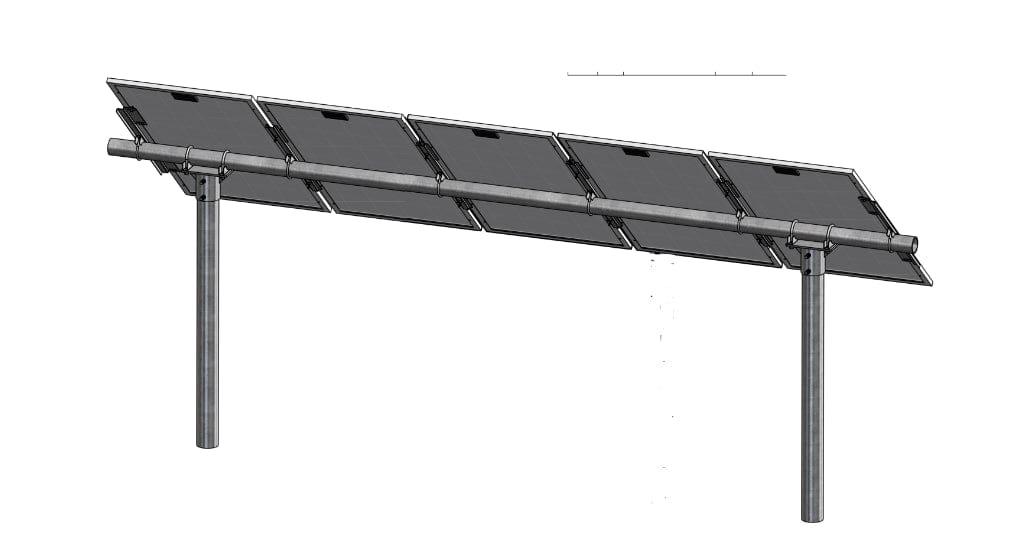

UNI-PGRM/5P2 (for modules 38”- 72” long)

VERTICAL AND HORIZONTAL SCHEDULE-40* PIPE IS NOT INCLUDED. PURCHASE LOCALLY.
* Some wind speeds and snow loads require three vertical poles and/or Sch-80 horizontal/vertical pipe.
If an additional vertical pole is required order a 70-0300-PGM-B Pole Cap.

Features:

• Mount five solar modules with a total area of 125 sq-ft and a frame thickness between 1.18 and 2 inches*
• Suitable for wind speed up to 150 MPH and snow load up to 100 PSF
• Max post height of 6-feet above ground
• Tilt angle from 10° to 60°
• Ships via UPS
• Simple one-person installation and
  adjustment

* Larger modules can be mounted with reduced wind and snow load.

Downloads:

• Datasheet
• Installation Manual
• Engineering Certification
