Made in the USA with sealed burners and cast iron grates for a safer, cleaner cooking experience
Made in the U.S.A., Summit's gas cooktops offer lasting quality and reliable cooking for smaller kitchen spaces.

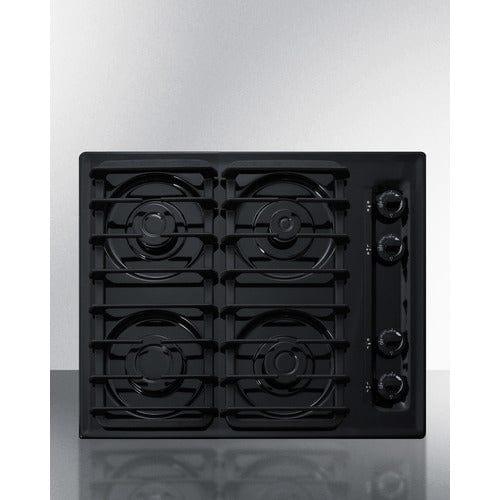

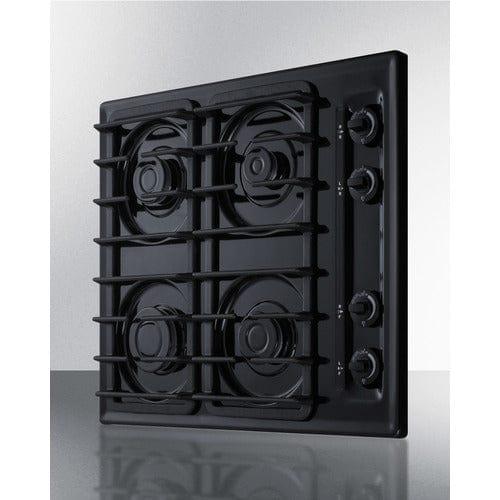

The TTL033S is a 24" wide 4-burner cooktop designed for 22 5/8" W x 18 5/8" D cutouts. The scratch-resistant porcelain surface features a jet black finish and recessed design to better contain spills. The side-located push-to-turn dial knobs offer easy use. Two sets of continuous cast iron grates are designed to hold up to heavy pots and pans.
Four sealed Sabaf burners with removable burner caps ensure safer and cleaner cooking. The TTL033S includes a high output 12000 BTU burner for powerful heating, conveniently located in front for easy access. The rear 5000 BTU burner is ideal for simmering at lower power or keeping food warm without overcooking. Two standard 9100 BTU burners meet most cooking needs. This unit utilizes electronic spark ignition and includes a pre-installed 3-pronged cord.
The TTL033S is set for natural gas and can be converted to propane connections with the purchase of our Kit LP S2. Additional choices are available in white and chrome.
|
Overview
|
| Height of Cabinet |
4.0" (10 cm) |
| Width |
24.0" (61 cm) |
| Depth |
20.0" (51 cm) |
| Cabinet |
Black |
| US Electrical Safety |
CSA |
| Canadian Electrical Safety |
CSA-C |
| Weight |
27.0 lbs. (12 kg) |
| Shipping Weight |
29.5 lbs. (13 kg) |
| Parts & Labor Warranty |
1 Year |
| UPC |
761101061603 |
|
Gas Cooktop
|
| Ignition |
Spark |
| LP Convertible |
With Kit LP S2 Accessory |
| Number of Burners |
4 |
| Controls |
Dial |
| Surface |
Painted |
| Grate Material |
Cast Iron |
| Cutout Width |
22.63" (57 cm) |
| Cutout Depth |
18.63" (47 cm) |
| Burner #1 BTU |
12000.0 |
| Burner #2 BTU |
9100.0 |
| Burner #3 BTU |
9100.0 |
| Burner #4 BTU |
5000.0 |
| Power Cord Included |
Yes |
Made in the USA
Designed and constructed domestically
Sealed Sabaf® burners
Quality burners with cast iron tops ensure lasting durability and easier cleanup

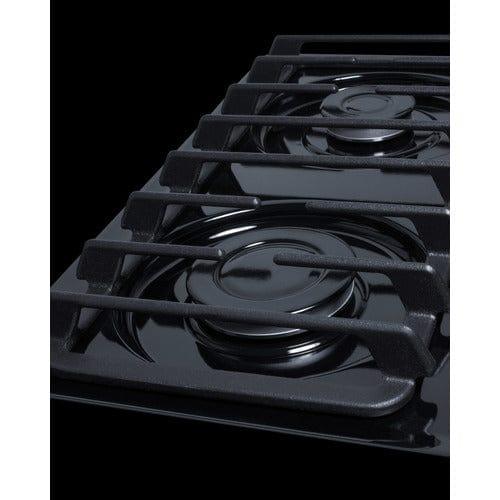

Cast iron grates
Two sets of continuous grates in heavy duty cast iron hold up to large cookware
Fits common cutouts
Designed for 22 5/8" W x 18 5/8" D cutouts for an easy fit in smaller kitchens
Power burner
Front left burner features 12,000 BTU output for powerful cooking
Simmer burner
Rear burner on right side reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items
Two standard burners
Front right and rear left burners offer 9100 BTUs of cooking power to accommodate most dishes

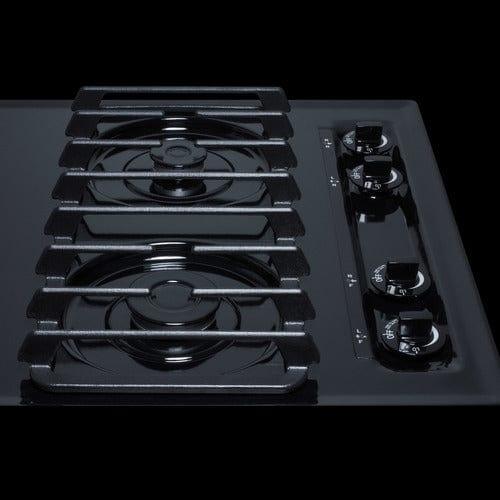

Push-to-turn knobs
To prevent accidents, knobs require a small amount of force when turning
Recessed top
Curved design helps to contain spills on the surface for easier cleanup
Porcelain cooking surface
Black glossy finish on scratch resistant top
Removable burner caps
Burners include a removable cap for easy cleaning
Electronic/gas spark ignition
Gas spark ignition for automatic lighting of burners
Cord included
Pre-installed 115V 3-pronged power cord
Convertible with kit
Unit is set for natural gas. To use with LP gas, order Summit Kit LP S2 accessory
