Specially designed for accessible use in ADA compliant kitchens
Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines.
Model HC30BBADA is a 30" wide range hood ideal for apartments, senior living kitchens, hotel suites, and other smaller spaces. It comes in a jet black finish constructed from 21 gauge galvanized steel for a clean look and durable design. We include a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The fan can be set at a high or low setting to best meet your ventilation needs. This unit can operate at 300 CFM for thorough ventilation. Airflow is directed upwards at a slight angle, ensuring smoke and odors won't blow towards the home chef.
This hood ships for ductless/recirculating ventilation (where no exhaust connection to the outside is available) but is convertible for horizontal or vertical ducted ventilation (3 1/4" x 10" rectangular ducting or 7" round, transition required). We include a combination aluminum mesh/charcoal filter to absorb grease, smoke, and odors. This unit accepts a standard light bulb (not included). Both the filter and lens cover snap in place, with no tools required to change out as needed. Note: this hood does not include a power cord and is designed to be hard-wired by a licensed professional.
In addition to this ADA compliant range hood, Summit manufactures this series in additional colors, as well as shell hoods and wall-mounted European hoods. Browse the full Summit product line to explore your options.
|
Overview
|
| Height of Cabinet |
5.5" (14 cm) |
| Width |
29.88" (76 cm) |
| Depth |
20.0" (51 cm) |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
1.7 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
13.0 lbs. (6 kg) |
| Shipping Weight |
19.0 lbs. (9 kg) |
| Parts & Labor Warranty |
1 Year |
| UPC |
761101107240 |
|
Range Hood
|
| Installation |
Under Cabinet |
| Venting |
Convertible |
| Controls |
Dial |
| Number of Fan Speeds |
2 |
| Maximum Air Movement |
300.0 CFM |
| Sone Rating |
6 |
| Duct Shape |
3"1/4" x 10" rectangular or 6/7" round with transition |
30" Wide ADA Compliant Range Hood
Convertible hood designed for ducted or ductless installation in compliant with ADA guidelines
ADA compliant design

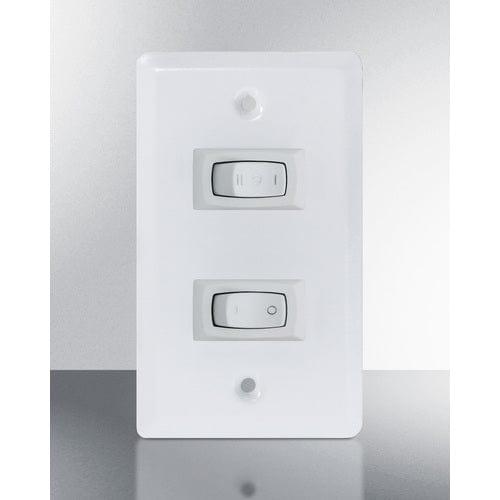

Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included

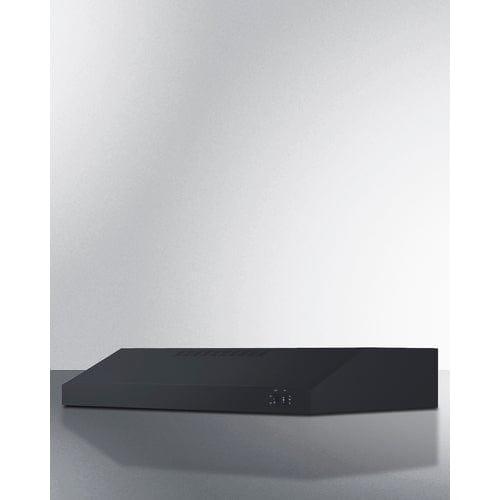

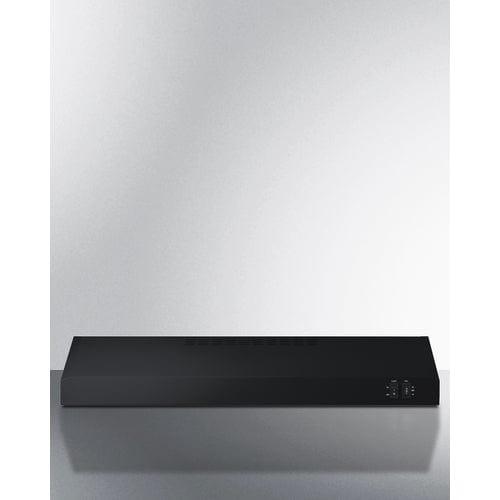

Under cabinet range hood
Low profile design offers classic style to finish your kitchen
30 inch width
Sized for use over 30 inch cooking surfaces (additional sizes available)
Convertible design
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
Powerful ventilation
Can operate at 300 CFM to ensure thorough ventilation of your cooking surface
Black finish
Matte finish in jet black suits any kitchen space
Easy conversion
Ships pre-set for recirculating mode but can be converted in a few simple steps

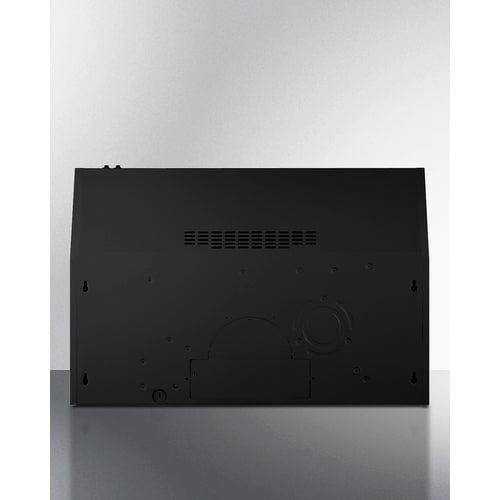

Versatile top or rear exhaust
Can be connected to 3 1/4" x 10" vertical or horizontal exterior venting or 7" round vertical (transition required for both)
Durable 21 gauge steel construction
Powder-coated finish over steel that's 53% heavier gauge than most of the industry's under cabinet hoods
Angled airflow
Vents are set at a slight upwards angle, ensuring smoke and odors won't be directed towards the user

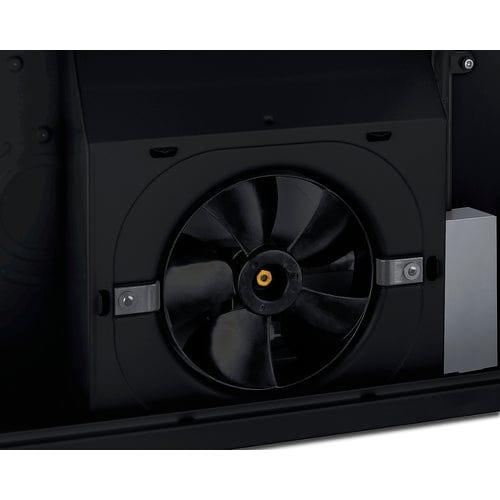

Two-speed fan
High and low setting to allow proper ventilation of your kitchen as needed
Accepts a standard bulb
Designed to hold a standard incandescent light bulb with easy installation and no tools required

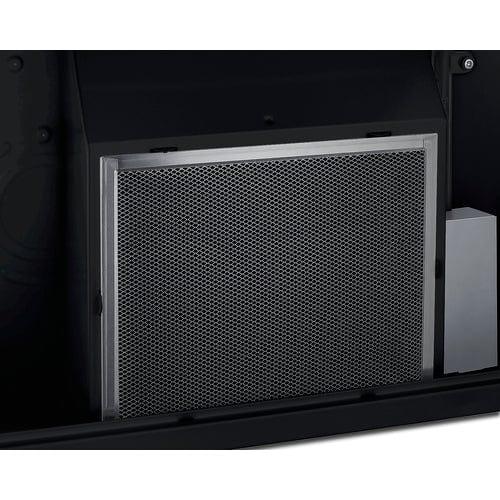

Combination charcoal/aluminum mesh filter
Aluminum filter includes charcoal filler to absorb smoke, grease, and odors for a cleaner kitchen experience
Removable filter
Snap-in design allows you to easily remove the filter for fast replacing as needed
Rocker switch controls
Front-located on/off and high/low switches make it easy to manage the light and fan
Professional installation
Designed to be hard-wired by a licensed professional
Made in North America
TAA compliant
