RENOGY 12V 50Ah Core Series Deep Cycle Lithium Iron Phosphate Battery
Renogy 12V 50Ah battery is an advanced energy storage solution designed for exceptional performance and durability. Whether you need a dependable power source for outdoor adventures or a backup battery for critical systems, the 12V 50Ah battery is the perfect choice for your energy storage needs.
Reasons to Love

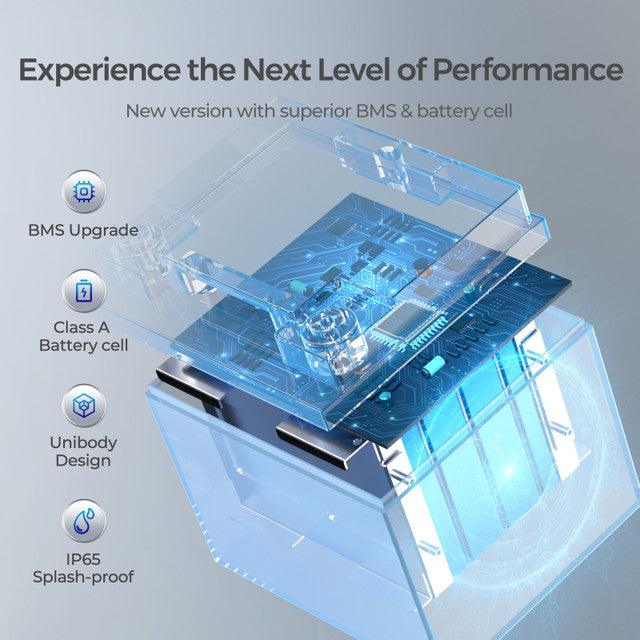

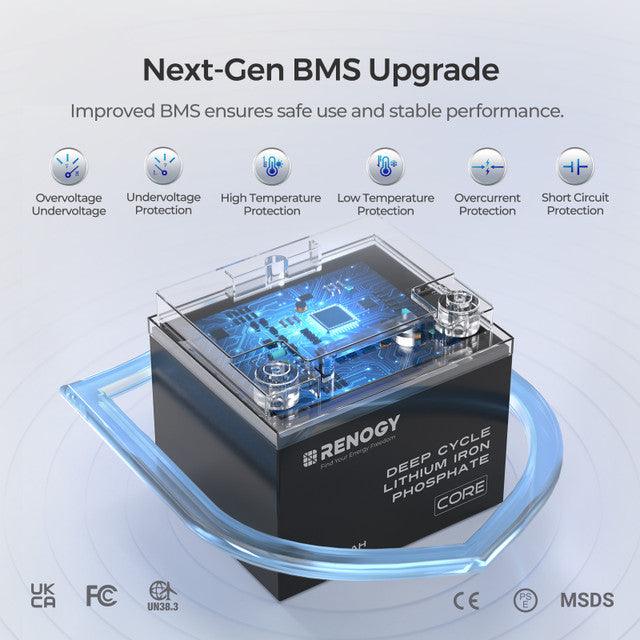

The Advanced BMS Upgrade Enhances Safety And Efficiency
The advanced Battery Management System (BMS) upgrade enhances safety and efficiency, protecting the battery from overcharging, over-discharging, and potential hazards.
Small Sheds & Cabins
12V 50Ah battery provides a dependable backup power solution in case of emergencies or power outages.
It can power essential appliances like lights, heaters, or radios, ensuring your comfort and safety even when the grid power is unavailable.
Versatile 12V 50Ah Battery for Diverse Applications
The 12V 50Ah battery is a versatile power source designed to meet the demands of various applications, including electric fences, Ham radios, and trolling motors. Its robust capacity and reliable performance make it an ideal choice for providing consistent and dependable energy.
Trolling motor
The mileage achievable with a 12V 50Ah battery for a trolling motor towing a boat is determined by multiplying the trolling motor's running speed by the duration of use. Typically, trolling motors operate at speeds ranging from 2 to 5 miles per hour (approximately 3.2 to 8 kilometers per hour).
Dimensional Reference Guide
Before installing the battery, please note that you need to leave 1.97-3.94 in (50-100 mm) for the top of the battery; the side with busbars needs to be left at least 7.87 in (200 mm).
Package Includes
- 12V 50Ah Core Series Deep Cycle Lithium Battery x 1
Specifications
Electrical Specifications
- Rated Capacity: 50Ah
- Nominal Voltage: 12.8V
- Voltage Range: 10-14.8V
- Energy: 640WH
- Cycle Life(0.5C/25℃): 3500 Cycles (80% DOD, 80% EOL)

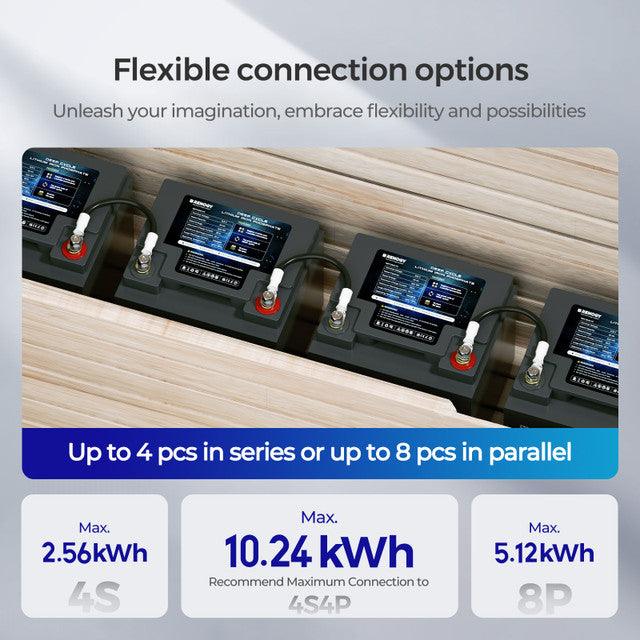

- Connection Method: Series （Up to 4）& Parallel (Up to 8)
- Automatically Self-heating Function: No
Mechanical Specifications
- Dimensions(L x W x H): 7.8*6.5*6.7in/198*165*169mm
- Weight: 11.77lbs./5.35Kg
- Protection Rate: IP65
- Housing Material: ABS+PC
Charging Parameters
- Charge Voltage: 14.4V
- Maximum Continuous Charge Current: 50A
- Charge Cut-off Voltage: 14.6V
Discharging Parameters
- Maximum Continuous Discharging Current: 50A
- Peak discharge current: 100A
- Discharge Cut-off Voltage: 10V
Temperature Parameters
- Standard Operation Temperature: 73.4 ± 9℉ / 23 ± 5℃
- Storage Temperature: -25°C-65°C/ -13℉~149℉
- Charge Temperature: 0°C-55°C/32℉~131℉
- Discharge Temperature: -20°C-60°C/ -4℉~140℉
Communication
- Built-in Bluetooth: No
- Communication Port: No
Accessories
- M8 Bolts: M8 ×2
- Activation Switch: No
Warranty
- Material and workmanship warranty: 5-year
Certifications
- Certifications: MSDS、UN38.3、FCC、CE, UKCA, PSE
- AH: 50 AH
- Voltage: 12V
- Shop By Scenario: Trolling Motor
Downloads:
