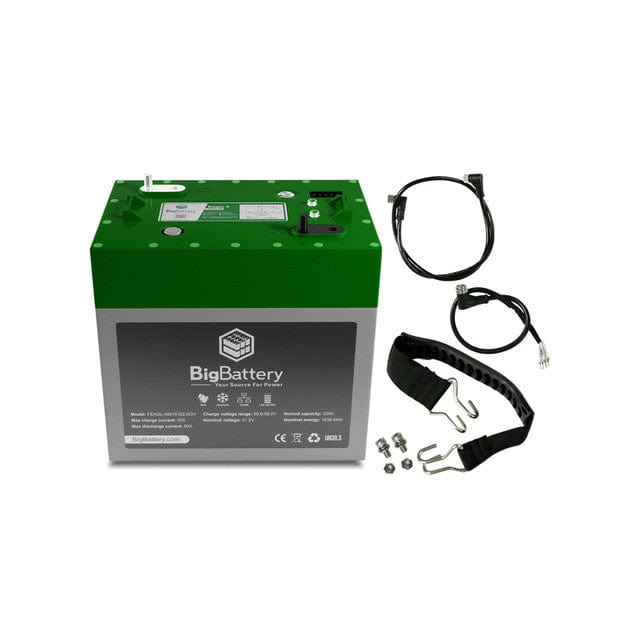

BigBattery | 48V EAGLE 2 | LiFePO4 Lithium Battery 1.63kWh | For Golf Carts, Utility Vehicles, RVs & Camper Vans
The BigBattery 48V 1.63 kWh EAGLE 2 battery system offers the same reliability and performance as its 24V counterpart, tailored for higher voltage applications. It serves as an ideal solution for golf carts, RVs, industrial equipment, off-grid power systems, emergency power supplies, and more.
Reliable Safety and Performance: Utilizing lithium iron phosphate (LiFePO4 or LFP) cells renowned for their safety, the EAGLE 2 ensures optimal performance and safety with its intelligent Battery Management System (BMS). Waterproof and equipped with built-in fire-extinguishing modules and heating elements, it offers reliable operation even in extreme conditions.
Seamless Integration: With a standard M8 bolt connection, the EAGLE 2 easily integrates into existing systems, providing ease of installation and connectivity.
Longevity and Durability: Engineered for longevity, the EAGLE 2 boasts a lifespan of over 10 years and can withstand more than 4000 - 6000 cycles at 80% Depth of Discharge (DOD) at a rate of 0.5C.
Monitoring and Connectivity: Monitor remaining capacity with the LED meter for easy tracking of battery status.
Key Features:
- GC2 form factor
- Self-heating function
- IP67 protection rating
- Smart BMS with auto-cell balancing
Battery Specifications:
- SKU: FEAGL-48016-G2-XXX
- System Voltage: 48V
- Nominal Voltage: 51.2V
- Chemistry: LiFePO4
- kWh Capacity: 1.63 kWh
- Ah Capacity: 32
- Charging Voltage Range: 55.6V - 58V
- Max Continuous Discharge Current: 60A
- Max Continuous Power: 3072W
- Max Discharge Peak Current: 200A (Max 3 seconds)
- Max Charge Current: 30A
- Charge Temperature Range: -4°F - 131°F (-20°C - 55°C)
- Discharge Temperature Range: -4°F - 140°F (-20°C - 60°C)
- Optimal Discharge Temperature Range: 59°F - 95°F (15°C - 35°C)
- Storage Temperature Range (SoC >50%): 23°F - 95°F (-5°C - 35°C) (Max 3 months)
- Dimensions (DxWxH): 7.1 x 10.2 x 10.8 in (180 x 260 x 274 mm)
- Weight: 38 lbs (17.2 kg)
- Max Connections: Up to (10) Parallel
- Protection Rating: IP67
- Communications: No CANBus
- Heating Function: Yes
Designed For:
- Golf carts
- Utility carts
- 48V UTVs & LSVs
- Lead acid replacement
- Intense heat & cold
- Class A, B, & C RVs
- Camper vans
- Food trucks
- Commercial vehicles
- Emergency backup
Additional information
SKU: 1622003
Click here to download manual
Click here to download spec sheet
